DESCRIPTION

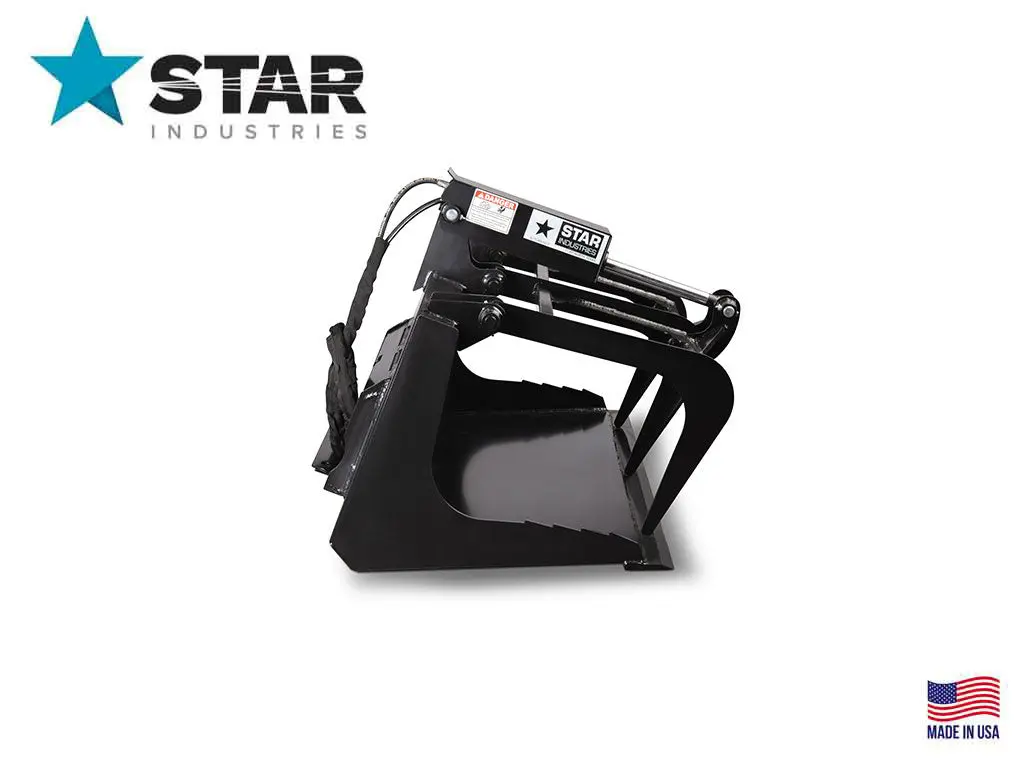

Mini Industrial Grapple Buckets
Move bulky, hard-to-handle materials like brush and logs easily with a Star Industries Mini Root Grapple or Grapple Bucket. The root grapples let dirt sift out when loading large rocks and trash making it the perfect attachment of debris clean up. The grapple bucket has a solid bottom to keep all material in the bucket. Both open extra wide for a full load.
- Made for Dingo, Ditchwitch, Vermeer, Boxer, Ramrod and Bobcat Mini Skid-Steers
- Protective sleeves on all hydraulic lines
SPECS
| model # | fits | size | lbs |
| 175-MI-44 | Ditchwitch, Vermeer, Boxer, Ramrod | 44″ | 263 |
| 175-MIBC-36 | Bobcat | 36″ | 223 |
| 175MIBC-44 | Bobcat | 44″ | 263 |
Mini Grapple Bucket
| Model | 175-MI-44 | 175-MIBC-44 |
|---|---|---|
| Fits | Dingo, Ditchwitch, Vermeer, Boxer and Ramrod | Bobcat |
| Empty Weight | 263 lbs | 263 lbs |
| Measurements | Grapple Bucket |
|---|---|
| Width | 44” O.D. |
| Hyd. Cylinder | 2” Bore by 10” Stroke |
| Grapple Tines | 5/16” thick |
| Grapple Max Opening | 30” |
| Overall Depth | 35 ¾” |
| Overall Height | 27 ¾” |
| Bucket Height | 21” |
| Bucket Depth | 26 3/8” |
| Pivot Pins | 1” DIA: Grease fittings on all pivot points |
| Hyd. Hoses | Protective sleeves on all hydraulic lines |
| Hyd. Quick-Disconnects | ½” flat body couplers included |
