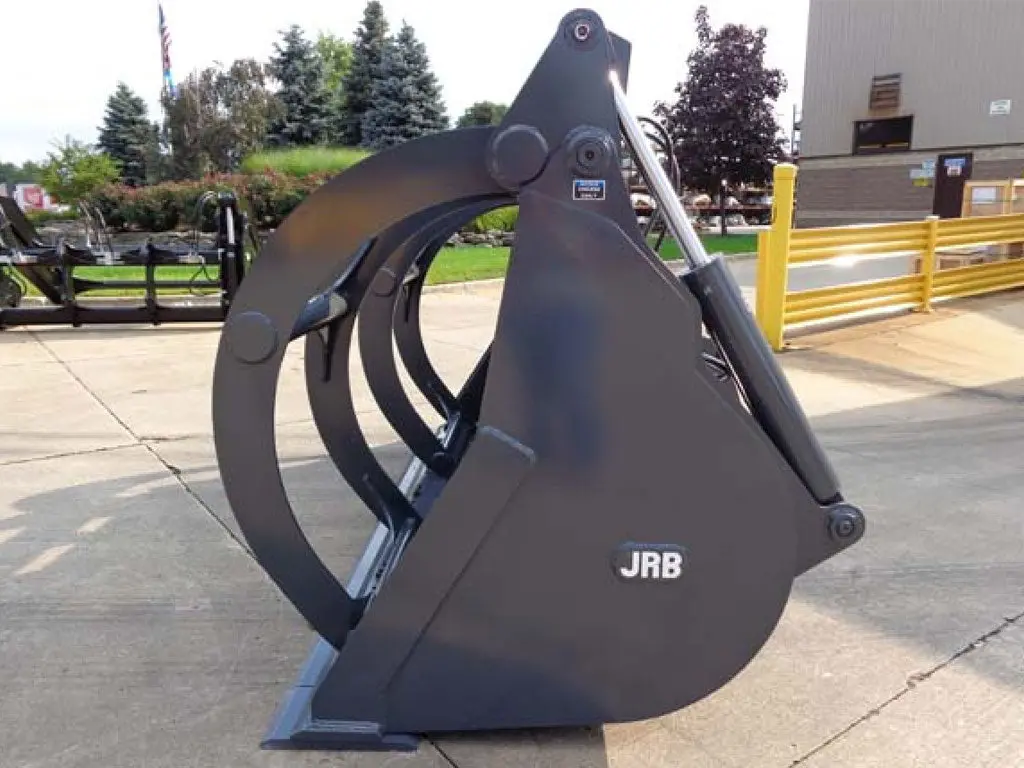

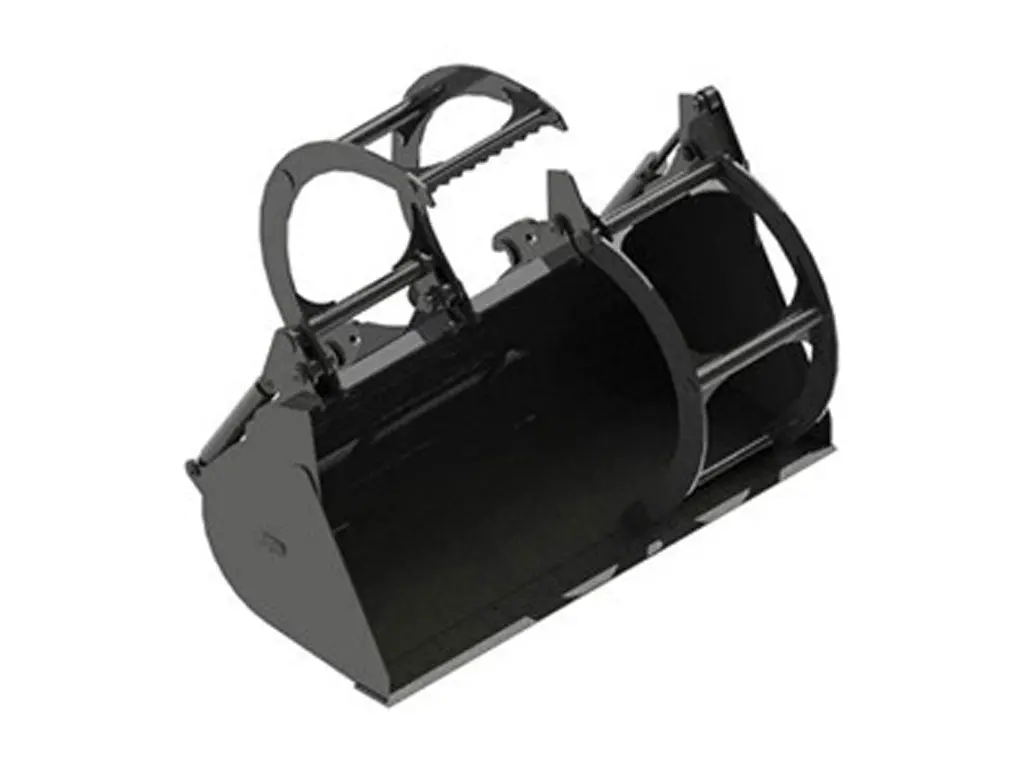

Grapple Buckets
WHEEL LOADER
- Profiles available in full, half cutaway, or full-cutaway sides for any job application
- Optional screening on arms available for maximum material retention
- Dual hydraulic cylinders allow independent actuation of each cylinder for clamping uneven loads
- Width and edge hole patterns drilled to OEM standard wear parts
- Available as pin-on or compatible with Quick Coupler System
- Third function loader hydraulics and jumper hose kit for Quick Coupler required for operation. Bucket supplied with attachment side whip hoses
- Rubber edges available by request
- 100, 200, 300, 500, 600, and 700 classes
SPECS
| MODEL | CAPACITY | LBS. |
| 200GB-2.50 | 2.50 | 2675 |
| 300GB-3.00 | 3.00 | 2950 |
| (GRPL RAKE) 300GBR-3.00 | 3.00 | 4695 |
FITS
| MAKE | MODEL |
| CASE | 621G, 651G |
| CAT | 926, 930M |
| DEVELON | DL200-5, DL220-5, DL200-7, DL220-7 |
| HITACHI | ZW150-5B |
| HUNDAI | HL940 |
| JCB | 427 |
| JOHN DEERE | 524, 544 |
| KAWASAKI | 62Z7, 67Z7 |
| KOMATSU | WA200-8 |
| LIEBHERR | L538 |
| LIUGONG | |
| SOLG | LG938L, L938F |
| VOLVO | L60H, L70H |
