Description
DESCRIPTION

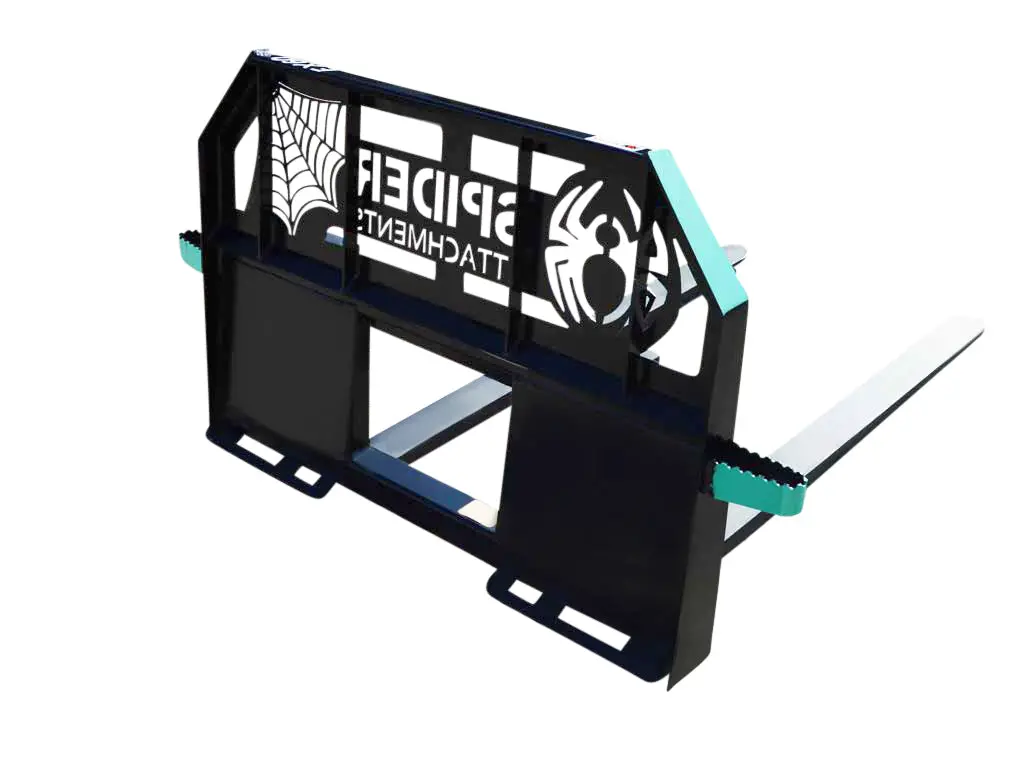

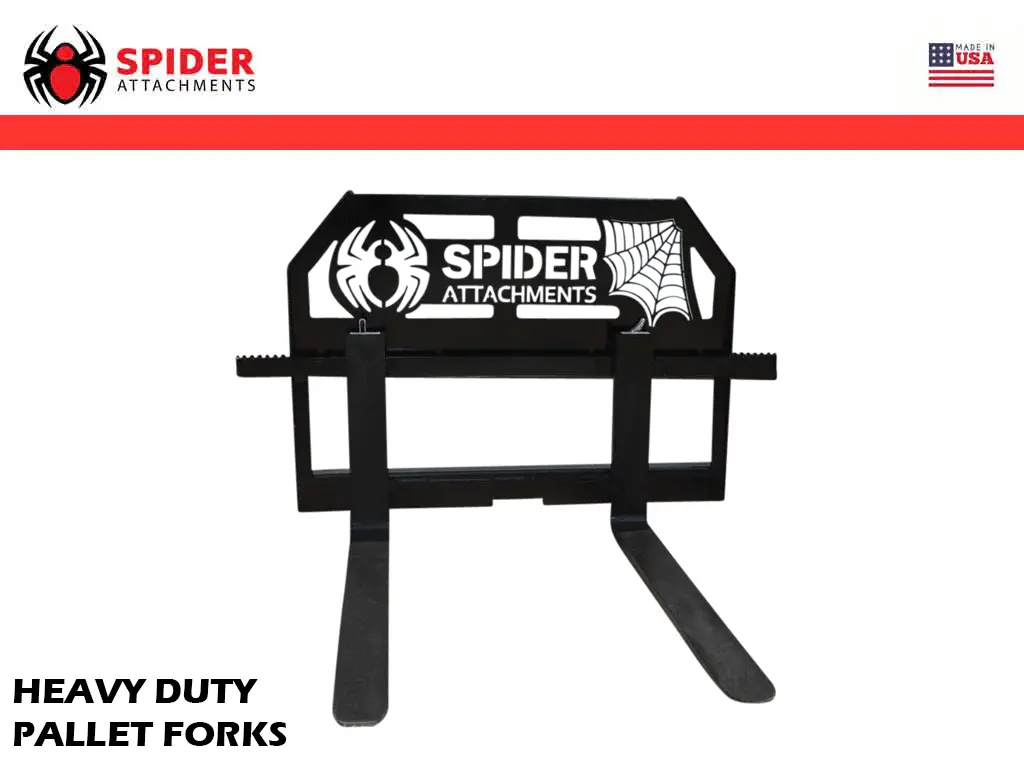

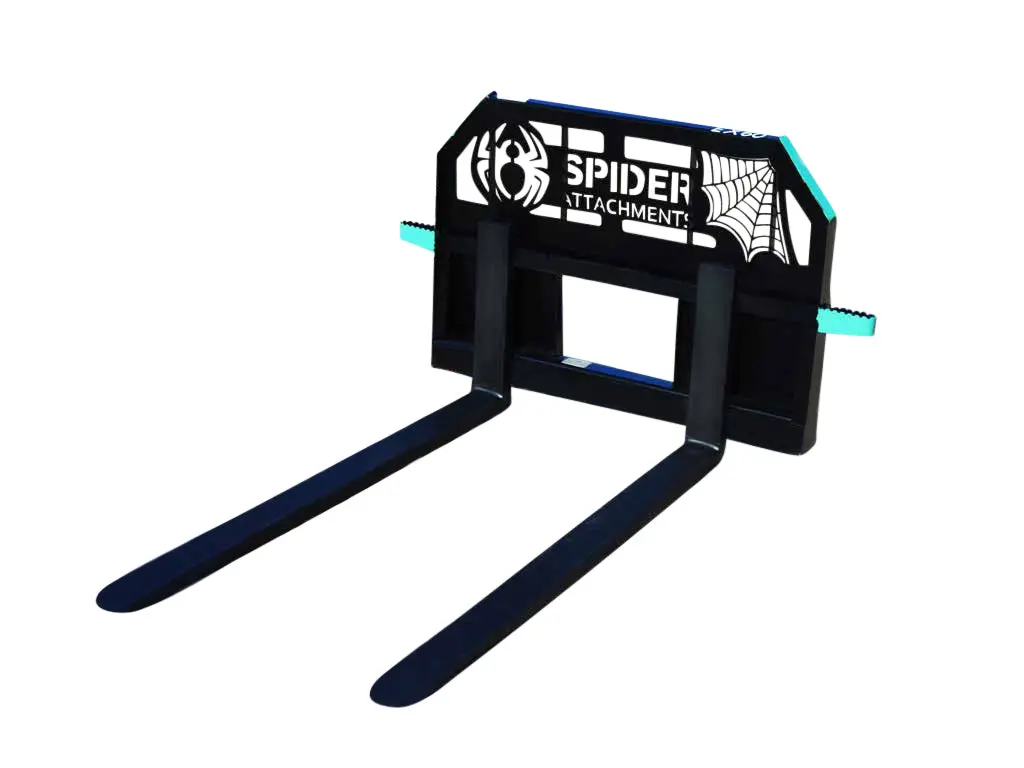

The Extreme duty pallet fork frame and forks are an everyday attachment to use on farms, constructions sites and nurseries. This is a great attachment to move pallet-ed material, building supplies, landscape material or nursery stock. Need stronger pallet forks? Here the are!
Why Spider EX48, EX60 or EX72 pallet forks….
- Superior frame strength the frame guard is reinforced and the mounting plate has two solid mounts.
- Extreme fork tines We use the thickest class 2 fork tines available to help prevent bending of the tines.
- Safety by having steps on both sides of the frame for the operator.
- Durability by having a one piece machined billet steel carriage bar
- Flexibility by having three adjustment locking positions for each fork tine
These rail style pallet forks have steps on both sides, multiple locking positions and a universal Bobcat style mounting plate.
SPECIFICATIONS
| HEAVY DUTY FRAME | EX48 | EX60 | EX72 |
| LENGTH (FRAME) | 6″ | 6″ | 6″ |
| WIDTH | 56.5″ | 56.5″ | 56.5″ |
| HEIGHT | 32.4″ | 32.4″ | 32.4″ |
| WEIGHT | 452 lb | 500 lb | |
| CAPACITY (FRAME) | 5000 lb | 5000 lb | 5000 lb |
| FRAME MATERIAL | 1 3/8″ ALLOY, 4X4 TUBE | 1 3/8″ ALLOY, 4X4 TUBE | 1 3/8″ ALLOY, 4X4 TUBE |
| GUARD MATERIAL | 1/4″ PLATE | 1/4″ PLATE | 1/4″ PLATE |
| RAIL MATERIAL | BILLET STEEL | BILLET STEEL | BILLET STEEL |
| TINE OPTIONS | 1.75″x4″x48″ | 1.75″x4″x60″ | 1.75″x4″x72″ |
| WEIGHT | 124 lb | 148 lb | |
| THICKNESS | 1.75″ | 1.75″ | 1.75″ |
| WIDTH | 4″ | 4″ | 4″ |
| LENGTH | 48″ | 60″ | 72″ |
| CAPACITY | 6990 lb | 6990 lb | 6990 lb |
| CLASS | 2 | 2 | 2 |
BIG DAVE REVIEW
This is the most durable designed fork frame and forks for the money
