Heavy-Duty Tilt Buckets Compatible with 3.3–33-Ton Excavators

Description

DESCRIPTION

1/26

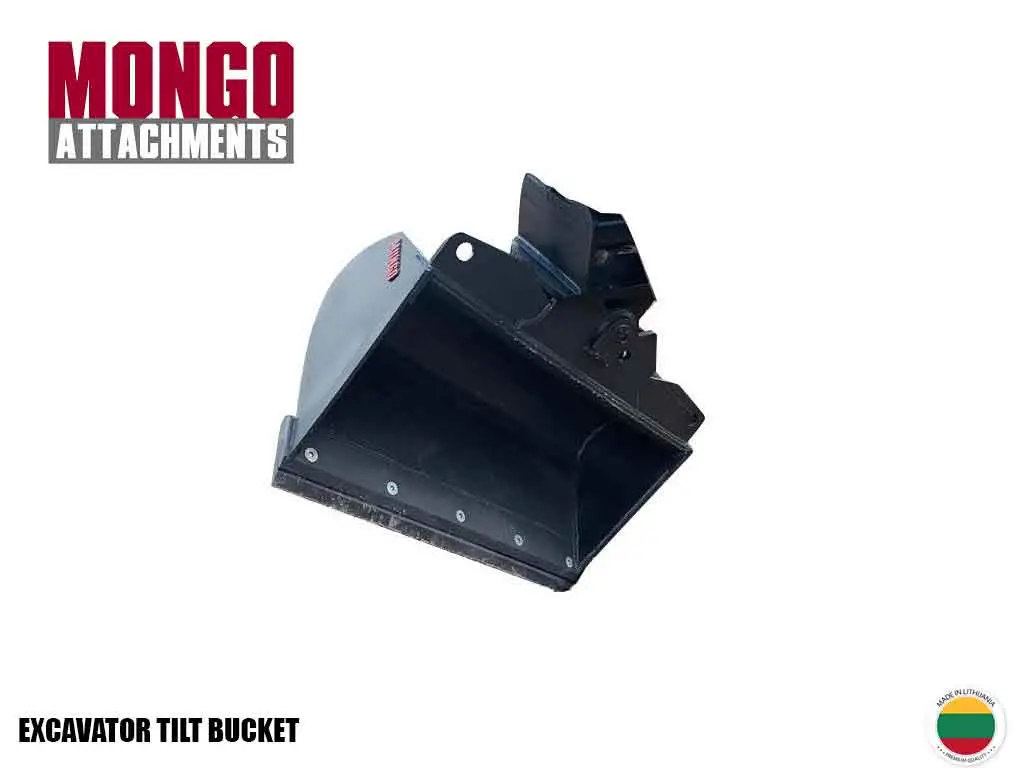

Mongo Attachments Hydraulic Tilt Bucket – Excavator Versatility

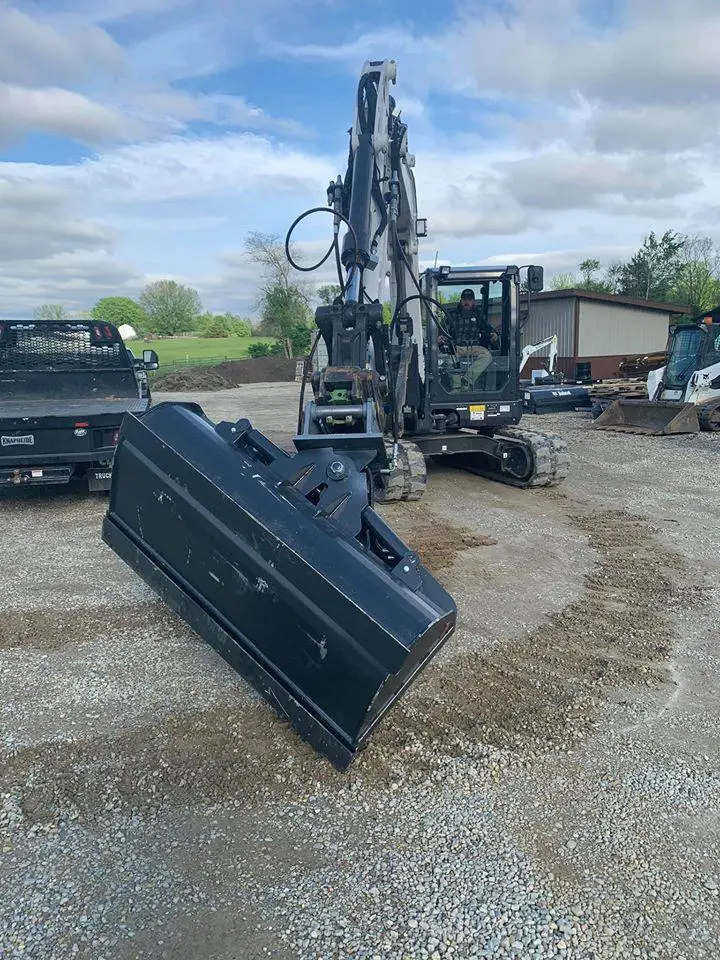

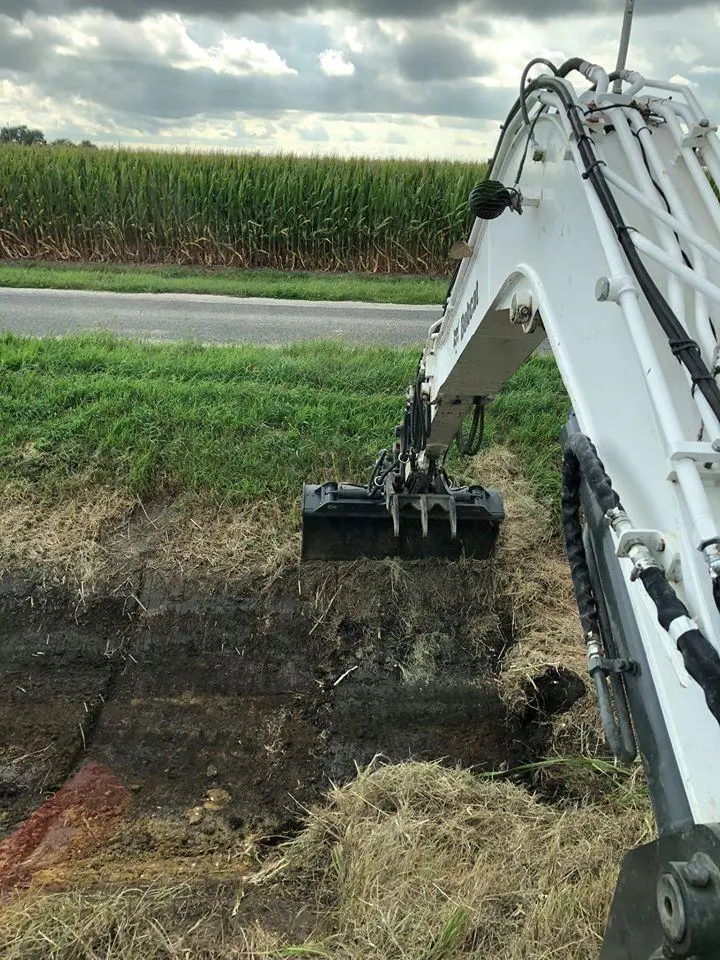

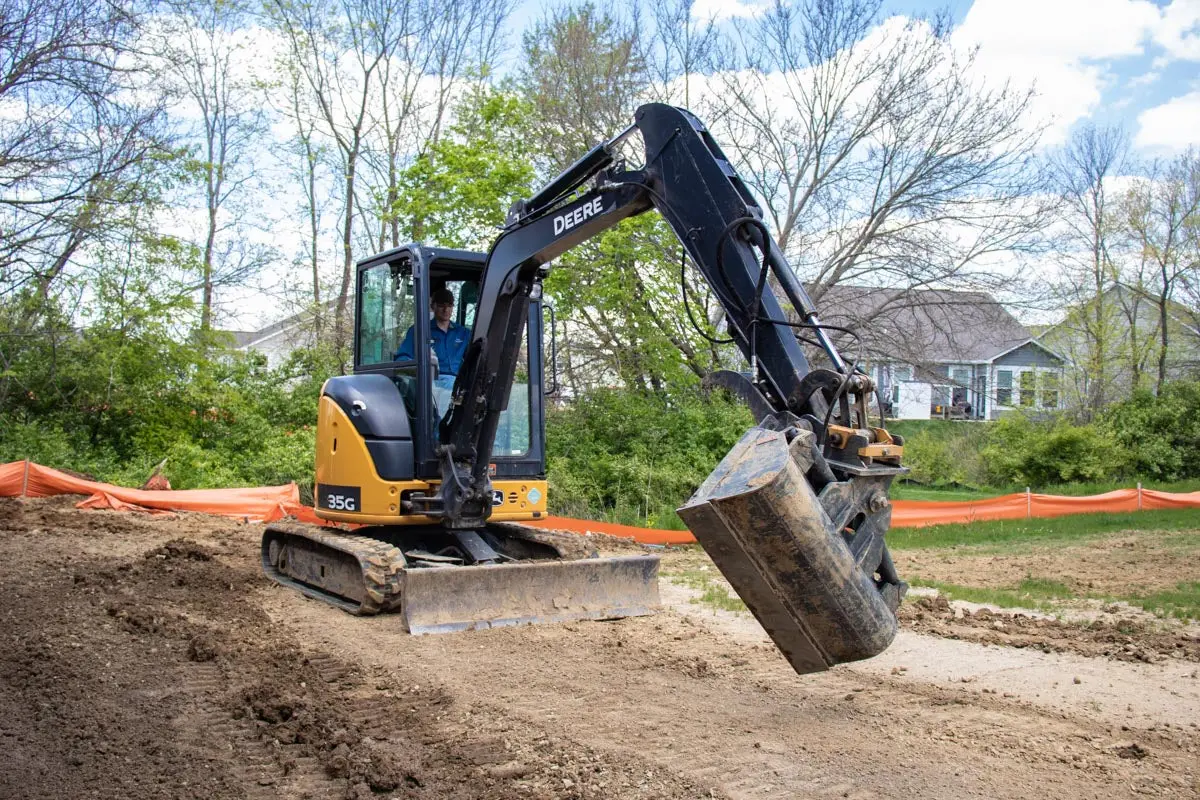

The Mongo Hydraulic Tilt Bucket provides unmatched precision and flexibility for digging at extreme angles and hard-to-reach locations. With two-way 45° tilt for a total of 90° of movement, this bucket is ideal for pools, ponds, sidewalks, foundations, hardscapes, utility trenches, swales, and drainage ditches. Save time and increase accuracy on every excavation project.

Each Mongo Tilt Bucket comes ready to use, complete with hydraulic hoses, flat-face couplers, and a custom-built machine-specific mount for quick installation. The bucket includes a reversible and replaceable Hardox cutting edge and, on larger models, a built-in Hardox back grading edge for superior durability and performance.

Key Features:

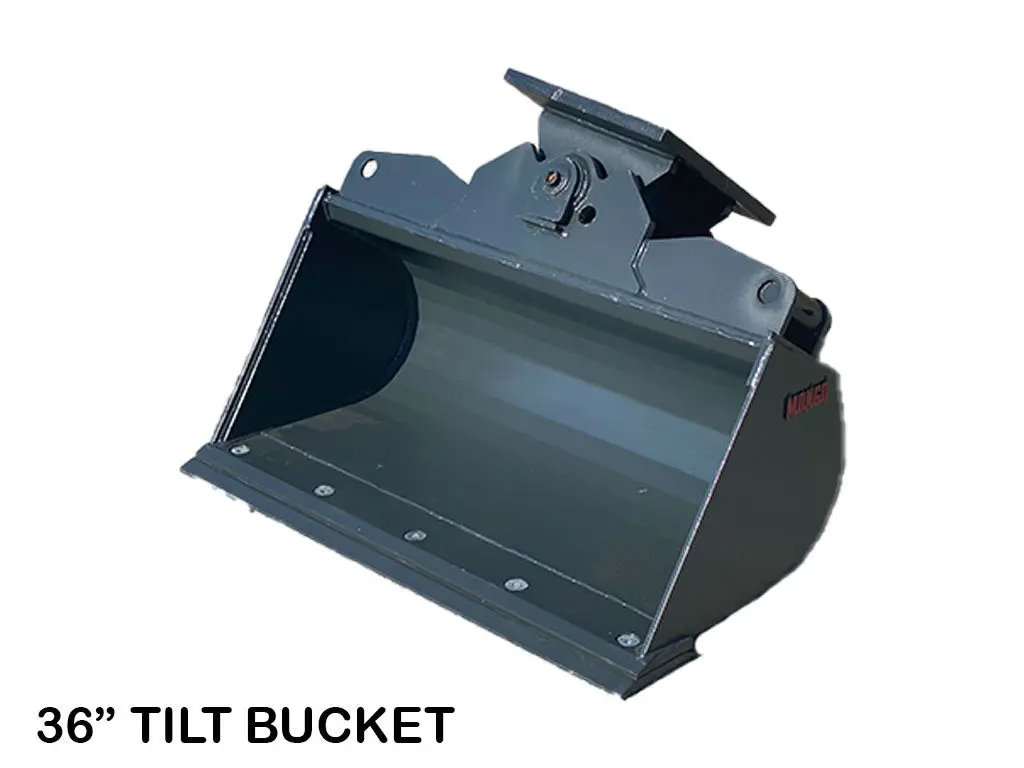

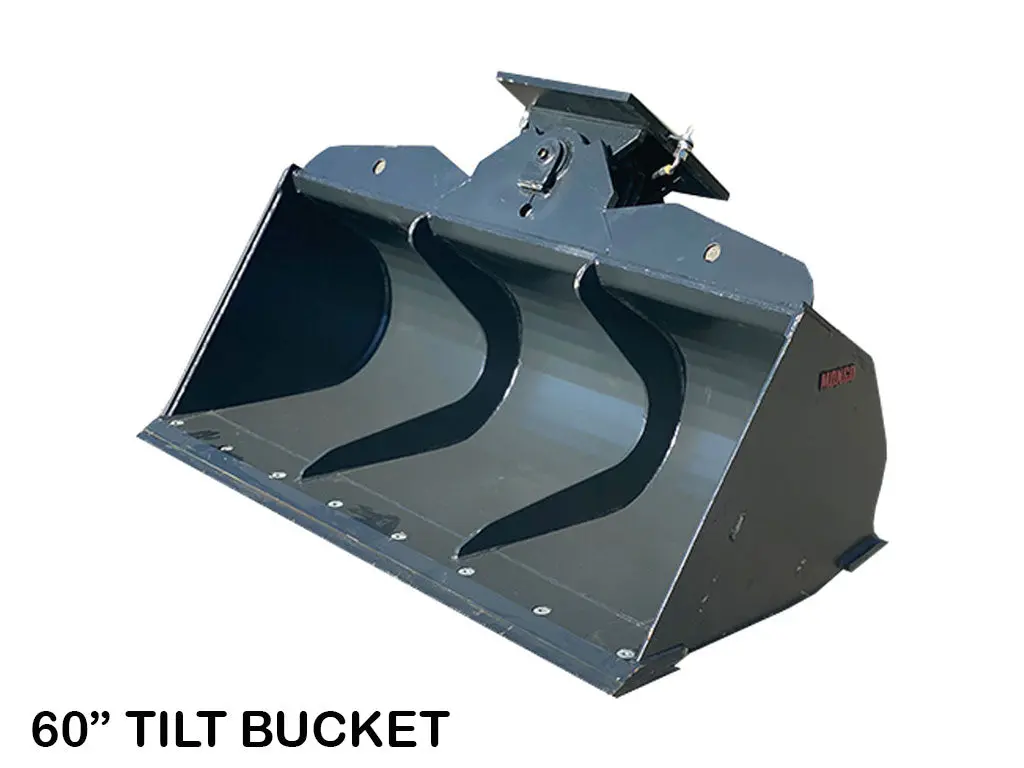

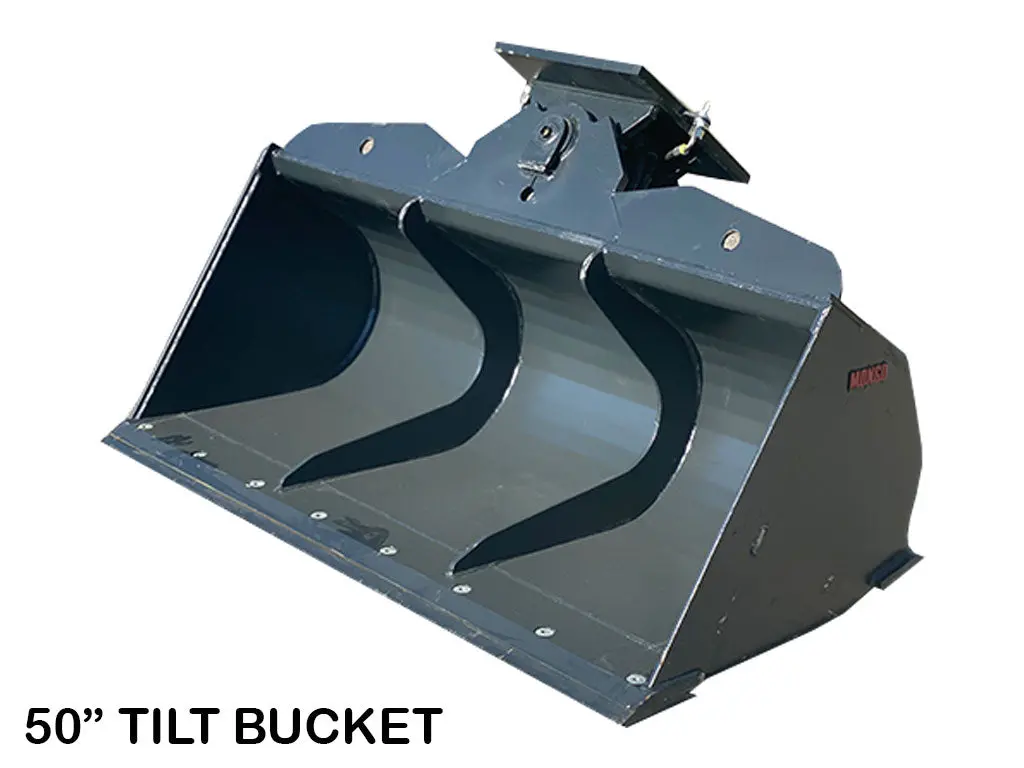

• Available in 30″, 36”, 42”, 50”, 60”, and 36″ Deep Profile models

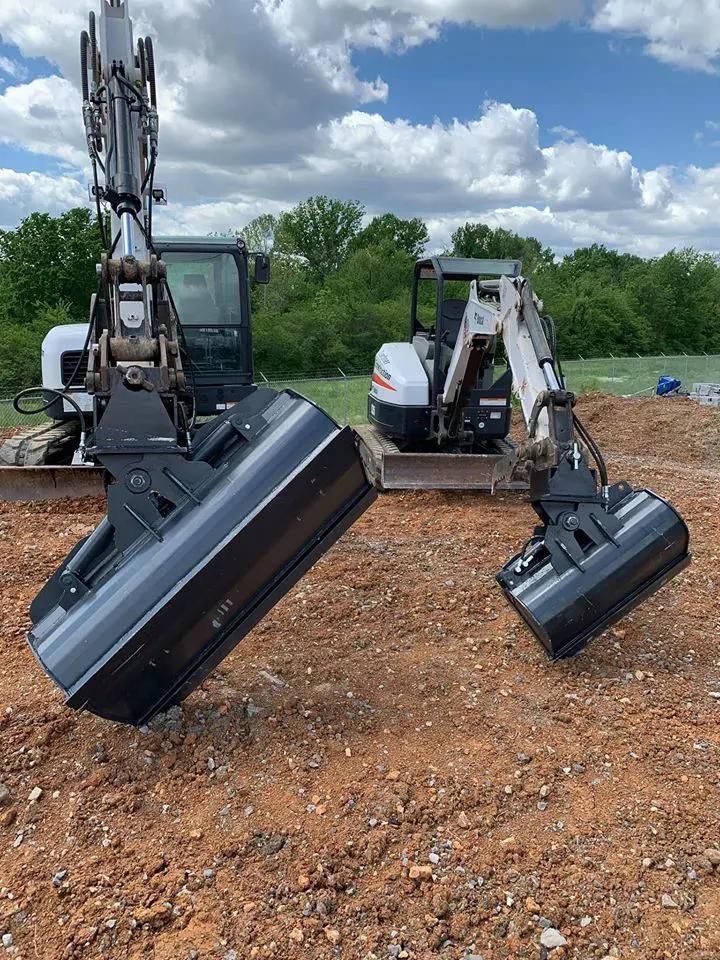

• Two-way 45° tilt for 90° total digging freedom

• Dual tilt cylinders on 42″+ models for enhanced control

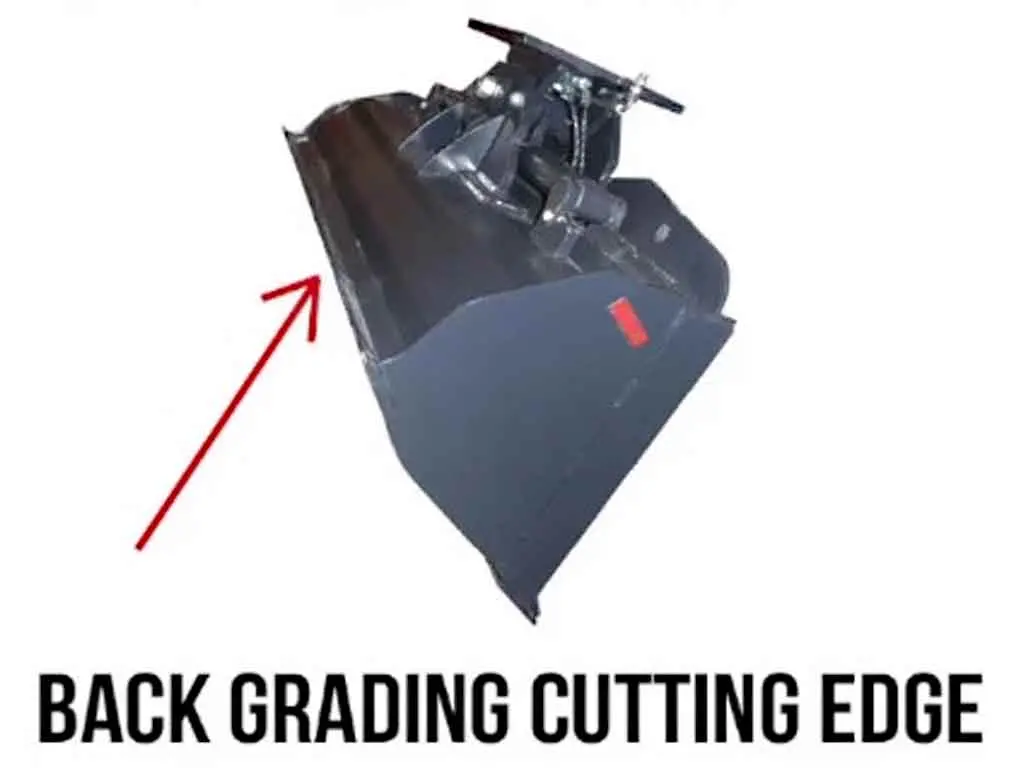

• Welded back grading edge on 50″+ models for precision finishing

• Bolt-on, reversible Hardox cutting edge

• Hydraulic hoses and connectors included for plug-and-play setup

• Machine-specific mount ensures fast, tailored installation

The Mongo Tilt Bucket is perfect for contractors and excavator operators who demand accuracy, versatility, and durability on a wide range of excavation and grading projects.

* We will contact you for your machine information after your purchase

BUCKET	COMPATIBLE MACHINE SIZE	STRUCK CAPACITY	HEAPED  CAPACITY	LBS. NO MOUNT

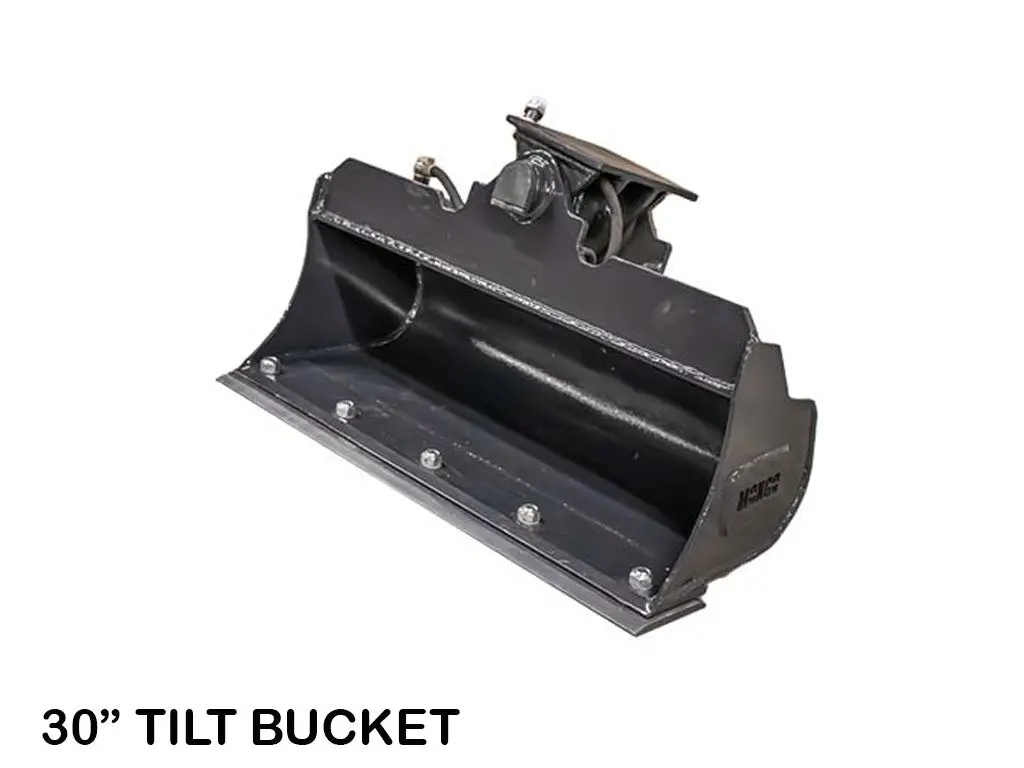

30″ TILT	1.5-2 TON	2 CU FT	2.6 CU FT	250
36″ TILT	2.5-4.5 TON	2.5 CU FT	4.1 CU FT	300

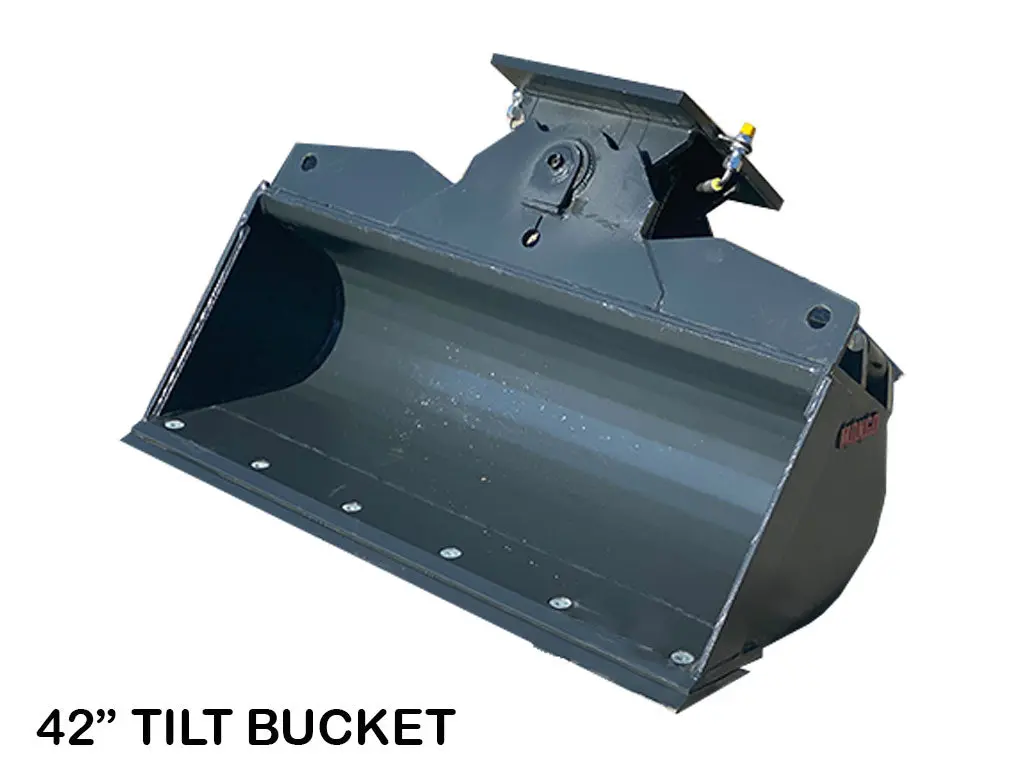

42″ TILT	3.5-5 TON	2.8 CU FT	4.8 CU FT	400

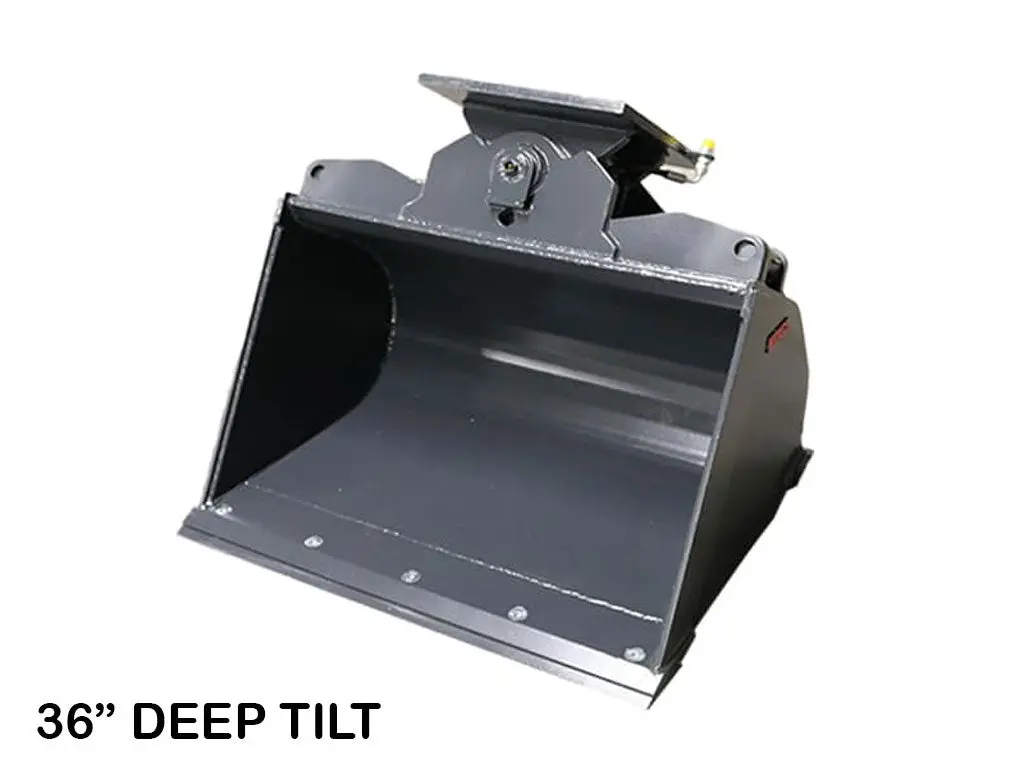

36″ DEEP TILT	5-10 TON	5.6 CU FT	8.9 CU FT	600

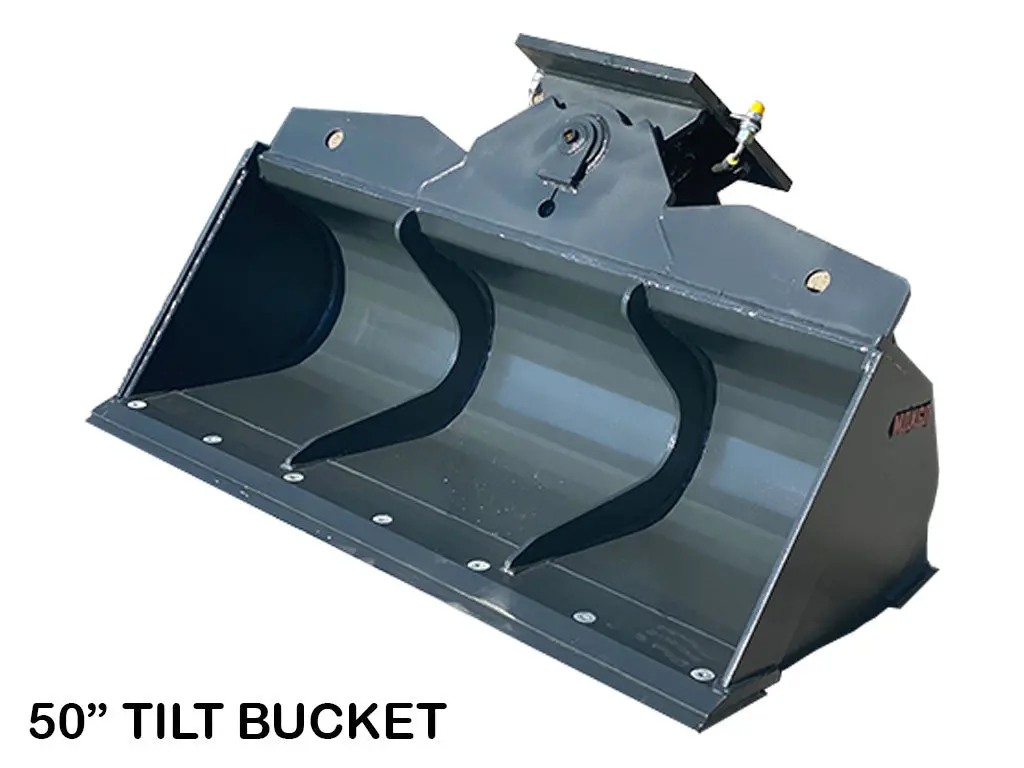

50″ TILT	7.5-10 TON	5.6 CU FT	8.8 CU FT	580
60″ TILT	5-10  TON	7.0 CU FT	10.8 CU FT	650

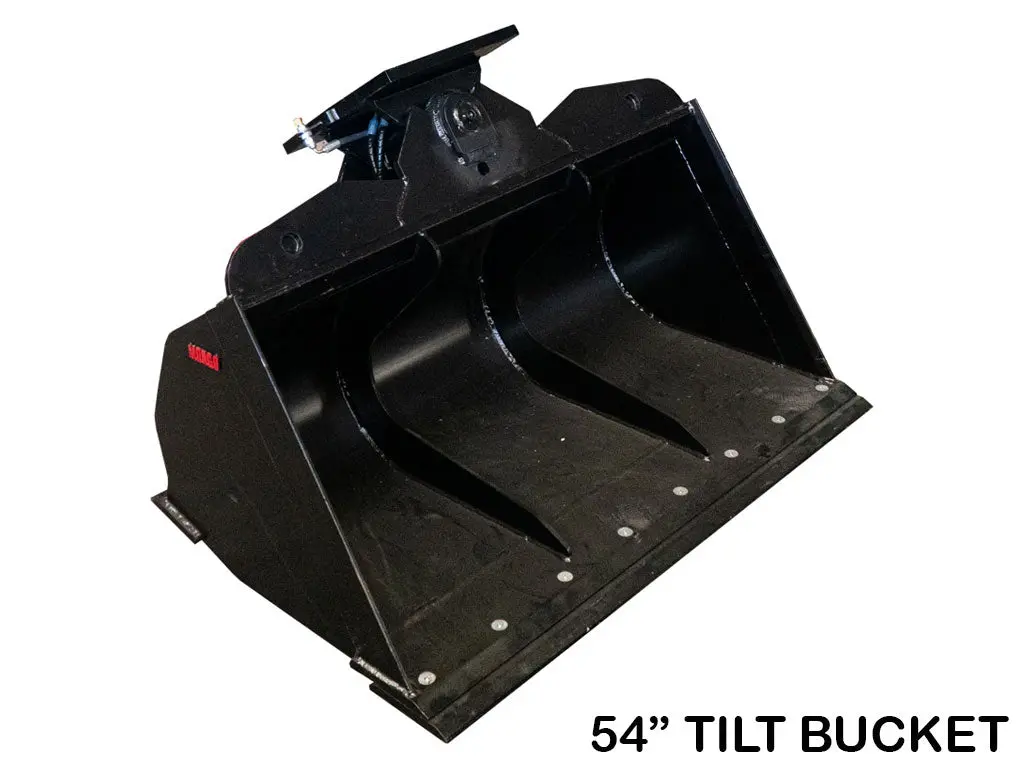

54″ TILT	8-16 TON	13.5 CU FT	18.9 CU FT	1040

COMMON MOUNTINGS

BOBCAT EXCHANGE COUPLERS

E26, E32, E35, E42, E42, E45, E50, E60, E63

E80, E85

KUBOTA USA COUPLERS

U15, U17, KX018

U25, U27

KX033, U35, KX040, KX71

KX057, U48, U55

KX161, U45

WEDGE LOCK

DEERE 15, 17

DEERE 27, 35

DEERE 50, 60

DEERE 75, 85

TAG / CP / WAIN ROY ORIGINAL

1.25″ T-PIN QUICK COUPLER (QC27)

1.75″ T-PIN QUICK COUPLER (QC30) (WR ORG.)

WAIN ROY XLS

1.50″ T-PIN QUICK COUPLER

1.75″ T-PIN QUICK COUPLER

OEM PIN ON

NO COUPLERS

WERK BRAU SPRING AND HYDRAULIC COUPLERS

WAIN ROY SPRING AND HYDRAULIC COUPLERS

JRB SPRING AND HYDRAULIC COUPLERS

CP SPRING AND HYDRAILIC COUPLERS

TAG SPRING AND HYDRAULIC COUPLERS

HOSE KIT

• Measure from end of couplers to end of coupler or stick. We will add about 12″ for range of motion

FITS

SIZE RECOMENDATONS		EXCAVATOR	2204.62 LBS X
BUCKET SIZE	SPEC	MACHINE LBS	MT CLASS
30″	SINGLE CYLINDER	3300 – 4500 LBS	1.5-2
36″	SINGLE CYLINDER	5500 – 9000 LBS	2.5-4
42″	DUAL CYLINDER	6500 -9000 LBS	3-4
36″ DEEP	DUAL CYLINDER BACK-DRAG EDGE	10000 – 15000 LBS	5-7.5
50″	DUAL CYLINDER BACK-DRAG EDGE	10000 – 15000 LBS	5-7.5
60″	DUAL CYLINDER BACK-DRAG EDGE	16000 – 26000 LBS	8-13
54″	DUAL CYLINDER BACK DRAG EDGE	18000-32000 LBS.

COMMON MACHINE MATCH UPS

KUBOTA
30″ TILT BUCKET	K008,KX018,U17
36″ TILT BUCKET	KX71,KX91,KX033,U35,KX121,KX040 / U25, U27
42″ TILT BUCKET	U35,KX033,U35,KX121,KX040
50″ TILT BUCKET	U48,U55,KX057,KX080
36″ DEEP TILT BUCKET	U48,U55,KX057,KX080
60″ TILT BUCKET	KX080
JOHN DEERE
30″ TILT BUCKET	17D,17G
36″ TILT BUCKET	26G,27ZTS,27C,27D,30G,35ZTS,35C,35D,35G
42″ TILT BUCKET	35ZTS,35C,35D,35G
50″ TILT BUCKET	50ZTS,50C,50D,50G,60D,60G
36″ DEEP TILT BUCKET	50ZTS,50C,50D,50G,60D,60G
60″ TILT BUCKET	60D,60G,75D,75G,85D,85G
BOBCAT
30″ TILT BUCKET	E10,E20
36″ TILT BUCKET	E26,E32,E35,E42,E45
42″ TILT BUCKET	E35,E42,E45
50″ TILT BUCKET	E45,E50,E55,E60,E63,E80,E85,E88
36″ DEEP TILT BUCKET	E45,E50,E55,E60,E63,E80,E85,E88
60″ TILT BUCKET	E63,E80,E85,E88
TAKEUCHI
30″ TILT BUCKET	TB210R,TB216
36″ TILT BUCKET	TB225,TB230,TB235,TB240
42″ TILT BUCKET	TB235,TB240
50″ TILT BUCKET	TB250,TB260,TB370,TB280,TB285,TB290
36″ DEEP TILT BUCKET	TB250,TB260,TB370,TB280,TB285,TB290
60″ TILT BUCKET	TB280,TB285,TB290
YANMAR
30″ TILT BUCKET	SV08,VIO12,VIO17,VIO20
36″ TILT BUCKET	VIO25,VIO35,SV40
42″ TILT BUCKET	VIO35,SV40
50″ TILT BUCKET	VIO45,VIO50,VIO55,VIO75,VIO80,SV100
36″ DEEP TILT BUCKET	VIO45,VIO50,VIO55,VIO75,VIO80,SV100
60″ TILT BUCKET	VIO75,VIO80,SV100
CAT
30″ TILT BUCKET	309.9,301.5,301.7,301.8,302
36″ TILT BUCKET	302.7,303,303.5,304,304.5
42″ TILT BUCKET	303.5,304,304.5
50″ TILT BUCKET	304.5,305,306,307.5,308,309,310
36″ DEEP TILT BUCKET	304.5,305,306,307.5,308,309,310
60″ TILT BUCKET	307.5,309,310
SANY
30″ TILT BUCKET	SY16
36″ TILT BUCKET	SY26,SY35
42″ TILT BUCKET	SY35
50″ TILT BUCKET	SY50,SY60,SY75,SY80,SY95
36″ DEEP TILT BUCKET	SY50,SY60,SY75,SY80,SY95
60″ TILT BUCKET	SY75,SY80,SY95
CASE
30″ TILT BUCKET	CX17
36″ TILT BUCKET	CX26,CX30,CX37
42″ TILT BUCKET	CX37
50″ TILT BUCKET	CX57,CX60,CX75,CX80
36″ DEEP TILT BUCKET	CX57,CX60,CX75,CX80
60″ TILT BUCKET	CX75,CX80,CX75,CX80
NEW HOLLAND
30″ TILT BUCKET	E17
36″ TILT BUCKET	E26,E30,E33,E37
42″ TILT BUCKET	E33,E37
50″ TILT BUCKET	E57,E60
36″ DEEP TILT BUCKET	E57,E60
60″ TILT BUCKET
HYUANDIA
30″ TILT BUCKET	HX10,R17,R18
36″ TILT BUCKET	R25,R30,R35
42″ TILT BUCKET	R35
50″ TILT BUCKET	R55,R60,R80,HX85
36″ DEEP TILT BUCKET	R55,R60,R80,HX85
60″ TILT BUCKET	R80,XH85
HITACHI
30″ TILT BUCKET	EX17,ZX17
36″ TILT BUCKET	ZX26,ZX30,ZX35
42″ TILT BUCKET	EX35,ZX35
50″ TILT BUCKET	EX50,ZX50,ZX60,ZX75,ZX85
36″ DEEP TILT BUCKET	EX,50,ZX50,ZX60,ZX75,ZX85
60″ TILT BUCKET	ZX75,ZX85

* MONGO HYDRAULIC DIVERTER VALVE AVAILIBLE FOR THESES MACHINES

• John Deere 27D, 30G, 35D, and 35G

• Hitachi ZX27U-3, ZX30U-5, and ZX35U-5

VIDEO

SPECS

• 30″ – 1.5-2 Metric Ton machine – Single Tilt Cylinder
• 36″ – 2.5-4 Metric Ton Machine – Single Tilt Cylinder
• 36″ –  (DEEP) 5-75 Metric Ton Machine Dual tilt cylinder
• 42″ – 3-4 Metric Ton Machine – Dual Tilt Cylinders
• 36″ – ( 36″ DEEP) 5-7.5 Metric Ton Machine Dual tilt cylinder
• 50″ – 5-7.5 Metric Ton Machine – Dual Tilt Cylinders
• 60″ – 8-13 Metric Ton Machine – Dual Tilt Cylinders

WIDTH	30″	36″	42″	36″ DEEP	50″	60″
DEPTH	12.2″	12.76″	12.20	25.7″	14.29	14.29
HEIGHT	9.6″	18.9″	18.03″	19″	21.02″	21.02″
HEIGHT W/O MOUNT		29.98″	28.03″		31.02″	31.02″
BKT VOLUME CU FT		2.47	2.83	5.6	5.65	6.71
DEGREE ANGLE	45	45	45	45	45	45
WEIGHT W/ MOUNT (ESTIMATED)		335 LBS	437 LBS	640 LBS	620 LBS	675 LBS
WEIGHT NO MOUNT		300	393		575	626
GPM	7.9-26.4	7.9-26.4	7.9-26.4	7.9-26.4	7.9-26.4	7.9-26.4
PSI	2320-3481	2320-3481	2320-3481	2320-3481	2320-3481	2320-3481
CYLINDERS	1	1	2	2	2	2
MACHINE LB	3300-5000	5000-8000	6000-8000	10000-15000	10000-15000	16000-26000

MOUNTINGS

• BOBCAT EXCHANGE
• DEERE WEDGE – LOC
• TAG / CP / GANNON
• WAIN ROY XLS
• KUBOTA
• OEM PIN ON
• OTHER
