Bale Grapple Add-On

PN: 1071

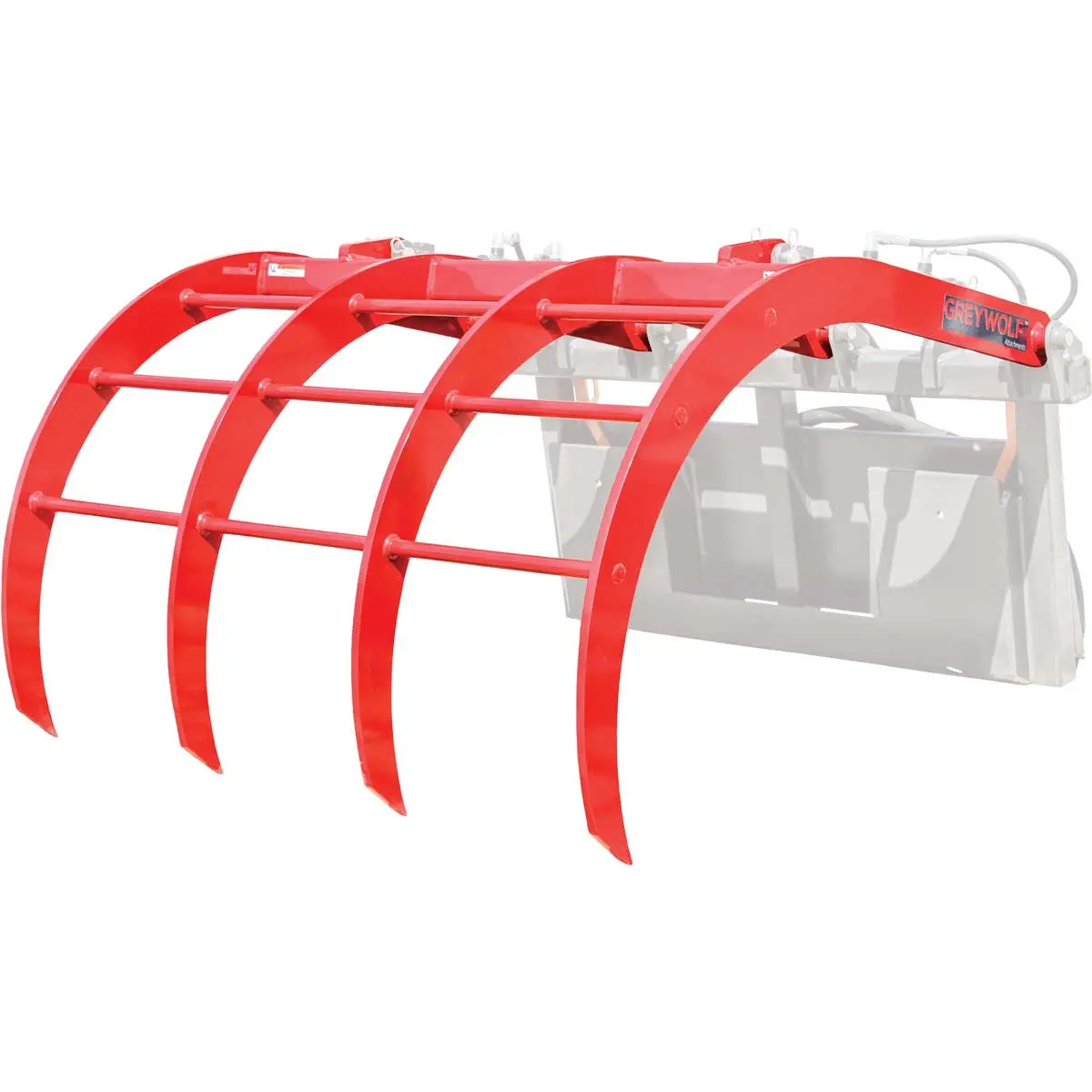

The GreyWolf™ Skid Steer Bale Grapple Add-On
is built to be heavy-duty.

This skid steer mounted grapple will attach to most buckets allowing for easy pick up and maneuvering of bales of hay using the power of your skid steer.

Ideal for Skid Steers or Skid Loaders with Standard Universal Quick Attachment

SPECIFICATIONS

Grapples Maximum Pressure Hydraulic Cylinder Bore Hydraulic Cylinder Stroke Maximum Bale Diameter Hydraulic Fluid Type Hydraulic Oil Capacity Dimensions Weight

5/8″ Thick Tines with 3/8″ Web Gusseting 3,000 PSI 2″ 6″ Up to 5.5 ft. Depending on Skid Steer Depending on Skid Steer 59″ x 40″ x 54″ (W x H x L) 770 lbs.

Features:

• Red powder coat finish
• Heavy-duty construction
• Skid steer mounted double grapple that will attach to most buckets
• Quick attach plate constructed of 5/16″ thick steel
• Designed to attach to the GreyWolf™ Double Quick Attach Plate purchased with PN: 1066
• Connected to and powered by your skid steer’s hydraulic system
• Primarily used to be a universal grapple attachment for multiple buckets or other attachments

Please Note: Maximum bale diameter may vary depending on the bucket or attachment connected to the double quick attach bale grapple.

Third, fourth and fifth images show the Bale Grapple with Double Quick Attach Plate (PN: 1066), but plate and bale grapple attachments are sold separately.
