Heavy-Duty Werk-Brau Hydraulic Thumb Main Pin Designed for Excavators Rated 50,000 to 59,000 Pounds (25 Metric Tons)

Description

DESCRIPTION

7/25

MAIN PIN HYDRAULIC THUMBS

Recommended Applications

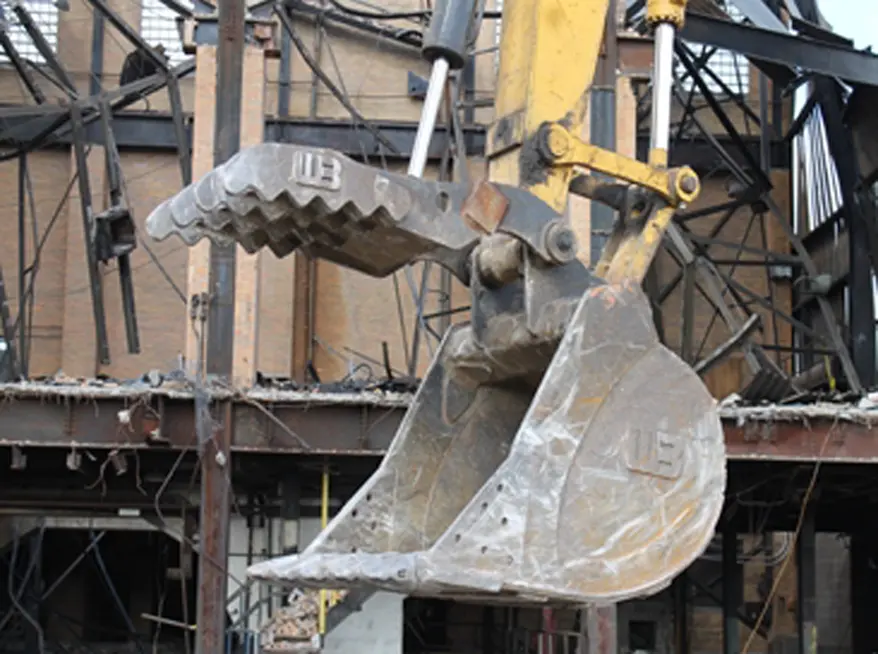

Werk-Brau’s Multi-Tined Thumb for Excavators is specifically engineered to aid in handling or loading irregular shaped objects, debris, logs, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. This thumb is not recommended for prying. Each thumb has a standard 120 degree rotation.

Quality Construction

Each thumb is custom designed to match the tip radius of the bucket it is being paired with. High strength steel is used throughout entire weldment. This thumb features hardened pins, and greasable bushings at all pivot points.

Standard Sizes

Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.

Features

• 120 degree standard rotation
• does not include jumper hose kit
• info form must be completed when thumb is working with any non Werk-Brau attachment

SPECIFICATIONS

PART #	NUMBER OF TINES	WEIGHT
EZG-EX25-3	3	1240
EZG-EX25-4	4	1280
EZG-EX25-5	5	1380

FITS

MAKE / WEIGHT CLASS	25MT (50,000 – 59,000 LBS.)
CASE	CX250, CX260E
CAT	325, 326F
DOOSAN	DX255LC-5
HITACHI	ZX240, ZX250
HYUNDAI	HX260
JOHN DEERE	250G, 250P
KOBELCO	SK260LC
KOMATSU	PC240
LIEBHERR	R 916 L, R 924 L, R 934 CD
LINK BELT	250X3, 250X4
SANY	SY235, SY265
TAKEUCHI
VOLVO	EC240, EC250
