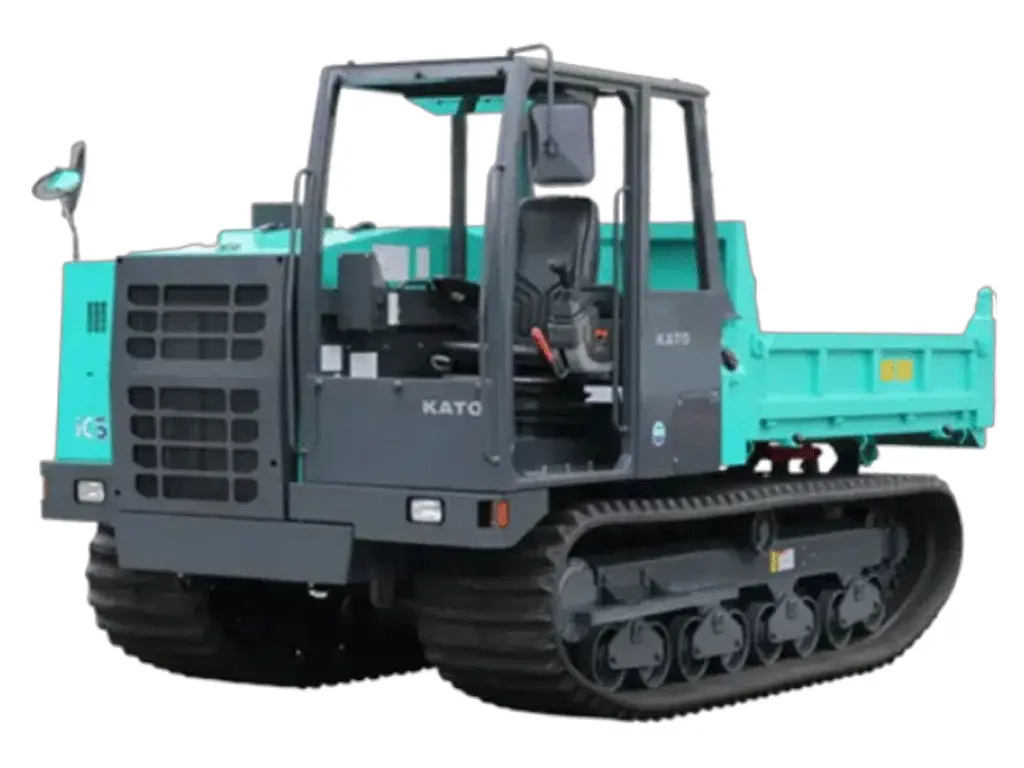

Kato IC55 Track-Laying Construction Carrier

Description

DESCRIPTION

12/25

KATO IC55 CRAWLER CARRIER

Rugged, Safe, and Highly Efficient

The KATO IC55 Crawler Carrier delivers unmatched performance and durability for material handling in tough conditions. With a class-leading payload of 11,000 lbs. and a powerful 105 HP engine, this crawler carrier is built for productivity and reliability. Its independent travel system provides dynamic spin-turn capability, while a low center of gravity and thick rubber crawlers ensure stability and durability. Easy maintenance and operator-friendly design make the IC55 ideal for any job site.

Key Features:

• Class-leading 11,000 lbs payload capacity

• Powerful 105 HP Kubota engine

• Dynamic spin-turn capability with independent travel system

• Low center of gravity for maximum stability

• Thick rubber crawlers and durable rollers for long-lasting performance

• Fully opening engine cover and easy-access battery for maintenance

• Inclination indicator for added safety

• Sturdy box-type frame construction

Specifications:

• Overall Length: 15’5’’ | Width: 7’3’’ | Height: 8’3’’

• Crawler Track Width: 2’0’’ | Tumbler Center Distance: 10’3’’

• Minimum Ground Clearance: 1’7’’

• Vessel Dimensions: 8’6’’ L x 6’5’’ W x 14’’ H

• Max Dump Height: 11’7’’

• Transport Weight: 14,200 lbs

• Ground Pressure (Empty/Loaded): 3.75 psi / 8.64 psi

• Travel Speed (Low/High): 3.9 / 6.2 MPH

• Gradeability: 20°

Engine:

• Kubota V2403-CR-TE5 Tier 4 Final

• Rated Output: 62.7 HP

• Fuel Tank Capacity: 18.5 gallons

Vessel Capacity:

• Leveled: 1.83 yd³ | Heaped: 2.16 yd³

• Three-way opening design for easy dumping

The KATO IC55 Crawler Carrier combines strength, stability, and operator-friendly features for maximum efficiency on any job site.

SPECS

Key Specs (Working Ranges)

Overall length	15’5’’
Overall width	7’3”
Overall height	8’3”
Overall crawler width	7’3”
Tumbler center distance	10’3”
Crawler track width	2’0”
Minimum ground clearance	1’7”
Vessel length	8’6”
Inner vessel width	6’5’’
Vessel height	14’’
Vessel floor height from ground	3’9”
Max dump height	11’7’’

Performance

Transport Weight	6,415 lbs
Payload	8,157 lbs
Ground Pressure (Empty/ Loaded)	3.75 psi/ 8.64 psi
Travel Speed (Low/High)	3.9/6.2 MPH
Gradeability	20 Degrees

Engine

Model	Kubota V2403-CR-TE5
Rated Output	62.7 HP/ Tier 4 Final
Fuel Tank Capacity	18.5 Gallons
Def Tank Capacity	n/a

Vessel

Leveled	1.83 yards3
Heaped	2.16 yards3
Dimensions LxWxH	7’2’’ x 5’ x 1’5’
Style	Three way opening vessel
