Kato IC37 Crawler Transport Vehicle

Description

DESCRIPTION

12/25

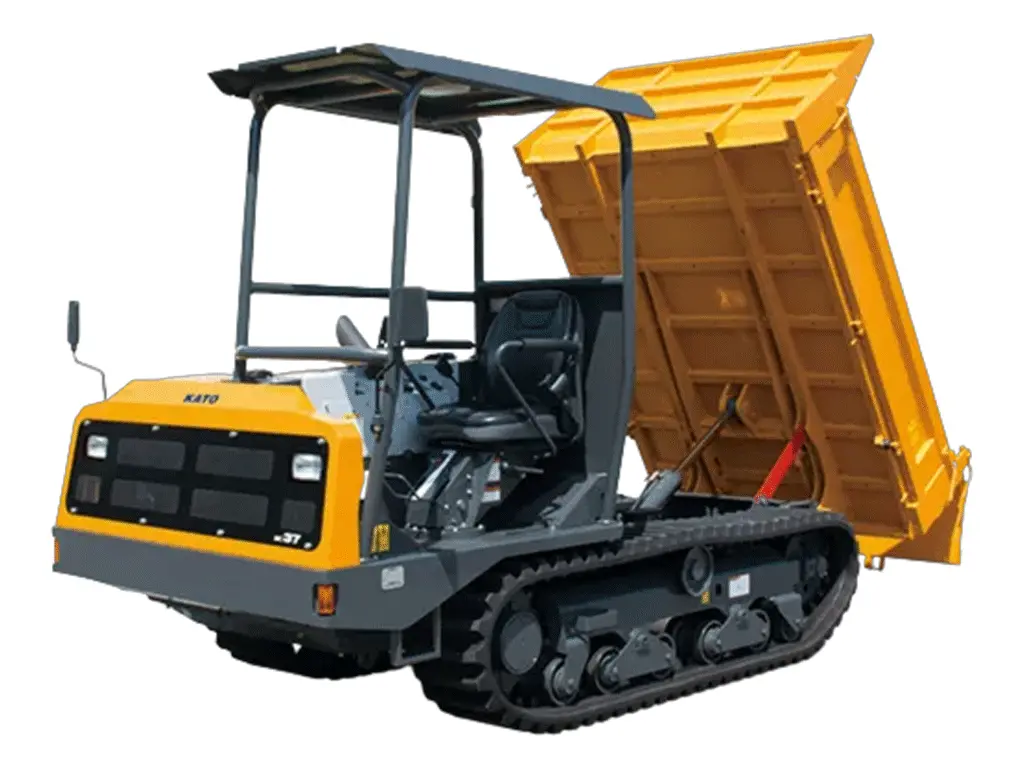

KATO IC37 CRAWLER CARRIER

POWERFUL, DURABLE & EASY TO OPERATE

The KATO IC37 Crawler Carrier is engineered for efficiency, safety, and durability on any job site. With a class-leading payload of 8,157 lbs and a 62.7 HP Kubota engine, this compact crawler carrier offers superior performance in transporting heavy loads over rough terrain. Its dynamic spin-turn capability with independent travel systems ensures smooth maneuverability, while a low center of gravity and sturdy box-type frame deliver stability and longevity.

Designed with the operator in mind, the IC37 features a right-side concentrated instrument panel, fully opening engine cover, and easy-access battery for simple maintenance. Thick rubber crawlers and an inclination indicator enhance safety and durability, making this crawler carrier ideal for construction, landscaping, and material handling applications.

---

STANDARD FEATURES

• Dynamic spin-turn capability for tight maneuvering

• Sturdy box-type frame and durable rollers

• Low center of gravity for stability and longevity

• Inclination indicator for safe operation

• Thick rubber crawler tracks

• Fully accessible engine compartment and battery

• Spacious three-way opening vessel

---

PERFORMANCE & SPECIFICATIONS

Working Ranges

• Overall length: 12’6’’

• Overall width: 5’10’’

• Overall height: 7’9’’

• Crawler width: 1’2’’

• Minimum ground clearance: 1’6’’

• Vessel dimensions (LxWxH): 7’2’’ x 5’ x 1’5’’

• Max dump height: 9’4’’

Performance

• Transport weight: 6,415 lbs

• Payload: 8,157 lbs

• Ground pressure (empty/loaded): 3.75 / 8.64 psi

• Travel speed (low/high): 3.9 / 6.2 MPH

• Gradeability: 20°

Engine

• Model: Kubota V2403-CR-TE5, Tier 4 Final

• Rated output: 62.7 HP

• Fuel tank capacity: 18.5 gallons

Vessel

• Level capacity: 1.83 yd³

• Heaped capacity: 2.16 yd³

• Style: Three-way opening

---

The KATO IC37 Crawler Carrier combines rugged durability, operator comfort, and high-capacity performance, making it the ideal solution for moving heavy materials efficiently in challenging environments.

SPECS

IC37 Crawler Carrier

Key Specs (Working Ranges)

Overall length	12’6’’
Overall width	5’10”
Overall height	7’9”
Overall crawler width	5’1”
Tumbler center distance	6’11’
Crawler track width	1’2’’
Minimum ground clearance	1’.6”
Vessel length	7’3”
Inner vessel width	5’0’’
Vessel	16.5’’
Vessel floor height from ground	2’7’’
Max dump height	9’4’’

Performance

Transport Weight	6,415 lbs
Payload	8,157 lbs
Ground Pressure (Empty/ Loaded)	3.75 psi/ 8.64 psi
Travel Speed (Low/High)	3.9/6.2 MPH
Gradeability	20 Degrees

Engine

Model	Kubota V2403-CR-TE5
Rated Output	62.7 HP/ Tier 4 Final
Fuel Tank Capacity	18.5 Gallons
Def Tank Capacity	n/a

Vessel

Leveled	1.83 yards3
Heaped	2.16 yards3
Dimensions LxWxH	7’2’’ x 5’ x 1’5’
Style	Three way opening vessel
