DESCRIPTION
SKID STEER ROLLER ATTACHMENTS

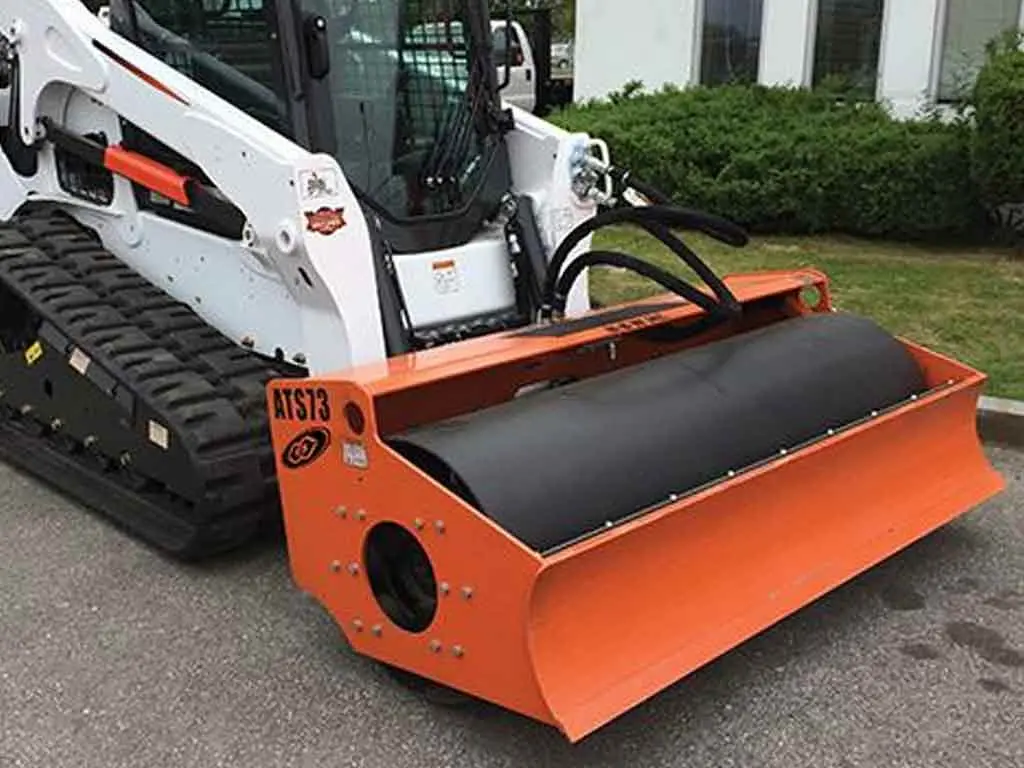

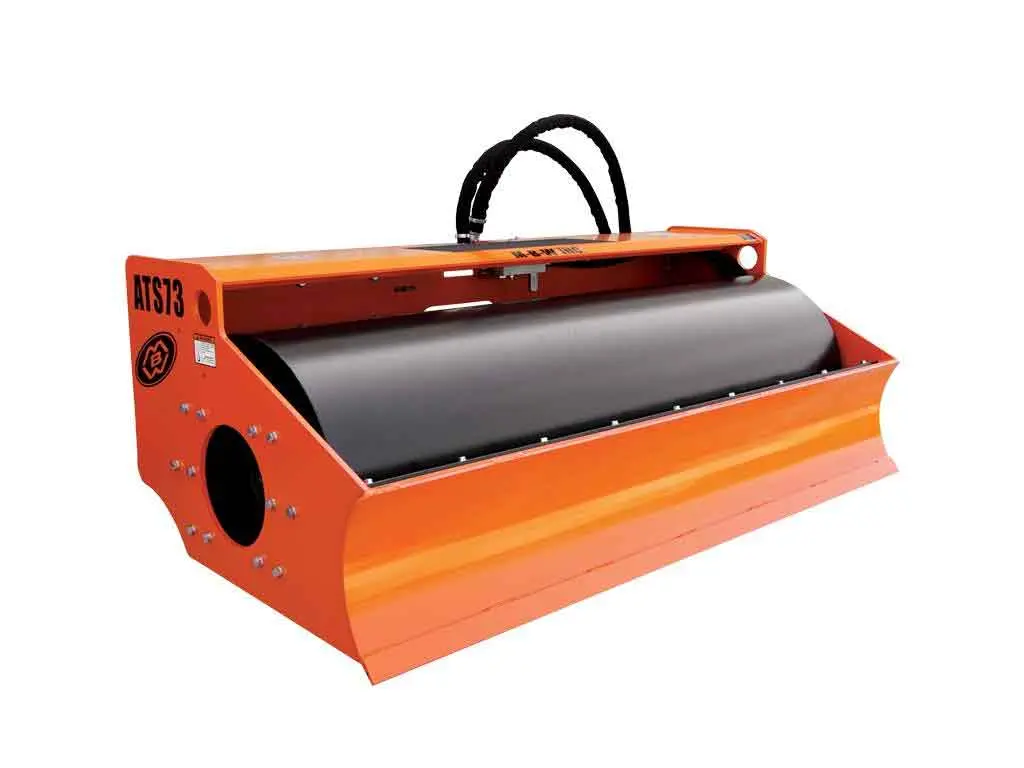

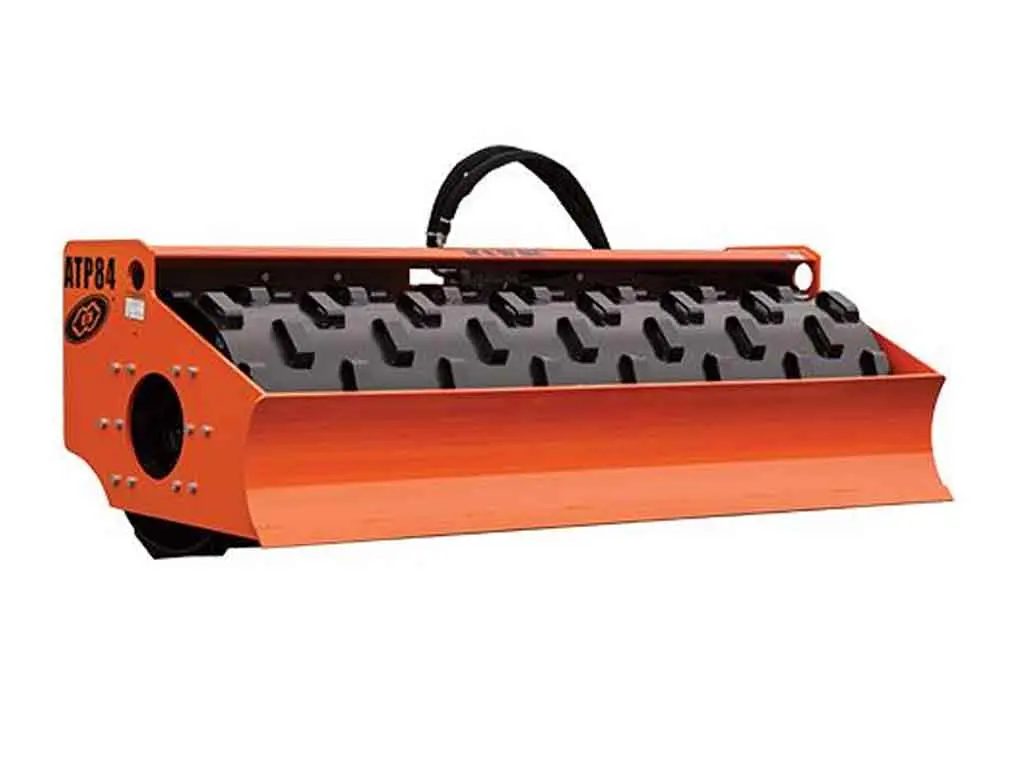

ATS (smooth drum) and ATP (padded drum) models are available in 73 and 84 inch working widths. All models feature hydraulically powered exciter systems lubricated by an oil mist design. All models feature a patented exciter shaft design that minimizes exciter shaft deflection, lower operating temperatures, and provide MBW attachments with the industry’s lowest incidence of bearing and seal failure. A knockdown blade is integral to the roller frame. Vibrating drums are isolated from the frame minimizing transmission of vibration to the host machine. All models come with a universal quick attach system.
MBW compaction attachments for skid-steer loaders offer contractors and rental yards a cost effective, low maintenance alternative to comparatively high cost self-contained rollers.
SPECIFICATIONS
| MODEL | ATS73 | ATP73 | ATS84 | ATP84 |
| Amplitude | .05 in (1.3 mm) | .05 in (1.3 mm) | .05 in (1.3 mm) | .05 in (1.3 mm) |
| Centrifugal Force** | 8850 lb (39.4 kN) | 8850 lb (39.4 kN) | 9765 lb (43.4 kN) | 9765 lb (43.4 kN) |
| Exciter Speed | 3000 rpm | 3000 rpm | 3000 rpm | 3000 rpm |
| Weight | 1940 lb (880 kg) | 2080 lb (943 kg) | 2260 lb (1025 kg) | 2410 lb (1093 kg) |
| Length | 43.3 in (110 cm) | 43.3 in (110 cm) | 43.3 in (110 cm) | 43.3 in (110 cm) |
| Height | 29 in (74 cm) | 30 in (76 cm) | 29 in (74 cm) | 30 in (76 cm) |
| Working Width | 73 in (185 cm) | 73 in (185 cm) | 84 in (213 cm) | 84 in (213 cm) |
| Flow Requirement | 10-50 gpm (38-189 Lpm) | 10-50 gpm (38-189 Lpm) | 10-50 gpm (38-189 Lpm) | 10-50 gpm (38-189 Lpm) |
| Pressure Requirement | 1500-3000 psi (103-207 Bar) | 1500-3000 psi (103-207 Bar) | 1500-3000 psi (103-207 Bar) | 1500-3000 psi (103-207 Bar) |
| Hydraulic Connection | 1/2″ Flat Face Quick Coupling | 1/2″ Flat Face Quick Coupling | 1/2″ Flat Face Quick Coupling | 1/2″ Flat Face Quick Coupling |
