DESCRIPTION

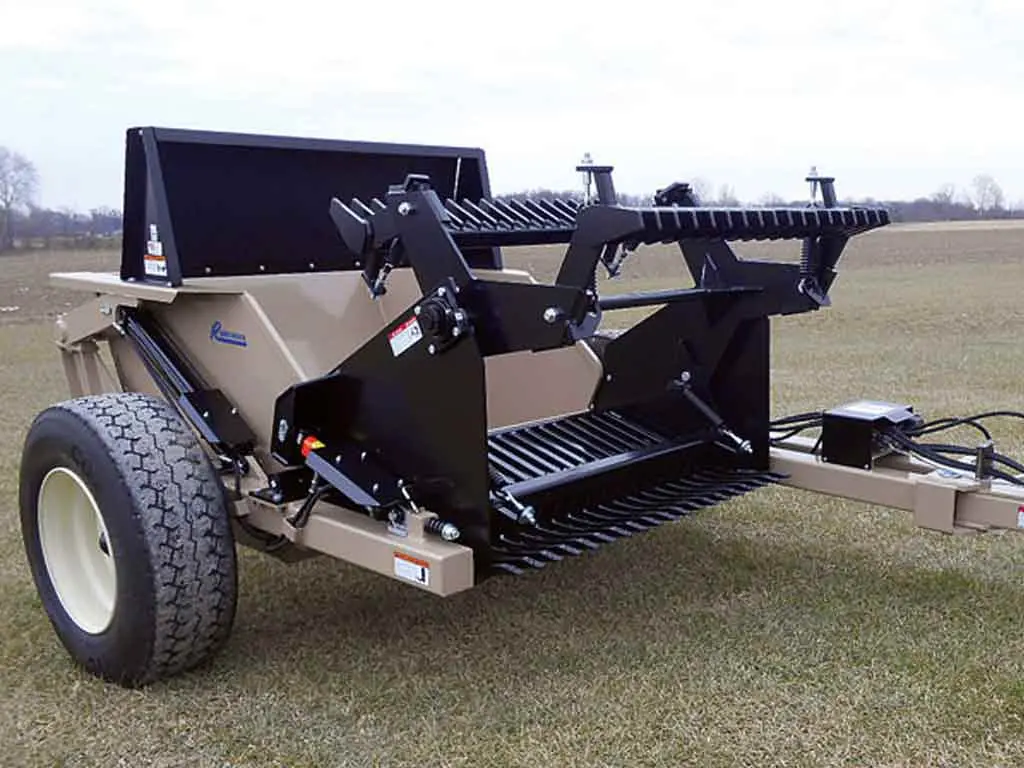

Remlinger Manufacturing offers the PFM Series 500 Hydraulic Powered Rock Picker as a simple, economical approach to continuous picking machines for stones, rocks and boulders. The simple design and straight forward picking action results in a highly reliable machine with minimum maintenance and excellent performance for years to come.
Key Benefits
- Ideal for strip mines, reclamation, concrete debris, demolition and more
- Economical machine for continuous picking of stones, rocks, windrows and boulders
- Reduces downtime and damage to tillage and harvesting equipment
- Efficient valve and remote switch box hydraulic system
- Operator controls all functions without leaving the tractor
Standard Features
- 2 1/4 cubic yard hopper
- 60″ picking width
- 1 1/2″ – 24″ size rocks
- 5″ HD frame
- 60 HP min tractor
- spring cushion reel
- Fits category III clevis
- Hard surface scoop tines
- Hard surface bar reel teeth
- Hydraulic dump hopper
- Hydraulic reel drive
- Hydraulic tine scoop
You need two sets of hydraulic outlets
SPECIFICATIONS
| MODEL | Series 500-20 |
| FRAME |
Welded Construction using Heavy Plate and 5” Square Tubing |
| HOPPER |
Constructed with Grated Bottom and 1/4” Steel Gusseted Back Rock Guard Heavy 1/2” Thick Rubber Deflector |
| HOPPER SIZE | 2-1/4” Cubic Yards |
| TINE SCOOP |
Specially Designed, Hard Surfaced Contoured Tine Bar Reel Large Diameter with Hard Surfaced Teeth, Protected by Heavy Duty Spring Cushion Trip Action Swing Hitch Hydraulic Controlled From Tractor |
| TRACTOR | Implement Hitch Category 3 with Clevis |
| Hydraulics Scoop | Two 3 x 8 Cylinders |
| Hydraulics Swing | One 3 x 8 Cylinder |
| Hydraulics Hopper | Two 3-1/2 x 30” Cylinders |
| Reel Drive | Hydraulic Motor with Cross Over Relief Valve |
| Tractor Hydraulics | Two Remotes Required — 12 GPM at 1,500 PSI Minimum with Flow Control |
| Axle and Hub | 7,500 lbs. Hub and Axle Assembly |
| Tire Size | Standard 10 Ply x 12.5L x 15 |
| Optional Tire Size | Optional 385 / 65R x 22.5 |
| Used Tractor HP | 60 HP |
| Minimum Rock Size | 1-1/2” to 24” |
| Picking Width | 60” |
| Transport Length and Width | 17’ 6” x 9’ 8” |
| Weight | 4,800 lbs |
SHIPPING
VARIES
