Drop Hammers
DH1500 / DH3500 / DH9000

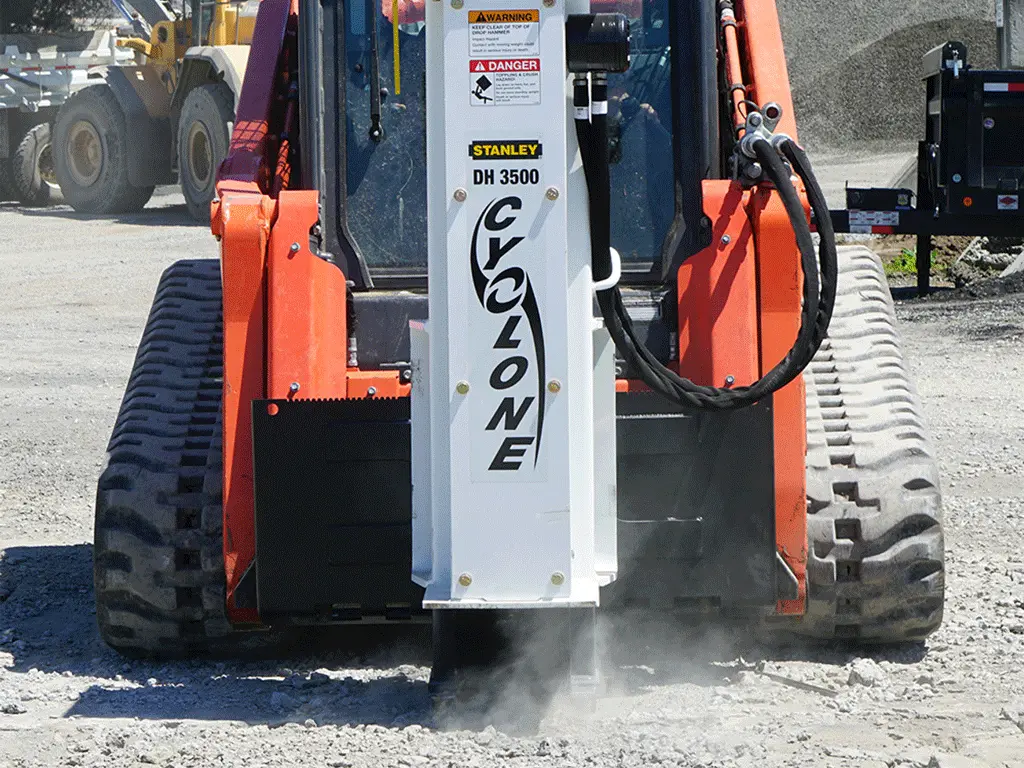

The Cyclone Drop Hammer was developed specifically for the demolition and recycling industries to break-up or crack concrete slabs.
Features:
- Shock Free – Patented “skid” system keeps the Cyclone grounded and dissipates the shock as it pulverizes the concrete.
- Moveable Hammer Pin – For adjusting impact energy.
- Minimal Setup Time – Increased productivity.
- Low Maintenance – Field serviceable, no special tools required.
- Heavy Duty Buffer System – Absorbs impact of a “mis-hit”.
- Easy Operation – Reduces operator error and fatigue.
- Compact Design – Makes transport simple.
- Simple Hook-Up – Allows for easy change of attachments.
- Low Investment – High production results in the lowest cost per yard-ton figures attainable.
SPECS
SPECIFICATIONS
| MODEL | IMPACT ENERGY BLOW (FT LBS) | MAX BLOWS PER MINUTE | BRACKET | WEIGHT W/BRACKET (LBS) | OVERALL LENGTH (IN) | HYDRAULIC FLOW (GPM) | CARRIER WEIGHT CLASS (LBS) |
|---|---|---|---|---|---|---|---|
| DH1500 | 1,500 | 32 | SS BRKT | 750 | 63.75 | 8.7-20.6 | 880-15,400 |
| DH1502 | 1,500 | 32 | Q-TACH BRKT | 750 | 63.75 | 8.7-20.6 | 880-15,400 |
| DH3500 | 3,500 | 32 | SS BRKT | 1,540 | 65.5 | 10.6-20.6 | 15400-26,500 |
| DH9000 | 9,000 | 23 | SS BRKT | 3,150 | 74 | 21-31 | 26,500 + |
