DESCRIPTION

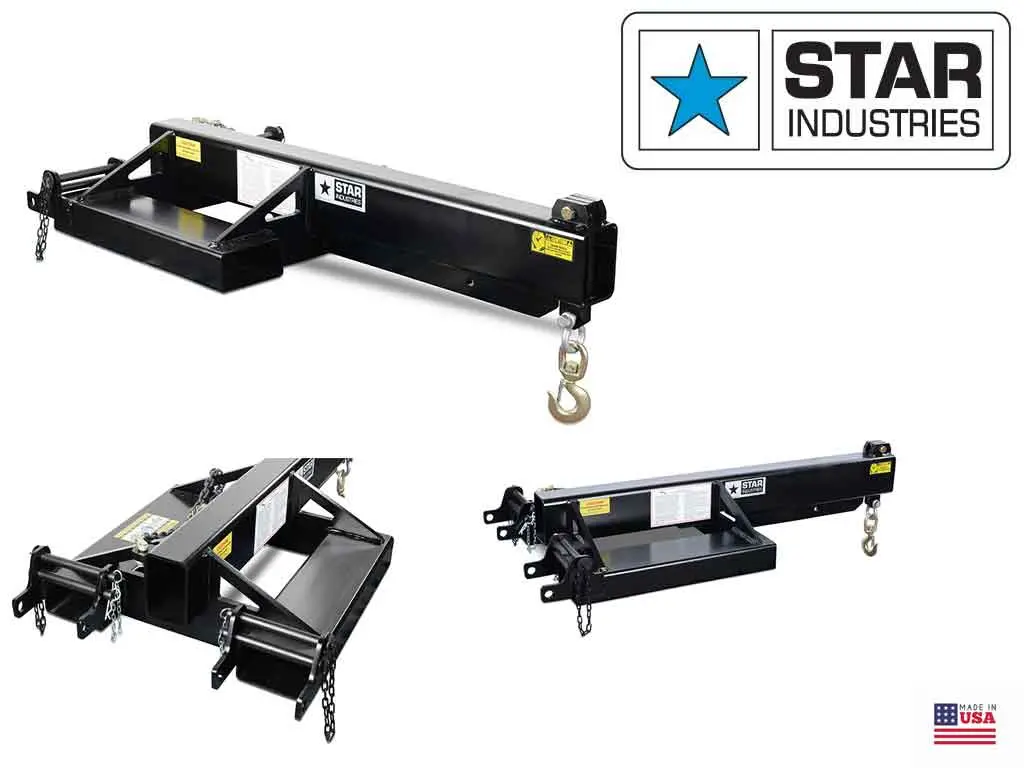

Forklift Jib Boom

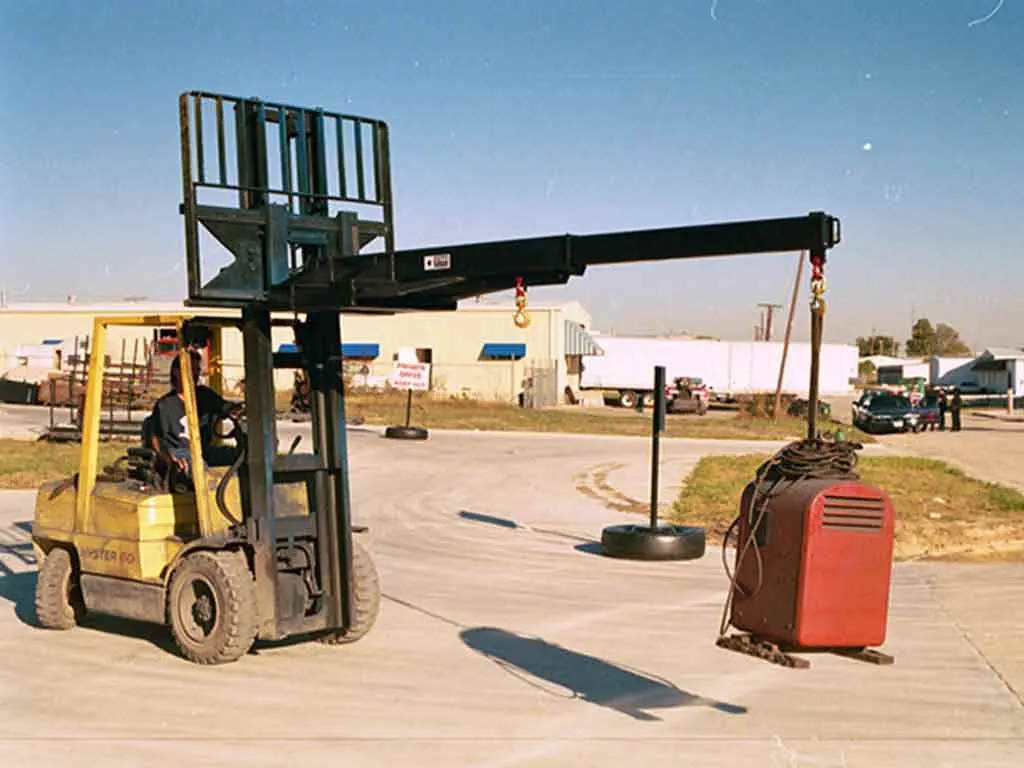

Extend the reach of your forklift

• Suitable for straight-mast and extendable-reach type forklifts
• Telescopic two section tubular steel boom
• Manually telescopes from 7′ to 12′

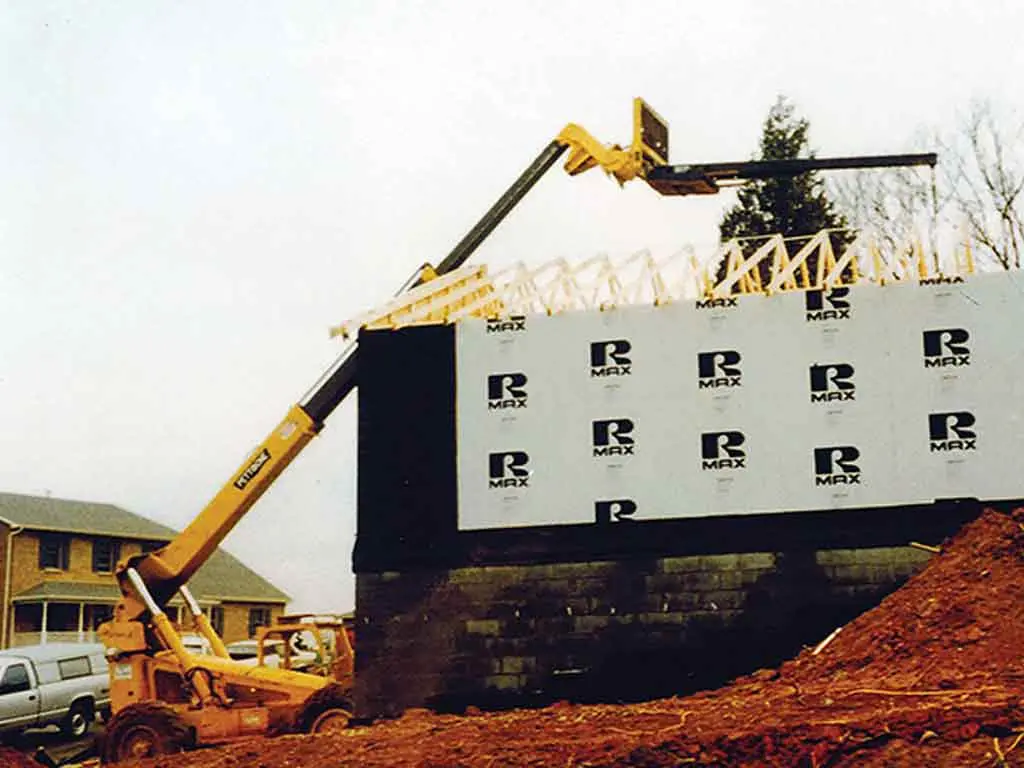

Extend the reach of your forklift with a Star Industries heavy duty forklift jib. The telescopic boom extends up to a massive 12 feet making it the perfect solution to place heavy loads over or under obstacles.

Features

• Pull spring-loaded pin to telescope—release pin and boom locks in desired position
• Internal stop ensures telescopic section cannot be accidentally pulled all the way out
• Jib slides on the forks and is pinned behind the heel to secure it to the forklift
• Universal fit (slip-on-the forks) design permits use on most all forklifts
• One bolted shackle and swivel hook is included

SPECIFICATIONS

ADJUSTABLE BOOM

Model	1360B
Max Load Capacity	6000 lbs @ 4′
Empty Weight	585 lbs
Extends	7’ 0” to 12’ 0”
Vertical Center of Gravity	Centerline
Horizontal Center of Gravity Fully retracted	36 5/16″
Horizontal Center of Gravity Extended midway	43 ¾”
Horizontal Center of Gravity Fully extended	54 7/16″

FIXED BOOMS

Model	Capacity	Reach
1360B-5FXL	6,000 lbs	5′ (ft)
1360B-6FXL	5,000 lbs	6′ (ft)
1360B-7FXL	4,000 lbs	7′ (ft)

Hook Positions:

Hook Position	4	3	2	1
Distance	12′ 0″	9′ 0″	7′ 0″	4′ 0″
Maximum load on a single hook	2,000 lbs	3,000 lbs	4,000 lbs	6,000 lbs

Fork Pocket Size:
30″ long x 7½” x 3½” ID

Center to Center of Fork Pockets:
24″ / Pocket Ends are open.
