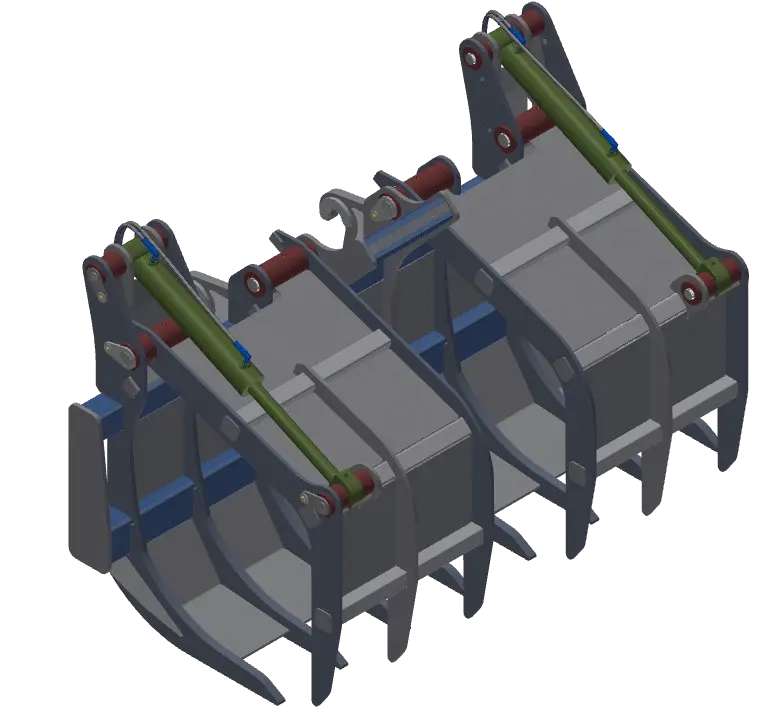

Wheel Loader Bio Mass Rake with Independent Top Clamps
TAG Severe Duty Bio Mass Rakes With Independent Top Clamps
- Special Top Clamp Design With Enclosed Clamp And Rake Sections For Max Material Retention
- Cylinder Towers And Hing Points Are Fully Integrated Extensions Of The Vertical Upper Struts
- Full Mechanical Clamp Stops
- Requires 3Rd Function Hydraulics
Mountings
Buckets available in direct pin on or with quick coupler adapters
SPECIFICATIONS
| SKU | Width Across Tines | Tine Spacing | Tine Thickness | # of Tines | MAX Opening | Weight |
|
P100BMR QC100BMR |
94″ | 13-1/4″ | 1-1/4″ | 8 | 70-7/8″ | 2600 LBS |
|
P200BMR QC200BMR |
96″ | 13-1/2″ | 1-1/2″ | 8 | 70-7/8″ | 3600 LBS |
|
P300BMR QC300BMR |
106″ | 13-1/8″ | 1-1/2″ | 9 | 70-7/8″ | 4000 LBS |
|
P500BMR QC500BMR |
106″ | 13-1/8″ | 1-1/2″ | 9 | 70-7/8″ | 4000 LBS |
|
P600BMR QC600BMR |
114″ | 14″ | 2″ | 9 | 76″ | 5150 LBS |
|
P700BMR QC700BMR |
122″ | 13-1/4″ | 2-1/4″ | 10 | 97-3/4″ | 6000 LBS |
|
P800BMR QC800BMR |
135″ | 14-3/4″ | 2-1/2″ | 10 | 97-3/4″ | 7750 LBS |
Special Class 300/500 Skidder Tire Rake
| 130-0031Q | 114″ | 12-1/2″ | 1-1/2″ | 10 | 70-7/8″ | 4860 LBS |
| 130-0021q | 120″ | 13-3/16″ | 1-1/2″ | 10 | 70-7/8″ | 5000 LBS |
