Description
DESCRIPTION

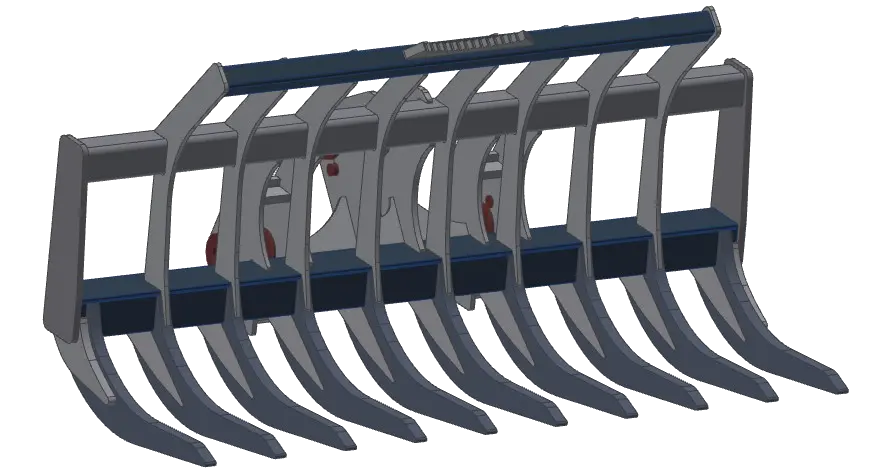

Wheel Loader Stacking Loader Rakes
TAG Heavy Duty Stacking Rakes Are Designed With Curved Tines For Maximum Material Retention.
- T-1 Grade Construction
- Available In Pin On Or Quick Coupler Configurations
Mountings
Buckets available in direct pin on or with quick coupler adapters
SPECIFICATIONS
| SKU | Width Across Tines | Tine Spacing | Tine Thickness | # of Tines | Weight |
|
P100LR QC100LR |
94″ | 13-1/4″ | 1-1/4″ | 8 | 1730 LBS |
|
P200LR QC200LR |
94″ | 13-1/2″ | 1-1/2″ | 8 | 2630 LBS |
|
P300LR QC300LR |
106″ | 13-1/8″ | 1-1/2″ | 9 | 2740 LBS |
|
P500LR QC500LR |
106″ | 13-1/8″ | 1-1/2″ | 9 | 2740 LBS |
|
P600LR QC600LR |
114″ | 14″ | 2″ | 9 | 4425 LBS |
|
P700LR QC700LR |
122″ | 13-1/4″ | 2-1/4″ | 10 | 5200 LBS |
|
P800LR QC800LR |
135″ | 14-3/4″ | 2-1/2″ | 10 | 6650 LBS |
Special Class 500 Skidder Tire Rakes
| 112-0001Q | 114″ | 14-1/16″ | 1-1/2″ | 9 | 2950 LBS |
| 112-0009Q | 120″ | 13-3/16″ | 1-1/2″ | 10 | 3150 LBS |
