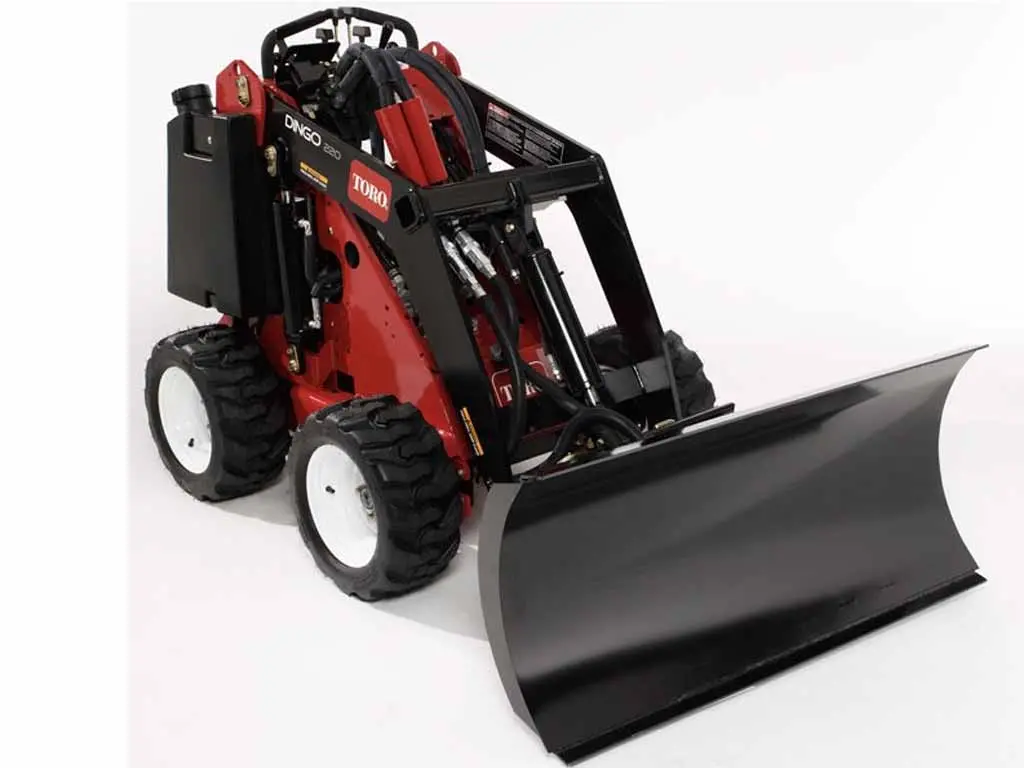

Utility Blade Attachment
The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.
Variable Blade Angles
Hydraulic blade angles both right and left with the flip of a lever to increase productivity. Up and down angles can be adjusted by using the Dingo tilt cylinder.
Reversible Blade
Hydraulic blade can be flipped from top to bottom to increase the life of the blade and maximize performance and productivity.
Compact Size
Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.
SPECIFICATIONS
| Construction | Fabricated, welded steel frame |
|---|---|
| Height | 21 in. / 53.3 cm |
| Length | 25 in. / 63.5 cm |
| Models | Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500 |
| Mounting Frame | Dingo® quick-attach mount plate, fabricated, welded base |
| Quick Couplers | Dripless, flush face quick couplers |
| Weight | 212 lbs / 96 kg |
| Width | 48 in. / 121.9 cm |
