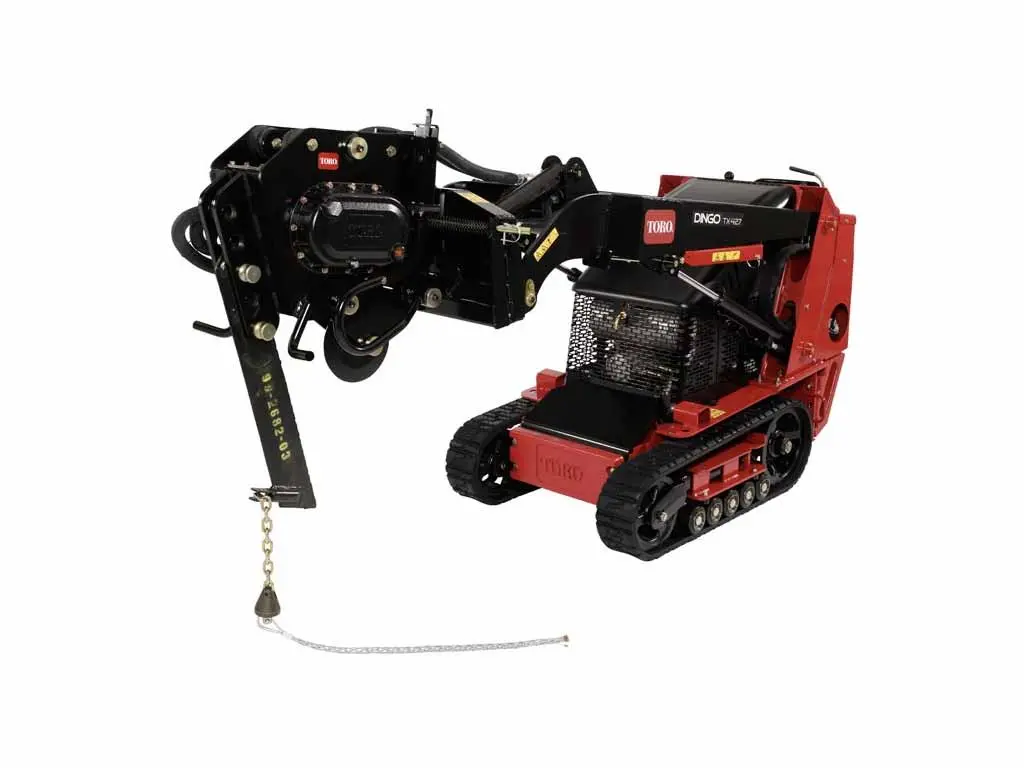

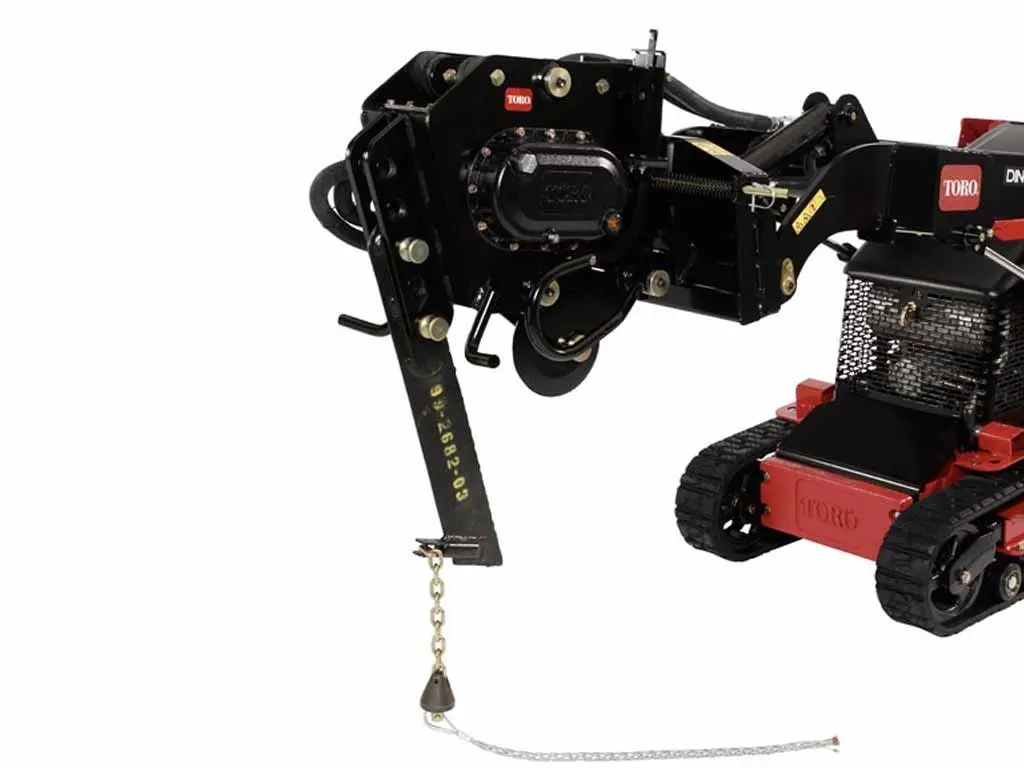

Vibratory Plow Attachment

The Toro® Dingo® vibratory plow attachment greatly reduces a contractor’s time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.

• Convenient depth-indicator
• Elliptical vibrating motion
• Pull pipe up to 2″ diameter
• 12″ and 18″ blades available



• Depth Indicator

  Convenient depth-indicator ensures pipe-laying at uniform depth.

• Heavy Cast Coulter

  Provides knife like slit in turf ahead of blade. Allows blade to move through turf with minimal tearing.

• Elliptical Vibrating Motion

  Creates natural force in the direction of the machine, thus helping to pull pipe and cable through difficult soil conditions.

• Flexible Head

  Compression springs allow the head to pivot 30-degree side-to-side for tight turning.

• Isolators

  Rubber isolators control the plow vibration amplitude

SPECIFICATIONS

Blade Adjustment	Adjust f/ 0 -18″ (0-46 cm) depths
Chain	Machined, plated 2″ (5 cm) hex bullet
Construction	Fabricated, welded steel frame
Depth Control	Adjustable
Height	24 in. / 60.9 cm
Length	35 in. / 88.9 cm
Models	Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700
Mounting Frame	Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers	Dripless, flush face quick couplers
Weight	400 lbs / 181 kg
Width	29 in. / 73.6 cm

OPTIONS

Spool Carrier

Mounts onto Dingo loader arm to carry spool of wire or cable. Used with the chuted blade assembly for pulling cable or wire. Part number 104-2685

Blade Options

1/4″ x 12″ (30.5 cm) Part number 99-2682-03
1/2″ x 18″ (45.7 cm) Part number 99-8600-03
3/8″ x 18″ (45.7 cm) Part number 99-8647-03
3/8″ x 12″ Part number 106-7646-03
Chuted Blade Part number 104-0640

Puller Options

1″ (2.5 cm) Taper Lock Puller for PVC. Part number 100-6285
1-1/2″ (3.8 cm) Taper Lock Puller for PVC. Part number 100-6290
2″ (5.1 cm) Taper Lock Puller for PVC. Part number 100-6294
3/4″ to 1-1/4″ (1.9 cm to 3.2 cm) Basket Grip Puller for Poly. Part number 100-1661
1-1/4″ to 1-1/2″ (3.2 cm to 3.8 cm) Basket Grip Puller for Poly. Part number 100-1662
Tapered Threaded Puller. Part number 104-0646
Bullet (needed for Puller). Part number 100-6337
