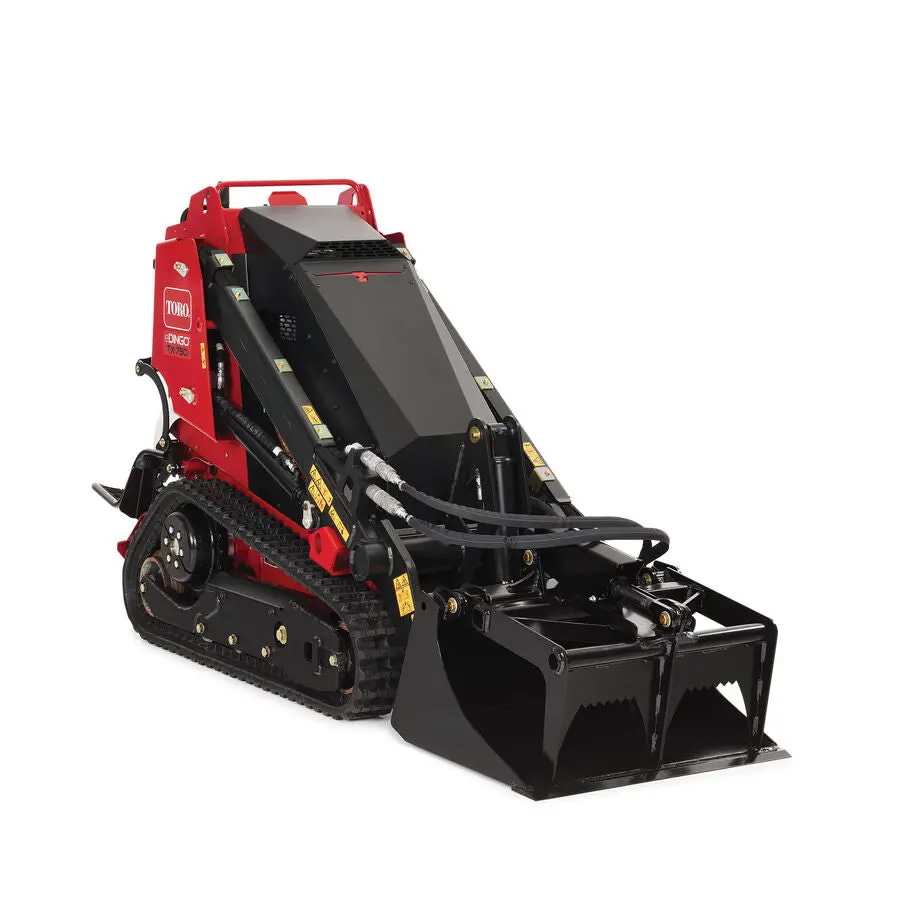

eDingo® TX 750 Electric Track Loader

Overview

Meet the unique demands of interior construction and demolition with the productivity-boosting Toro® eDingo® TX 750. Toro’s patented HyperCell® Battery technology offers up to eight hours of quiet runtime and zero engine exhaust emissions. Intuitive controls and compact design allow operators to easily maneuver in tight spaces while saving time, reducing fatigue and boosting productivity.

• Rated operating capacity of 750-lbs.
• Easily clear the side of 30-yard dumpsters or one-ton trucks
• Powered by HyperCell Power System® delivers up to 8 hours of continuous runtime.

Features

Rated Operating Capacity (ROC)

This compact powerhouse can lift up to 750 lbs

81-inch hinge pin height

Easily clear the side of 30-yard dumpsters or one-ton trucks

Powered by HyperCell

Toro’s proprietary battery technology offers reduced noise, zero engine exhaust emissions and all-day runtime*.*Run time may vary depending on attachment being used

SPECS

eDingo Narrow Track

Battery	Toro HyperCell Lithium Ion
Battery Capacity	22.3 kWh
Battery Charging Requirements	240V
Battery Chemistry	Toro HyperCell Lithium Ion
Dump Angle	40 deg
Fuel Type	Electric
Ground Clearance	5.8 in. / 14.7 cm
Ground Speed – Forward	Up to 4.0 mph / 6.4 kph
Ground Speed – Reverse	Up to 2.0 mph / 3.2 kph
Height	54.5 in. / 138.4 cm
Hinge Pin Height	81 in. / 205.7 cm
Length	66 in. / 167.6 cm
Loader Arms	Radial
Max Operating Height	106.6 in. / 270.7 cm
Rated Operating Capacity*	750 lbs / 340 kg
Reach – Fully Raised	21.2 in. / 53.6 cm
Tip Capacity	2,142 lbs / 971.5 kg
Track Length	126.6 in. / 321.5 cm
Track Width	5.4 in. / 13.7 cm
Tracks	MERT track with “B” style tread
Traction	Electrically Driven
Weight	2,561 lbs / 1,161.6 kg
Width	31.5 in. / 80.65 cm

eDingo Wide Track

Battery	Toro HyperCell Lithium Ion
Battery Capacity	22.3 kWh
Battery Charging Requirements	240V
Battery Chemistry	Toro HyperCell Lithium Ion
Dump Angle	40 deg
Fuel Type	Electric
Ground Clearance	5.8 in. / 14.7 cm
Ground Speed – Forward	Up to 4.0 mph / 6.4 kph
Ground Speed – Reverse	Up to 2.0 mph / 3.2 kph
Height	54.5 in. / 138.4 cm
Hinge Pin Height	81 in. / 205.7 cm
Length	66 in. / 167.6 cm
Loader Arms	Radial
Max Operating Height	106 in. / 269.2 cm
Rated Operating Capacity*	750 lbs / 340 kg
Reach – Fully Raised	21.2 in. / 53.6 cm
Tip Capacity	2,142 lbs / 971.5 kg
Track Length	126.6 in. / 321.5 cm
Track Width	9.1 in. / 23.1 cm
Tracks	MERT Track With Turf Friendly Style Tread
Traction	Electrically Driven
Weight	2,665 lbs / 1,208.8 kg
Width	37.2 in. / 94.4 cm
