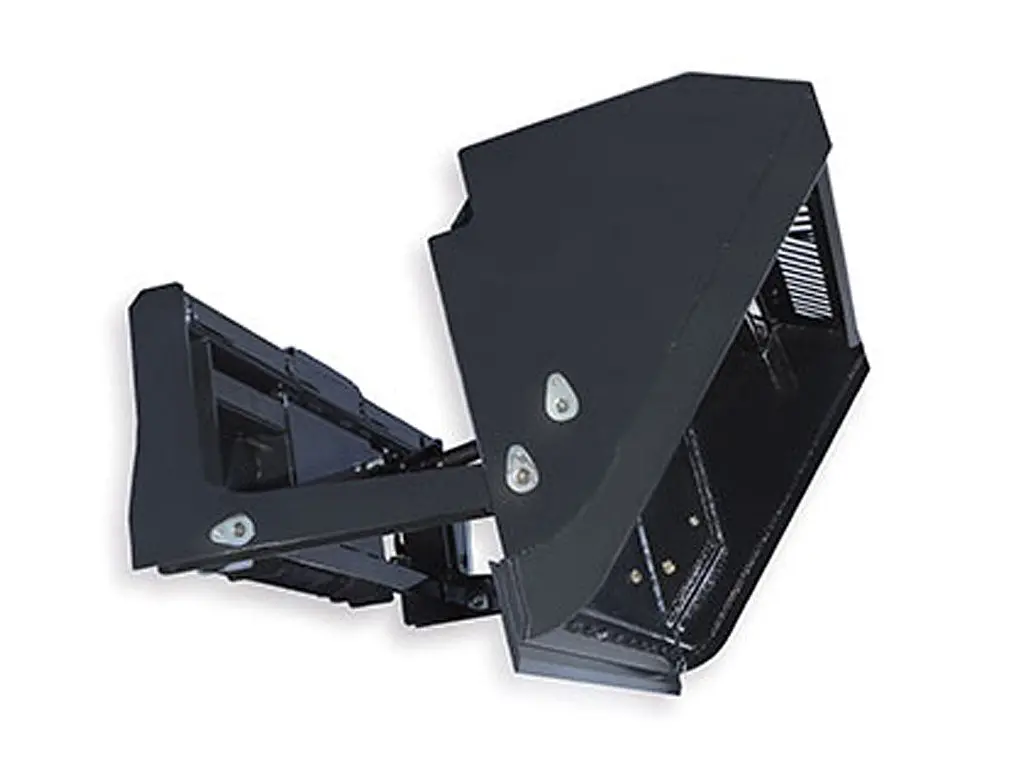

Virnig High Dump Bucket (Rollout Bucket)

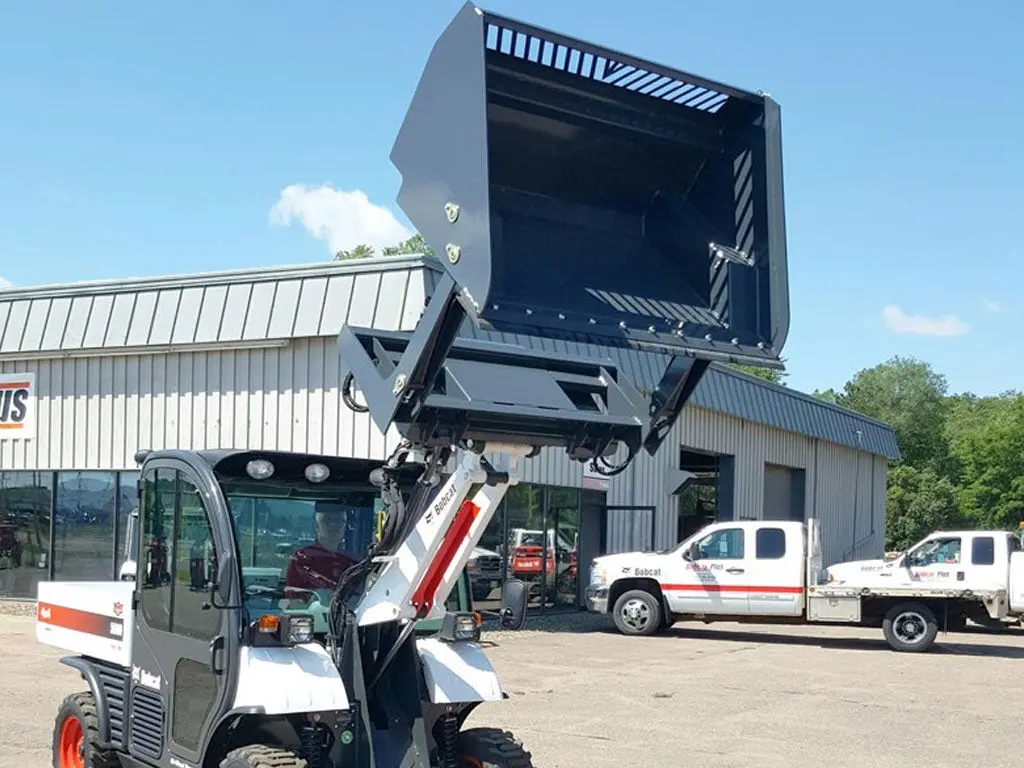

The Virnig High Dump Bucket is engineered to increase dump height and forward reach for skid steers and compact track loaders, making it ideal for loading feed mixers, trucks, and high-sided containers. Commonly referred to as a rollout bucket, this attachment features a dual-cylinder hydraulic design that delivers smooth, controlled dumping beyond standard bucket limits.
Providing an increase of approximately 44 inches of vertical lift and 13 inches of horizontal reach, the Virnig High Dump Bucket improves productivity while reducing machine repositioning. Built for durability and visibility, it includes 4-inch viewing windows, heavy-duty wear components, and premium hydraulic cylinders designed for long service life.
Included with This Attachment
-
Universal skid steer mounting
-
Hydraulic hoses, couplers, and fittings
Key Features & Benefits
-
Two-cylinder hydraulic high dump design
-
Adds ~44″ of vertical lift and ~13″ of horizontal reach
-
Ideal for feed mixers, trucks, and material handling
-

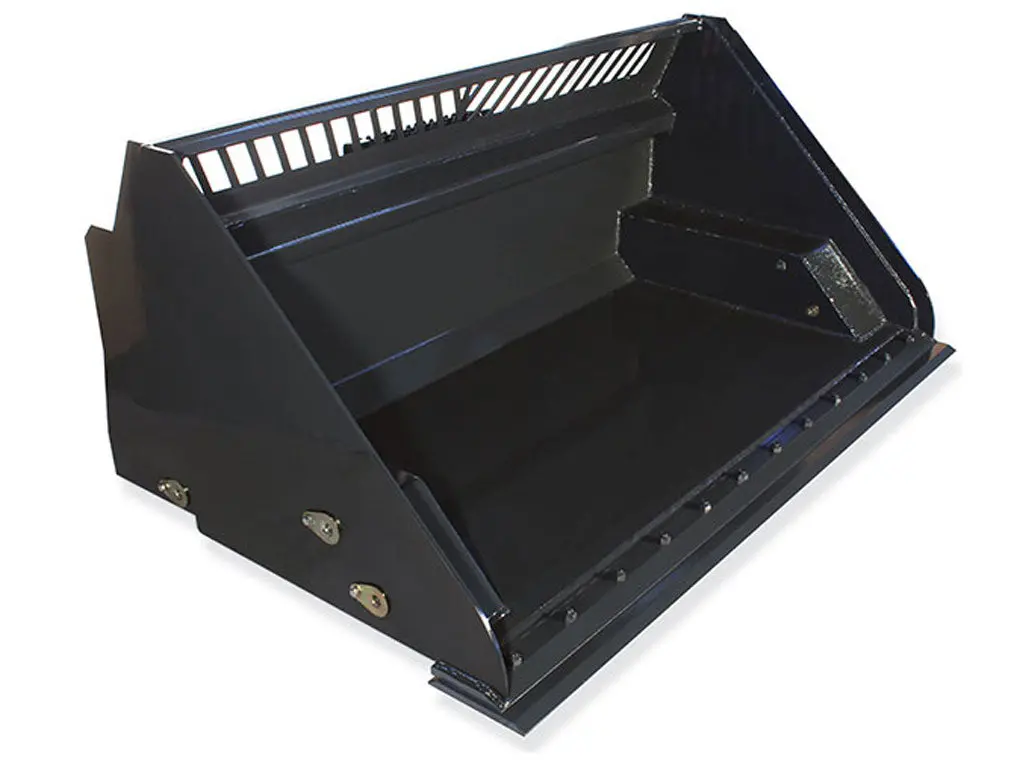

4″ bucket windows for improved operator visibility
-
3/4″ x 6″ weld-on cutting edge with holes for optional edges
-
2″ bore cylinders with 8.375″ stroke
-
USA-made NitroSteel® cylinder rods resistant to corrosion, dents, and flaking
-
Greasable pins and Teflon®-coated bushings at all pivot points
-
Structural wear bars under bucket for extended service life
-
Machine-specific hydraulic package available

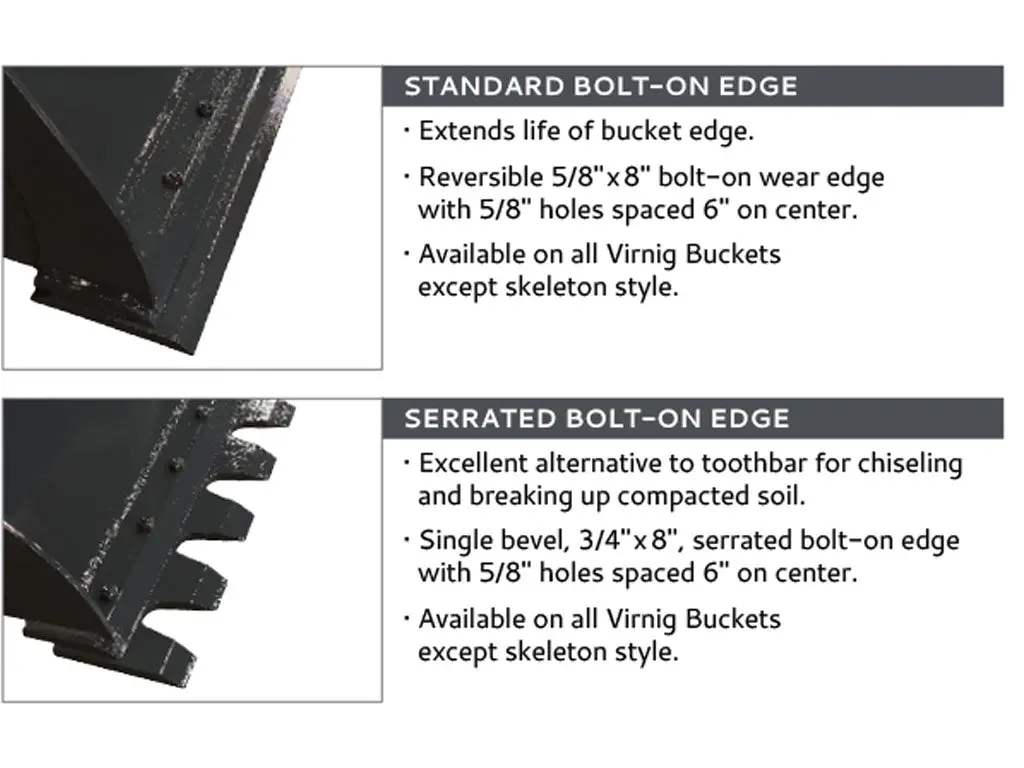

Optional Upgrades
-
Bolt-On Cutting Edge (BOCE) – installed
-
Serrated Edge (SE) – installed
Specifications
Recommended Loader Capacity
-
Greater than 1,800 lbs ROC
Hydraulics
-
Cylinder Bore / Stroke: 2.0″ / 8.375″
-
Cylinder Pin Diameter: 1.25″
-
Hinge Pin Diameter: 1.563″
Structural Wear Bars
-
Under bucket: 1/2″ x 4″
Bucket Dimensions & Capacities
| Model | 60″ | 72″ | 84″ | 96″ |
|---|---|---|---|---|
| Overall Width (in) | 61.5 | 73.5 | 85.5 | 97.5 |
| Depth (in) | 47.3 | 47.3 | 47.3 | 47.3 |
| Height (in) | 29.8 | 29.8 | 29.8 | 29.8 |
| Window Height (in) | 4.0 | 4.0 | 4.0 | 4.0 |
| Dump Angle (degrees) | 86.0 | 86.0 | 86.0 | 86.0 |
| Struck Capacity (cu ft) | 22.8 | 27.4 | 32.0 | 36.6 |
| Heaped Capacity (cu ft) | 27.4 | 32.9 | 38.4 | 43.9 |
| Structural Wear Bars | 3 | 4 | 4 | 4 |
| Weight (lbs) | 1,015 | 1,115 | 1,215 | 1,310 |
Ideal Applications
-
Agriculture & feed handling
-
Truck and trailer loading
-
Material handling
-
Farm and commercial operations
SPECS
- Recommended loader capacity – Greater than 1800 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pins Diameter (in) 1.25 / 1.563
| Model | 60″ | 72″” | 84″ | 96″ |
| Overall Width (in) | 61.5 | 73.5 | 85.5 | 97.5 |
| Depth (in) | 47.3 | 47.3 | 47.3 | 47.3 |
| Height (in) | 29.8 | 29.8 | 29.8 | 29.8 |
| Window Height (in) | 4.0 | 4.0 | 4.0 | 4.0 |
| Dump Angle (degrees) | 86.0 | 86.0 | 86.0 | 86.0 |
| Struck Capacity (cu ft) | 22.8 | 27.4 | 32.0 | 36.6 |
| Heaped Capacity (cu ft) | 27.4 | 32.9 | 38.4 | 43.9 |
|
Structural Wear Bars Under Bucket 1/2″ x 4″ |
3 | 4 | 4 | 4 |
| Weight (lbs) | 1015 | 1115 | 1215 | 1310 |
