Description
DESCRIPTION
- Universal skid steer mounting
- High-strength steel construction and replaceable wear edges.
- Top formed profile to limit spillage and rolled inside profile for easier clean out.
- 60 degree back angle and a top formed profile to better hold slurry material and limit spillage off the front of the cutting edge.
- ¾” x 6” weld-on edge with holes for optional bolt-on edge.
- Reversible, replaceable bolt-on side wear edges
OPTIONS

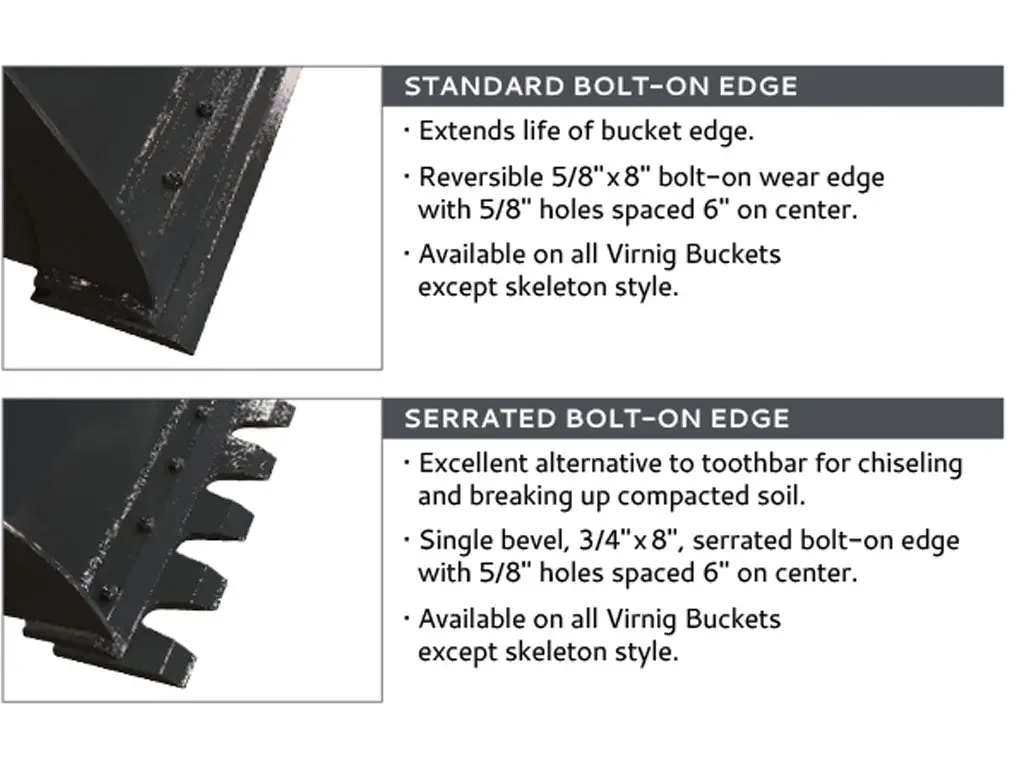

- Bolt on Cutting Edge (BOCE) installed
- Serrated Edge (SE) installed
SPECIFICATIONS
- Recommended loader capacity – Greater than 1500 lbs ROC
| Model | 66″ | 72″” | 78″ | 84″ |
| Overall Width (in) | 68.3 | 74.3 | 80.3 | 86.3 |
| Depth: Overall / Inside (in) | 37.0 / 32.6 | 37.0 / 32.6 | 37.0 / 32.6 | 37.0 / 32.6 |
| Height (in) | 25.3 | 25.3 | 25.3 | 25.3 |
| Struck Capacity (cu ft) | 16.9 | 18.4 | 20.0 | 21.5 |
| Heaped Capacity (cu ft) | 20.3 | 22.1 | 24.0 | 25.8 |
|
Structural Wear Bars Under Bucket 1/2″ x 4″ |
3 | 3 | 4 | 4 |
| Weight (lbs) | 600 | 710 | 770 | 810 |
SHIPPING
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
