Virnig Skid Steer Power Rake Attachment

Description

DESCRIPTION

2/26

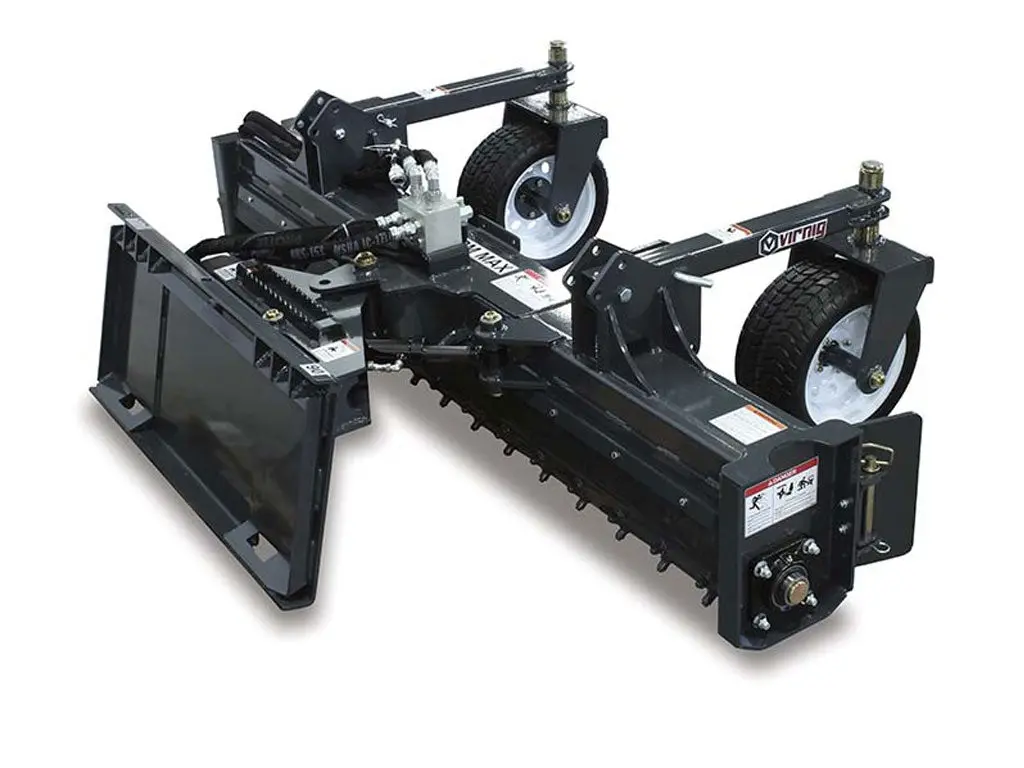

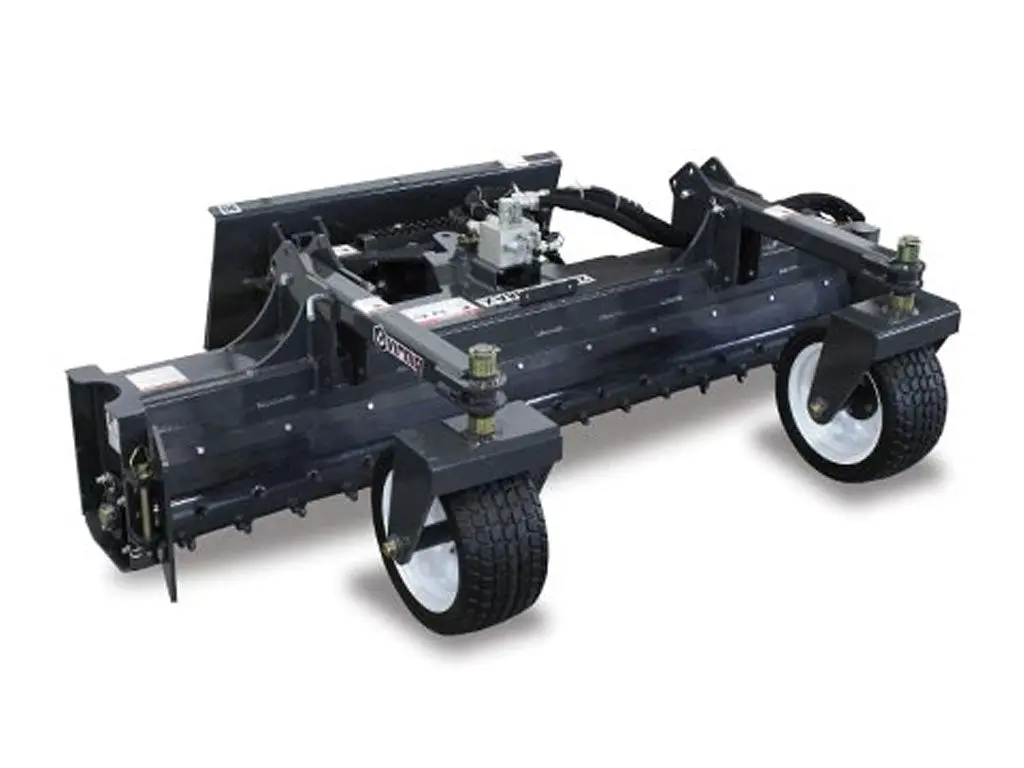

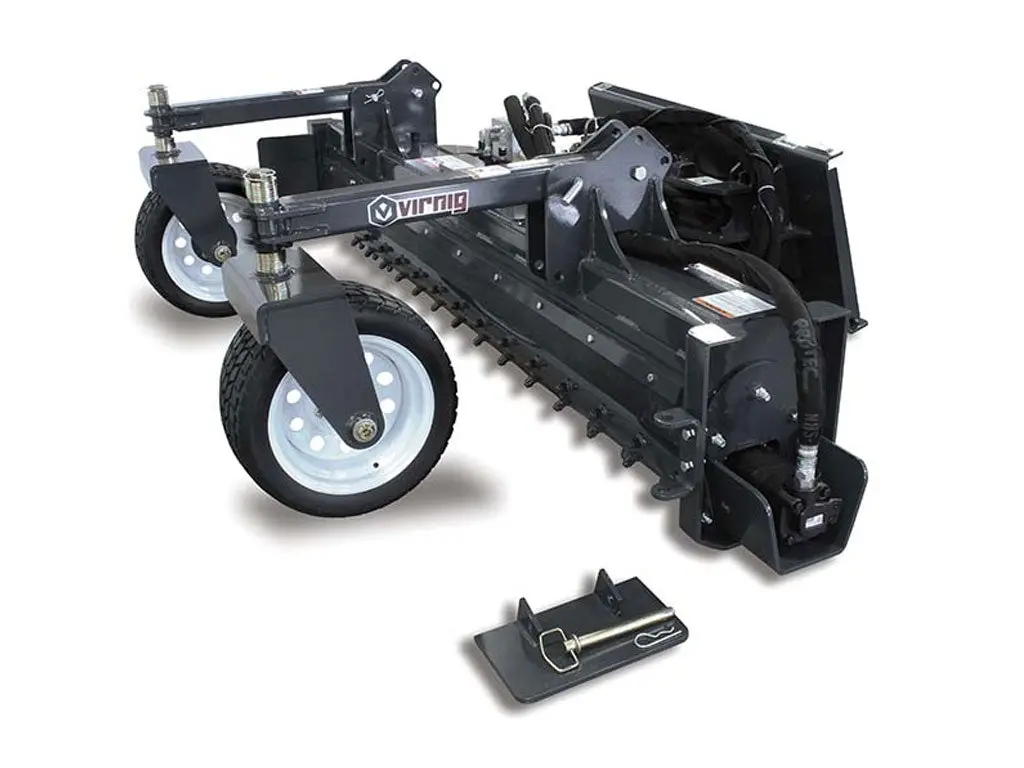

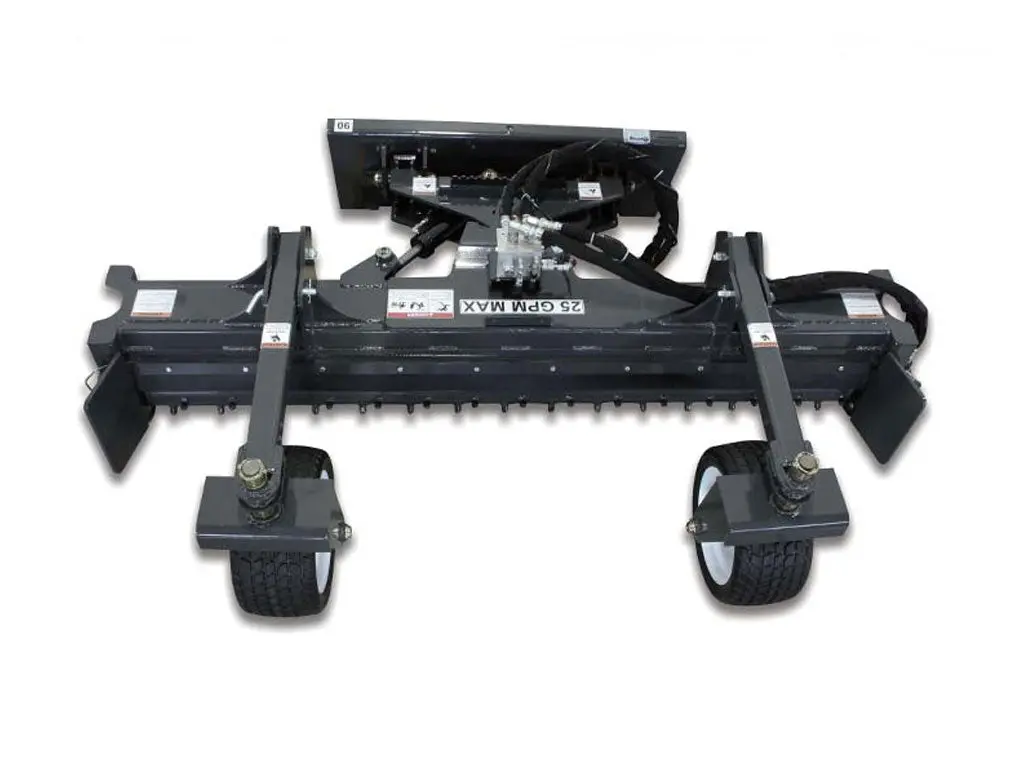

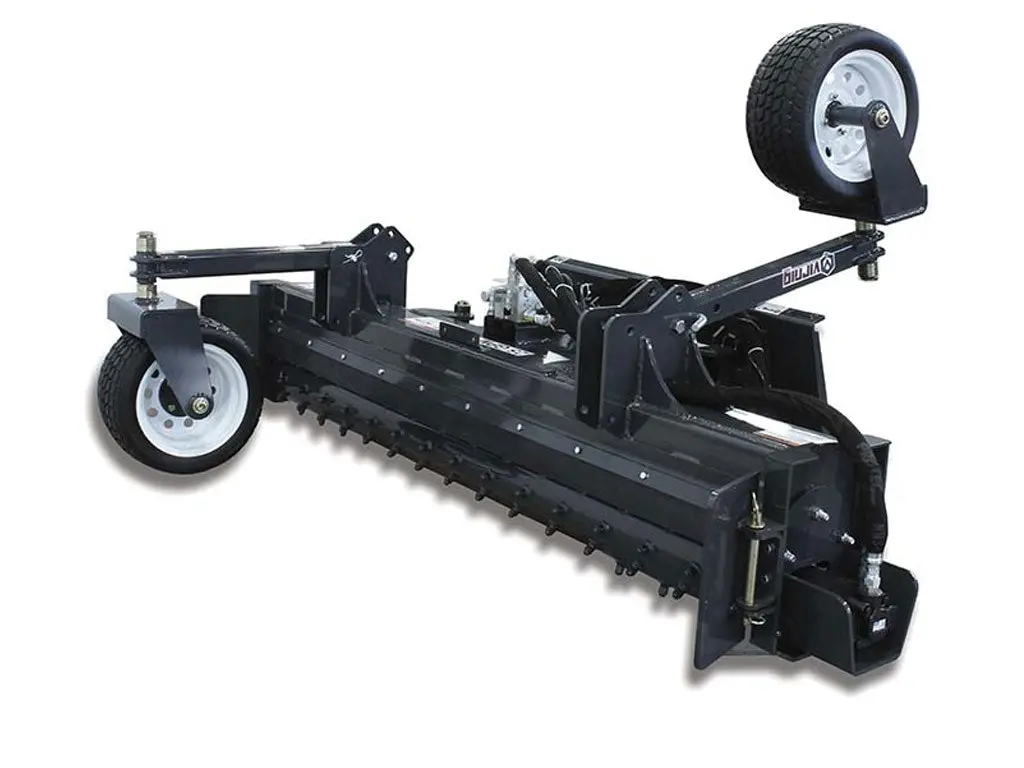

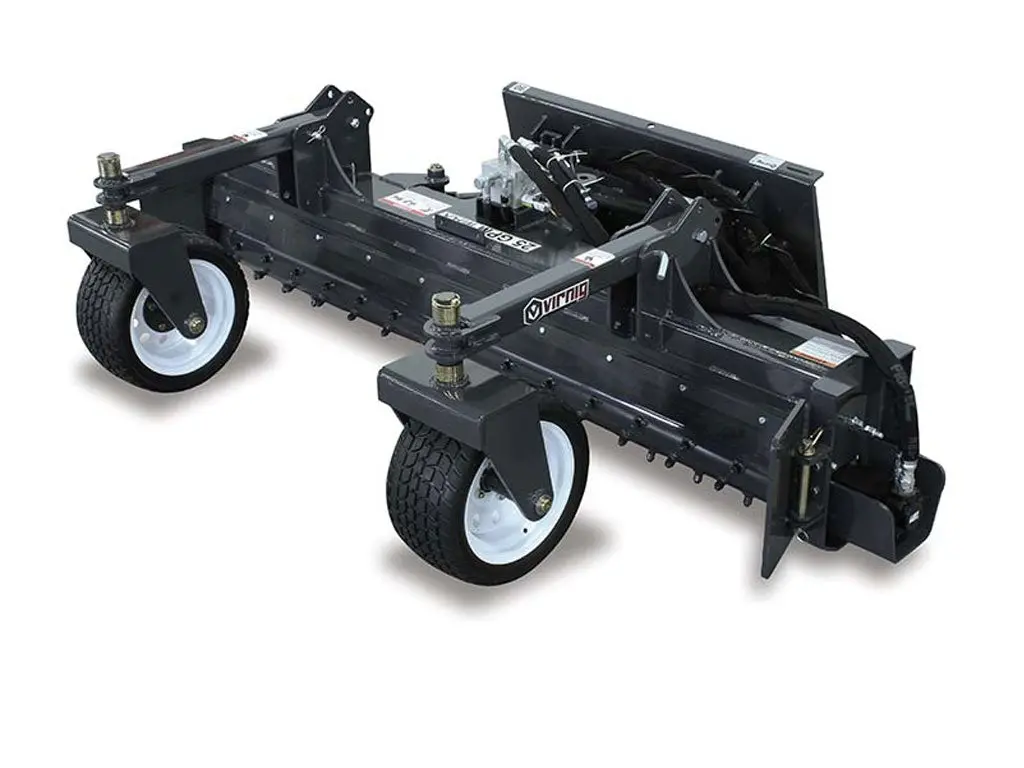

VIRNIG LANDSCAPE POWER RAKE

SKID STEER

The Virnig Landscape Power Rake for skid steers is engineered for superior grading performance, higher torque, and lower maintenance than chain-driven rakes. Built for professional landscapers and contractors, this skid steer rotary rake attachment pulverizes soil, levels gravel, prepares seedbeds, and removes debris with precision.

Operate in forward or reverse with full bi-directional capability and angle the head 25° left or right for efficient windrowing and material control. The floating design delivers a smooth, consistent finish while providing full down-pressure capability when aggressive ground engagement is required.

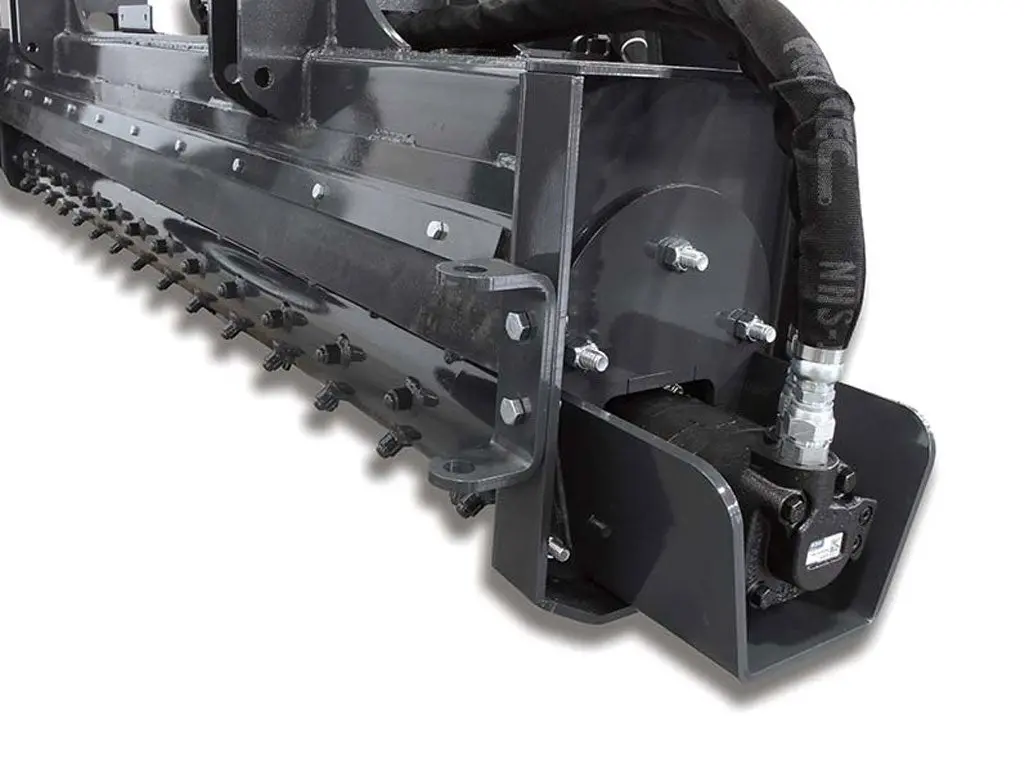

Powered by a direct drive Eaton motor, this rake eliminates chains and sprockets for improved durability and long-term reliability. A heavy-duty motor guard protects critical hydraulic components, while flat-free urethane-filled tires reduce downtime and maintenance.

Best-in-Class Features

• Direct drive Eaton motor (no chain drive maintenance)

• Carbide tip teeth for maximum wear life

• Floating design with full down-pressure capability

• Flat-free urethane tires

• Guarded motor protection

• 25° manual or hydraulic angle adjustment

• Bi-directional forward & reverse operation

• Premium harness connection system (best in the market)

• Convenient side board storage when not in operation

Available Configurations

• Manual Angle Power Rake

• Hydraulic Angle Power Rake

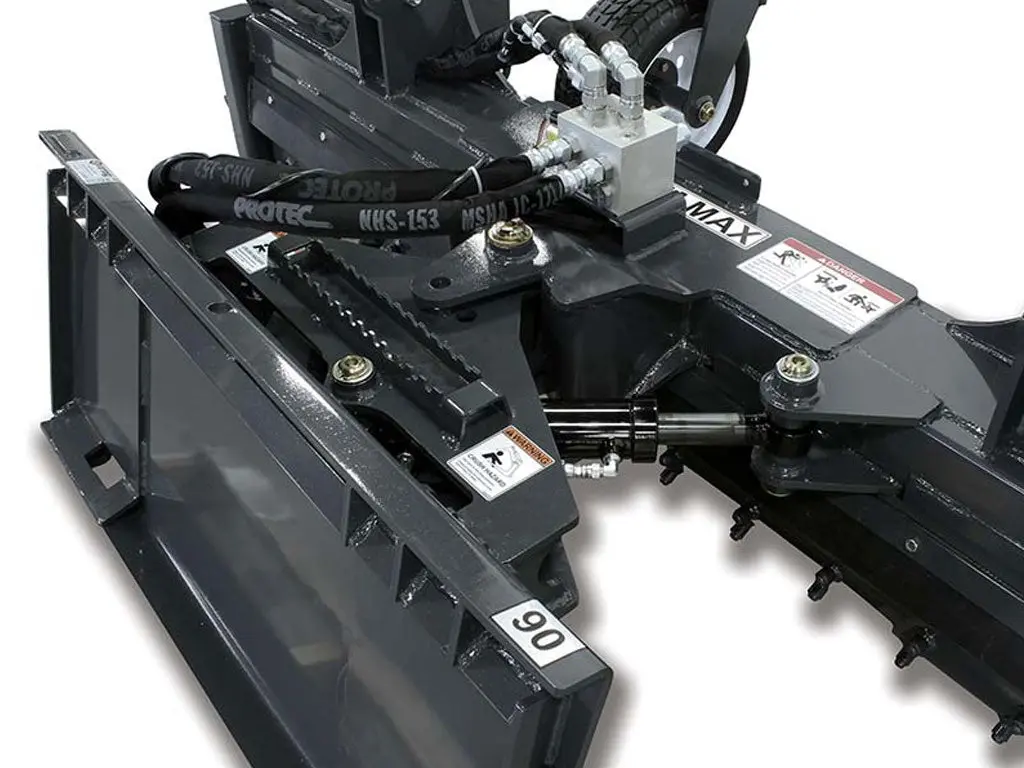

  • One-cylinder design with electric control valve

  • 2½″ bore × 8″ stroke cylinder with Nitro Steel rod

  • Greaseable heavy-duty linkage pins

  • Requires compatible electric control harness

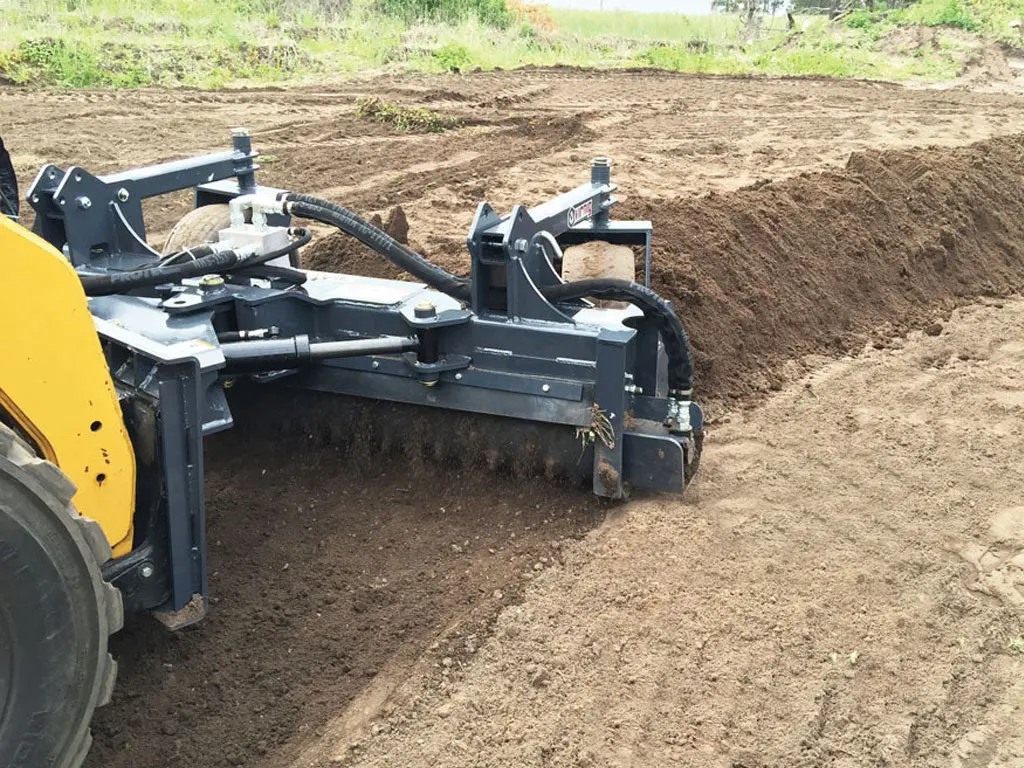

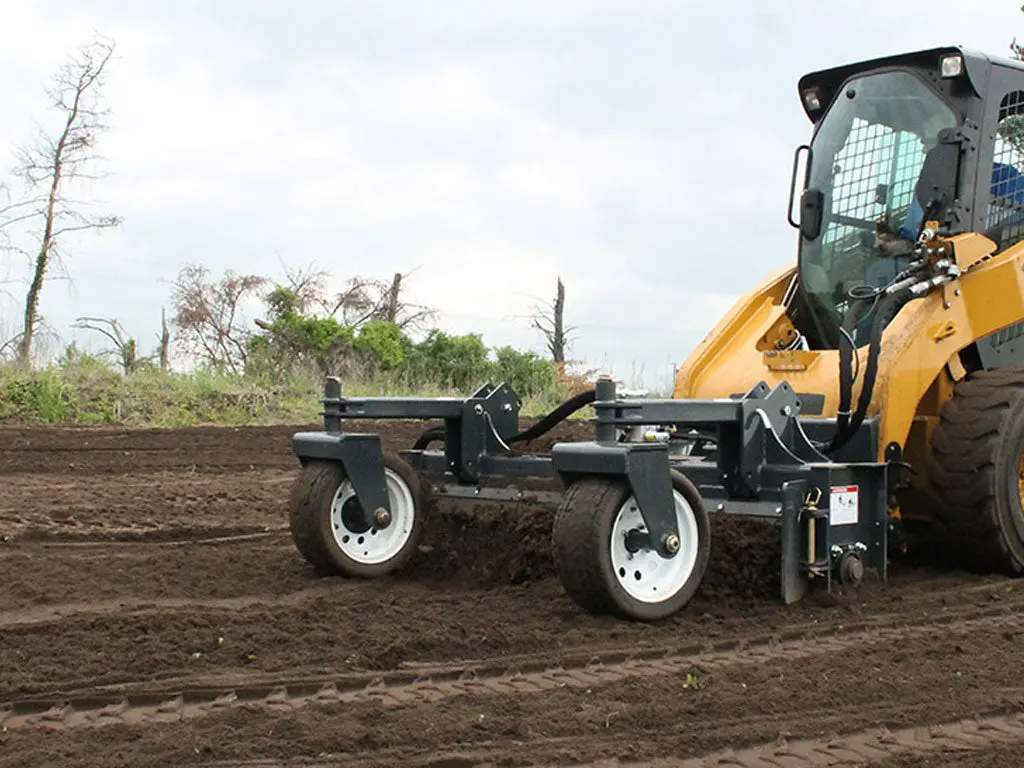

Ideal Applications

• Gravel driveway grading

• Lawn and seedbed preparation

• Soil pulverizing

• Rock and debris removal

• Landscape site finishing

Keywords: Virnig power rake, skid steer landscape rake attachment, hydraulic angle power rake, direct drive rotary rake, gravel grading attachment, carbide tooth soil pulverizer, professional skid steer landscaping equipment



SPECS

MODEL	PWR72	PWR90
Raking Width (Inches)	72.0	90.0
Raking Width at Full Angle (Inches)	65.3	81.5
Overall Width (Inches)	84.0	102.0
Overall Height (Inches)	27.5
Overall Depth (Inches)	68.5
Drum Diameter (Inches)	8.5
Number of Teeth	109	139
Float Link Angle (Degrees)	22
