DESCRIPTION

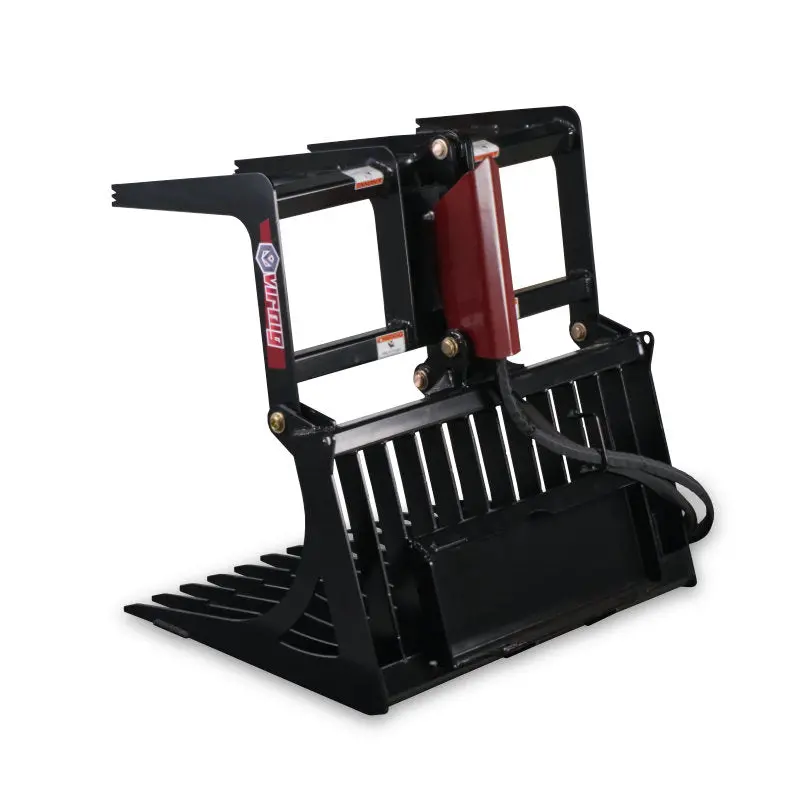

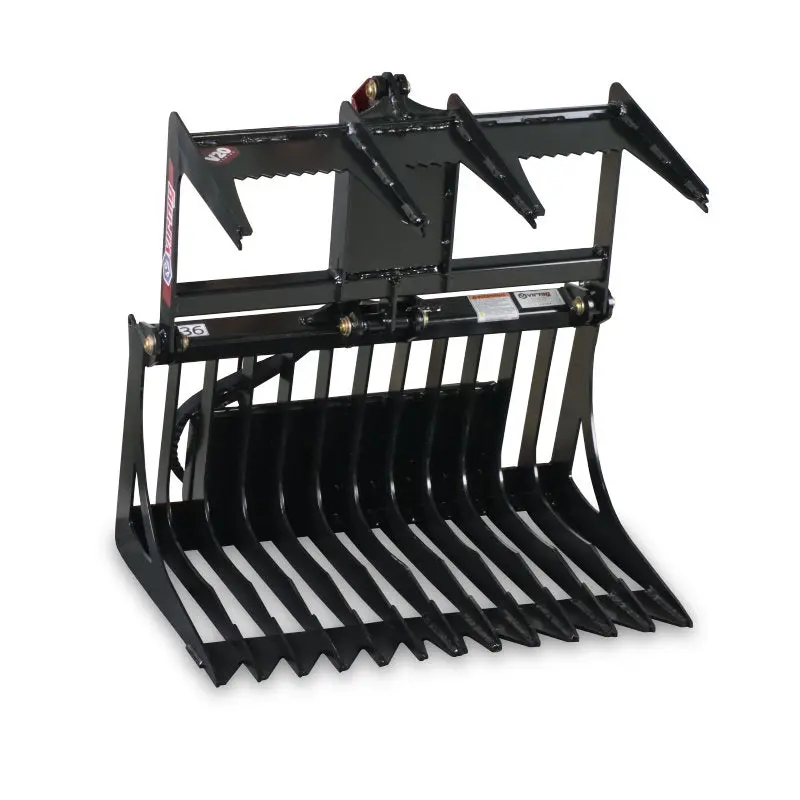

The V20 Skeleton Rock Bucket designed with a grapple to help secure rocks and uneven loads. Available Widths 36″, 42″, 48″
- EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
- ROCK DAM & NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY
- NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE
- STANDARD WITH CYLINDER GUARD
SPECIFICATIONS
| MODEL | CSRG36 | CSRG42 | CSRG48 |
| Overall Width (Inches) | 36.0 | 42.0 | 48.0 |
| Height: Overall / Bucket (Inches) | 26.6 / 24.1 | ||
| Overall Depth (Inches) | 31.9 | ||
| Number of Tines (With Sides) | 13 | 15 | 17 |
| Space Between Tines (Inches) | 2.9 | ||
| Tine Thickness (Inches) | .25¹ | ||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | ||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 / 1.0 | ||
| Grapple Jaw Opening (Inches) | 30.3 | ||
| Approximate Weight (Pounds) | 3002 | 3202 | 3452 |
| Recommended Loader Capacity | Greater than 500 pounds | Greater than 500 pounds | Greater than 500 pounds |
