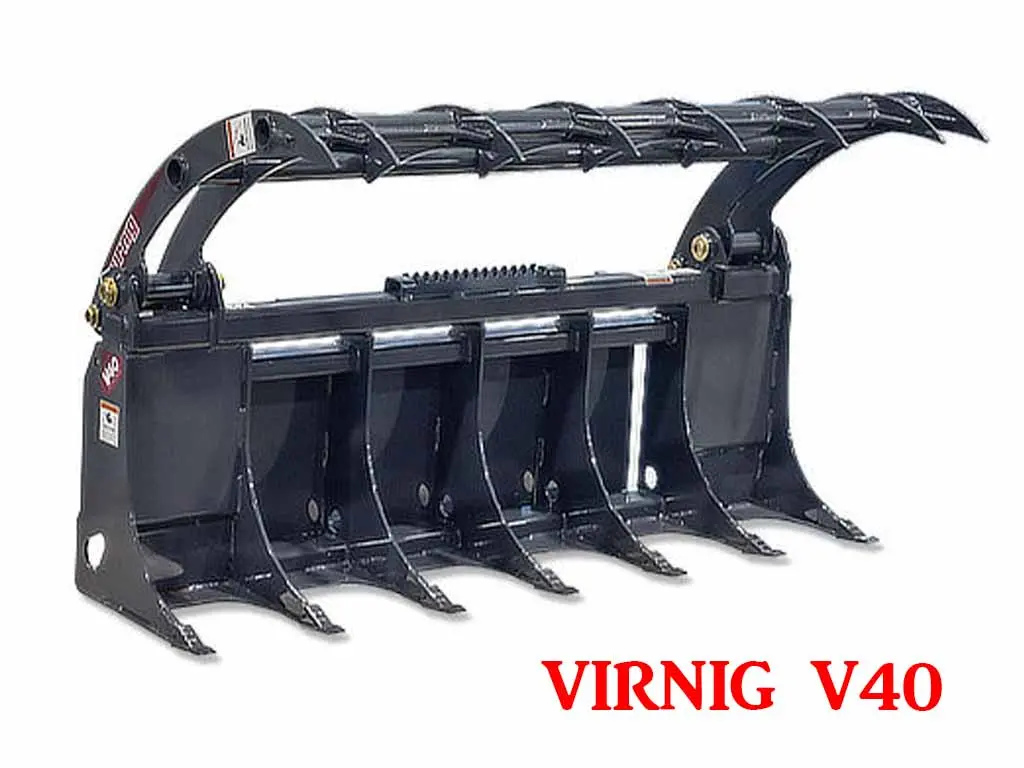

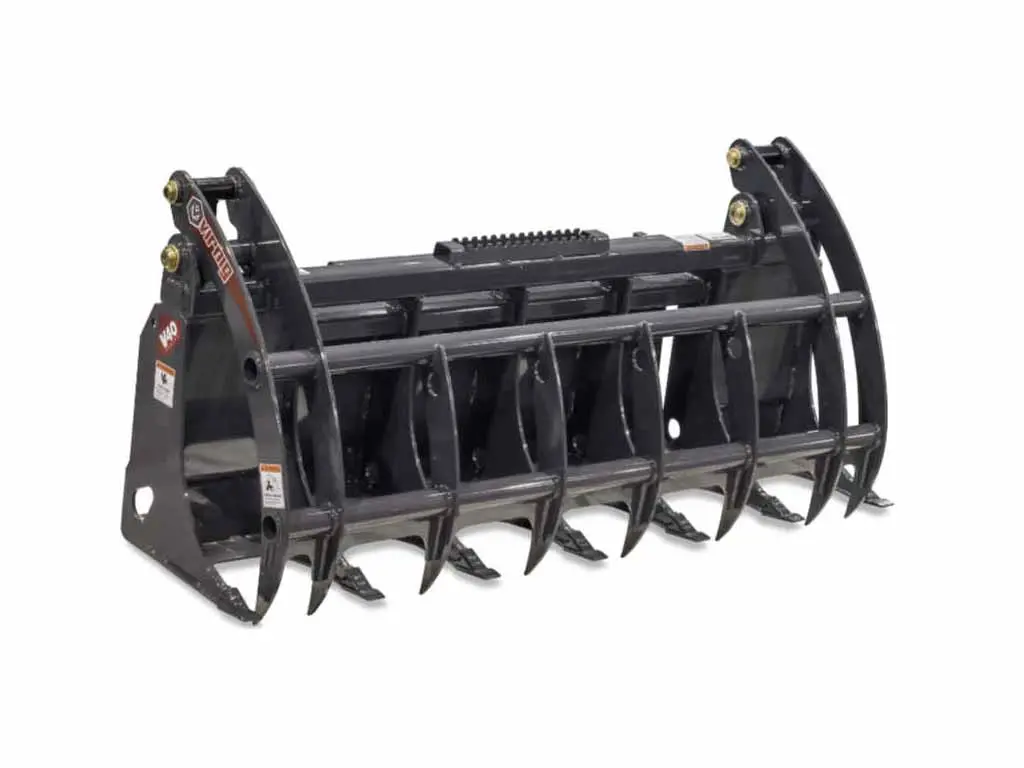

V40 Root Rake Grapple
Skid Steer Attachment
The V40 Root Rake Grapple is a heavy-duty skid steer attachment designed for digging, raking, piling, and loading debris efficiently. Featuring a two-cylinder, single jaw design, this grapple allows forward and reverse operation to drag loose material into piles with ease.
Built for durability, the V40 includes NitroSteel® cylinder rods and Teflon® coated bushings on all pivot points for long-lasting performance. The 44” grapple jaw opening handles large volumes of brush per load, while heavy-duty 3/8″ Grade 50 steel jaw and rake tines with replaceable cast teeth provide strength and reliability in tough conditions.
⚠️ Note: Possible clearance issues with URG-UT on Takeuchi® TL12 and John Deere® 330G, 331G, 332G, 333G.
Included with Attachment:
-
Universal skid steer mounting
-
Hoses, couplers, & fittings
SPECS
| MODEL | URG60-UT | URG66-UT | URG72-UT |
| Overall Width (Inches) | 61.5 | 67.5 | 73.5 |
| Height: Overall / Bucket (Inches) | 34.2 / 29.3 | ||
| Overall Depth (Inches) | 22.1 | ||
| Number of Teeth | 6 | 6 | 7 |
| Space Between Teeth (Inches) | 10.2 | 11.4 | 10.2 |
| Space Between Tines / Grapple Jaws (Inches) | 5.0 / 10.9 | 5.0 / 12.4 | 5.0 / 11.1 |
| Tine Thickness (Inches) | 0.375* | ||
| Cylinder Bore / Stroke (Inches) | 2.0 / 8.375 | ||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.25 / 1.563 | ||
| Grapple Jaw Opening (Inches) | 44.1 | ||
| Approximate Weight (Pounds) | 625 | 645 | 695 |
| Recommended Loader Capacity | Less than 2200 pounds | ||
*Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
BIG DAVE REVIEW
The V40 series was designed for medium and large frame skid steers. Though this is Virnig’s standard-duty line, the V40 Series often outperforms other brands’ heaviest skid steer attachments.
