Virnig V70 Skid Steer Tree Mulcher with Disc Cutting System

Price range: $92.20 through $92.87

Quantity
SKU: N/A Category: Brand:

Description

DESCRIPTION
1/26

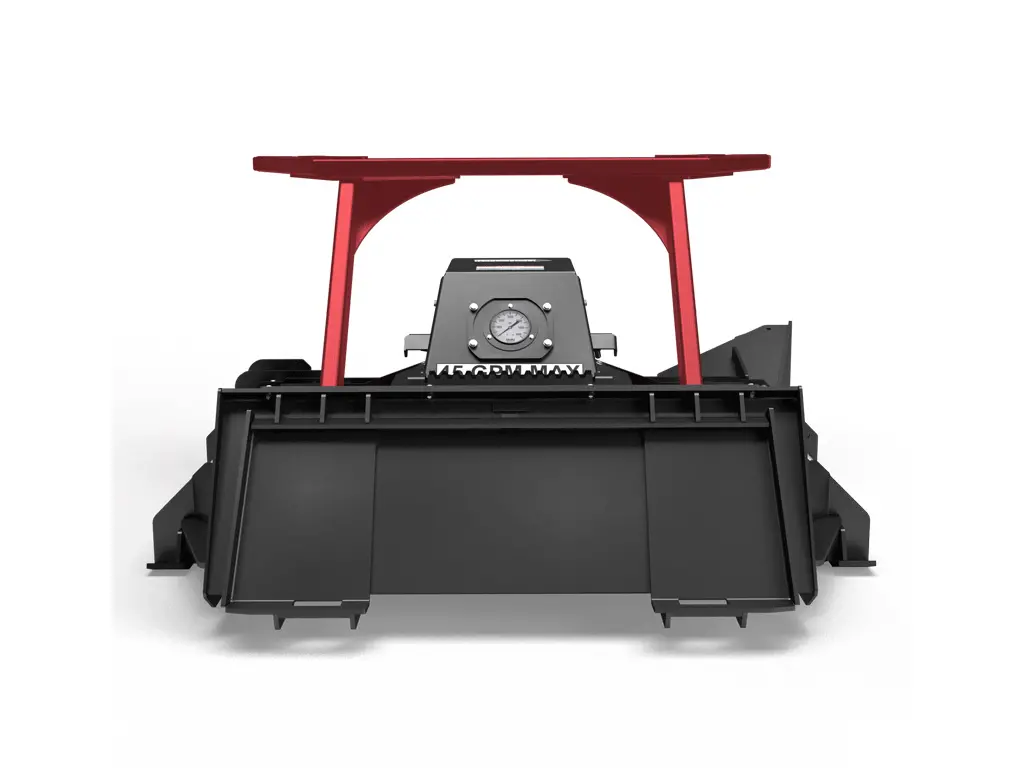

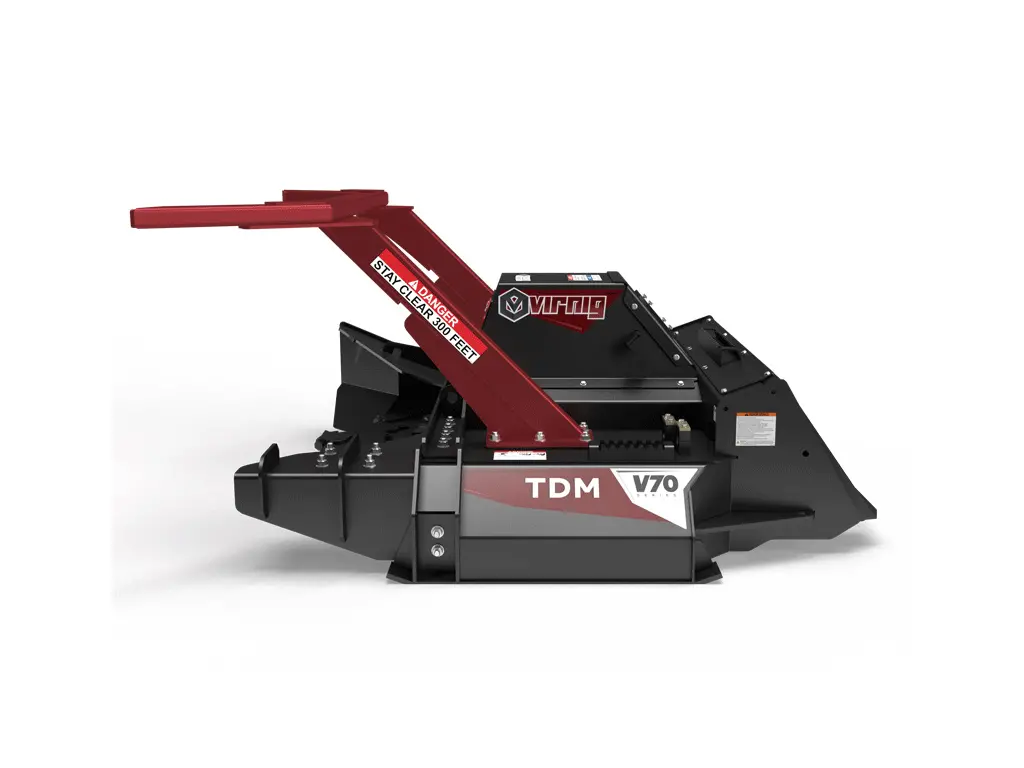

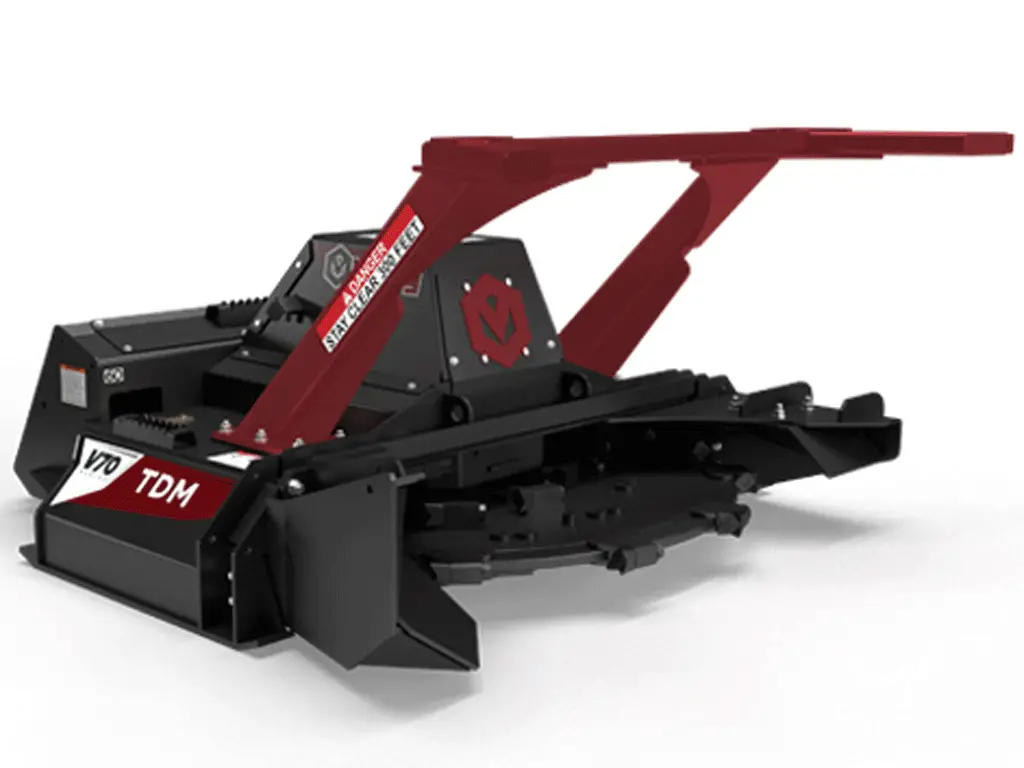

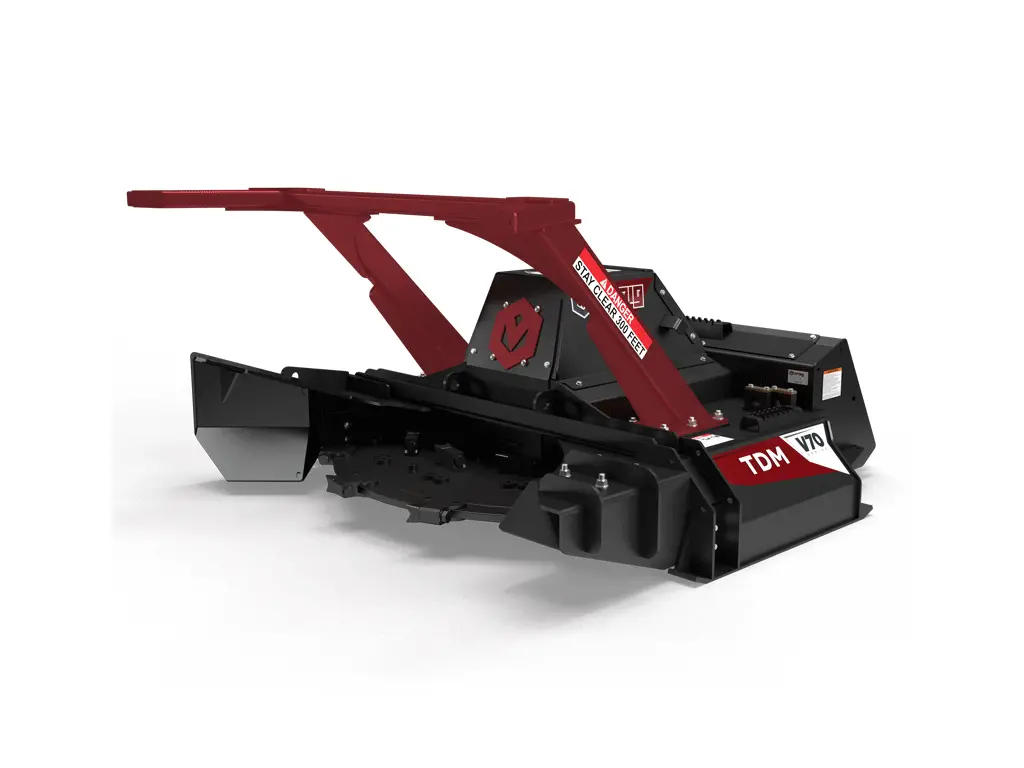

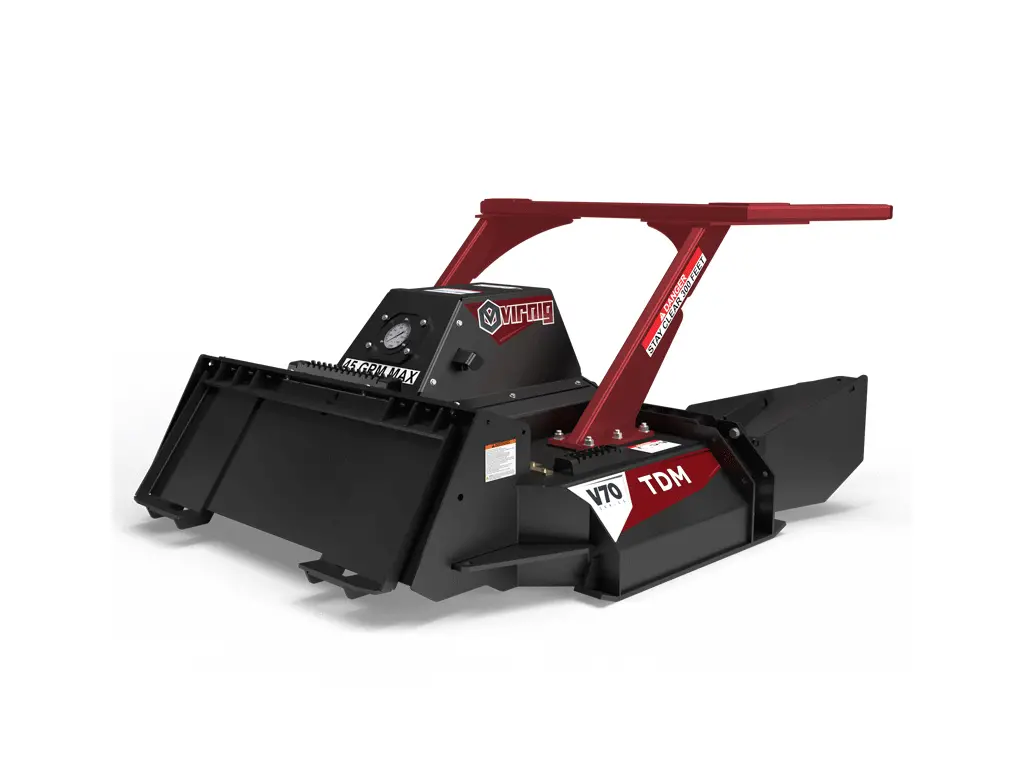

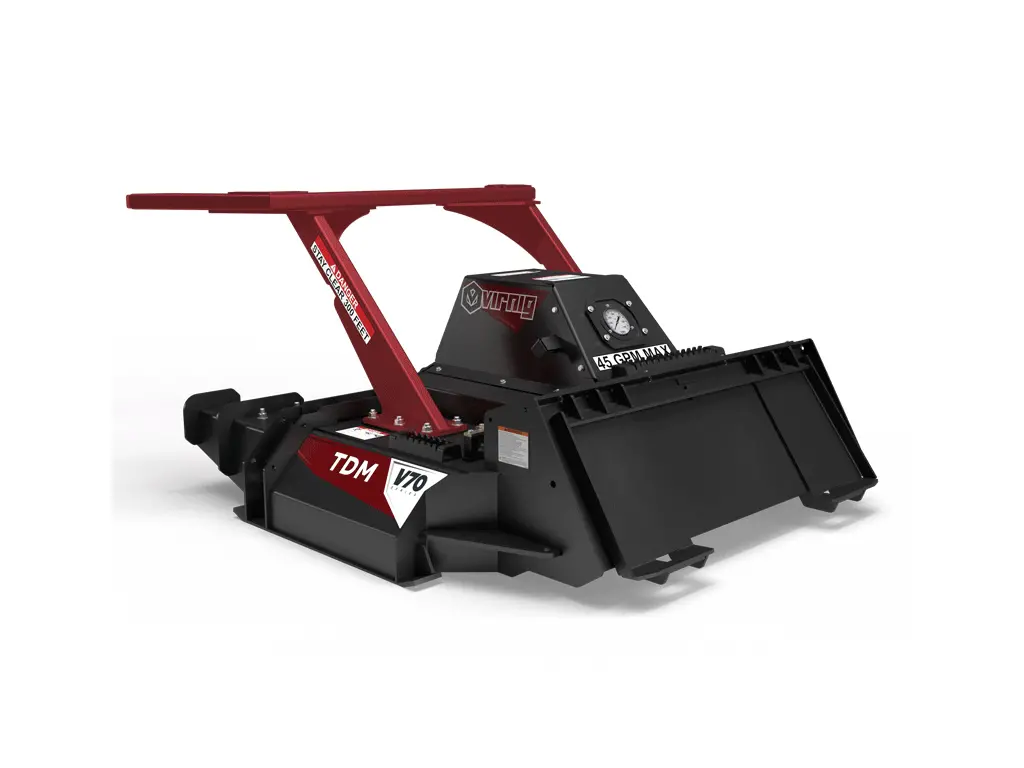

Virnig V70 Tree Disc Mulcher – Skid Steer Attachment

The Virnig V70 Tree Disc Mulcher is engineered for aggressive land clearing and high-production mulching with skid steers equipped with high-flow hydraulics. Designed to efficiently mulch standing trees from 6–8 inches and quickly cut material up to 14 inches in diameter, the V70 delivers powerful performance with a smooth, controlled cut for demanding job sites.

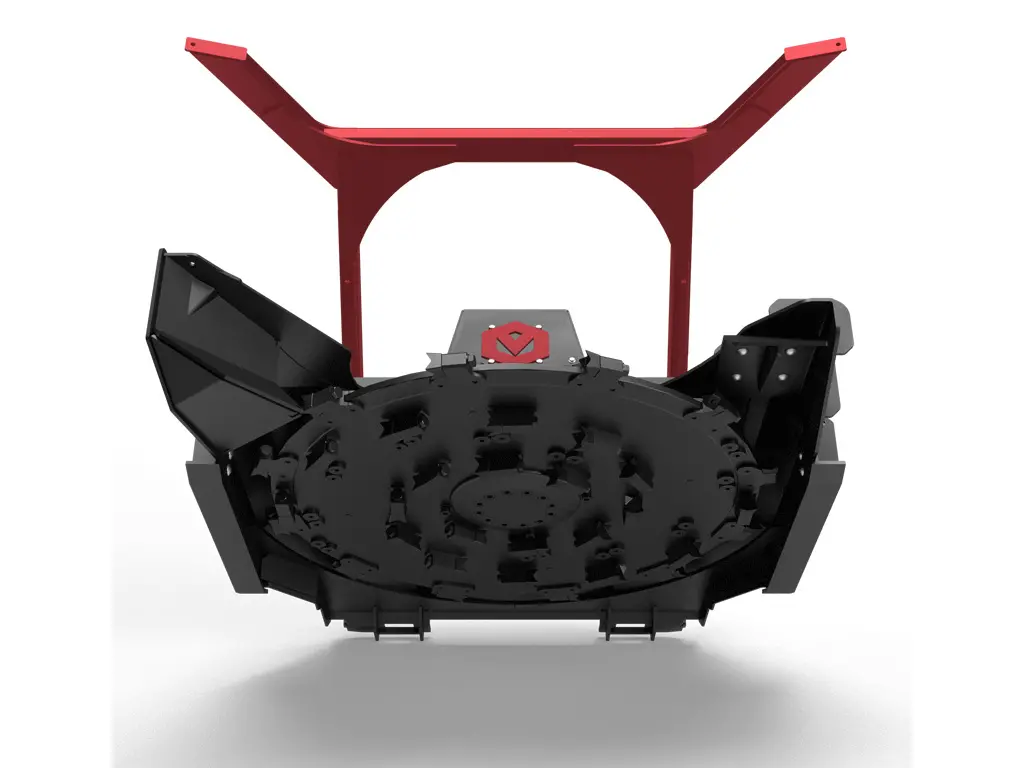

At the heart of the V70 is a 60” fully machined, perfectly balanced Quadco® disc, driven by a bent-axis piston motor with integrated relief valves. This combination maximizes torque transfer, maintains consistent disc speed, and reduces stress on hydraulic components. Standard motor and spindle guards protect critical components, while the Grade 80 interior deck weldment (80,000 PSI minimum yield strength) ensures exceptional durability under constant impact.

The cutting system features bolt-on steel tooth mounts with four-sided, rotatable, replaceable teeth, with optional carbide teeth available for extended wear life. Three deck-mounted teeth and a recutter bar deliver a finer mulch finish, improving material processing efficiency. For operator safety and long-term serviceability, the V70 includes a replaceable push bar, chute, and deflector, along with a choice of standard or open chute styles to match your application.

Built for serious productivity, the Virnig V70 requires a high-flow skid steer (30–50 GPM) with a maximum operating pressure of 4,200 PSI and a machine weight over 2,800 lbs. For safety, operation requires a shatterproof cab.

When your job demands fast tree removal, consistent mulching, and rugged reliability, the Virnig V70 Tree Disc Mulcher delivers professional-grade results every pass.

Safety Note: This attachment requires a safety door during operation. If you need help finding a safety door please contact us to help you.

 VIDEOS

SPECS
MODEL TDM60
Cut Width (Inches) 60.0
Overall Width (Inches) 70.0
Overall Height (Inches) 40.5
Overall Depth (Inches) 77.5
Deck Height (Inches) 11.0
Push Bar Height (Inches) 40.5
Minimum Cut Height (Inches) 2.1
Cutting Capacity, Diameter (Inches) 14.0
Number of Teeth: Top / Bottom / Outside 12 / 20 / 12
Maximum Disc Thickness (Inches) 1.25
Deck Thickness: Top, Side / Inside (Inches) 0.25 / 0.375¹
Recommended Flow Rate (GPM) 30-50 High Flow Only
Approximate Weight (Pounds) 2710
Recommended Loader Capacity Greater than 2800 pounds

*Inside Deck Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

DISC TIP SPEEDS (FPM)

REQUIRES A HIGH FLOW LOADER WITH A FLOW RATE OF 30-50 GPM.
MAX OPERATING PRESSURE IS 4,200 PSI
MODEL 30 GPM 35 GPM 40 GPM 45 GPM 50 GPM
TDM60-HF45 11,155 13,006 14,875 16,730
TDM60-HF50 14,810 16,460

Flow rates in gallons per minute (GPM) and blade tip speeds in feet per minute (FPM).

Explore more from our collection.

Additional information

HYDRAULIC MOTOR

30-45 GPM, 45-50 GPM

V70 Tree Disc Mulcher

Standard, Open Chute

OPTIONS

NO GAUGE, GAUGE
