DESCRIPTION

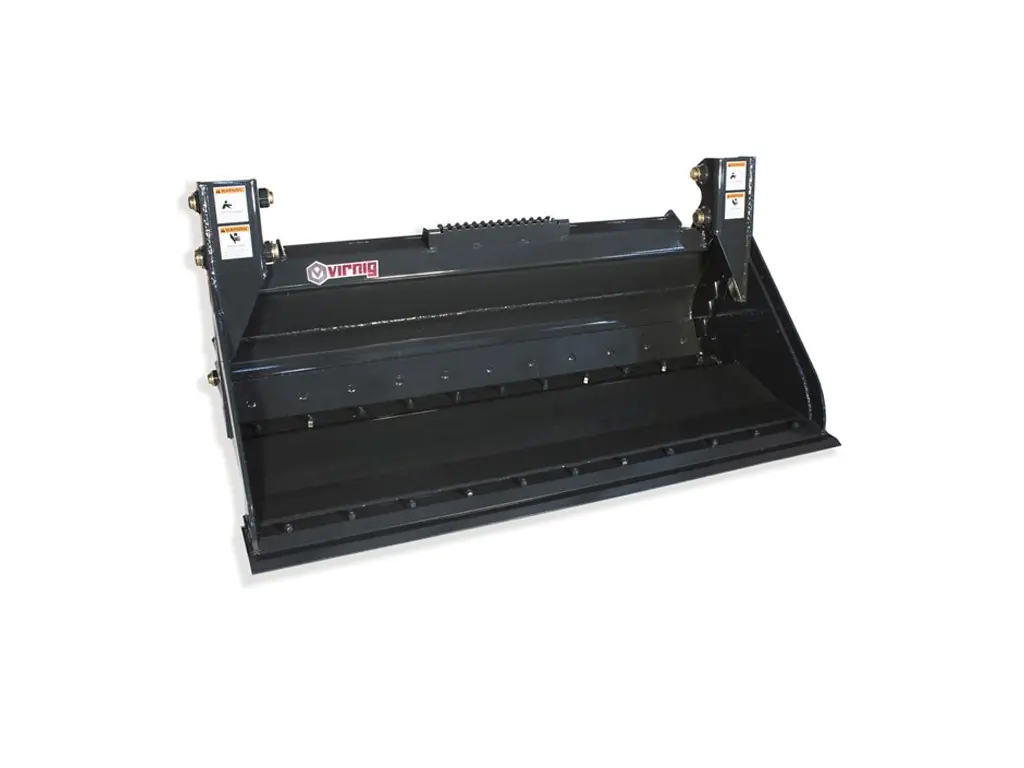

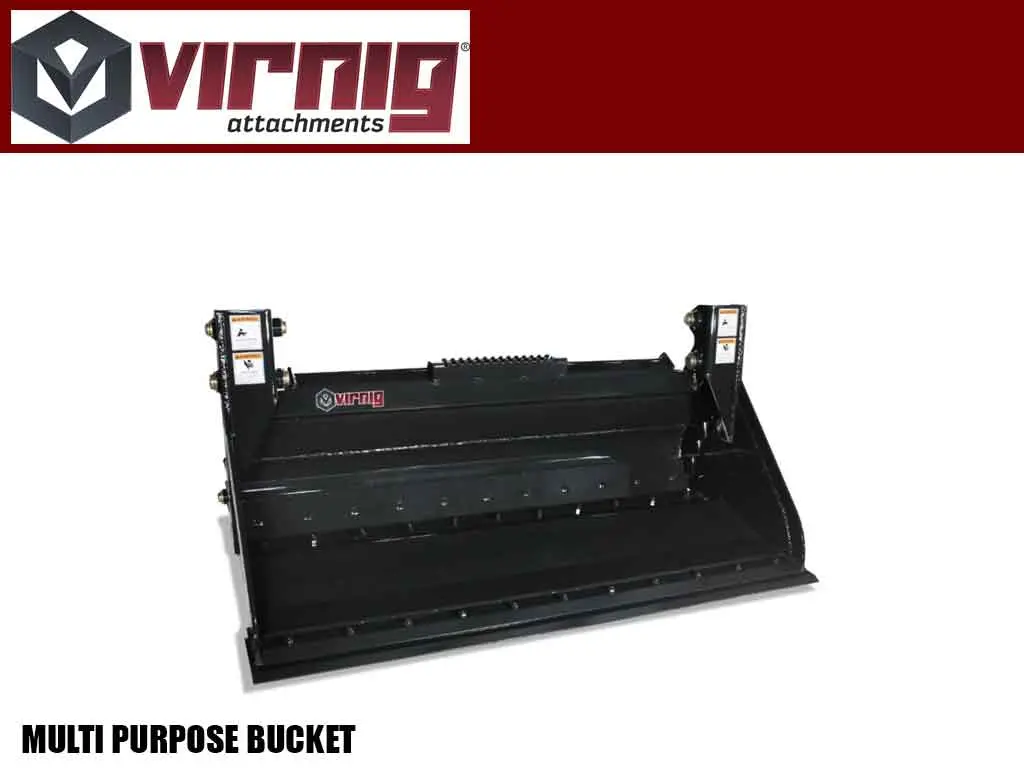

v50 Multi-Purpose Bucket (4-in-1)

Product Category: Skid Steer

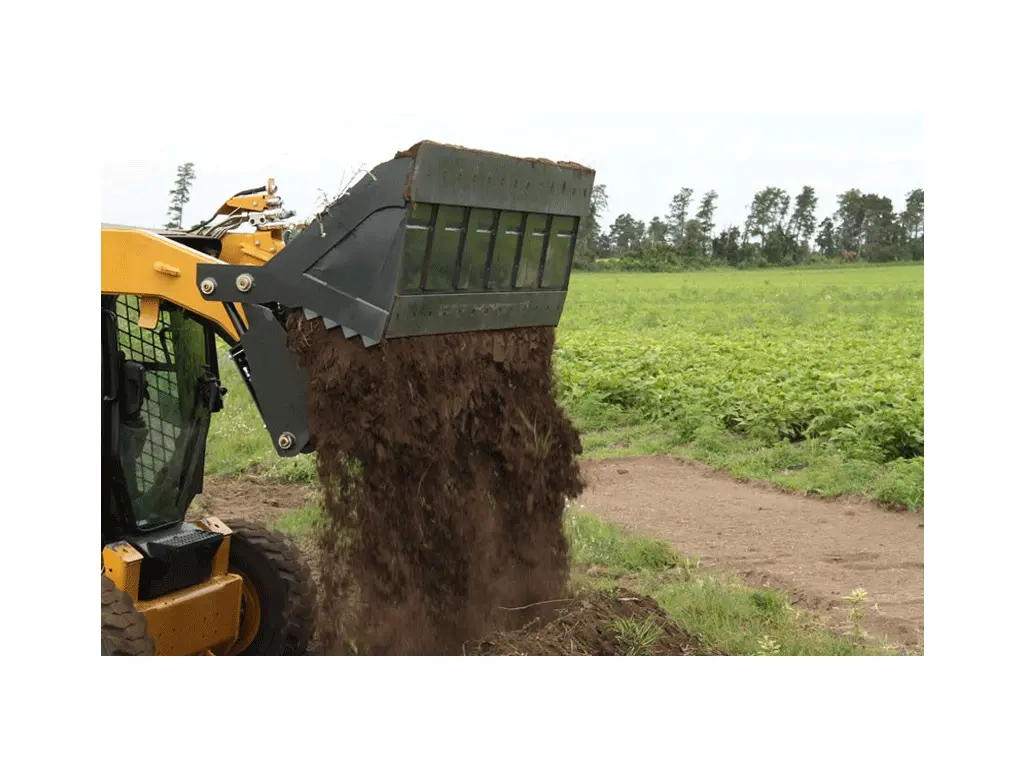

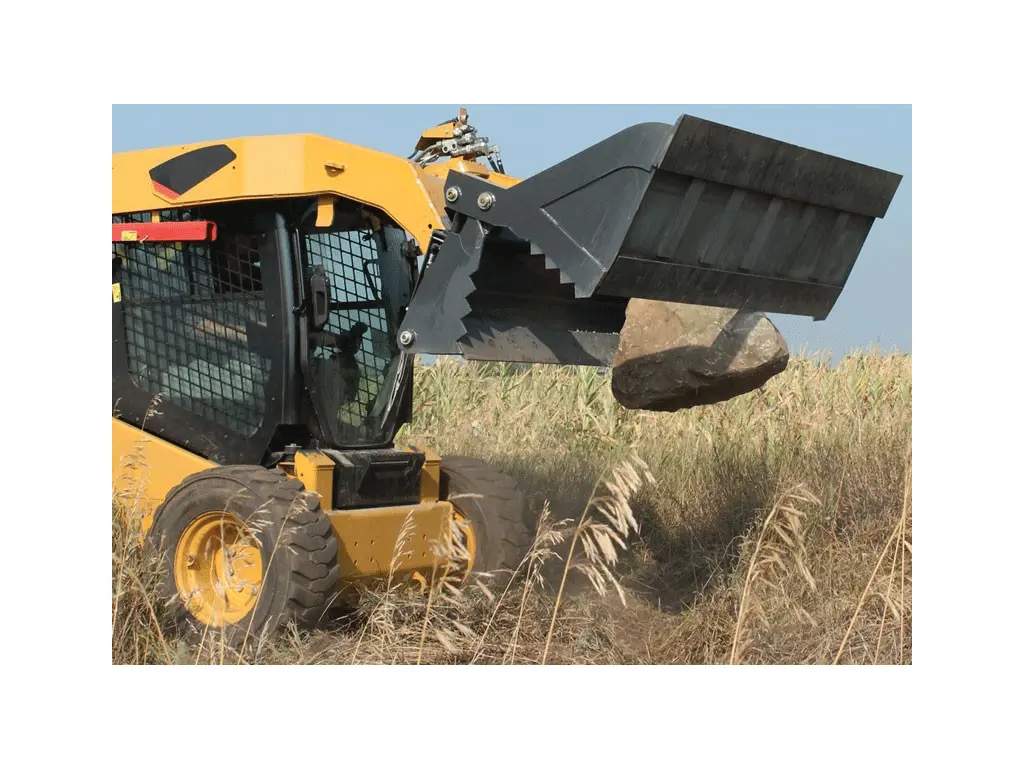

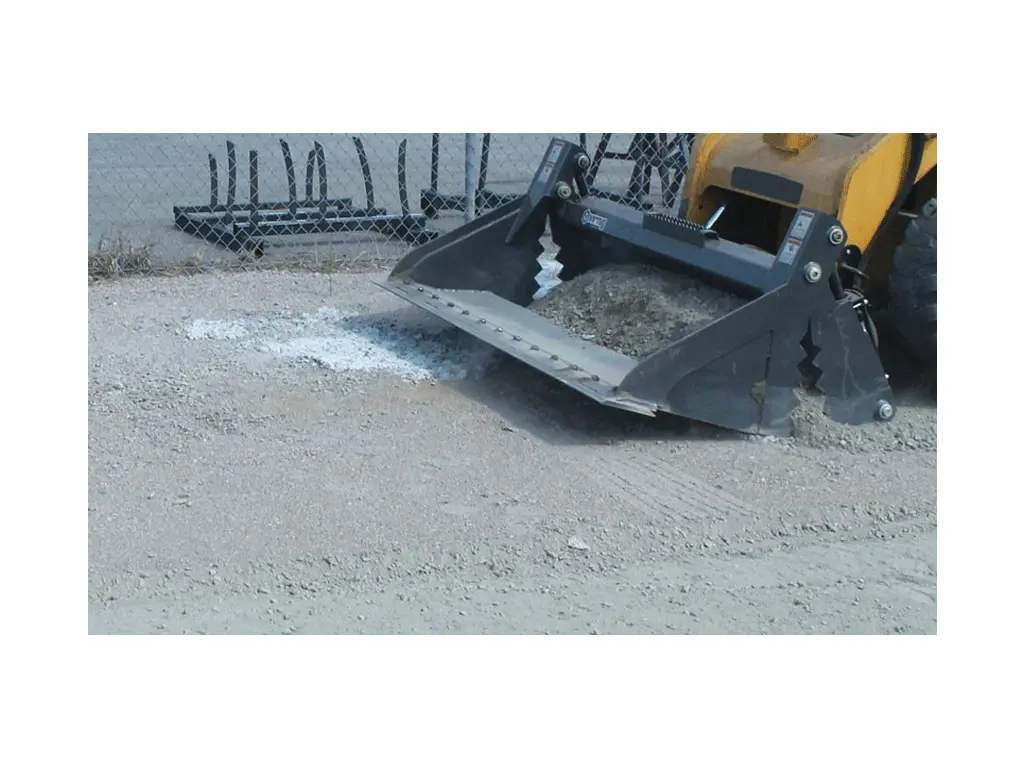

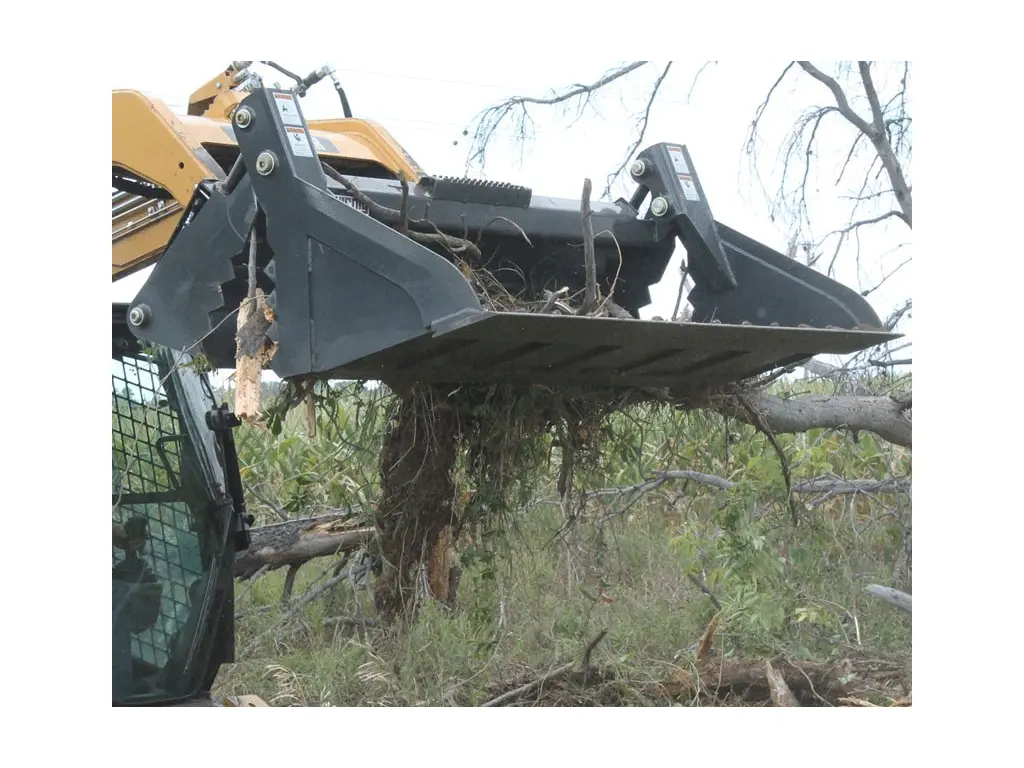

Multiple functions including dozing, clamming, leveling and bottom dumping.

• STANDARD WITH CYLINDER GUARDS
• NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
• 5/8″ x 6″ REVERSIBLE STEEL BOLT-ON EDGES
• 3/4″ x 6″ WELD-ON EDGE

OPTIONS

Side Cutters

• Reversible – only one in the industry.
• Improves performance in hard, compacted soils.
• Cast steel lengthens life of bucket sides.
• Not compatible with Tooth bars.

Holding Valve

• Increases the holding force of the hydraulic cylinders.
• Works with all Virnig Multi-Purpose Buckets.

BOLT-ON EDGE INSTALLED

• Extends bucket edge life.
• Reversible 5/8” x 8” bolt-on wear edge with 5/8” plow bolt holes spaced 6” on center.
• Available on all Virnig Buckets except skeleton style, unless noted.

SERRATED BOLT-ON EDGE INSTALLED

• Excellent alternative to toothbar for chiseling and breaking up compacted soil.
• 3/4″ x 8″ single bevel, serrated edge with 5/8″ plow bolt holes spaced 6″ on center.
• Available on all Virnig Buckets except skeleton style, unless noted.

WELD-ON TEETH // FACTORY INSTALLED

• Replaceable Series 23 cast teeth with cast shank welded directly to the bucket edge.
• Excellent for breaking up compacted soil.
• Available on Virnig Dirt Buckets and Multi-Purpose Buckets only. Not available for V40 Dirt Buckets.

SPECS

Model	MPV     60	MPV    66	MPV 72
Overall Bucket Width (Inches)	61.5	67.5	73.5
Bucket Depth: Overall / Inside (Inches)	37.0 / 28.6
Bucket Height (Inches)	21.3
Dozer Width (Inches)	59.9	65.9	71.9

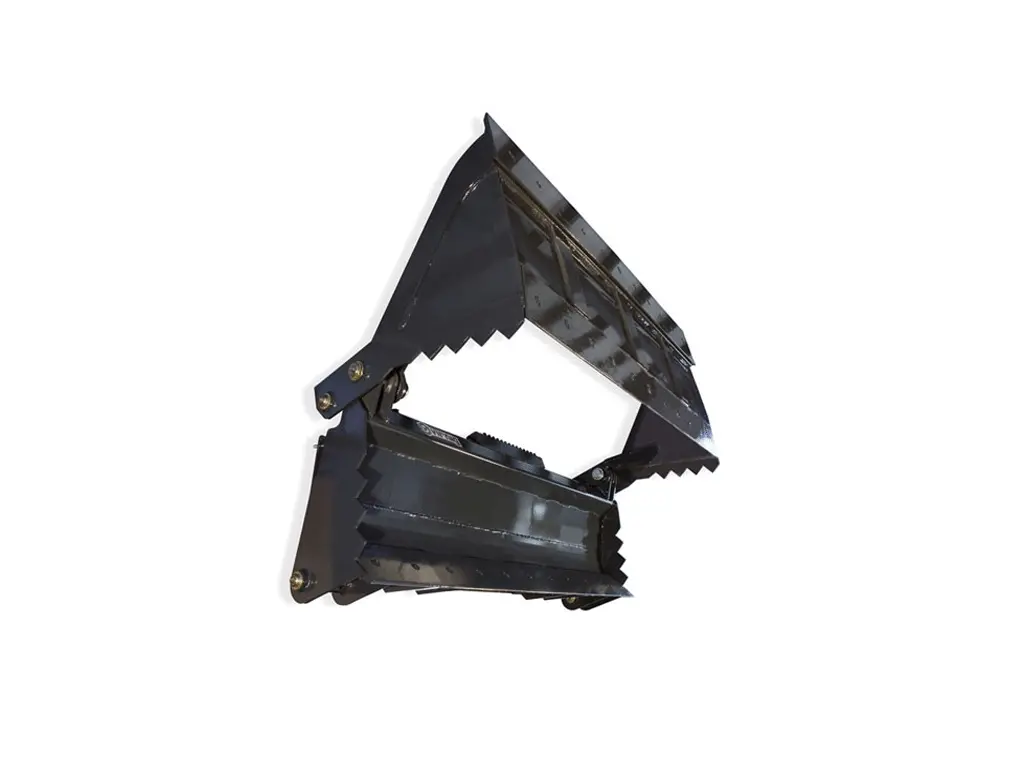

Clam Opening (Inches)	33.0
Shell Thickness (Inches)	0.25
Hinge Structure Thickness (Inches)	0.375
Cylinder Bore / Stroke (Inches)	2.5 / 8.375
Cylinder Pins / Hinge pins Diameter (Inches)	1.25 / 1.563
Structural Wear Bars Under Bucket (1/2″ x 4″)	3	3	3
Approximate Weight (Pounds)	840	915	960
Recommended Loader Capacity	Less than 2400 pounds
