Virnig V50 Skeleton Tine Grapple with SSL and CTL Controls

Description

DESCRIPTION

9/25

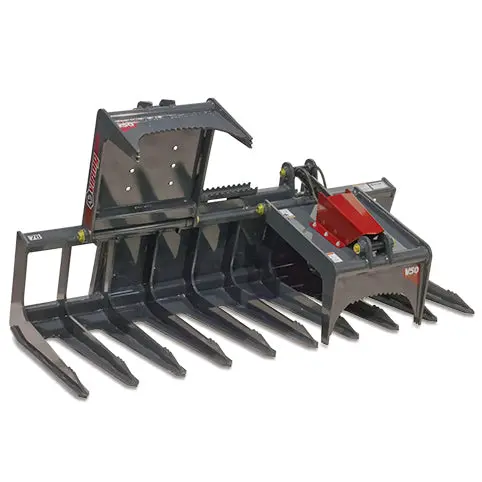

Virnig V50 Skeleton Tine Grapple – Skid Steer Attachment

The Virnig V50 Skeleton Tine Grapple is a dual independent jaw skid steer attachment engineered for precise handling of brush, debris, and irregular materials. Each jaw operates independently with its own hydraulic cylinder, allowing operators to securely clamp uneven loads while maintaining consistent pressure. The independent grapple design ensures oddly-shaped objects remain tightly secured during transport.

Designed for fine material handling, the V50 reaches the tine tips for precise work. Each tine is crafted from a single piece of 1/2″ Grade 80 steel, fully gusseted for strength, with no cross member to allow superior material penetration without compromising durability. The 2″ bore, 8 3/8″ stroke cylinders feature corrosion-, dent-, and flake-resistant NitroSteel® rods. Greasable 1 1/4″ cylinder pins and 1 9/16″ hinge pins with Teflon® coated bushings at all pivot points extend service life. A replaceable bolt-on step with aggressive laser-cut steel provides safe cab access, and cylinder guards come standard for added protection.

Key Features:

• Dual independent hydraulic jaws for secure material handling

• High-strength 1/2″ Grade 80 tines with no cross member for better penetration

• Fully gusseted tines for rigidity and durability

• NitroSteel® cylinder rods with Teflon® bushings

• Greasable cylinder and hinge pins

• Replaceable bolt-on step with aggressive grip

• Standard cylinder guards

Included with Attachment:

• Universal skid steer mounting

• Hoses, couplers, & fittings

• Standard cylinder guard

SPECS

• Recommended loader capacity – Greater than 1500 lbs ROC
• Cylinder Bore / Stroke (in)  2.0 / 8.375
• Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
