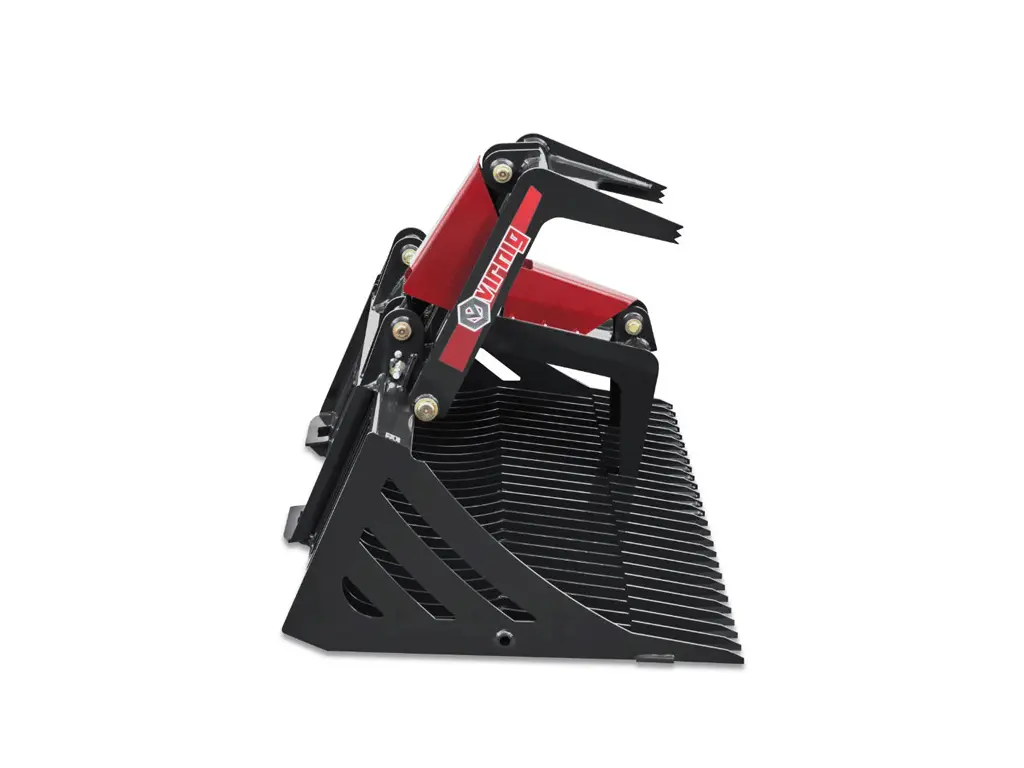

V60 Skeleton Rock Grapple
Skid Steer Attachment
The V60 Skeleton Rock Grapple for skid steers is built for the toughest rock picking, land clearing, and debris handling applications. Featuring dual independent jaws with separate hydraulic cylinders, this grapple securely clamps uneven loads and keeps consistent pressure across the entire bucket. Perfect for handling rocks, brush, logs, and irregular debris, the V60 ensures nothing slips during transport.
With 4″ tine spacing, the grapple sifts rocks and debris while allowing dirt to fall through for efficient site cleanup. Each tine is made from a single piece of 1/2″ Grade 80 steel, from tip to top brace, delivering superior rigidity and long-lasting durability. A raised rock dam and notched tine tips lock rocks in place while digging.
Engineered for heavy-duty performance, the V60 features 2″ bore, 8 3/8″ stroke cylinders with NitroSteel® rods that resist corrosion, dents, and flaking. Greasable 1 1/4″ cylinder pins and 1 9/16″ hinge pins, paired with Teflon® coated bushings, reduce wear and extend service life. A machine-specific hydraulic package protects hose routing, while cylinder guards come standard for added protection in rugged environments. The bolt-on step with an aggressive, laser-cut pattern provides safe entry and exit from the skid steer cab.
Included with Attachment:
-
Universal skid steer mounting
-
Hoses, couplers, & fittings
-
Standard cylinder guard
Key Features:
-
Dual independent hydraulic jaws
-
4″ tine spacing for rock & debris separation
-
1/2″ Grade 80 steel tines with rock dam & notched tips
-
NitroSteel® rods & Teflon® bushings for durability
-
Machine-specific hydraulic hose protection
-
Cylinder guards standard
-
Removable bolt-on step with aggressive grip
SPECS
- Recommended loader capacity – Greater than 1800 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
| Model | HSRGV72 | HSRGV78 | HSRGV84 | HSRGV90 |
| Overall Width (in) | 73.5 | 79.5 | 85.5 | 91.5 |
| Depth (in) | 42.9 | 42.9 | 42.9 | 42.9 |
| Height: Overall / Bucket (in) | 27.8 / 21.5 | 27.8 / 21.5 | 27.8 / 21.5 | 27.8 / 21.5 |
| Grapple Jaw Opening (in) | 36.1 | 36.1 | 36.1 | 36.1 |
| Number of Tines | 17 | 18 | 20 | 21 |
| Space Between Tines | 4.0 | 4.1 | 3.9 | 4.0 |
| Weight (lbs) | 1080 | 1115 | 1170 | 1205 |
