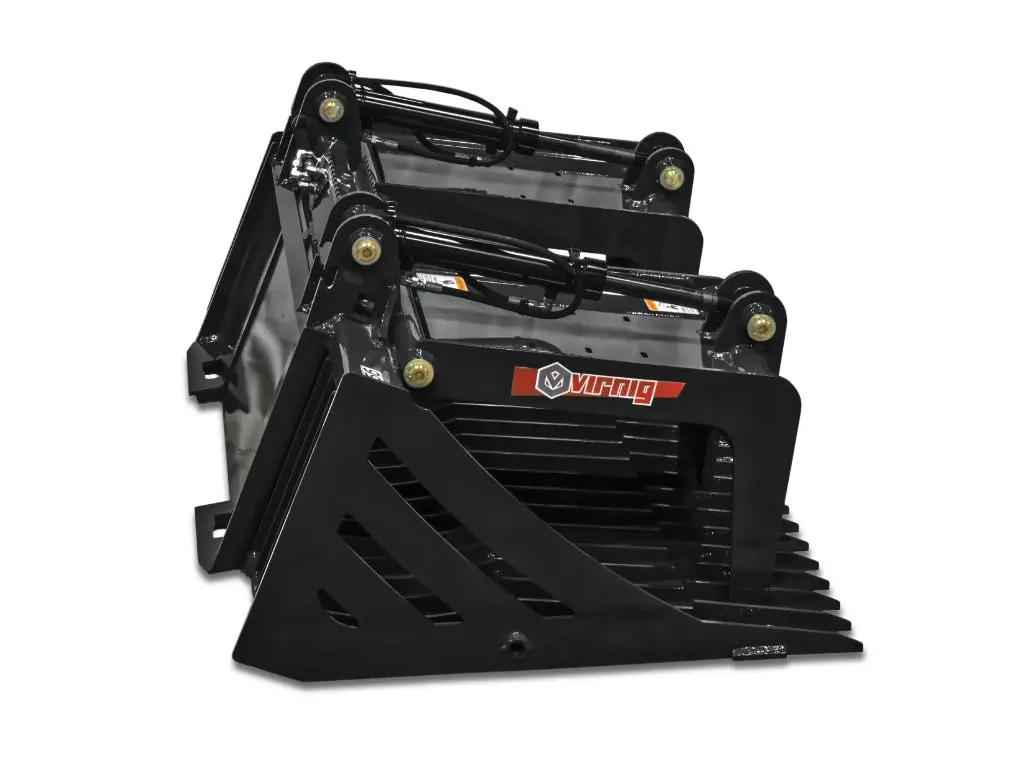

V40 Skeleton Rock Grapple
Skid Steer Attachment

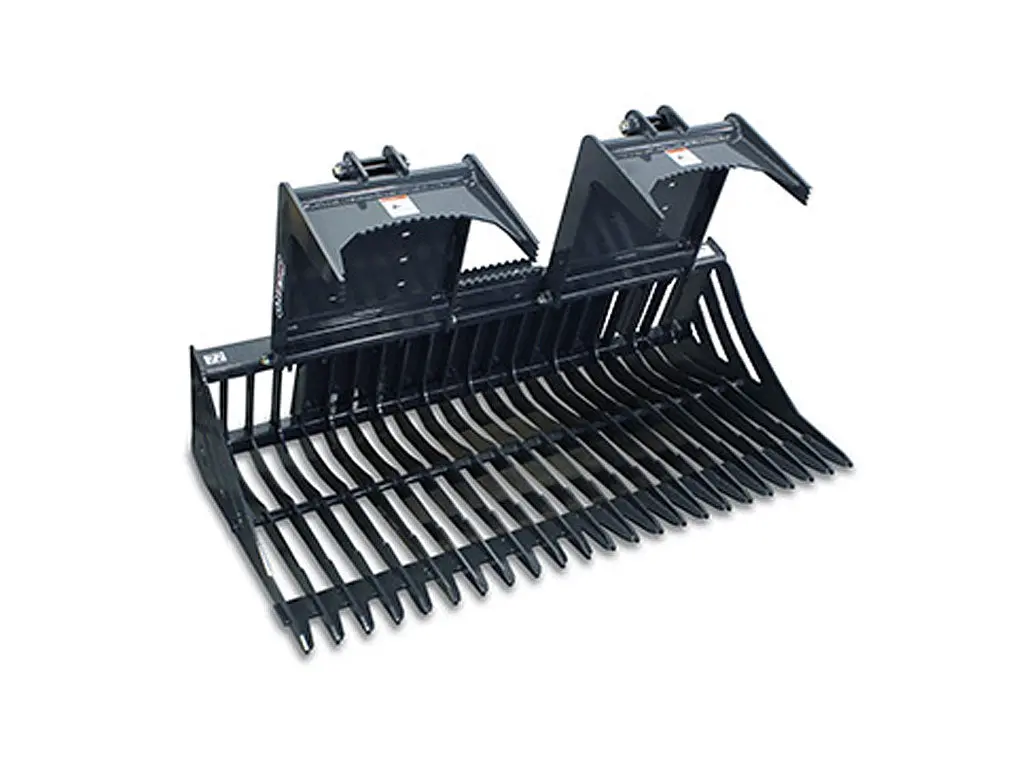

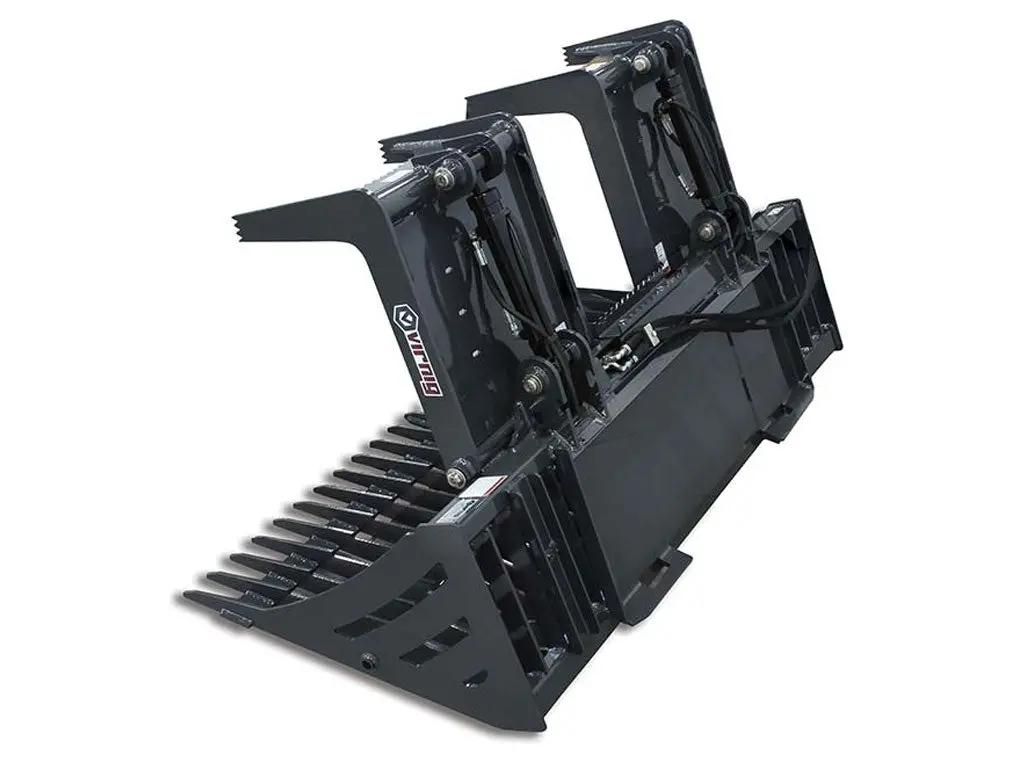

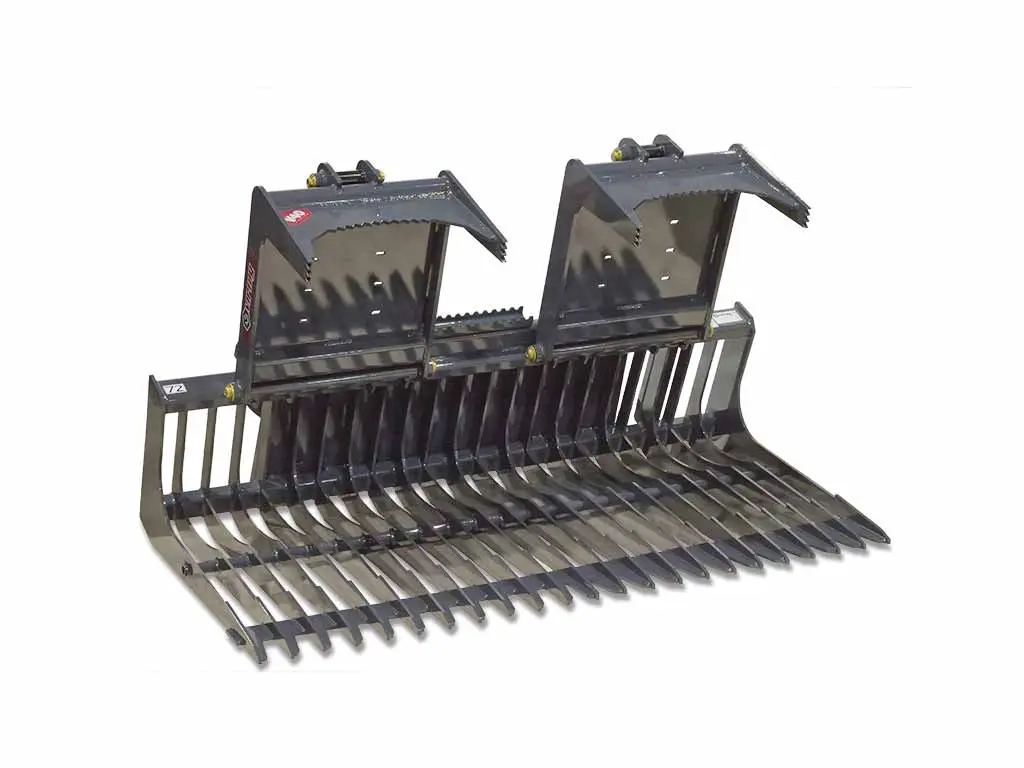

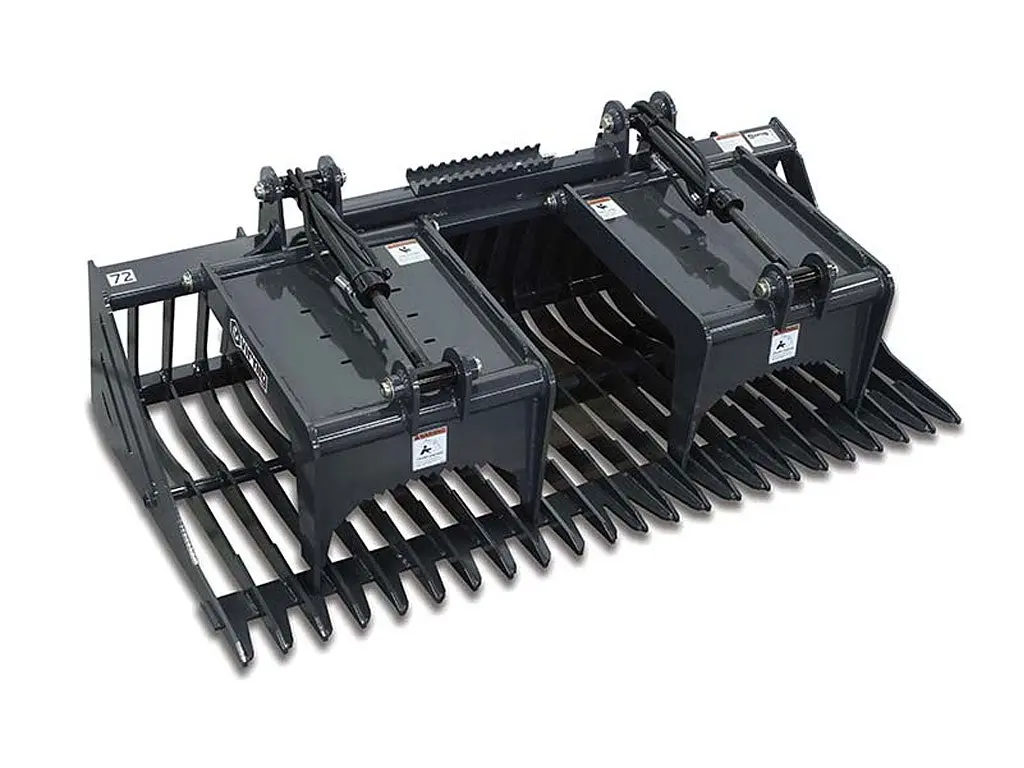

The V40 Skeleton Rock Grapple for skid steers is built for picking rocks and debris while allowing dirt to fall through. With 3″ tine spacing and dual independent jaws, this skid steer grapple is ideal for land clearing, site prep, and rock handling.

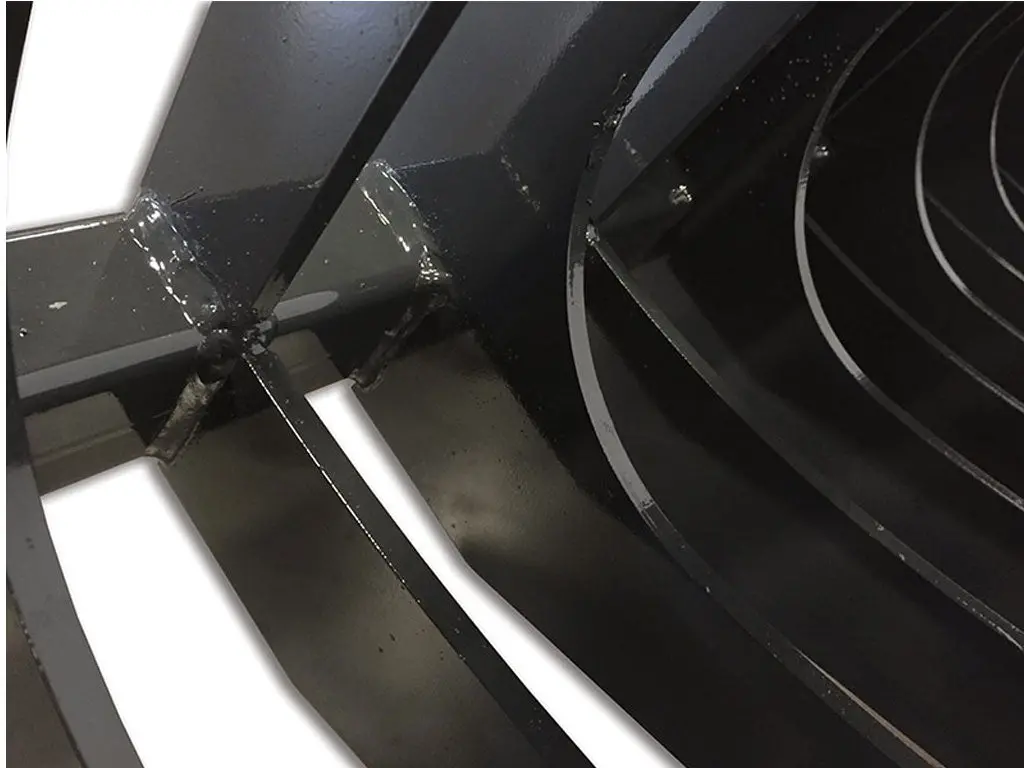

Constructed from 3/8″ Grade 50 steel, every other tine runs from tip to top brace for maximum rigidity. A raised rock dam and notched tips hold rocks securely while digging. Two 2″ bore cylinders with 8 3/8″ stroke use NitroSteel® rods for strength and corrosion resistance, while greasable 1 1/4″ pins and Teflon® coated bushings ensure long-lasting durability.
Features include a removable laser-cut bolt-on step for easy cab entry, optional open sides for hauling brush or logs, and heavy-duty performance you can rely on.
Key Features:
-
Dual independent jaws with 3″ tine spacing
-
Raised rock dam & notched tips secure rocks
-
Grade 50 steel construction for durability
-
NitroSteel® rods & Teflon® coated bushings
-

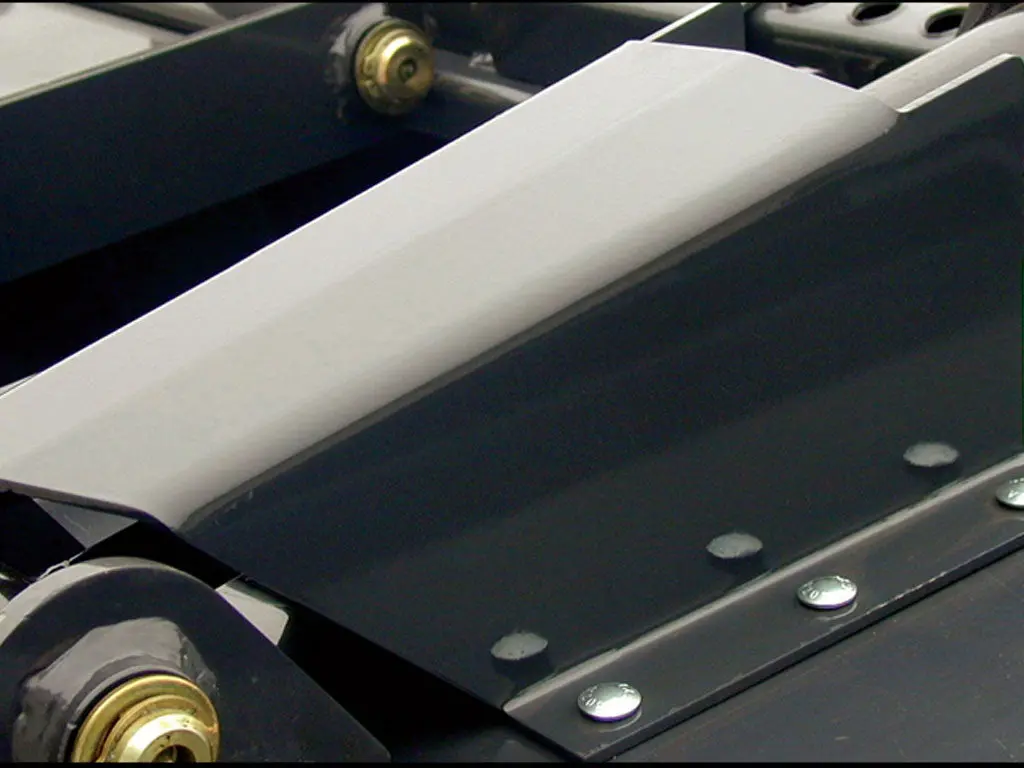

Removable bolt-on step
-

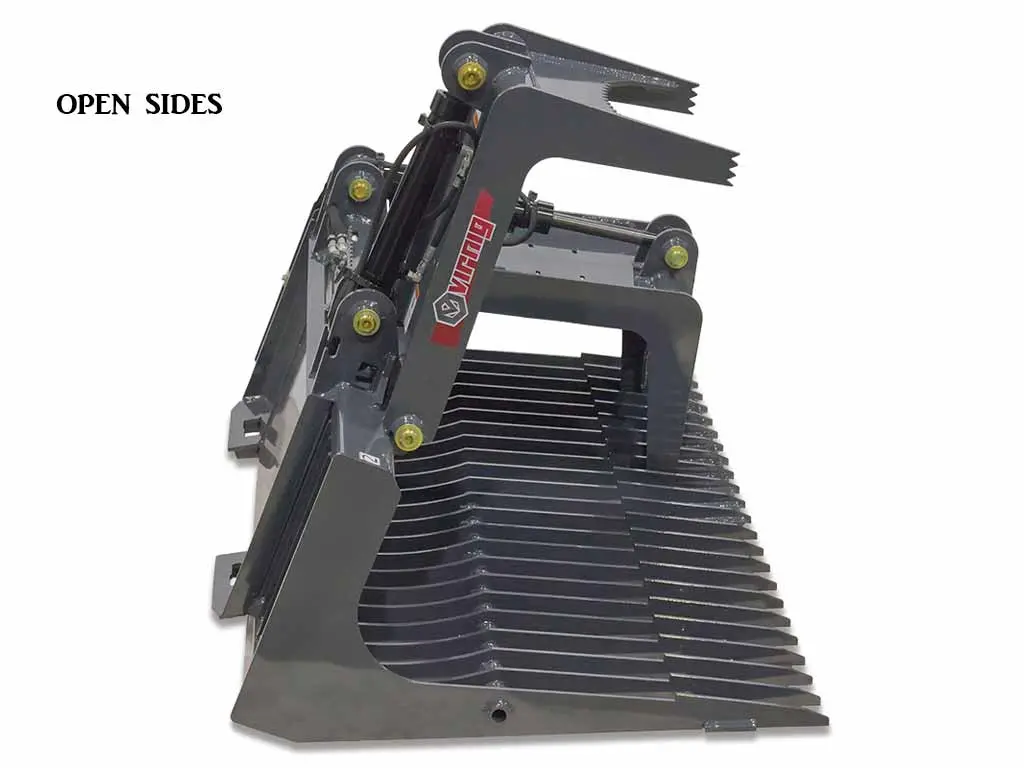

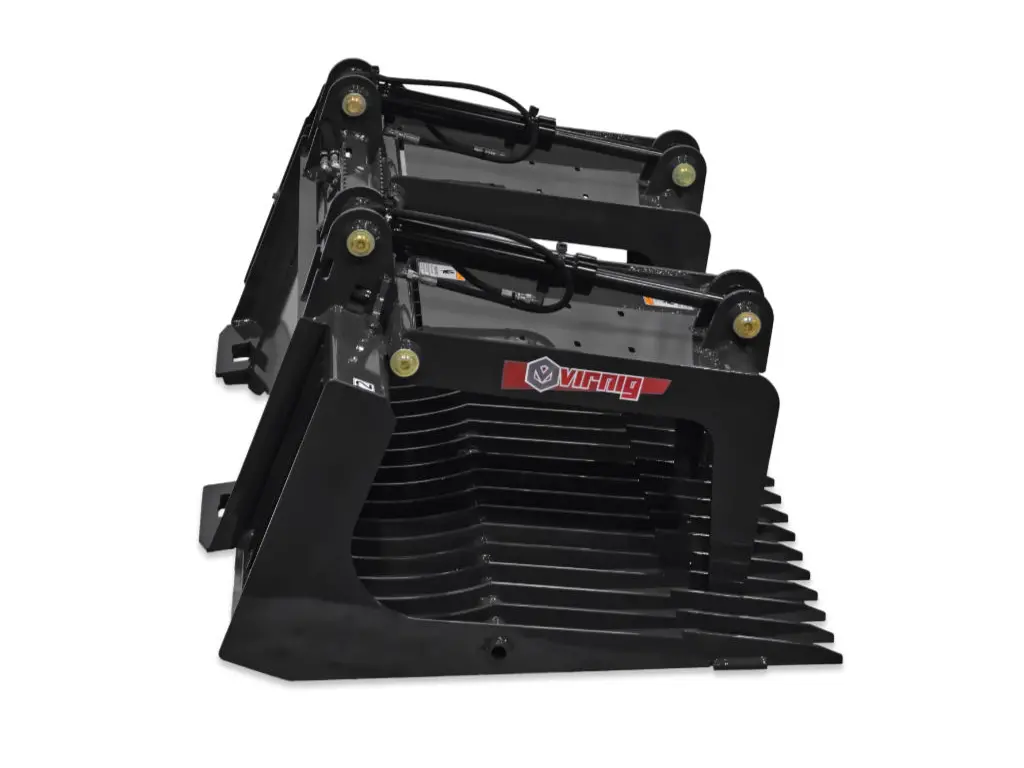

Optional open sides
Note: Clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, 333G).
SPECS
- Recommended loader capacity – Less than 2400 lbs. ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pins Diameter (in) 1.25
| Model | BSRGV66 | BSRGV72 | BSRGV84 |
| Overall Width (in) | 67.6 | 74.3 | 87.5 |
| Depth (in) | 39.9 | 39.9 | 39.9 |
| Height: Overall/Bucket (in) | 26.5/20.0 | 26.5/20.0 | 26.5/20.0 |
| Grapple Jaw Opening (in) | 35.2 | 35.2 | 35.2 |
| Number of Tines | 21 | 23 | 27 |
| Space Between Tines (in) | 2.9 | 2.9 | 2.9 |
| Weight (lbs.) | 925 | 960 | 1040 |
