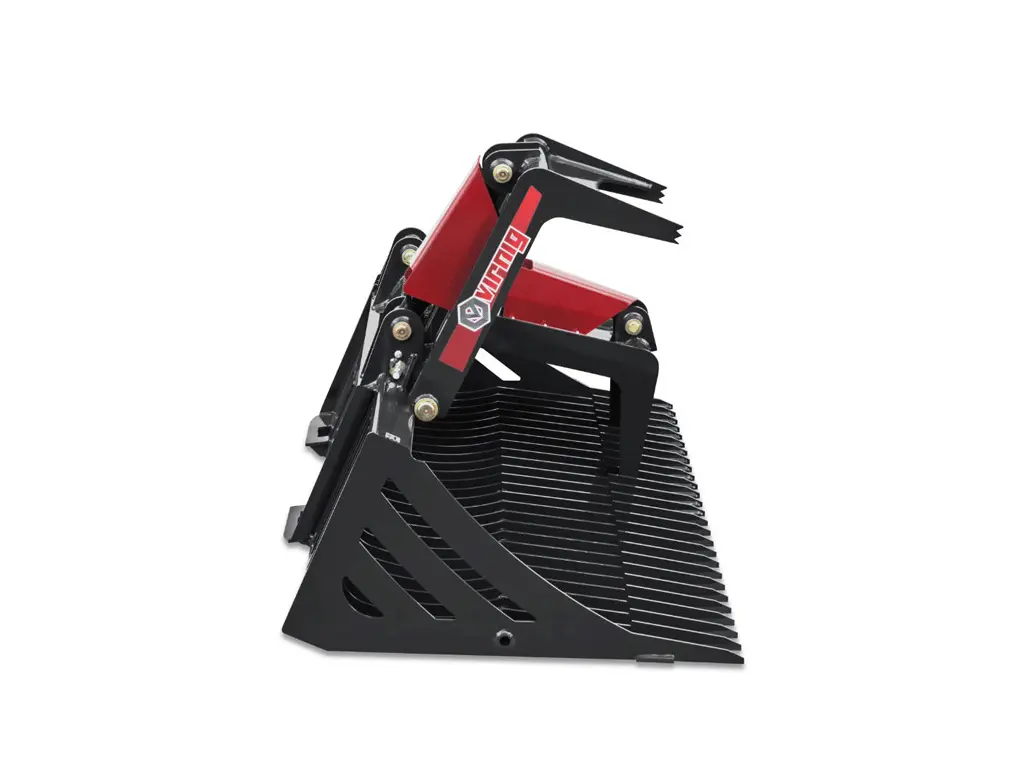

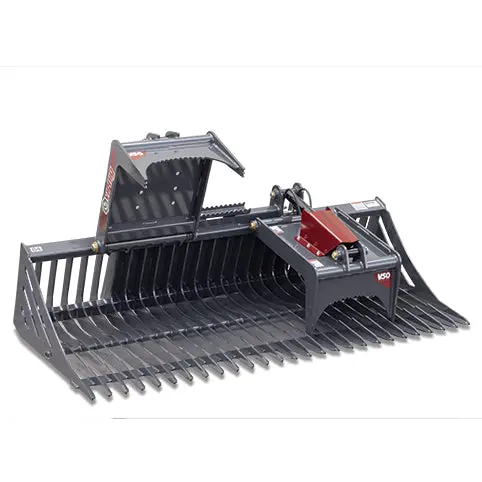

V50 Skeleton Rock Grapple
Skid Steer Attachment

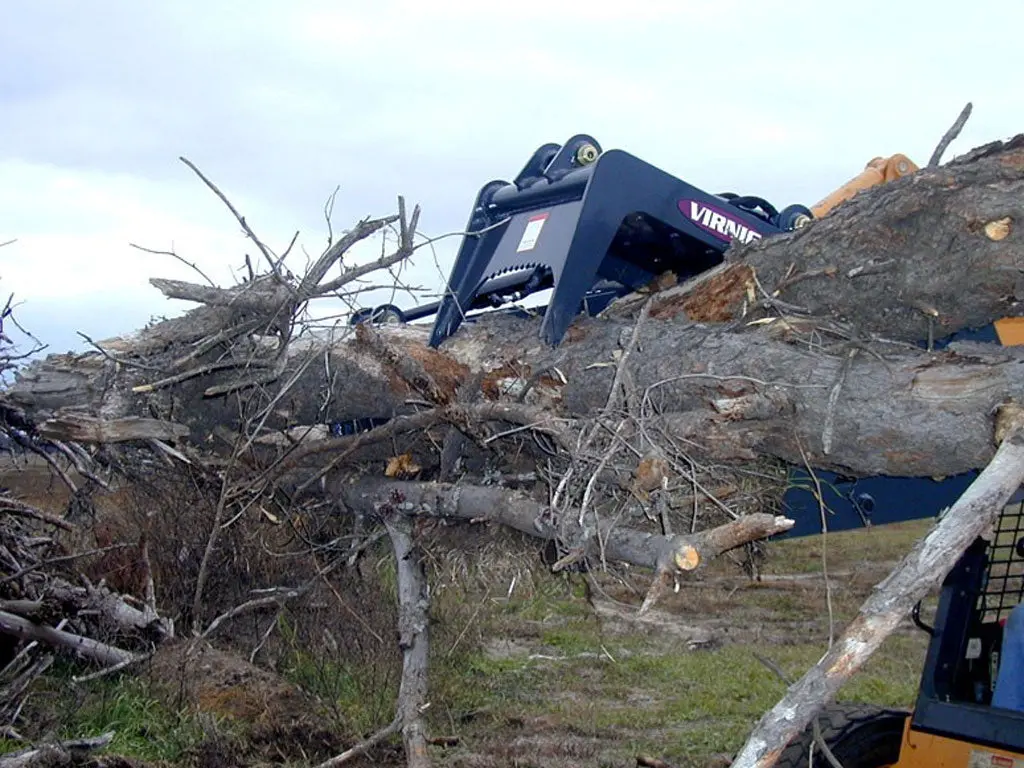

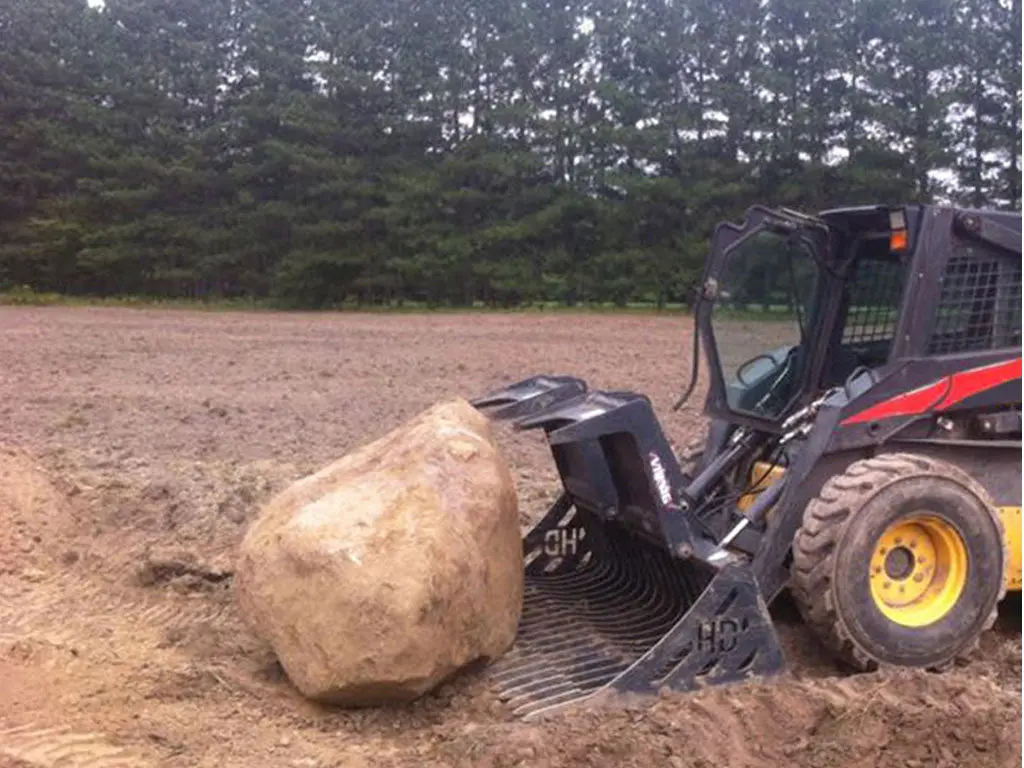

The V50 Skeleton Rock Grapple for skid steers is engineered for heavy-duty rock handling, land clearing, and debris removal. Featuring dual independent jaws with separate hydraulic cylinders, this skid steer grapple securely clamps uneven loads while maintaining consistent pressure—keeping rocks, logs, and debris tightly contained during transport.

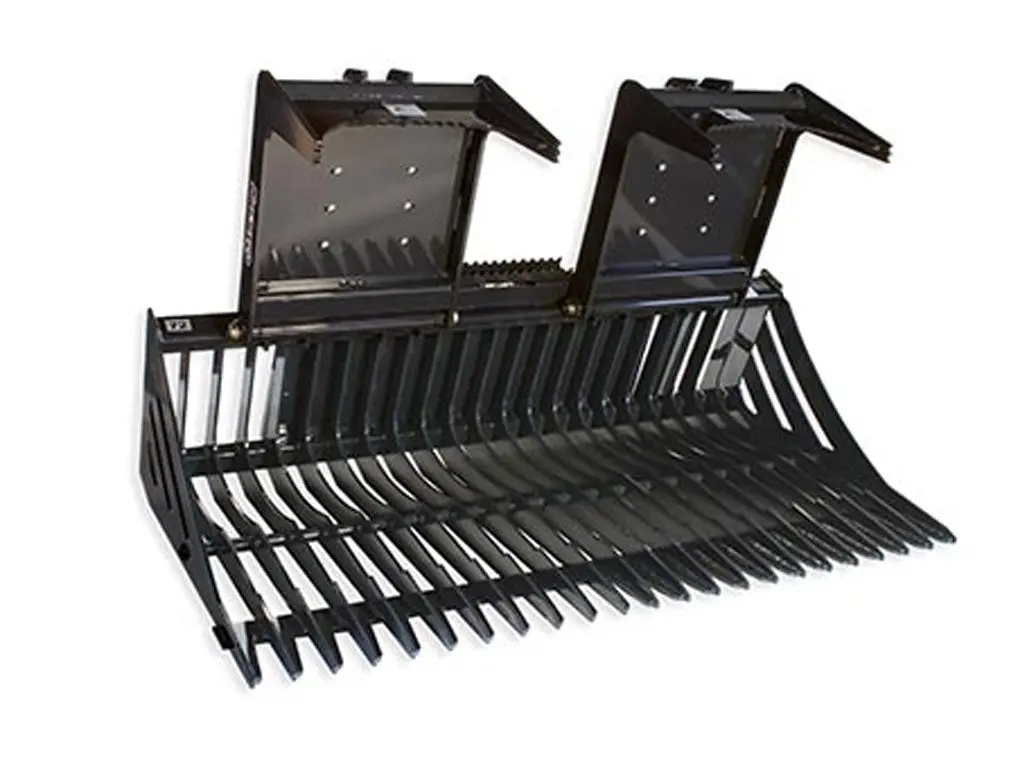

With 3″ tine spacing, the grapple is designed to sift rocks and debris while letting dirt fall through for efficient site prep. Each tine is made from a single piece of 3/8″ Grade 80 steel from tip to top brace for maximum durability and strength. A raised rock dam and notched tips ensure rocks stay secure while digging.

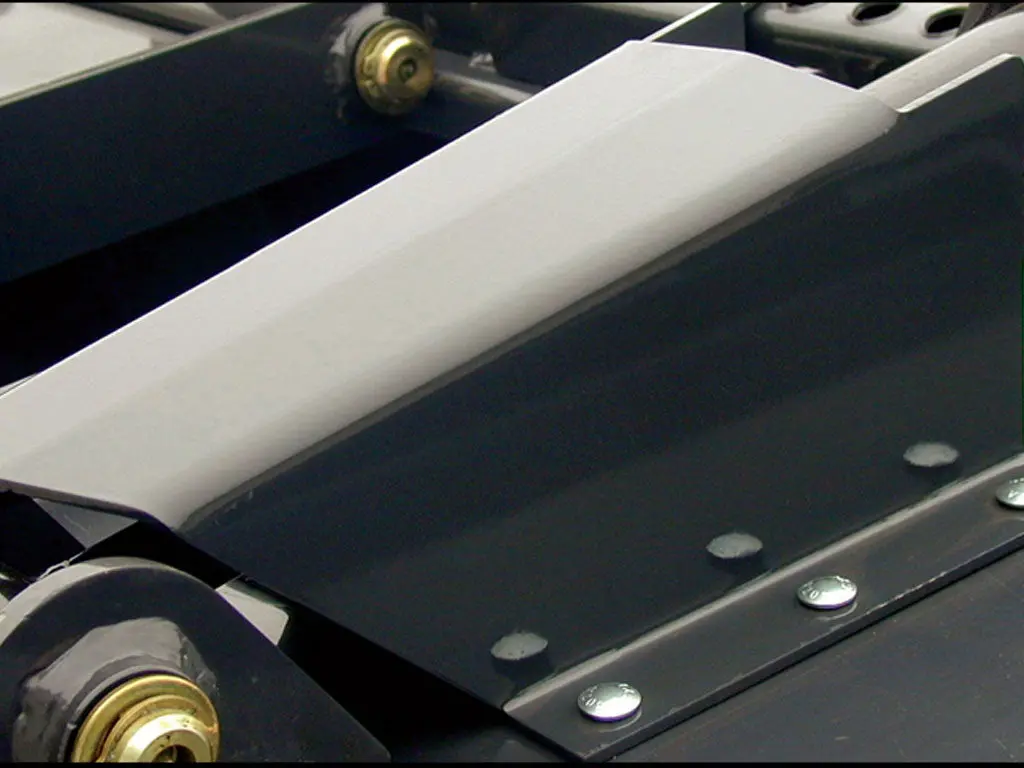

Built for long-lasting performance, the V50 Skeleton Rock Grapple includes 2″ bore, 8 3/8″ stroke cylinders with corrosion- and dent-resistant NitroSteel® rods, greasable pins, and Teflon® coated bushings at all pivot points. A machine-specific hydraulic package protects hose routing, while the replaceable bolt-on step with an aggressive laser-cut pattern ensures safe, slip-resistant cab access—even in tough conditions.
Key Features:
-
Dual independent jaws with hydraulic cylinders
-
3″ tine spacing for rock picking and debris clearing
-
Grade 80 steel tines with rock dam and notched tips
-
NitroSteel® cylinder rods and Teflon® coated bushings
-
Machine-specific hydraulic hose protection
-
Replaceable bolt-on step with aggressive grip
-

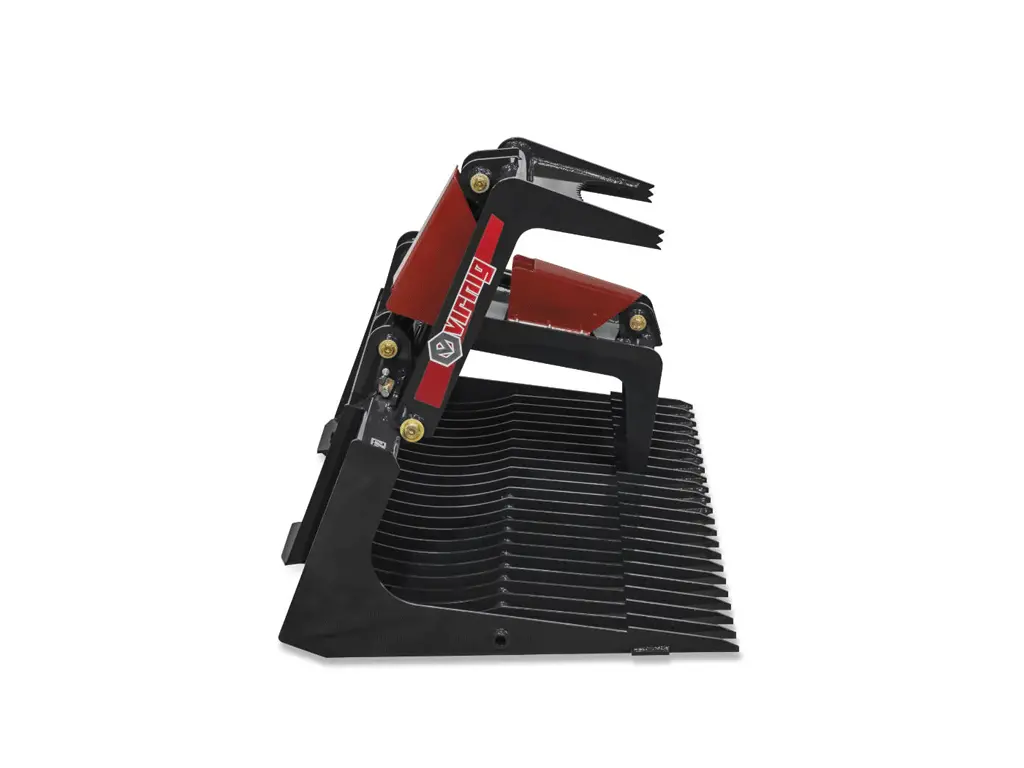

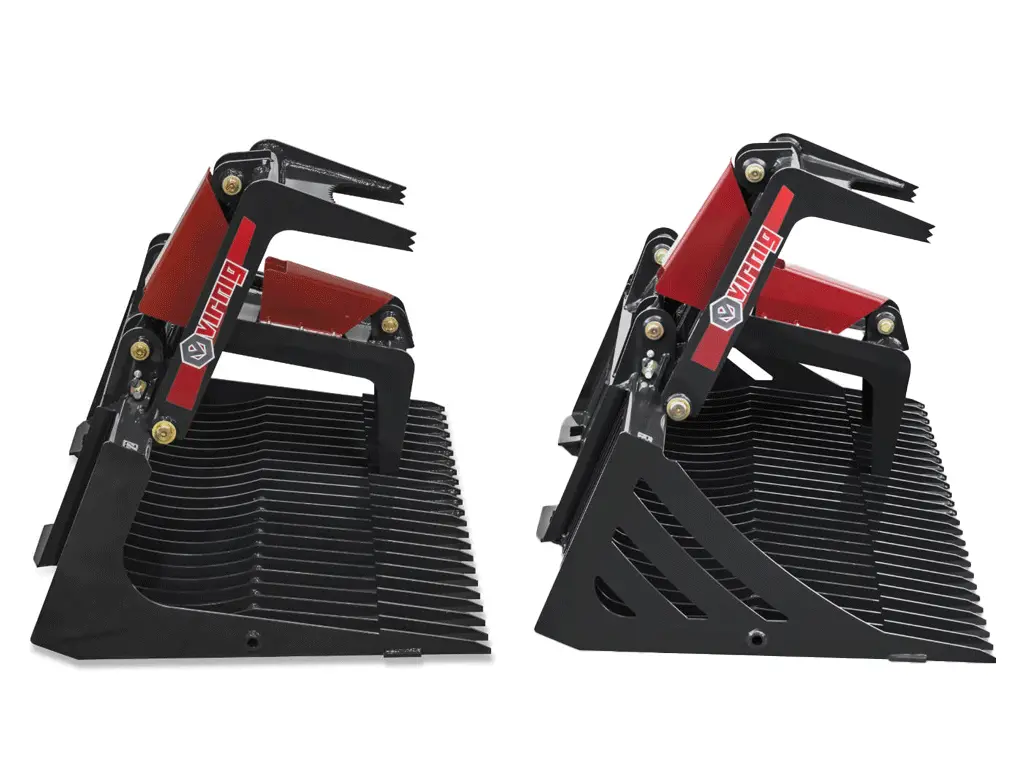

Optional open sides for added versatility
SPECS
- Recommended loader capacity – Greater than 1500 lbs. ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
| Model | SRGV60 | SRGV66 | SRGV72 | SRGV78 | SRGV84 |
| Overall Width (in) | 61.0 | 67.6 | 74.3 | 80.9 | 87.5 |
| Depth (in) | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 |
| Height: Overall / Bucket (in) | 27.8 / 21.5 | 27.8 / 21.5 | 27.8 / 21.5 | 27.8 / 21.5 | 27.8 / 21.5 |
| Grapple Jaw Opening (in) | 36.1 | 36.1 | 36.1 | 36.1 | 36.1 |
| Number of Tines | 19 | 21 | 23 | 25 | 27 |
| Space Between Tines | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 |
| Weight (lbs.) | 950 | 990 | 1035 | 1080 | 1125 |
