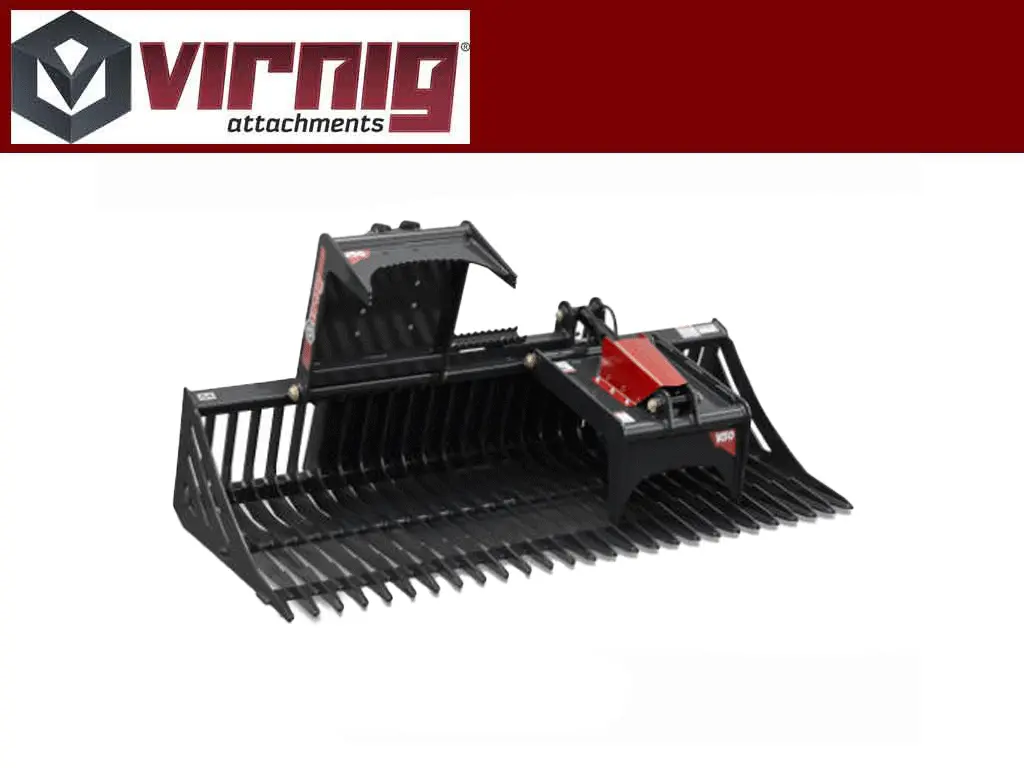

V50 Skeleton Grapple
Heavy-Duty Skid Steer Grapple for Brush, Logs & Debris
The V50 Skeleton Grapple is a powerful skid steer attachment engineered for land clearing, brush handling, and material transport. Featuring dual independent jaws with separate hydraulic cylinders, each arm works independently to clamp uneven loads securely and maintain consistent pressure. This design ensures brush, logs, and irregular debris stay tightly in place during transport.
Key Features:
-
Dual-cylinder independent grapple arms with open-sided design for efficient material handling
-
Constructed from single-piece 1/2″ Grade 80 steel tines for maximum strength and rigidity
-
5 1/2″ tine spacing with open-bottom design for excellent visibility and dirt sifting
-
Heavy-duty 2″ bore, 8 3/8″ stroke cylinders with corrosion- and dent-resistant NitroSteel® rods
-
Greaseable 1 1/4″ cylinder pins and 1 9/16″ hinge pins for long-lasting durability
-
Teflon®-coated bushings at all pivot points to reduce wear and extend service life
-
Removable bolt-on step with aggressive laser-cut tread for safe cab entry
-
Recommended for skid steers with a rated operating capacity (ROC) of 1,500 lbs or greater
The V50 Skeleton Grapple delivers strength, reliability, and precision—making it one of the best skid steer grapple attachments for tough land clearing jobs.
SPECS
- Recommended loader capacity – Greater than 1500 lbs. ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pins Diameter (in) 1.25 /1.563
| Model | 60″ | 66″ | 72″ | 78″ | 84″ | 90″ |
| Overall Width (in) | 61.5 | 67.5 | 73.5 | 79.5 | 85.5 | 91.5 |
| Depth (in) | 39.9 | 39.9 | 39.9 | 39.9 | 39.9 | 39.9 |
| Height: Overall / Bucket (in) | 27.8 / 21.3 | 27.8 / 21.3 | 27.8 / 21.3 | 27.8 / 21.3 | 27.8 / 21.3 | 27.8 / 21.3 |
| Grapple Jaw Opening (in) | 36.1 | 36.1 | 36.1 | 36.1 | 36.1 | 36.1 |
| Number of Tines | 11 | 12 | 13 | 14 | 15 | 16 |
| Space Between Tines | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Weight (lbs.) | 815 | 850 | 885 | 920 | 955 | 990 |
