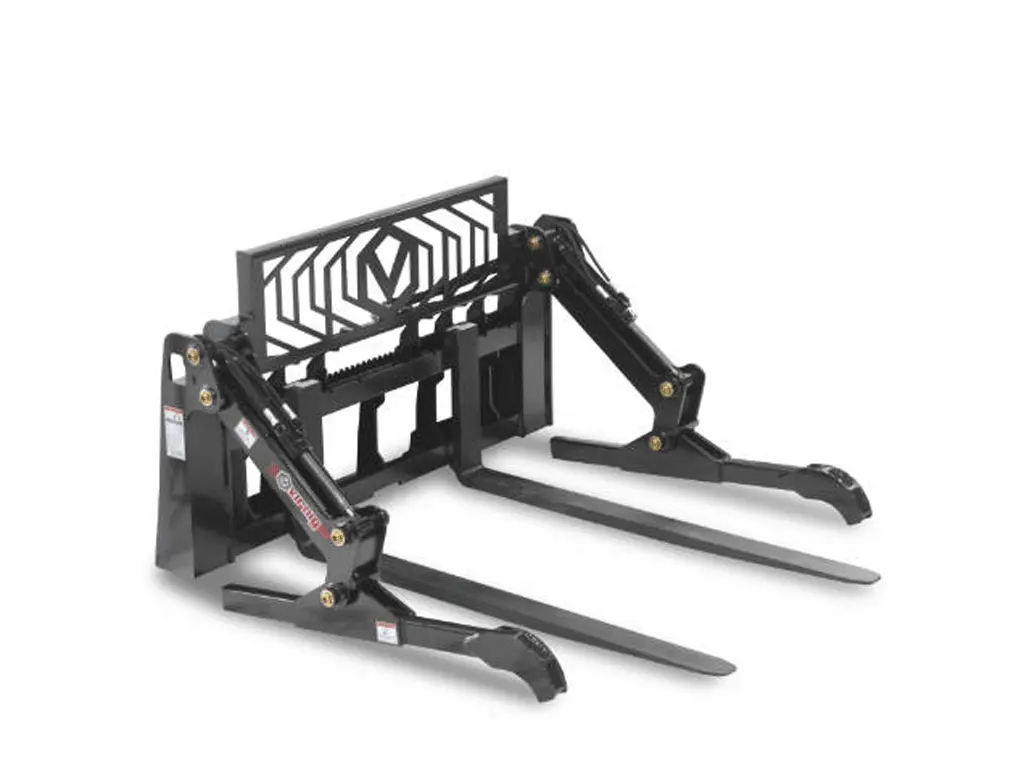

Virnig V60 Two-Cylinder Pipe & Mat Pallet Fork Grapple
Skid Steer Attachment
The Virnig V60 Two-Cylinder Pipe and Mat Pallet Fork Grapple is engineered for moving and securing long, heavy, or uneven loads with precision and control. Its independent clamp arms open to near vertical, making it ideal for handling palletized material, pipe, mats, and other bulky items.
The 54” wide frame delivers maximum stability for long material, while your choice of 48” or 60” Cascade® ITA Class II forged tines provides reliable strength and durability. Built with NitroSteel® cylinder rods, greasable pins, and heavy-duty components, this grapple ensures long-lasting performance in demanding applications.
Key Features:
-
Two-cylinder independent clamp arms for secure, balanced load handling.
-
Arms open nearly vertical for easier loading and unloading.
-
54” wide frame maintains stability for long or awkward materials.
-
Available with 48” or 60” Cascade® forged tines.
-
2” bore, 8 3/8” stroke cylinders with corrosion- and dent-resistant NitroSteel® rods.
-
Greasable 1 1/4” cylinder and hinge pins for reduced maintenance.
Best Use Practices:
-
Center the load on the grapple tines before clamping.
-
Distribute material evenly—only one layer of pipe per load is recommended.
-
Lower clamp arms slowly and evenly before applying full clamping force.
Note: Clearance issues may occur on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
Included with Attachment:
-
Universal skid steer mounting
-
Hoses, couplers & fittings
Specs:
-
Recommended loader capacity: >1500 lbs ROC
-
Cylinder bore/stroke: 2.0” / 8.375”
-
Cylinder pin / hinge pin diameter: 1.25”
SPECS
- Recommended Loader Capacity – Greater than 1500 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25
| Model | 48″ | 60″ |
| Overall Width (in) | 70.8 | 70.8 |
| Depth (in) | 56 | 67.5 |
| Height Closed (in) | 40.4 | 40.4 |
| Height Open (in) | 81.4 | 81.4 |
| Grapple Arm Width | 8.3 | 8.3 |
| Tine Length / Width / Thickness (in) | 48 / 4 / 1.75 | 60 / 4 / 1.5 |
| Lift Capacity (lbs) | 6200 | 5500 |
| Weight (lbs) | 950 | 965 |
BIG DAVE REVIEW
The V60 series was Constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations.
