Virnig V60 Skid Steer Root Rake with Hydraulic Grapple

Description

DESCRIPTION

9/25

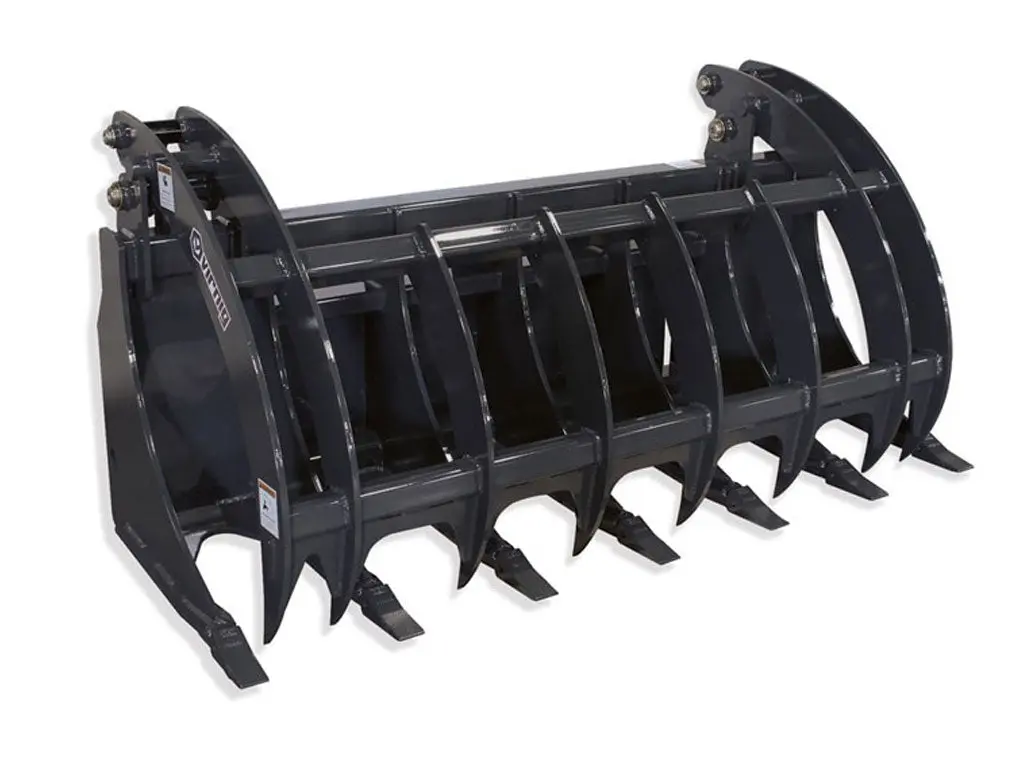

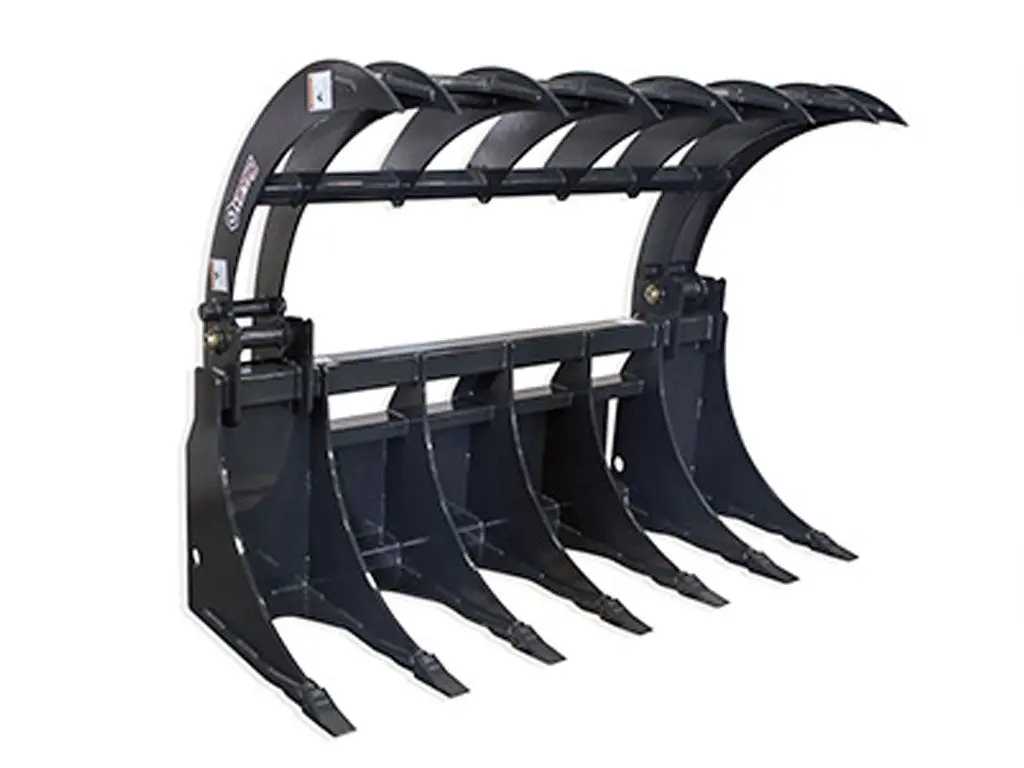

Virnig V60 Root Rake Grapple

Skid Steer Attachment

The Virnig V60 Root Rake Grapple is a heavy-duty skid steer attachment designed for digging, raking, piling, and loading debris with maximum efficiency. Unlike the V50 model, the V60 features two-position hard stops in the fully open and closed positions, preventing stress and potential damage to the cylinders during back-dragging or clamping on heavy loads.

Equipped with cast, pin-on teeth, the V60 Root Rake Grapple cuts deep into roots and brush piles for optimal debris removal. The teeth offer long wear life and are easily replaceable. Its two-cylinder, single jaw design allows forward and reverse operation to drag loose material into piles with ease.

Built for strength and durability, the V60 features heavy-duty 1/2″ Grade 80 steel jaw and rake tines, a 50.3” grapple jaw opening for handling large volumes of brush, and Series 23 replaceable cast teeth. The 2 1/2″ bore, 8 3/8” stroke cylinders feature corrosion-, dent-, and flake-resistant NitroSteel® rods. Greasable 1 1/4” cylinder pins and 1 9/16” hinge pins with Teflon® coated bushings at all pivot points provide long-lasting performance. A machine-specific hydraulic package protects hose routing in rugged conditions.

⚠️ Note: Clearance issues may occur with RRG72 on Takeuchi track loaders and John Deere® G-Series loaders (330G, 331G, 332G, 333G).

Included with Attachment:

• Universal skid steer mounting

• Hoses, couplers, & fittings

• Standard cylinder guards



SPECS

• Recommended loader capacity – Greater than 2400 lbs ROC
• Cylinder Bore / Stroke (in)  2.5 / 8.375
• Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563

Model	72″	78″	84″
Overall Width (in)	74.5	80.5	86.5
Depth (in)	31.6	31.6	31.6
Height: Overall / Bucket (in)	38.3 / 29.7	38.3 / 29.7	38.3 / 29.7
Grapple Jaw Opening (in)	53.7	53.7	53.7
Number of Teeth	7	7	8
Space Between Teeth	9.8	10.8	9.8
Weight (lbs)	1175	1230	1315

 BIG DAVE REVIEW

The V60 series was designed and constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations.
