Virnig V60 Heavy-Duty Skeleton Grapple – High-Capacity Design

Description

DESCRIPTION

9/25

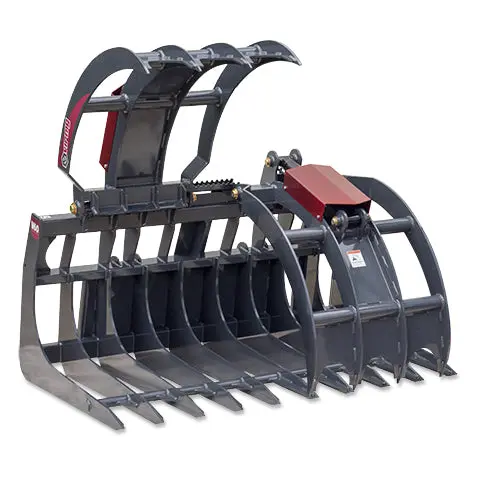

Virnig V60 Large Capacity Skeleton Grapple

Skid Steer Attachment

The Virnig V60 Large Capacity Skeleton Grapple is a heavy-duty skid steer attachment designed for tackling large brush, debris, and oversized materials. Featuring dual independent jaws that open over 5 feet, this grapple is built for maximum reach and efficiency on large jobs.

Constructed for strength and durability, the V60 includes heavy-duty 1/2″ Grade 80 steel tines and 1/2″ Grade 50 steel jaw tines. The open-back design provides excellent visibility during operation, while fully gusseted tine tips enhance strength and performance. 2 1/2” bore, 8 3/8” stroke cylinders with corrosion-, dent-, and flake-resistant NitroSteel® rods deliver reliable power. Greasable 1 1/4” cylinder pins and 1 9/16” hinge pins, along with Teflon® coated bushings, ensure smooth operation at all pivot points. A machine-specific hydraulic package protects hose routing, and standard cylinder guards offer added durability in tough working conditions.

Key Features:

• Dual independent jaws with over 5-foot opening for large material handling

• Heavy-duty 1/2″ Grade 80 steel tines and 1/2″ Grade 50 steel jaw tines

• Open-back design for superior visibility

• Fully gusseted tine tips for added strength

• NitroSteel® cylinder rods with Teflon® coated bushings

• Greasable cylinder and hinge pins

• Machine-specific hydraulic hose protection

• Standard cylinder guards

Included with Attachment:

• Universal skid steer mounting

• Hoses, couplers, & fittings

• Standard cylinder guards

Specifications:

• Recommended loader capacity: > 2,400 lbs ROC

• Cylinder Bore / Stroke: 2.5” / 8.375”

• Cylinder Pins / Hinge Pin Diameter: 1.25” / 1.563”

SPECS

• Recommended loader capacity – Greater than 2400 lbs ROC
• Cylinder Bore / Stroke (in)  2.5 / 8.375
• Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563

Model	72″	84″
Overall Width (in)	73.0	85.0
Depth (in)	46.0	46.0
Height: Overall / Bucket (in)	42.5 / 33.0	42.5 / 33.0
Grapple Jaw Opening (in)	62.8	62.8
Number of Tines	10	12
Space Between Tines	7.5	7.1
Weight (lbs)	1585	1690

BIG DAVE REVIEW

The V60 series was designed and constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations.
