Virnig V60 Hydraulic Tine-Fork Grapple with SSL & CTL Compatibility

Description

DESCRIPTION

9/25

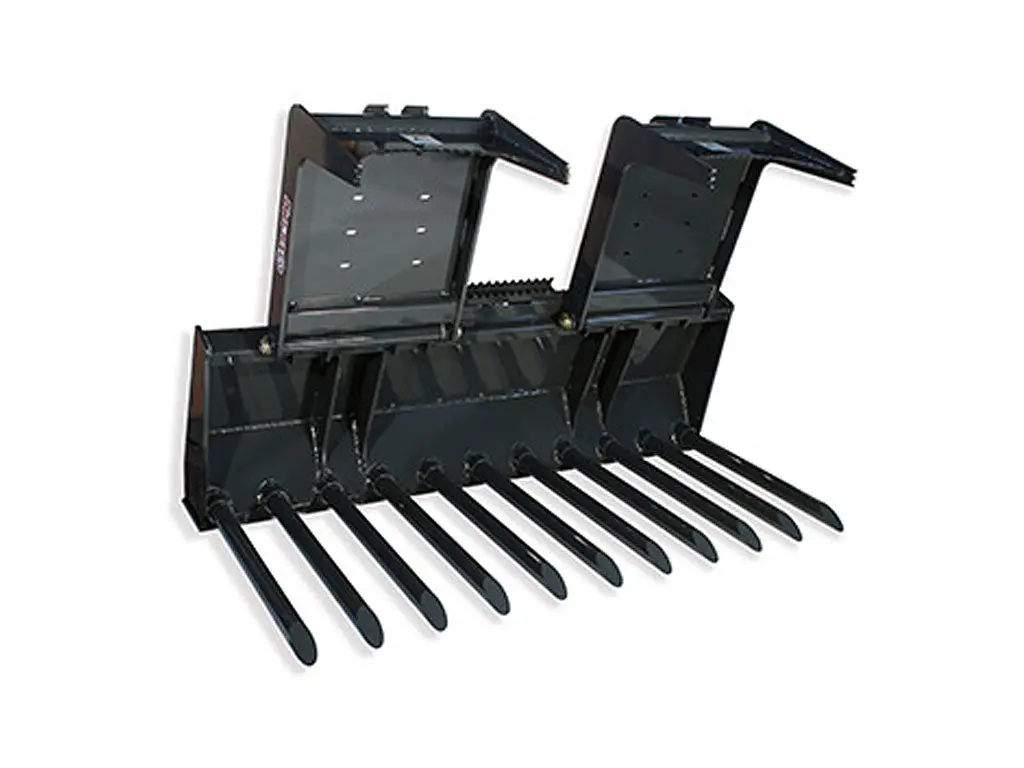

Virnig V60 Tine Fork Grapple

Skid Steer Attachment

The Virnig V60 Tine Fork Grapple is a heavy-duty skid steer attachment designed for handling manure, brush, debris, and other irregular materials. Each of the dual independent jaws operates with its own hydraulic cylinder, allowing operators to securely clamp uneven loads while maintaining consistent pressure across the grapple. This independent design keeps oddly-shaped objects tightly secured in the skid steer bucket for safe and efficient transport.

Built for strength and reliability, the V60 features high-tensile 2 1/4” diameter removable tines and no cross member at the tine tips for superior material penetration. Four 1/2” thick vertical frame braces provide added rigidity, while 2” bore, 8 3/8” stroke cylinders with corrosion-, dent-, and flake-resistant NitroSteel® rods ensure long-lasting performance. Greasable 1 1/4” cylinder pins and 1 9/16” hinge pins with Teflon® coated bushings at all pivot points reduce wear and extend service life. A machine-specific hydraulic package protects hose routing, and the replaceable bolt-on step with aggressive laser-cut tread offers safe cab access. Cylinder guards come standard for added protection in rugged conditions.

Key Features:

• Dual independent hydraulic jaws for secure material handling

• High-tensile 2 1/4” removable tines with no cross member for better penetration

• Four vertical frame braces for added strength

• NitroSteel® cylinder rods with Teflon® coated bushings

• Greasable cylinder and hinge pins

• Machine-specific hydraulic hose protection

• Replaceable bolt-on step with aggressive grip

• Standard cylinder guards

Included with Attachment:

• Universal skid steer mounting

• Hoses, couplers, & fittings

• Standard cylinder guards

⚠️ Note: Clearance issue on M-Series Bobcat® loaders when cylinder guards are installed and jaws are open.

SPECS

• Recommended loader capacity – Greater than 2400 lbs ROC
• Cylinder Bore / Stroke (in)  2.0 / 8.375
• Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563

Model	72″	78″	84″	90″
Overall Width (in)	73.3	79.3	85.3	91.3
Depth (in)	37.0	37.0	37.0	37.0
Height: Overall / Bucket (in)	28.5 / 23.5	28.5 / 23.5	28.5 / 23.5	28.5 / 23.5
Grapple Jaw Opening (in)	40.2	40.2	40.2	40.2
Number of Tines	11	12	13	14
Space Between Tines	4.6	4.5	4.4	4.9
Weight (lbs)	1325	1400	1470	1495

BIG DAVE REVIEW



The V60 series was constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations. This is the extreme duty version of this attachment.
