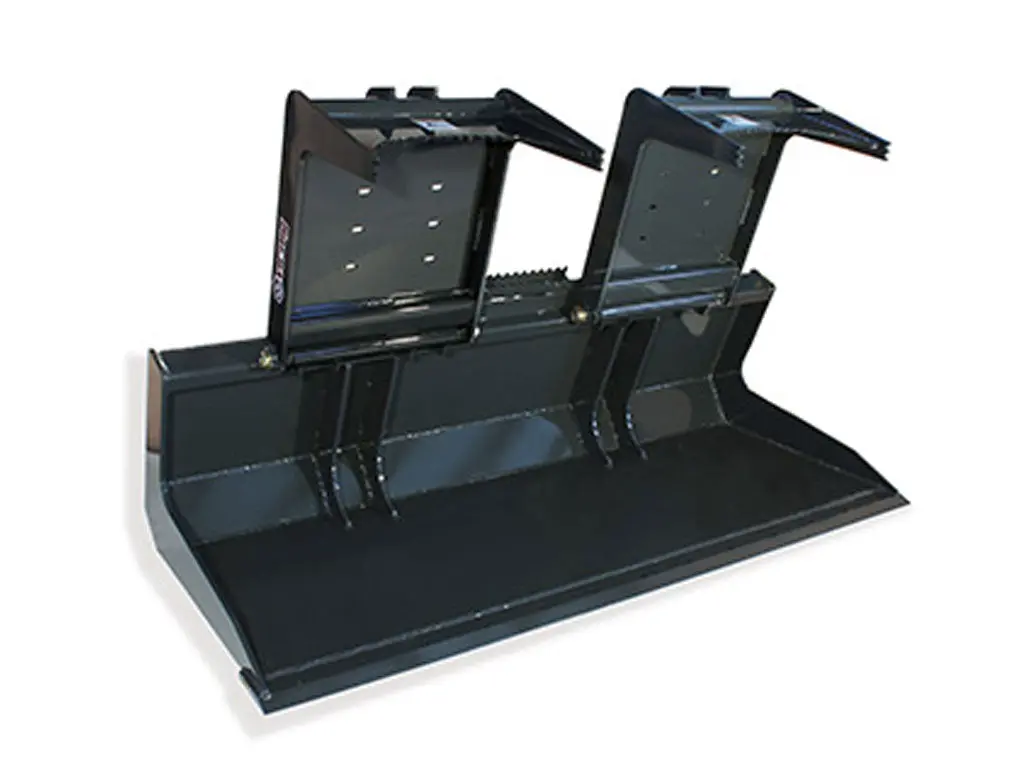

Virnig V60 Scrap Grapple
Skid Steer Attachment
The Virnig V60 Scrap Grapple is a heavy-duty skid steer attachment engineered for handling bulky scrap, debris, and uneven materials. With dual independent jaws and separate hydraulic cylinders, each jaw works independently to securely clamp irregular loads while maintaining consistent pressure. This design ensures oddly-shaped objects stay tightly secured during transport.
Constructed for maximum strength, the V60 features 1/4” Grade 50 solid-bottom scoops reinforced with four 1/2” thick vertical braces for added rigidity. 2” bore, 8 3/8” stroke cylinders with corrosion-, dent-, and flake-resistant NitroSteel® rods provide long-lasting performance. Greasable 1 1/4” cylinder pins and 1 9/16” hinge pins, along with Teflon® coated bushings, ensure smooth operation at all pivot points. The grapple includes a 3/4″ x 6″ weld-on cutting edge with optional edge compatibility, standard cylinder guards, and a replaceable bolt-on step with aggressive laser-cut steel for safe skid steer cab access. A machine-specific hydraulic package protects hose routing for reliable operation in tough conditions.
Options:
-

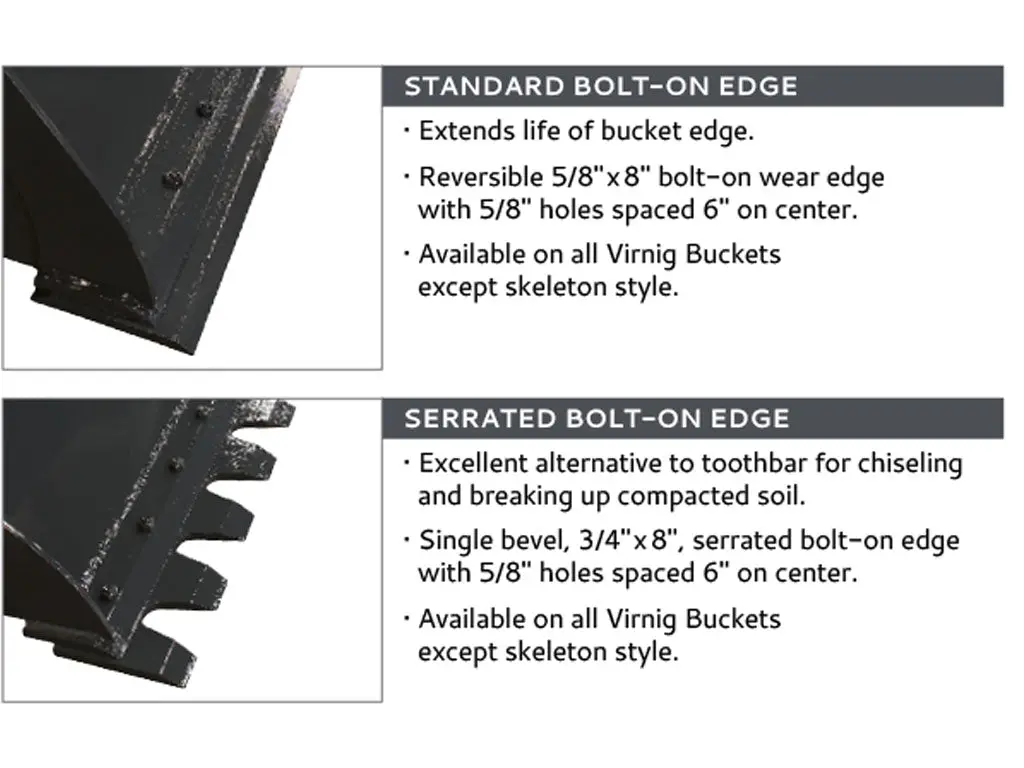

Bolt-On Cutting Edge (BOCE)
-
Serrated Edge (SE)
Included with Attachment:
-
Universal skid steer mounting
-
Hoses, couplers, & fittings
-
Standard cylinder guard
SPECS
- Recommended loader capacity – Less than 2400 lbs ROC
- Cylinder Bore / Stroke (in) 2.0 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25 / 1.563
| Model | 72″ | 78″ | 84″ | 90″ |
| Overall Width (in) | 73.5 | 79.5 | 85.5 | 91.5 |
| Depth (in) | 35.5 | 35.5 | 35.5 | 35.5 |
| Height: Overall / Bucket (in) | 29.0 / 22.5 | 29.0 / 22.5 | 29.0 / 22.5 | 29.0 / 22.5 |
| Grapple Jaw Opening (in) | 38.8 | 38.8 | 38.8 | 38.8 |
| Structural wear bars under bucket | 4 | 5 | 5 | 5 |
| Weight (lbs) | 1080 | 1130 | 1170 | 1210 |
