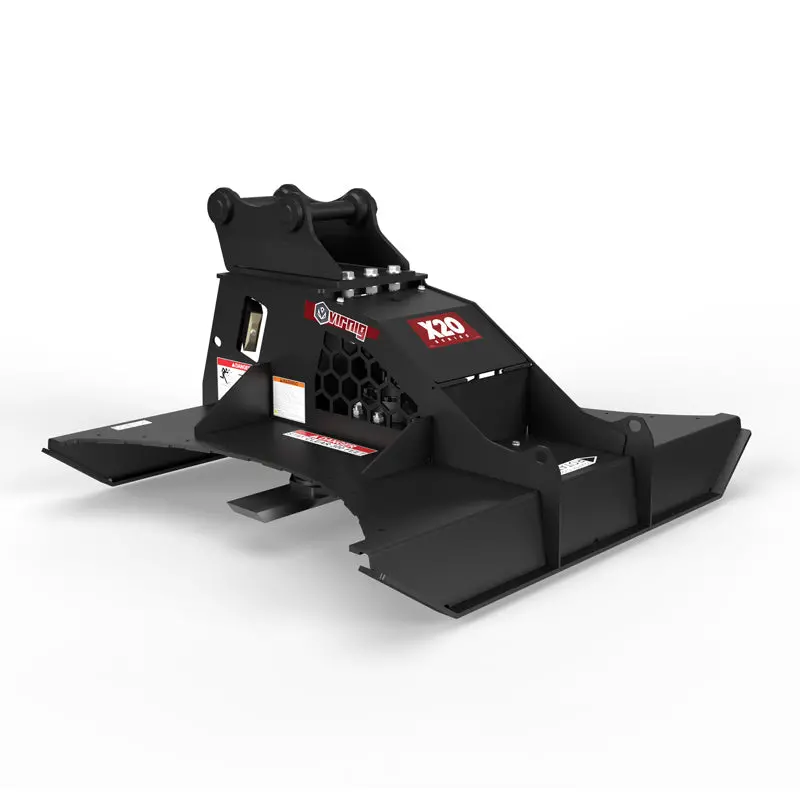

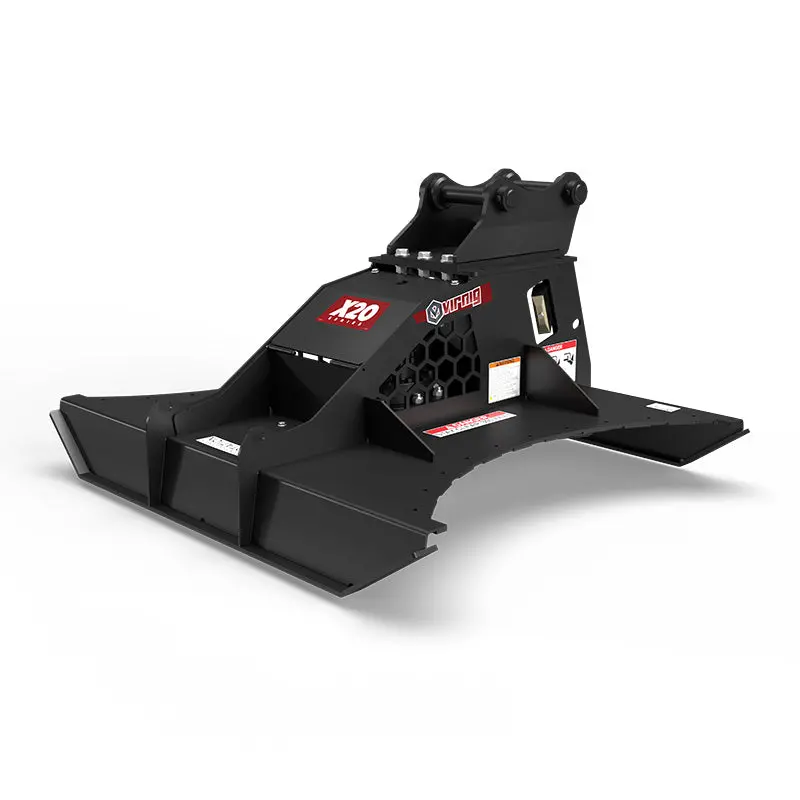

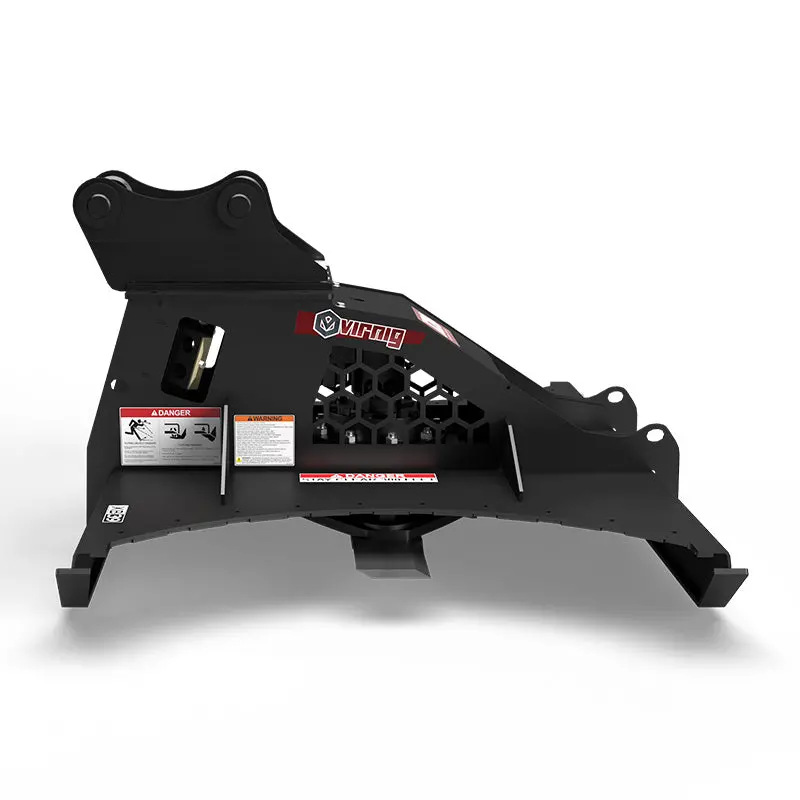

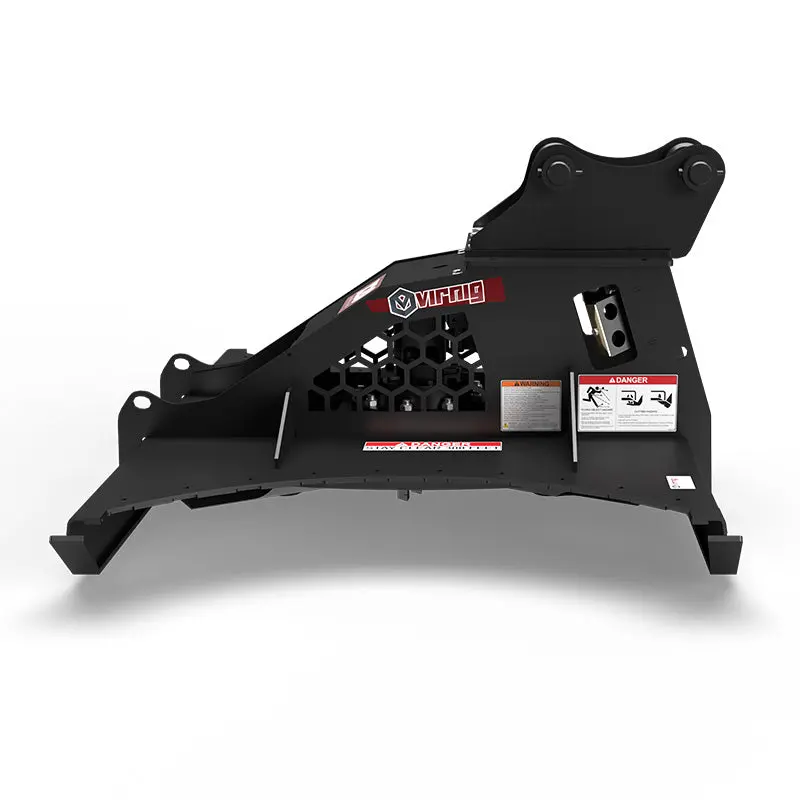

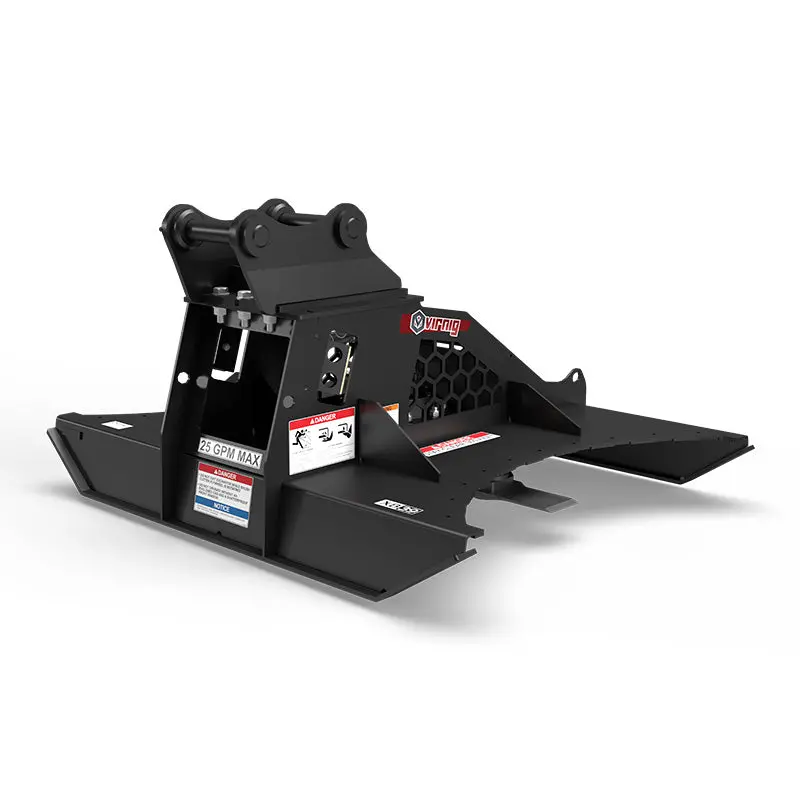

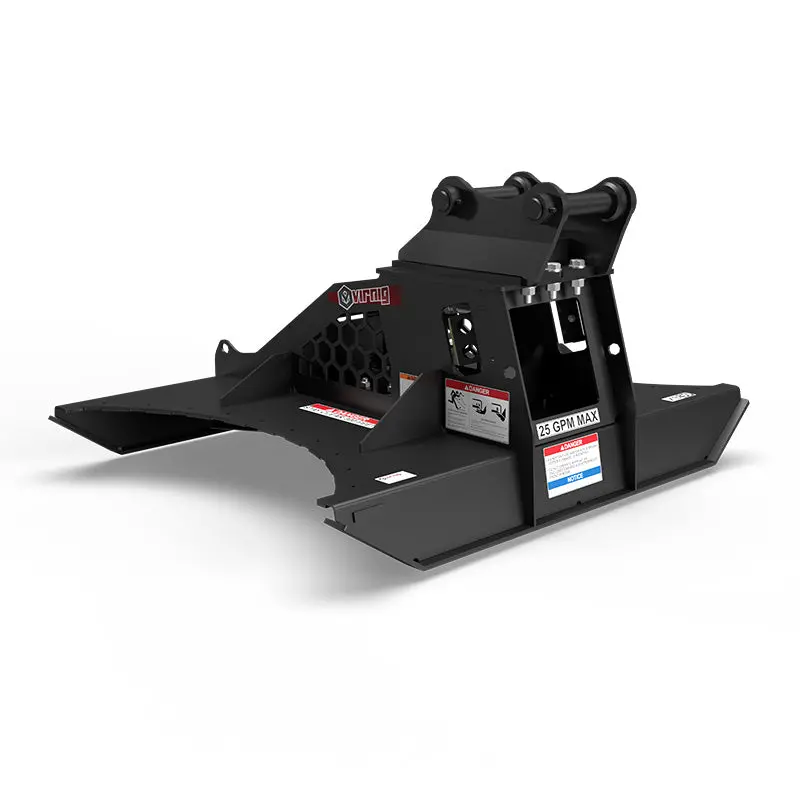

X20 Mini Excavator Rotary Brush Cutter

Mini Excavator

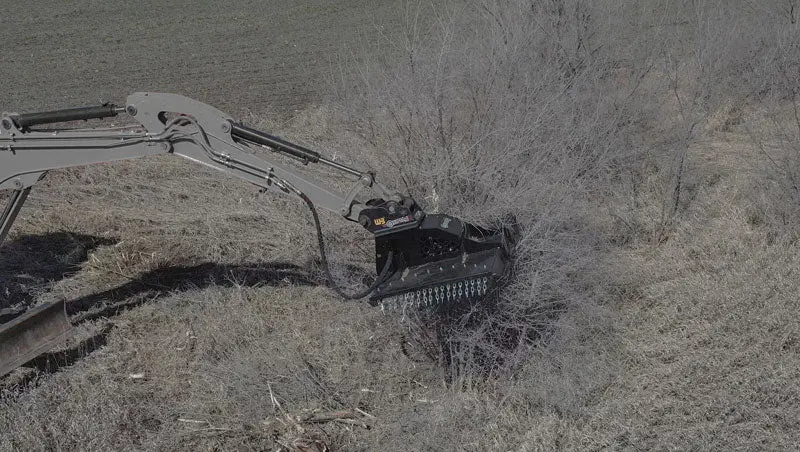

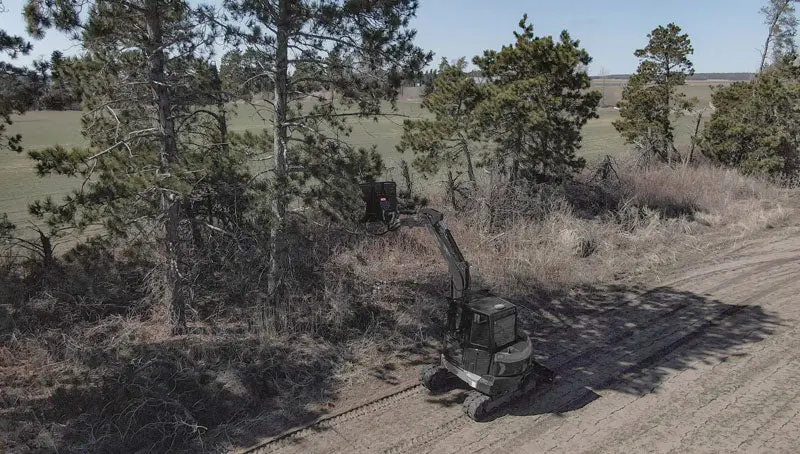

Cut up to 3″ diameter trees and clear brush faster with a 40″ cut and up to 35% faster blade speed than 36″ mini-ex cutters, all while keeping weight as low as 510 pounds.

• NO CASE DRAIN REQUIRED. DIRECT DRIVE EATON® MOTOR WITH RELIEF VALVE PROTECTION
• WEIGHT OPTIMIZED TO BE COMPATIBLE WITH 6500LB (3 TON) MINI EXCAVATORS
• DECK DESIGNED TO LIMIT FLYING DEBRIS FOR SAFER OPERATION. ADD OPTIONAL SIDES FOR MAX DEBRIS CONTAINMENT
• ROUNDED FLYWHEEL WITH 3 DOUBLE-SIDED BLADES BOUNCES OFF STUMPS. ADD OPTIONAL TEETH FOR A BETTER FINISH
• STANDARD 90″ HOSES, COUPLERS, MOTOR GUARD & SPINDLE GUARD
• BOLT-ON MOUNTING INTERFACE FOR QUICKLY CHANGING HANGER BRACKETS. VARIOUS HANGER BRACKETS AVAILABLE TO FIT MOST EXCAVATOR BRANDS

* PROTECT THE OPERATOR AND THE PEOPLE AROUND THE MACHINE WHILE THE ATTACHMENT IS OPERATING. Shatter proof shield is recommended.

SPECS

MODEL	XB39
Cut Width (Inches)	40.1
Overall Width Without Sides / With Sides (Inches)	52.5 / 53.1
Height: Overall / Deck (Inches)	19.7 / 6.1
Overall Depth (Inches)	45.1
Minimum Cut Height (Inches)	2.3
Cutting Capacity, Diameter (Inches)	3.0
Deck Thickness: Top/Side (Inches)	3/16
Recommended Flow Rate (GPM)	13-25
Max Operating Pressure (PSI)	3500
Approximate Weight: No Sides / Both Sides (Pounds)	510¹ / 590¹
[Optional] Carbide Teeth: Weight (Pounds) / Qty	6 / 9
Approximate Operating Weight (Pounds)	Cutter (510) + Hanger + Options²
Mini-Ex’s Lowest Lift Capacity Over Side at Max Reach	Must Exceed Cutter Operating Weight³
Recommended Mini-Excavator Weight (Pounds)	6500-15000

¹Weight doesn’t include hanger bracket or tooth option.
²Add weight of cutter, hanger and options to determine operating weight. Hangers typically weigh between 80 and 150 pounds.
³Excavator’s lowest lift capacity of any blade and boom orientation must exceed cutter operating weight. Excavator lift capacities vary based on arm length, counterweight and open vs closed cab. Ensure the excavator configuration in the manufacturer’s specs matches your machine’s exact setup.

BLADE TIP SPEEDS (FPM)

MODEL	13 GPM	15 GPM	20 GPM	25 GPM
XB39-25	7,880	9,095	12,125	15,155

Flow rates in gallons per minute (GPM) and blade tip speeds in feet per minute (FPM).

OPTIONS

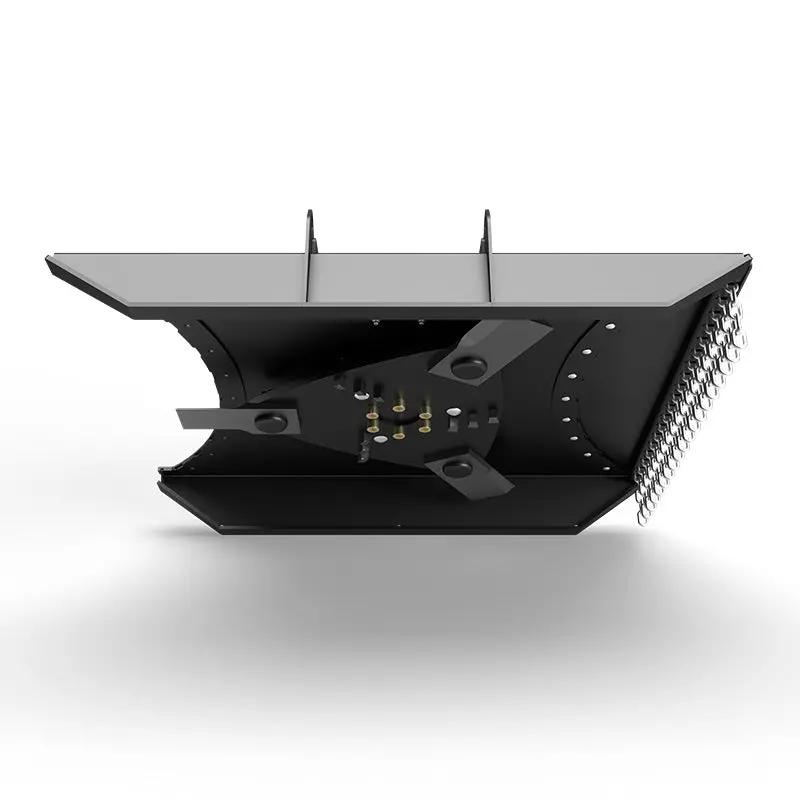

One Bolt-On Side Curtain

• Installed on the left side to reduce debris thrown toward the operator.

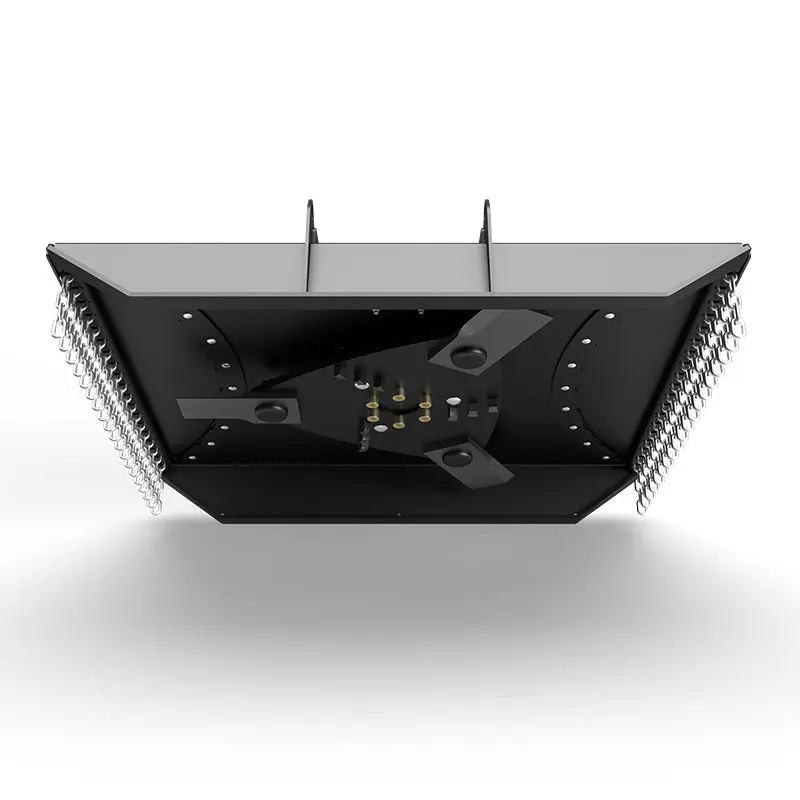

Two Bolt-On Side Curtains

• Completely enclose the cutter for max debris containment.

Carbide Teeth

• Shred material for a better finish.

Bolt-On Hanger Bracket

• Many options available.
• Please contact Virnig for hanger pricing and availability.
