Ditching / Grading

Excavator Buckets – 2 Metric Ton Class

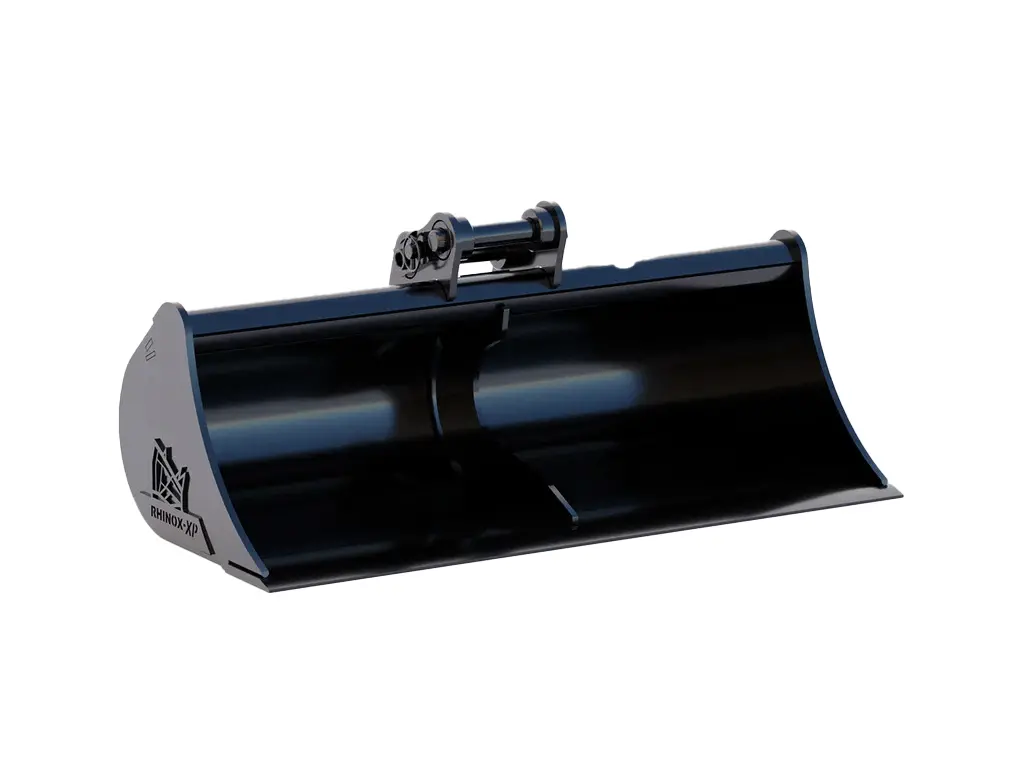

Rhinox excavator grading buckets—also called ditching buckets, ditch cleaning buckets, or excavator clean-up buckets—are designed for precision ground leveling, grading, and bulk material handling. Built wider than standard digging buckets with a straight cutting edge, they’re perfect for landscaping, site preparation, and earthmoving projects.

Manufactured from high-strength, wear-resistant steel and backed by a lifetime weld guarantee, these heavy-duty excavator buckets feature center supports for added strength, bossed hangers with removable pins, and reinforced leading edges and side plates for long service life.

Available for mini excavators, compact excavators, 2 Metric tons class (4410 Lbs.) Machines with a weigh equaling approximately (2,500–4,000 lbs.)

Pins included with pin on bucket types.

• SEE “FITS” TAB FOR STOCK BUCKET MAKE AND MODEL LIST.
• THESE BUCKETS ARE TYPICALLY IN STOCK!

SPECS

BOBCAT E20, 320, 322, 324, 322D, 418
PIN DIAMETER	30mm / 1 3/16″
DIPPER GAP	105mm / 4 1/8″
PIN CENTERS	123mm / 4 13/16″
WEIGHT	100.76 Lbs.
CAPACITY	2.48

CAT 301.7DCR, 301.5, 301.6C, 301.7D, 301.8, 302CR, 301.4C, 302CR
PIN DIAMETER	30mm / 1 3/16″
DIPPER GAP	105mm / 4 1/8″
PIN CENTERS	126mm / 4 5/16″
WEIGHT	100.93 Lbs.
CAPACITY	2.48

HITACHI ZX19U, ZX17U-2, ZX17U, ZX16	WEDGE
PIN DIAMETER
DIPPER GAP
PIN CENTERS
WEIGHT	102.34 Lbs.
CAPACITY	2.48

HITACHI ZX16, ZX17U-2
PIN DIAMETER	30mm / 1 3/16″
DIPPER GAP	120mm / 4 3/4″
PIN CENTERS	118mm / 4 5/8″
WEIGHT	47.14 Lbs.
CAPACITY	2.48

JCB 18Z-1, 15C-1, 16C-1, 19C-1, 8020, 8016, 8018
PIN DIAMETER	30mm / 1 3/16″
DIPPER GAP	95mm / 3 3/14″
PIN CENTERS	120mm / 4 3/4″
WEIGHT	102.28 Lbs.
CAPACITY	2.48

JOHN DEERE 17G, 17P	WEDGE LOCK
PIN DIAMETER
DIPPER GAP
PIN CENTERS
WEIGHT	102.34 Lbs.
CAPACITY	2.48

KUBOTA KX41-2, U17-3, KX018-4, KX41 KX41.3, KX018-3
PIN DIAMETER	30mm / 1 3/16″
DIPPER GAP	95mm / 3 3/4″
PIN CENTERS	90mm / 3 9/16″
WEIGHT	95.2 Lbs.
CAPACITY	2.48

TAKEUCHI TB014, TB216, TB016
PIN DIAMETER	30mm / 1 3/16″
DIPPER GAP	105mm / 4 1/8″
PIN CENTERS	132mm / 5 3/16″
WEIGHT	103.94 Lbs.
CAPACITY	2.48

YANMAR VIO17, SV15, SV17, SV18
PIN DIAMETER	30mm / 1 3/16″
DIPPER GAP	105mm / 4 9/64″
PIN CENTERS	107mm / 4 7/32″
WEIGHT	103.81 Lbs.
CAPACITY	2.48

XCMG XE15U, XE18U, XE20E
PIN DIAMETER	30mm / 1 3/16″
DIPPER GAP	95mm / 3 3/4″
PIN CENTERS	190mm / 3 9/16″
WEIGHT	100.11 Lbs.
CAPACITY	2.48

FITS

These are the make and model of the machines that “in stock” buckets are for.

MOUNT TYPE	MAKE	MODEL
PIN ON	BOBCAT	E20, 320, 322, 324, 322D, 418
PIN ON	CAT	301.7DCR, 301.5, 301.6C, 301.7D, 301.8, 302CR, 301.4C, 302CR
PIN ON	DOOSAN	DX17, DX19
WEDGE LOCK	JOHN DEERE	17G, 17P
PIN ON	JOHN DEERE	17

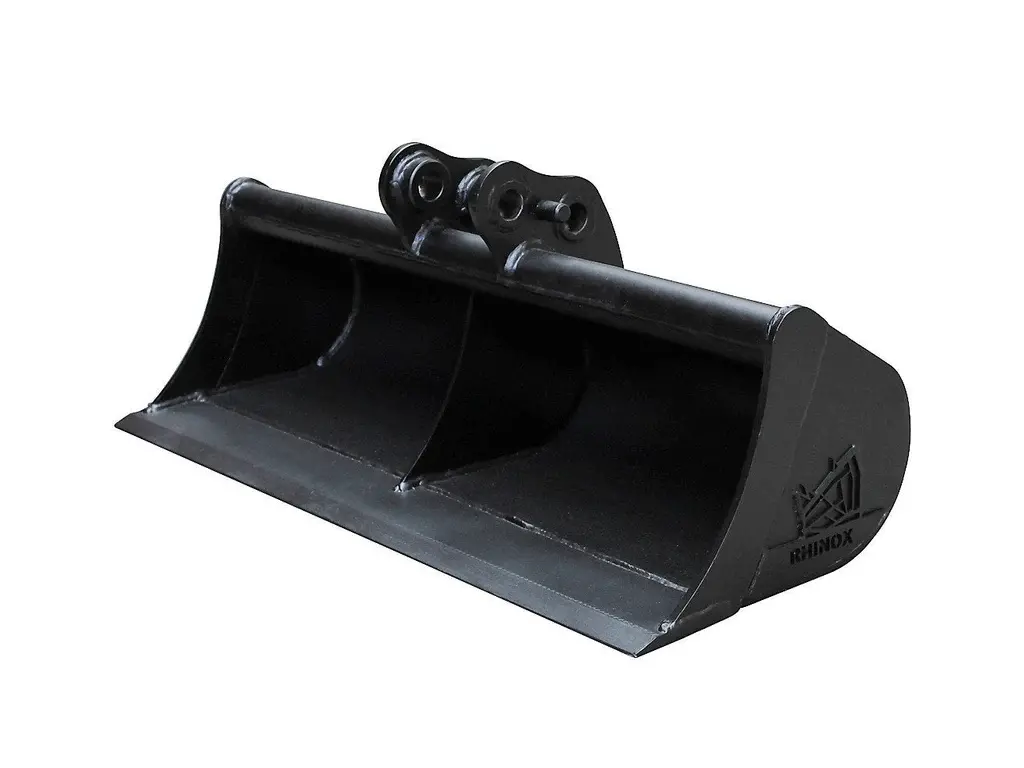

PIN ON	HITACHI	ZX16, ZX17U-2

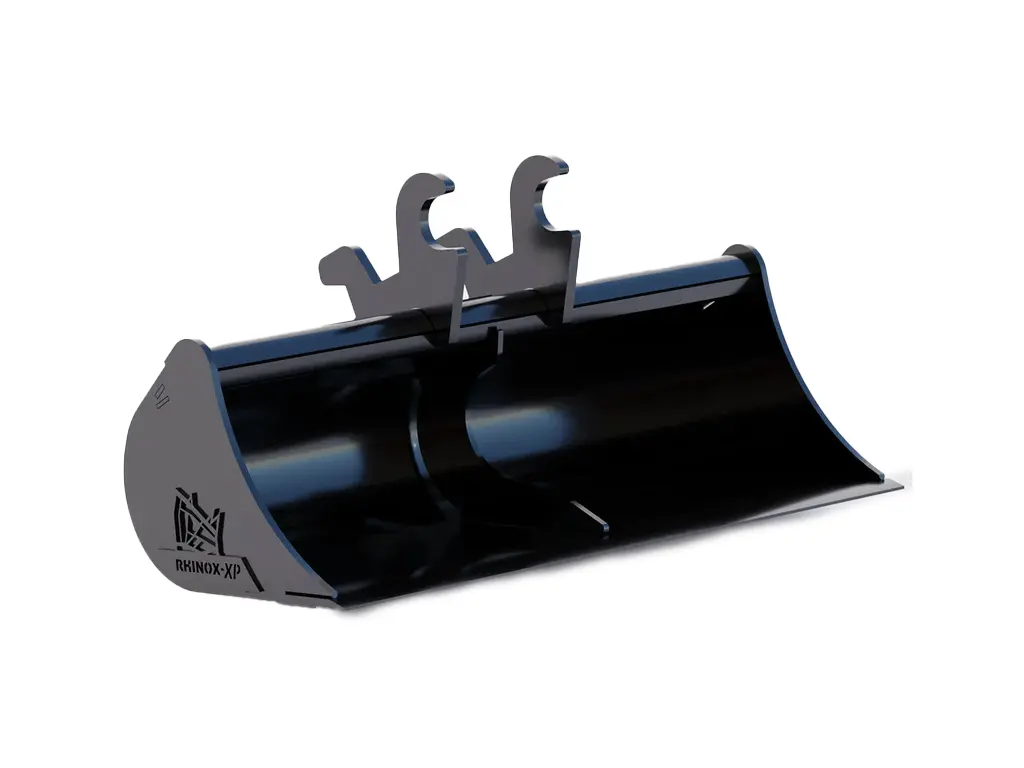

WEDGE LOCK	HITACHI	ZX19U, ZX17U-2, ZX17U, ZX16
PIN ON	JCB	18Z-1, 15C-1, 16C-1, 19C-1, 8020, 8016, 8018
KUBOTA COUPLER USA	KUBOTA	KX41-2, U17-3, KX018-4, KX41, KX41.3, KX018-3
PIN ON	TAKEUCHI	TB014, TB216, TB016
PIN ON	YANMAR	VIO17, SV15, SV17, SV18
PIN ON	XCMG	XE15U, XE18U, XE20E
