Description
DESCRIPTION

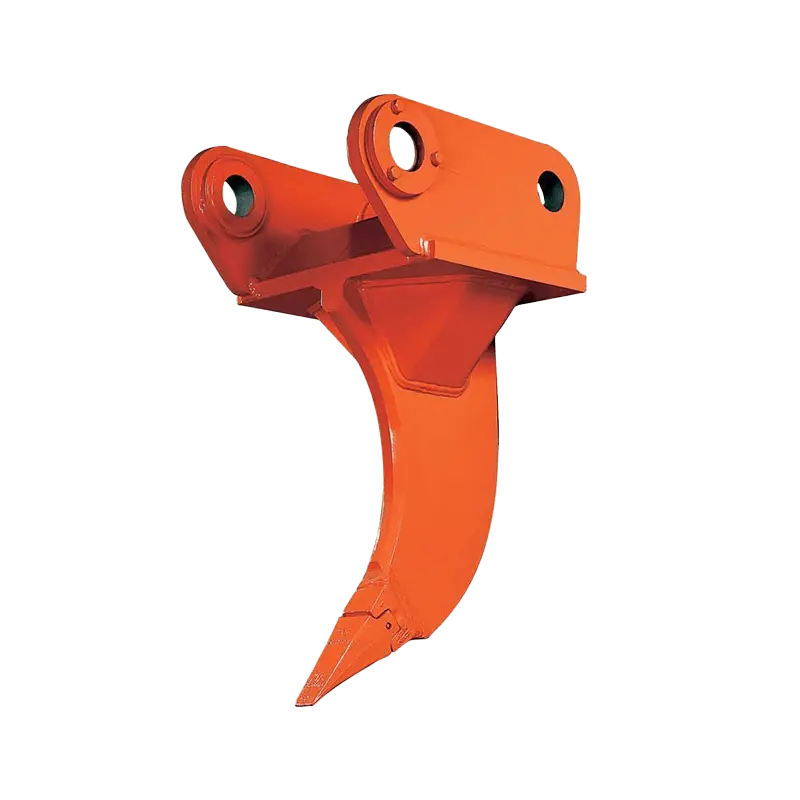

RIPPER TOOTH FOR EXCAVATORS AND MINING & MASS EXCAVATORS
Single Point Rippers are designed for the most demanding ripping applications of rock, clay, coral, and frost. Our standard design incorporates a heavy-duty OEM ear group mounting, and is available in many standard shank lengths and widths. Our rippers are manufactured with high strength steel shanks and can be custom designed to meet specific applications on equipment up to 280,000 lb (120MT).
SPECIFICATIONS
|
RIPPER TOOTH OEM PIN ON |
WEIGHT CLASS | WIDTH | LBS |
| RTPO2-1 | 12MT (20,000 – 30,000 lbs.) | 36″ | 658 |
| RTPO2-2 | 15MT (30,000 – 41,000 lbs.) | 36″ | 658 |
| RTPO2-3 | 20MT (41,000 – 52,000 lbs.) | 42″ | 660 |
| RTPO2-4 | 25MT (52,000 – 65,000 lbs,) | 42″ | 1000 |
| RTPO2-5 | 30MT (65,000 – 95,000 lbs.) | 36″ | 1050 |
| RTPO2-6 | 45MT (95,000 – 110,000 lbs.) | 55″ | 2201 |
| RTPO2-7 | 60MT (110,000 – 160,000 lbs.) | 55″ | 2600 |
| RTPO2-8 | 80MT (160,000 – 200,000 lbs.) | 65″ | 3100 |
| RTPO2-9 | 120MT (200,000 – 280,000 lbs.) | 55″ | 4300 |
|
RIPPER TOOTH WAIN ROY XLS, ORIGINAL |
WEIGHT CLASS | WIDTH | LBS |
| RTPO3-03 | 12MT (20,000 – 30,000 lbs.) | 47″ | 275 |
| RTPO3-04 | 15MT (30,000 – 41,000 lbs.) | 50″ | 770 |
| RTPO3-04 | 20MT (41,000 – 52,000 lbs.) | 50″ | 770 |
| RTPO3-04 | 25MT (52,000 – 65,000 lbs,) | 50″ | 770 |
