Wain Roy Heavy-Duty Ditching & Grading Bucket – Fits Tractor Loader Backhoes, 16,000 lb Capacity

Price range: $92.08 through $92.97

Quantity
SKU: N/A Category: Brand:

Description

DESCRIPTION

WAIN ROY DITCHING AND GRADING BUCKETS

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.

AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN

GANNON ELIMINATOR /

TAG / CP / WR ORIGINAL

 HOOK WITH VERTICAL PIN
 SPECIFICATIONS

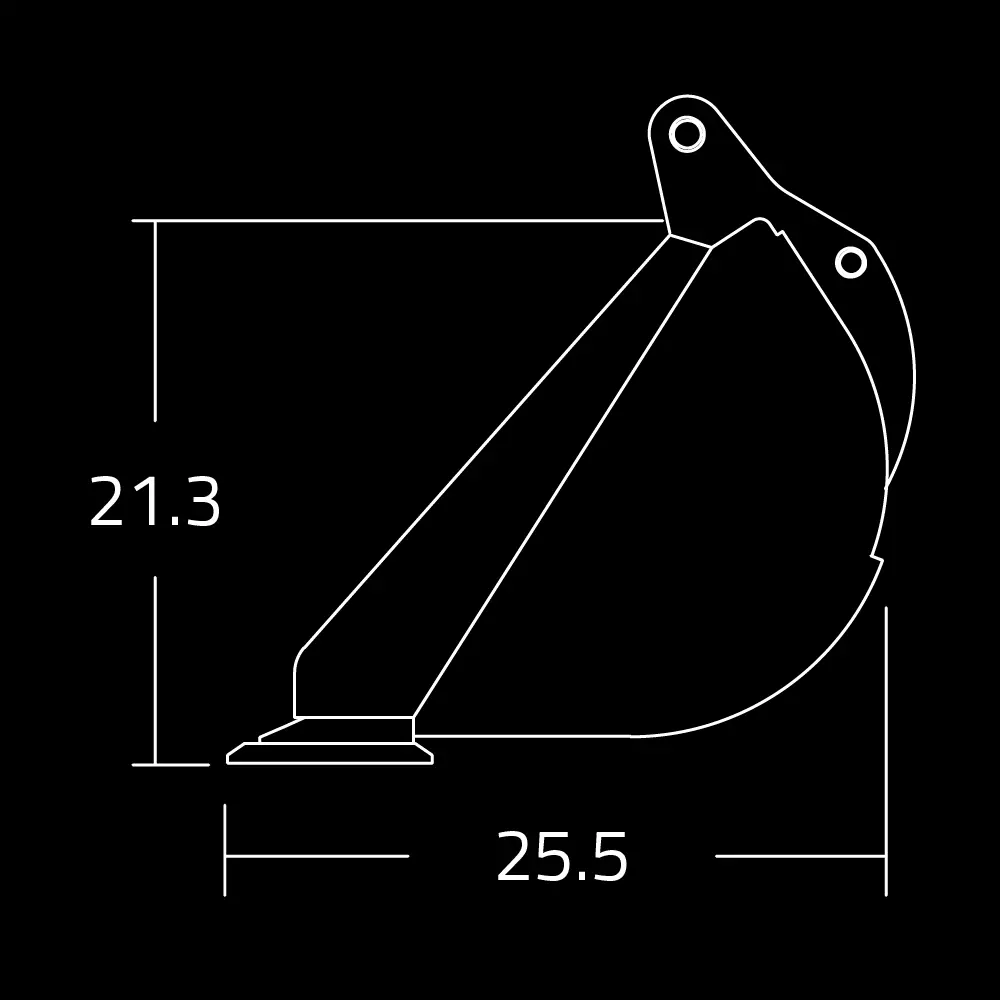

DITCHING & GRADING

OEM PIN ON

 CAPACITY LBS. BUCKET HEIGHT BUCKET LENGTH
72N-30 5.3 434 21.3″ 25.5″
72N-36 7.3 486 21.3″ 25.5″
72N-42 8.8 546 21.3″ 25.5″
72N-48 10.3 598 21.3″ 25.5″
72N-54 11.7 658 21.3″ 25.5″
72N-60 13.2 718 21.3″ 25.5″
72N-72 16.1 830 21.3″ 25.5″

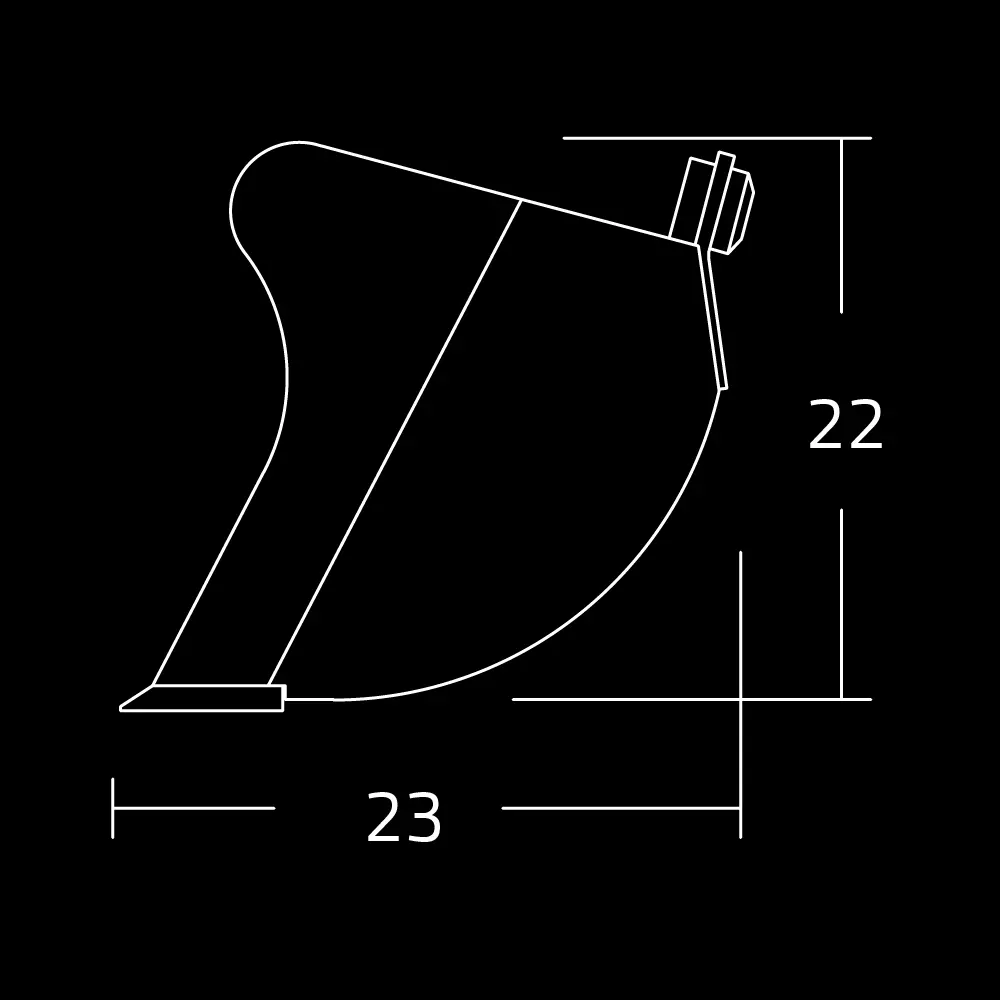

DITCHING & GRADING

WAIN ROY XLS, ORIGINAL

GANNON, TAG, CP

 CAPACITY LBS MOUTH OPENING  LENGTH
DG1-30 6.1 305 22″ 23″
DG1-36 8.1 352 22″ 23″
DG1-42 9.6 400 22″ 23″
DG1-48 11.1 448 22″ 23″
DG1-54 12.5 528 22″ 23″
DG`1-60 14.0 587 22″ 23″
DG1-72 17.0 704 22″ 23″
FITS
MAKE UP TO 16000 LB BACKHOE
CASE
  • 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM
CAT
  • 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT
JCB
  • 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER
JOHN DEERE
  • 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC
KOMATSU
  • W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98
NEW HOLLAND
  • 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B
VOLVO
  • BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70

Explore more from our collection.

Additional information

Style

Ditching & Grading
MOUNTING

OEM PIN ON, WAIN ROY XLS, WR ORIGINAL / GANNON / CP / TAG
Size

30", 36", 42", 48", 54", 60", 72"
