Description

DESCRIPTION

7/25

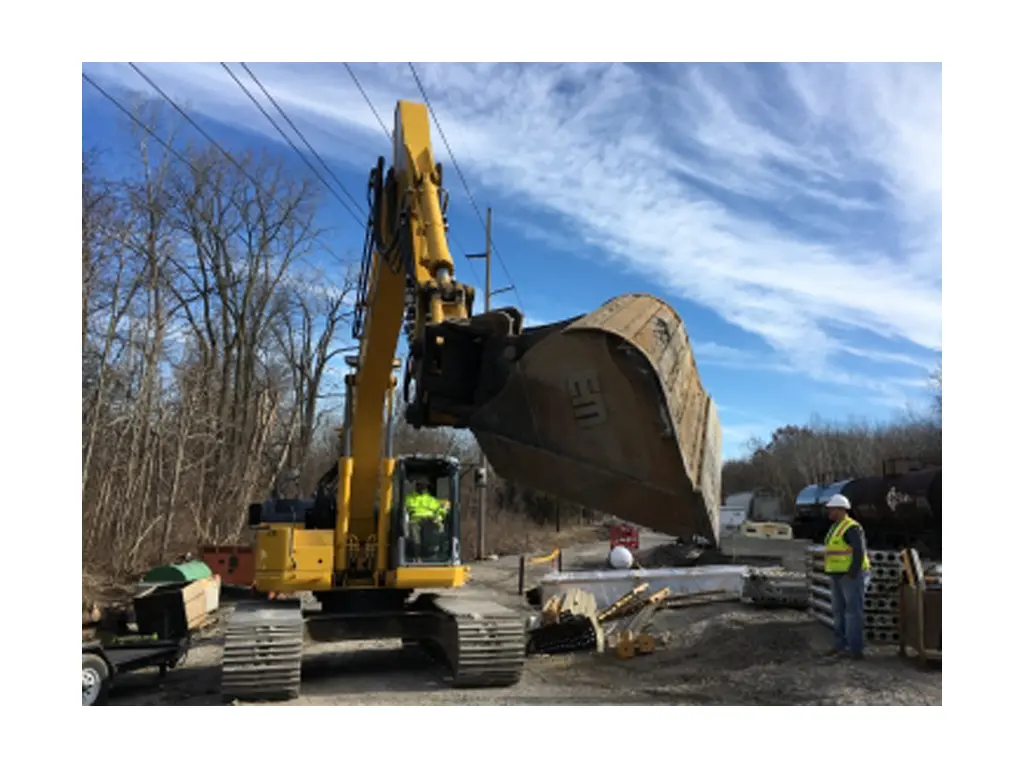

D-Lock Hydraulic tilt coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

• Automatic front lock – Locks the front pin in the event the rear pin is not secured
• Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
• Highly visible front lock indicator
• Triple sealed actuator
• Safety system does not rely on gravity
• Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
• Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
• Simple yet safe unlock procedure eliminates accidental releases
• Compact design – Improving machine performance
• No greasing or lubrication required
• Only requires four hydraulic lines
• Up to 180 degrees of tilt
• Fully guarded hoses

 Spring Loaded Tilt Coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

• Triple sealed actuator
• Safety system does not rely on gravity
• Spring Loaded manual locking mechanism
• Simple, yet safe unlock procedure eliminates accidental releases
• No greasing or lubrication required
• Only requires two hydraulic lines
• Up to 180 degrees of tilt

 SPECIFICATIONS

HEAVY DUTY

PART #	PIN DIAMETER	STYLE	PIN SPREAD RANGE	WEIGHT
TD180-80-70	70-80	D-Lock	374-465 390-495	845
TSC180	TBD	Spring Loaded	Dedicated	840
TPP180	TBD	Pull-pin	Dedicated	840

FITS

MAKE / WEIGHT CLASS	15MT (33,000 – 42,000 LBS.)
CASE	CX160, CX170E, CX190E
CAT	315D, 316F, 318F, M318F
DOOSAN	DX180LC-5, DX190W-5
HITACHI	ZX160
HYUNDAI	HX160, HX180
JOHN DEERE	160G, 160P
KOBELCO	ED195, SK170
KOMATSU	PC170
LIEBHERR
LINK BELT	160X4
SANY
TAKEUCHI
VOLVO	EW160, EW180, EC160, EC180
