DESCRIPTION

7/25

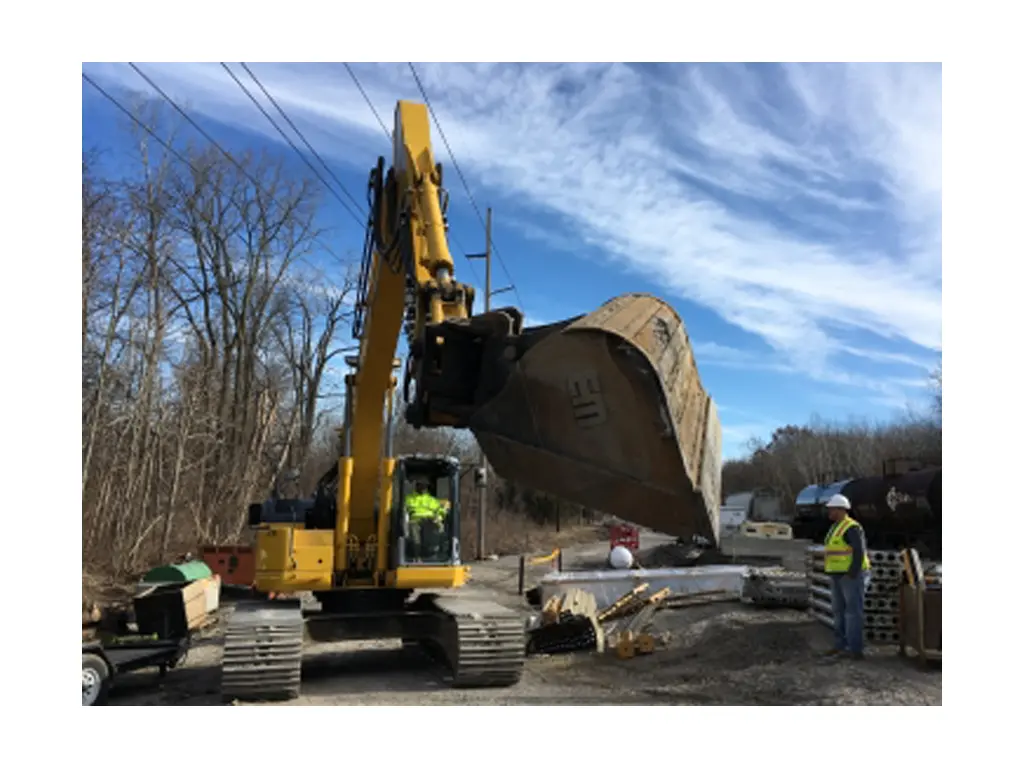

D-Lock Hydraulic tilt coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

• Automatic front lock – Locks the front pin in the event the rear pin is not secured
• Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
• Highly visible front lock indicator
• Triple sealed actuator
• Safety system does not rely on gravity
• Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
• Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
• Simple yet safe unlock procedure eliminates accidental releases
• Compact design – Improving machine performance
• No greasing or lubrication required
• Only requires four hydraulic lines
• Up to 180 degrees of tilt
• Fully guarded hoses

 Spring Loaded Tilt Coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

• Triple sealed actuator
• Safety system does not rely on gravity
• Spring Loaded manual locking mechanism
• Simple, yet safe unlock procedure eliminates accidental releases
• No greasing or lubrication required
• Only requires two hydraulic lines
• Up to 180 degrees of tilt

 SPECIFICATIONS

HEAVY DUTY

PART #	PIN DIAMETER	STYLE	PIN SPREAD RANGE	WEIGHT
TD240-80	80	D-Lock	430-525	1,250
TSC240	80	Spring Loaded	Dedicated	1,250
TPP240	80	Pull-pin	Dedicated	1,250

FITS

MAKE / WEIGHT CLASS	20MT (42,000 – 50,000 LBS.)
CASE	CX210, CX220E, CX235, CX245
CAT	320, 321, M322F, 323 (B-Linkage)
DOOSAN	DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5
HITACHI	ZX180, ZX200, ZX210, ZX245
HYUNDAI	HX220, HX235
JOHN DEERE	210G, 245G, 180P, 210P, 190GW, 230GW
KOBELCO	SK210, SK230SR, SK260, SK270SR
KOMATSU	PC210-11, PC228, PC238
LIEBHERR	R 920 L, 922 L
LINK BELT	210X4, 234X4, 245X4
SANY	SY215
TAKEUCHI
VOLVO	EC200, EW210, EC210, EC220, ECR235
