Description

DESCRIPTION

7/25

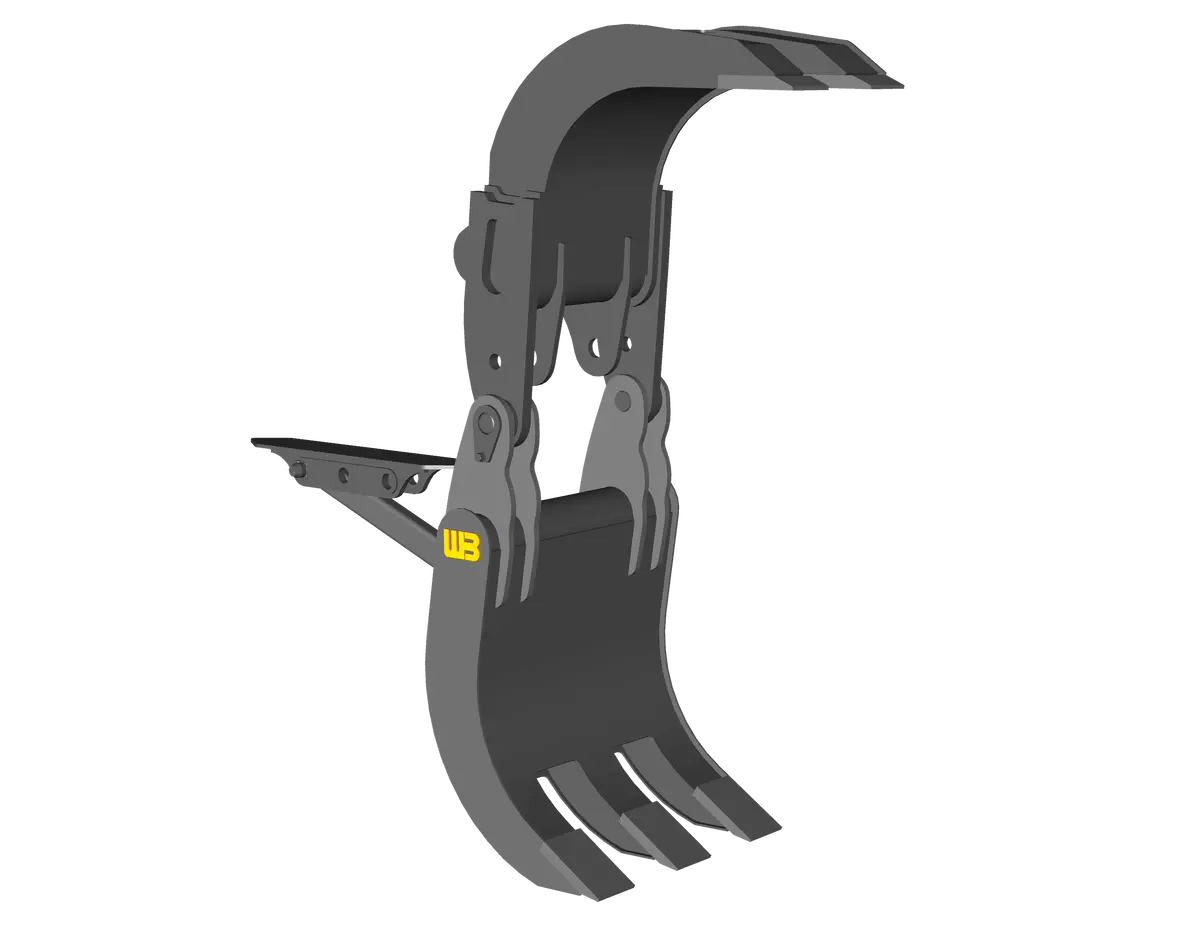

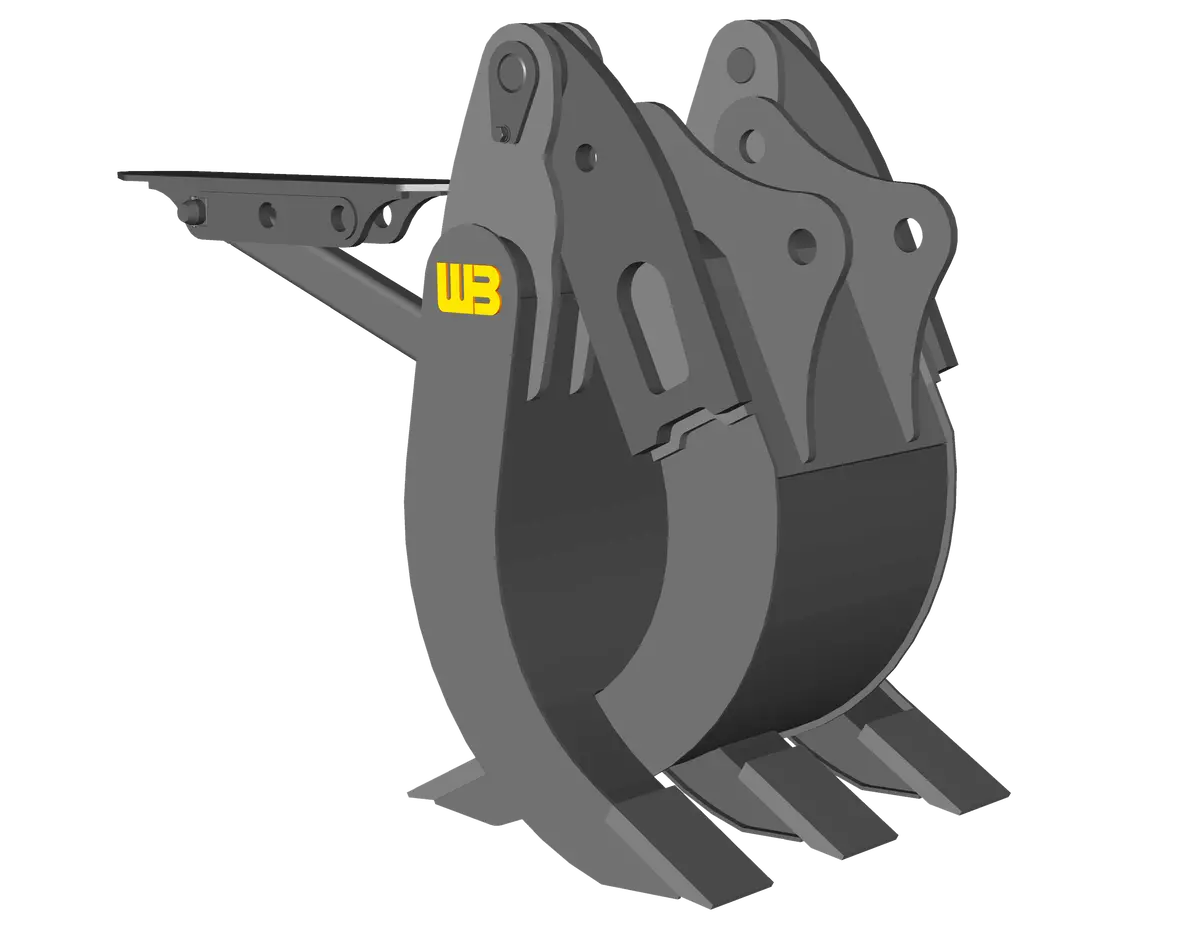

Box Style Grapple

Recommended Applications

Werk-Brau’s wide mouth box style grapple is specifically designed to handle various objects of different sizes such as brush, rocks, and demolition debris. Single grapples may be used with a bucket. Dual grapple styles are also available. Not designed for digging or prying.

Construction

T-1 steel is utilized in all critical or high wear components to ensure that this grapple has a long operating life. High strength steel is used throughout the weldment. Pivot points are made from hardened greasable bushings, and are easy to access for regular greasing. The style of this grapple allows for additional reinforcement. At the end of each tine are edge pads.

Cutting Equipment Options

Not applicable.

Standard Sizes

Various widths and models are available to choose from.

Additional Features

Additional tines and width designs are available

SPECIFICATIONS

PART NUMBER	WIDTH	JAW OPENING	NO. OF TINES	WEIGHT
WBBG36.05	36″	86″	2/3	2,100
WBBG42.05	42″	86″	2/3	2,200
WBBG48.05	48″	86″	3/4	2,350

FITS

12MT

MAKE / WEIGHT CLASS	12MT (24,000 – 33,000 LBS.)
CASE	CX130, CX145D, CX140E
CAT	311, 313, 314F, 315F (A-Linkage)
DOOSAN	DX140LC-5, DX140LCR-5, DX140W-5
HITACHI	ZX130
HYUNDAI	HX140, HX145, HX220 LR
JOHN DEERE	130G, 135G, 130P
KOBELCO	SK140, ED160
KOMATSU	PC138
LIEBHERR
LINK BELT	130X4, 145X4, 210X4 LR
SANY	SY135, SY235 LR, SY265 LR
TAKEUCHI	TB1140, TB2150
VOLVO	EW140, EC140, ECR145
