DESCRIPTION

7/25

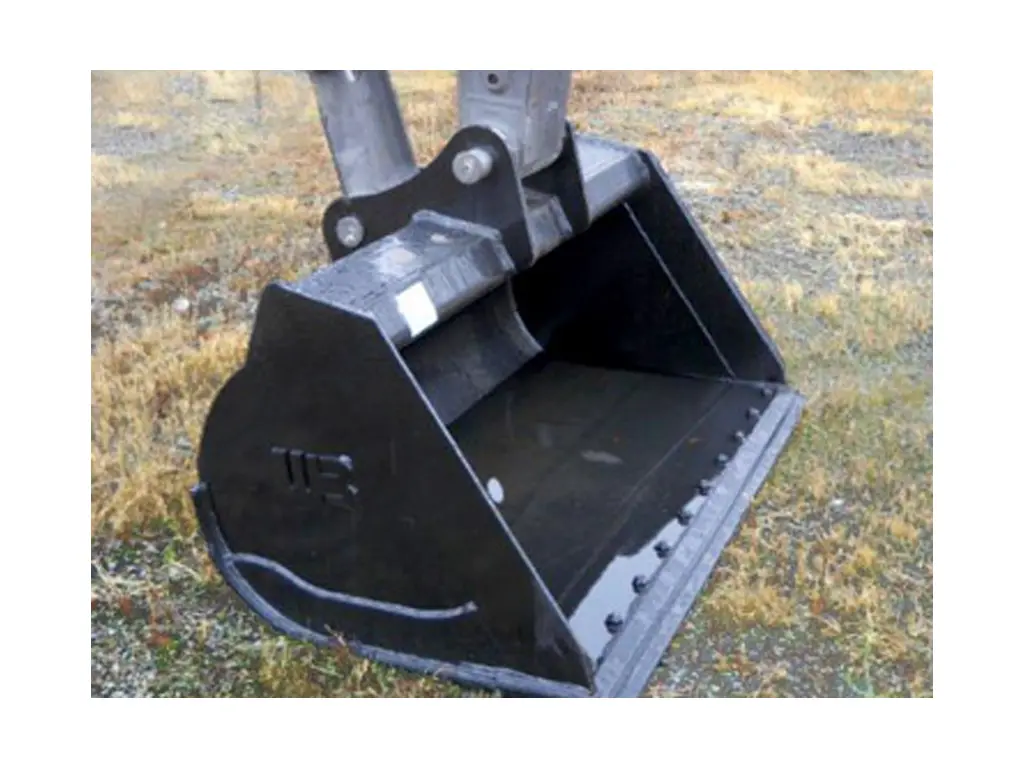

DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work. For high capacity buckets, use the next weight class up in Ditching Bucket, except long reach machines. Werk-Brau manufactures a severe duty version of this bucket.

Construction

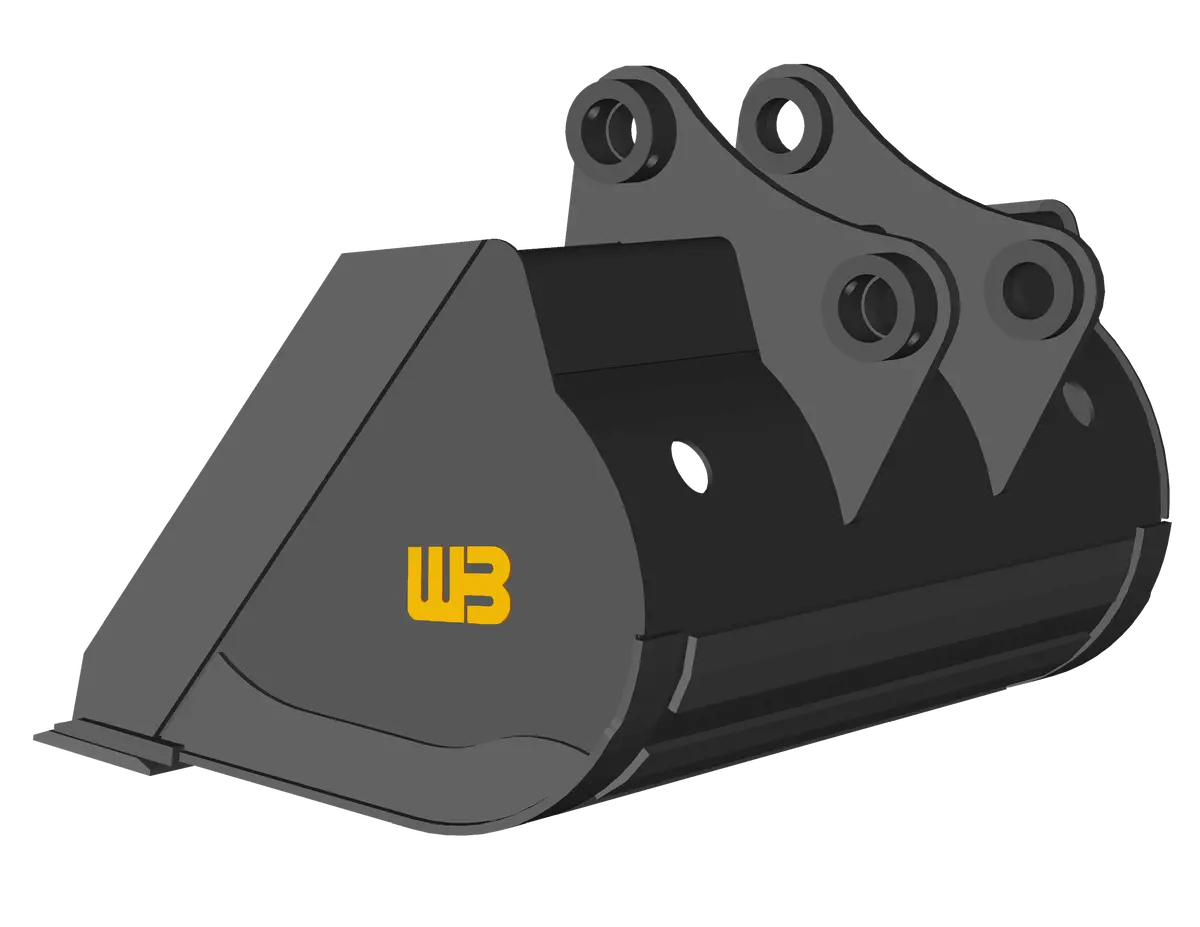

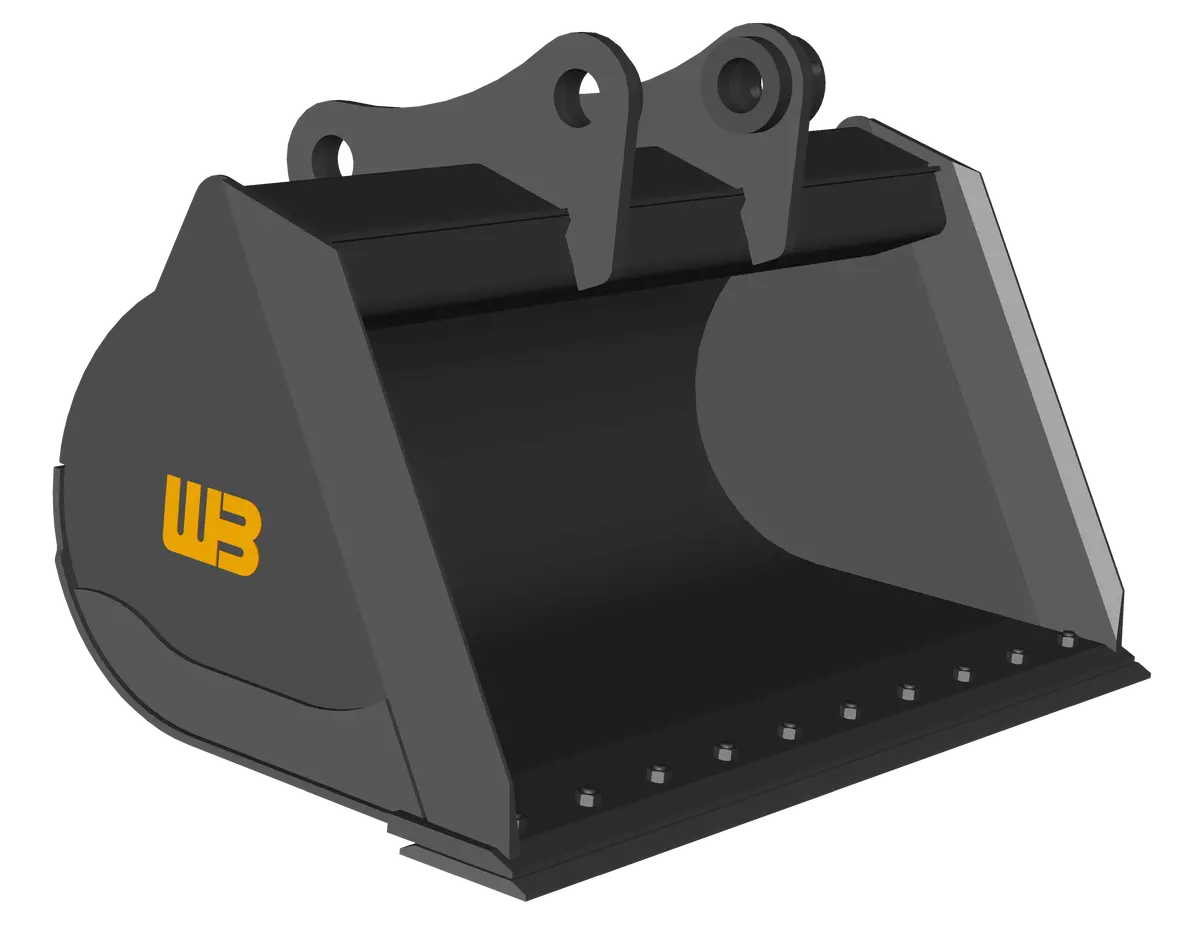

Werk-Brau manufactures this bucket using T-1 steel in all high wear components to ensure that the bucket will have a long operating life. A rigid top section assures structural stability in the wider sizes. The bottom of the bucket is reinforced with wear straps. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48″ – 84″, and capacities of .64 cu. yd. – 3.81 cu. yd.

Additional Features

Werk-Brau recommends a bolt-on cutting edge to extend and protect the bucket edge for extended hours of operation. Additional drain holes are available, for aquatic applications, Werk-Brau offers an Aquatic Ditching Bucket. Special designs and capacities are available, please request a quote from your local dealer.

SPECIFICATION

PART #	WIDTH	CAPACITY	WEIGHT
2DCG48	48″	0.80	1,450
2DCG54	54″	0.90	1,600
2DCG60	60″	1.00	1,650
2DCG66	66″	1.10	1,750
2DCG72	72″	1.30	1,850
2DCG78	78″	1.40	2,000

FITS

MAKE / WEIGHT CLASS	25MT (50,000 – 59,000 LBS.)
CASE	CX250, CX260E
CAT	325, 326F
DOOSAN	DX255LC-5
HITACHI	ZX240, ZX250
HYUNDAI	HX260
JOHN DEERE	250G, 250P
KOBELCO	SK260LC
KOMATSU	PC240
LIEBHERR	R 916 L, R 924 L, R 934 CD
LINK BELT	250X3, 250X4
SANY	SY235, SY265
TAKEUCHI
VOLVO	EC240, EC250
