DESCRIPTION

7/25

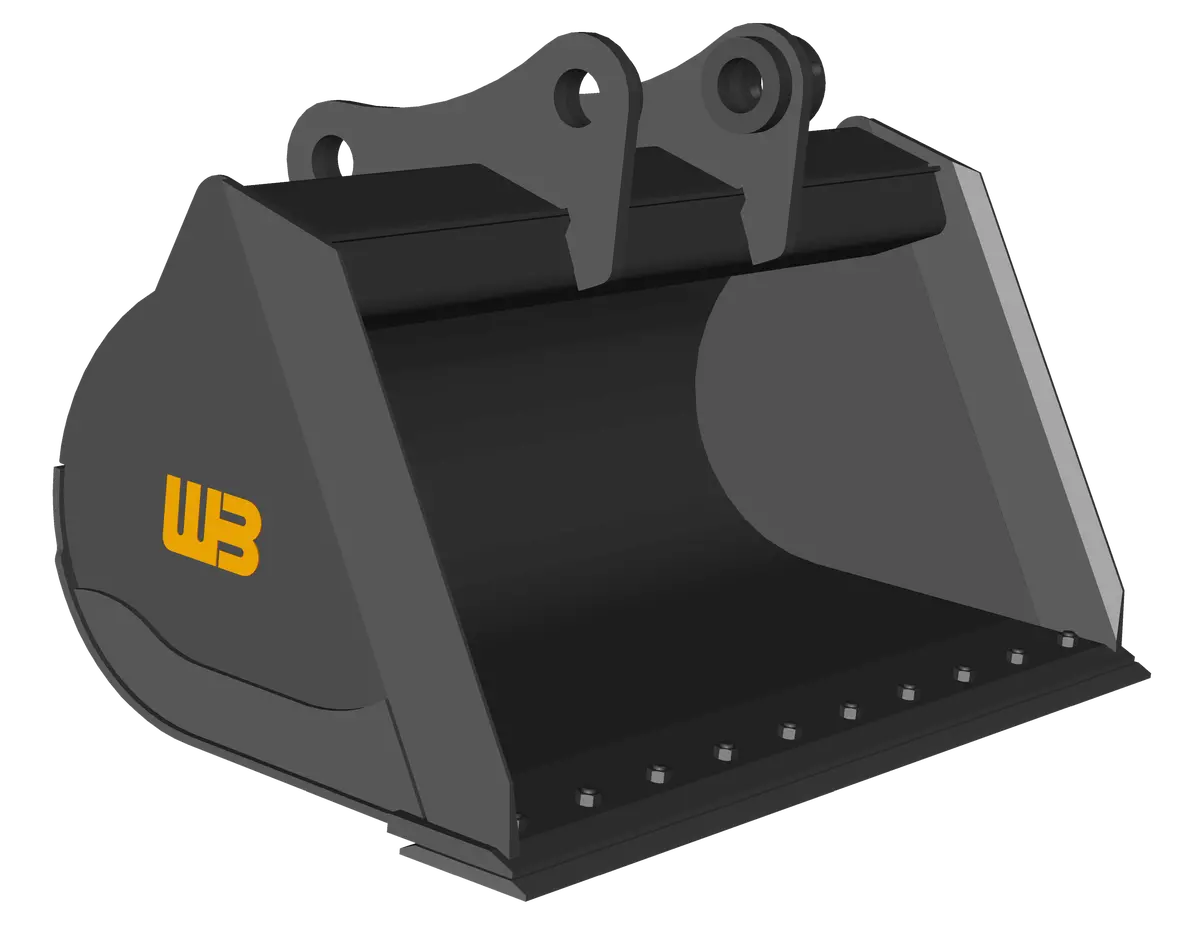

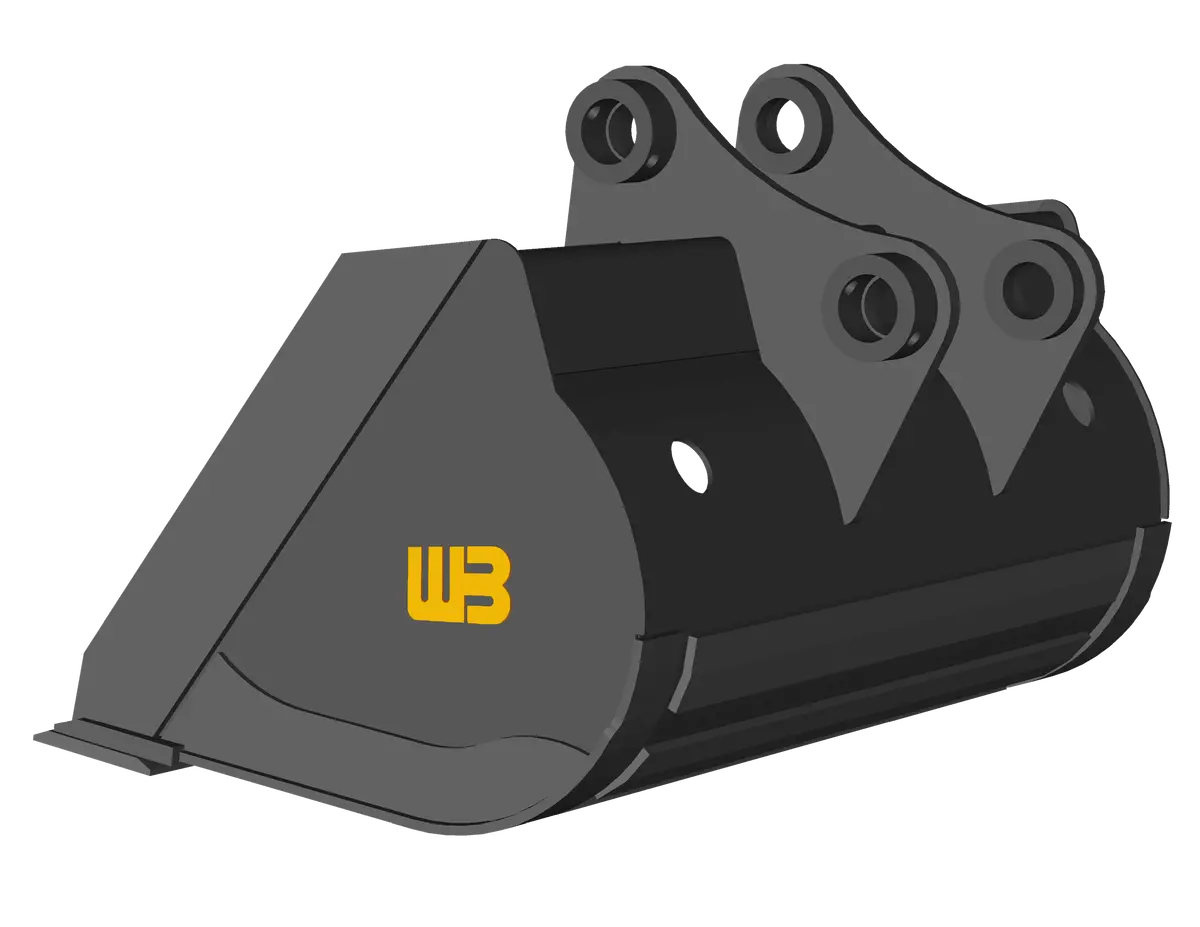

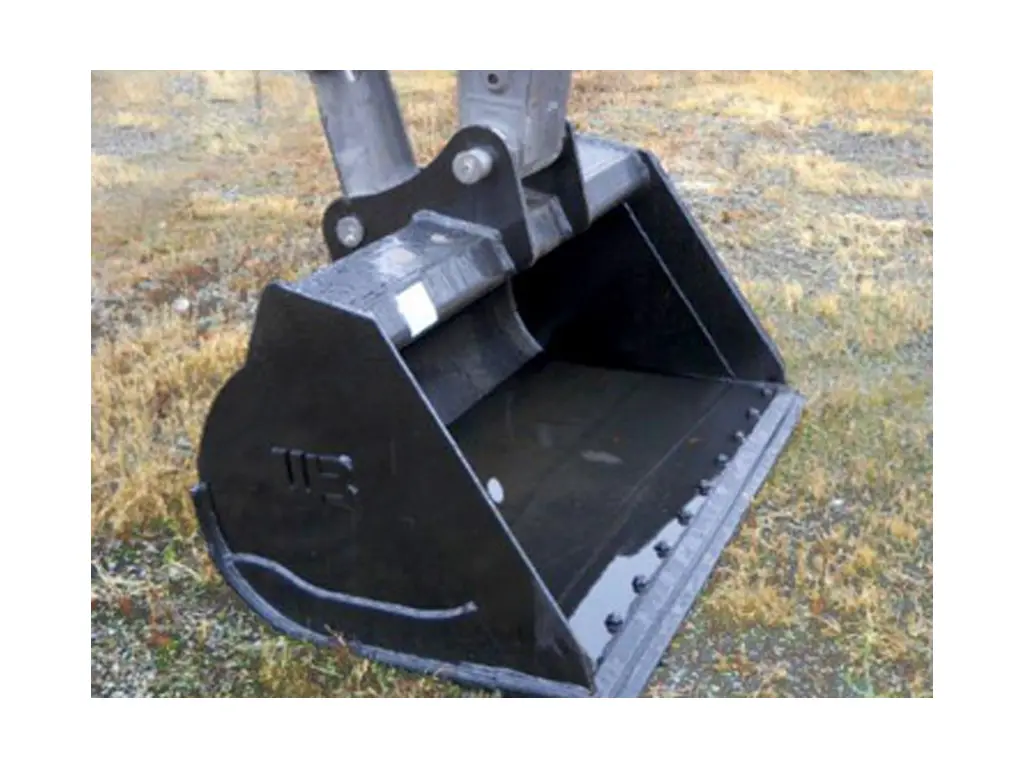

DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work. For high capacity buckets, use the next weight class up in Ditching Bucket, except long reach machines. Werk-Brau manufactures a severe duty version of this bucket.

Construction

Werk-Brau manufactures this bucket using T-1 steel in all high wear components to ensure that the bucket will have a long operating life. A rigid top section assures structural stability in the wider sizes. The bottom of the bucket is reinforced with wear straps. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48″ – 84″, and capacities of .64 cu. yd. – 3.81 cu. yd.

Additional Features

Werk-Brau recommends a bolt-on cutting edge to extend and protect the bucket edge for extended hours of operation. Additional drain holes are available, for aquatic applications, Werk-Brau offers an Aquatic Ditching Bucket. Special designs and capacities are available, please request a quote from your local dealer.

SPECIFICATION

PART #	WIDTH	CAPACITY	WEIGHT
3DCG54	54″	1.13	2,000
3DCG60	60″	1.25	2,150
3DCG66	66″	1.38	2,300
3DCG72	72″	1.51	2,450
3DCG84	84″	1.77	2,750

FITS

MAKE / WEIGHT CLASS	30MT (59,500 – 68,000 LBS.)
CASE	CX300, CX365E
CAT	326, 328, 329, 335F, CB-LINKAGE
DOOSAN	DX300LC-5, DX300LC-5SLR
HITACHI	ZX300, ZX345
HYUNDAI	HX300
JOHN DEERE	300G, 345G, 300P
KOBELCO	SK300
KOMATSU	PC270, PC290, PC308
LIEBHERR
LINK BELT	300X3, 300X4, 355X4
SANY	SY305, SY335
TAKEUCHI
VOLVO	EC290, EC300, EC305, ECR355
