DESCRIPTION

7/25

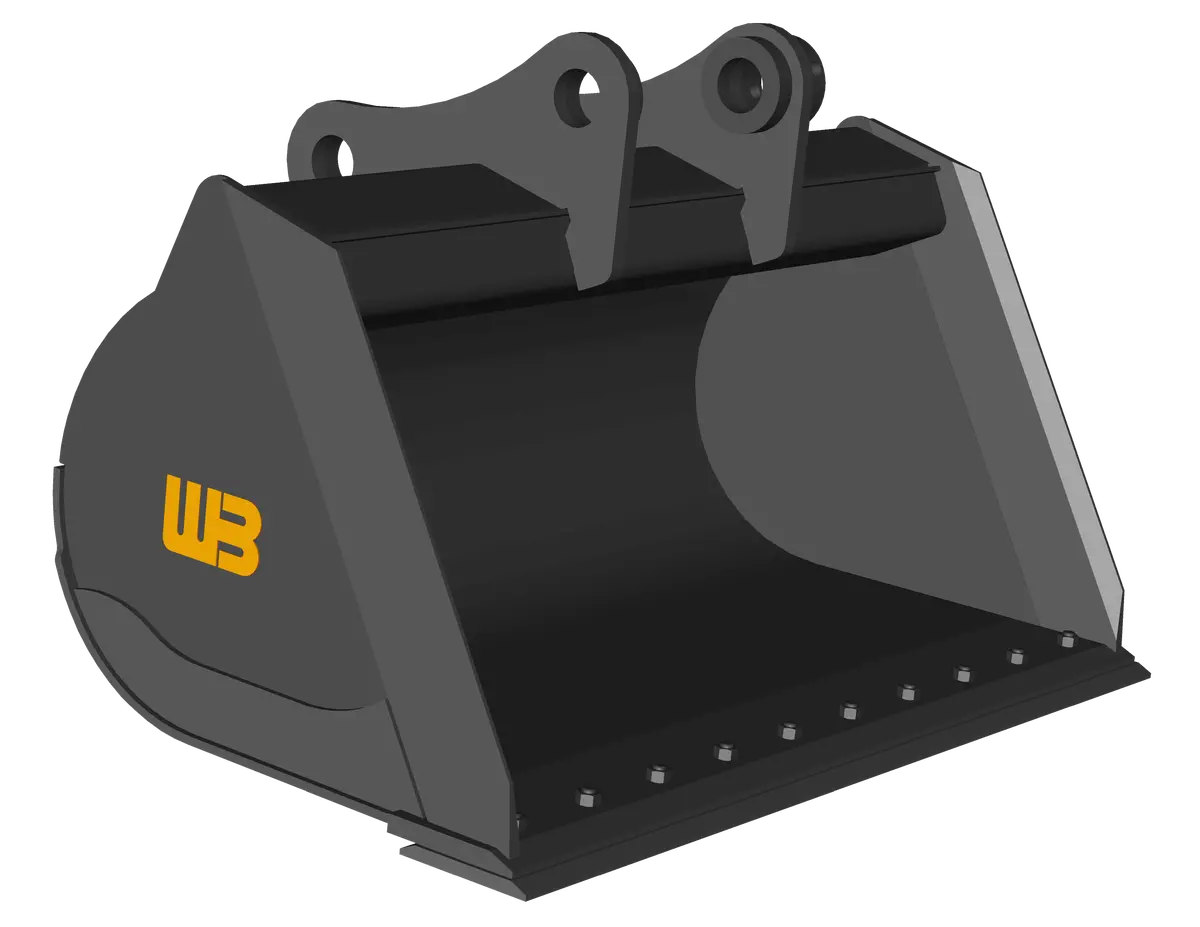

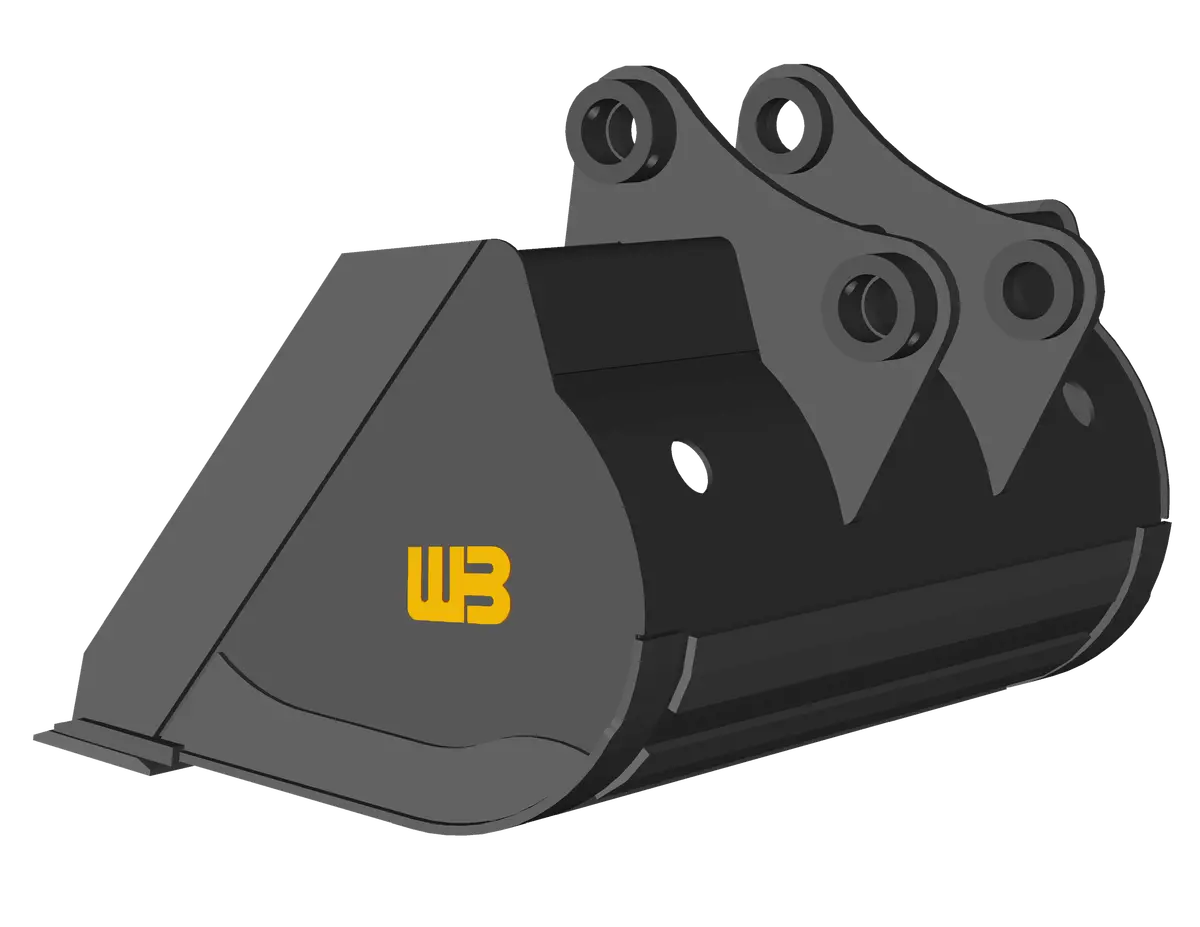

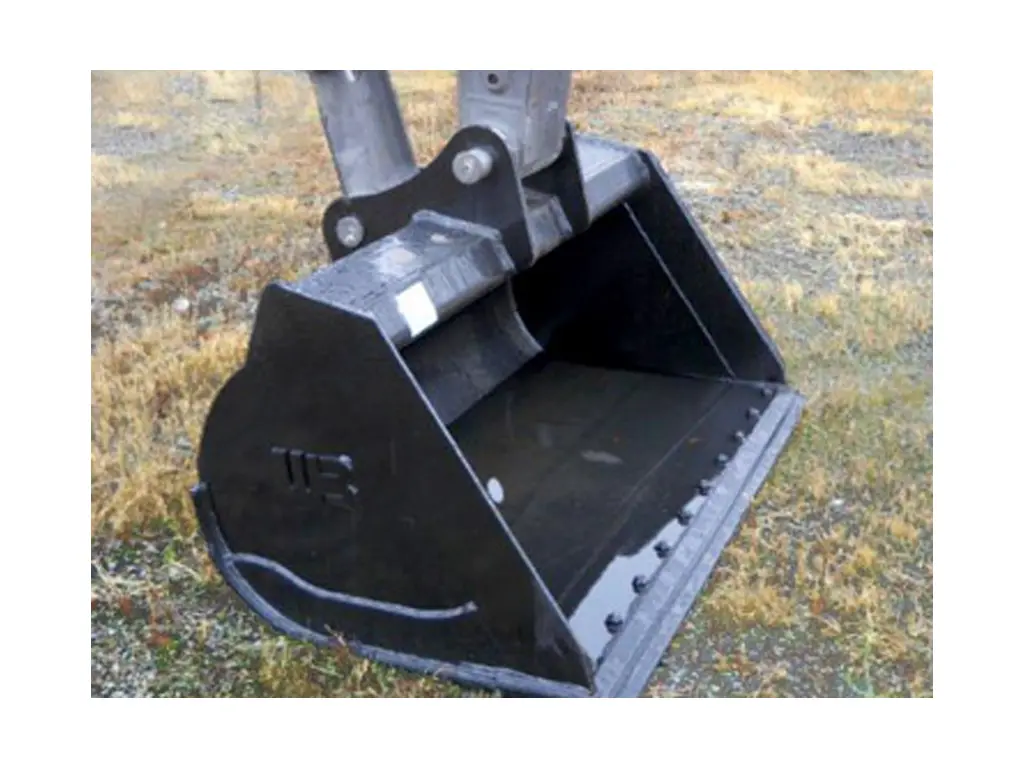

DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work. For high capacity buckets, use the next weight class up in Ditching Bucket, except long reach machines. Werk-Brau manufactures a severe duty version of this bucket.

Construction

Werk-Brau manufactures this bucket using T-1 steel in all high wear components to ensure that the bucket will have a long operating life. A rigid top section assures structural stability in the wider sizes. The bottom of the bucket is reinforced with wear straps. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48″ – 84″, and capacities of .64 cu. yd. – 3.81 cu. yd.

Additional Features

Werk-Brau recommends a bolt-on cutting edge to extend and protect the bucket edge for extended hours of operation. Additional drain holes are available, for aquatic applications, Werk-Brau offers an Aquatic Ditching Bucket. Special designs and capacities are available, please request a quote from your local dealer.

SPECIFICATION

PART #	WIDTH	CAPACITY	WEIGHT
6DCG60	60″	1.78	3,725
6DCG66	66″	1.95	3,925
6DCG72	72″	2.13	4,175
6DCG78	78″	2.31	4,375
6DCG84	84″	2.84	4,350

FITS

MAKE / WEIGHT CLASS	50MT (105,000 – 125,000 LBS.)
CASE
CAT	352F
DOOSAN	DX490, DX530LC-5, DX530LC-5SLR
HITACHI
HYUNDAI	HX520
JOHN DEERE
KOBELCO
KOMATSU
LIEBHERR	R 954 C, R956 C
LINK BELT
SANY
TAKEUCHI
VOLVO
