DESCRIPTION
9/25

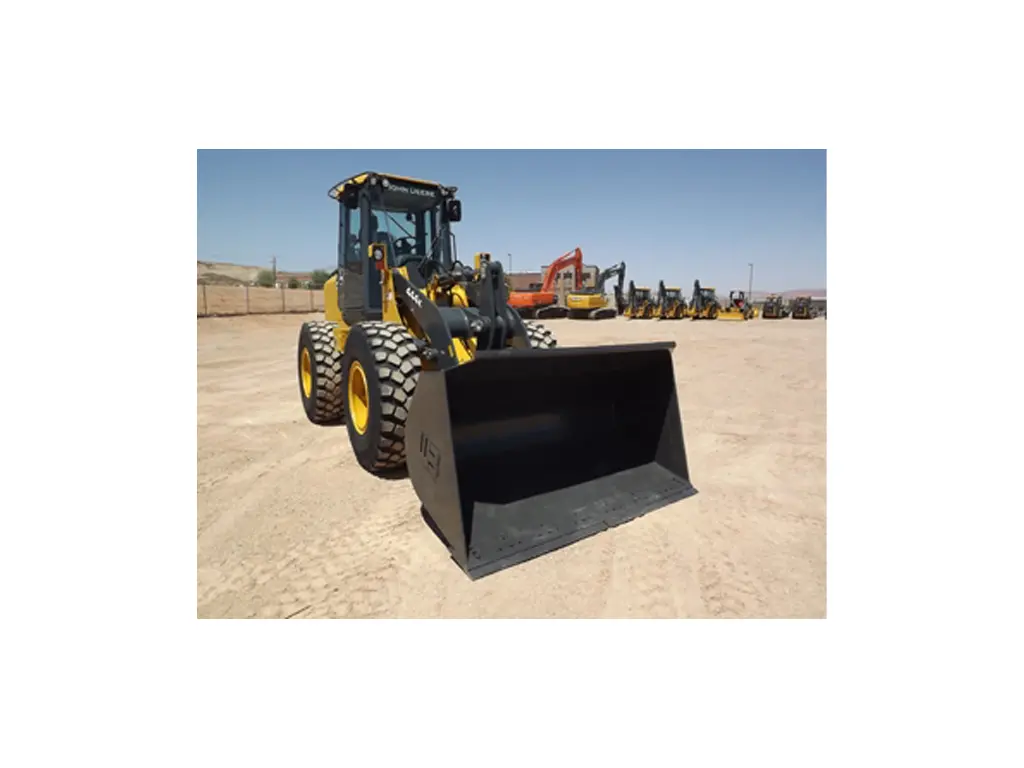

GENERAL PURPOSE BUCKETS
Recommended Applications
Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.
Quality Construction
High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Cutting Equipment Options
Auxiliary edge and teeth are available upon request.
Standard Sizes
3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.
Features
- Enhanced High performance Profile
- Designed for general purpose applications with material densities up to 3,200 lb/cy
- Performance side plates & increased roll back angle allow for greater material retention
- 5%+ greater material retention
- Tapered side plates to reduce wear & easier dumping
- integrated spill guard
SPECIFICATIONS
| PART # | WIDTH | CAPACITY | WEIGHT |
| LHG4117350 | 117″ | 3.50 | 3300 |
| LHG4117400 | 117″ | 4.00 | 3520 |
| LHG4117425 | 117″ | 4.25 | 3590 |
| LHG4117450 | 117″ | 4.50 | 3690 |
| LHG4117475 | 117″ | 4.75 | 3850 |
| LHG4117500 | 117″ | 5.00 | 3950 |
| LHG4117525 | 117″ | 5.25 | 4000 |
FITS
CLASS 4
| CLASS 4 (33,000 – 43,000 LBS) | MODEL |

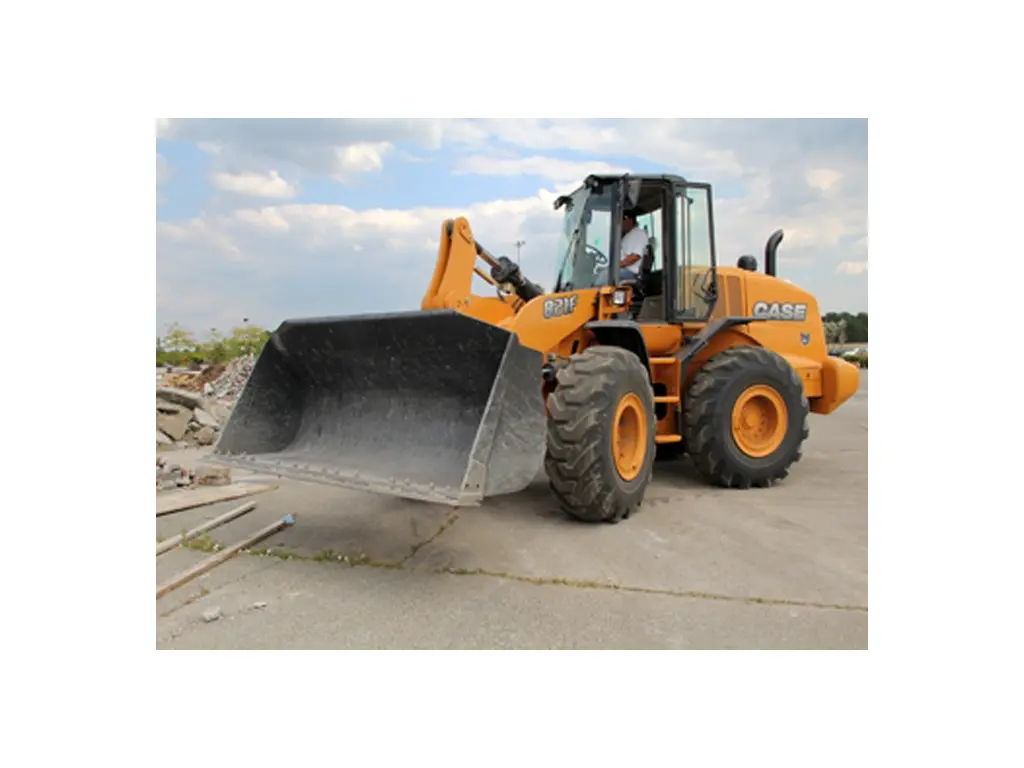

| CASE | 821G, 921G |
| CAT | 950, 960, 962, IT62 |
| DEVELON | DL300-5, DL320-7, DL350-5, DL380-7 |
| HITACHI | ZW220, ZW250 |
| HYUNDAI | HL960, HL760 |
| JCB | 456, 457 |
| JOHN DEERE | 644, 724 |
| KOMATSU | WA380, WA430 |
| KUBOTA | |
| LIEBHERR | L556X |
| LINK-BELT | L150 |
| NEW HOLLAND | LW190 |
| SANY | SW405 |
| TAKEUCHI | |
| VOLVO | L110, L120 |
| WACKER NEUSON | |
| YANMAR |
