DESCRIPTION

9/25

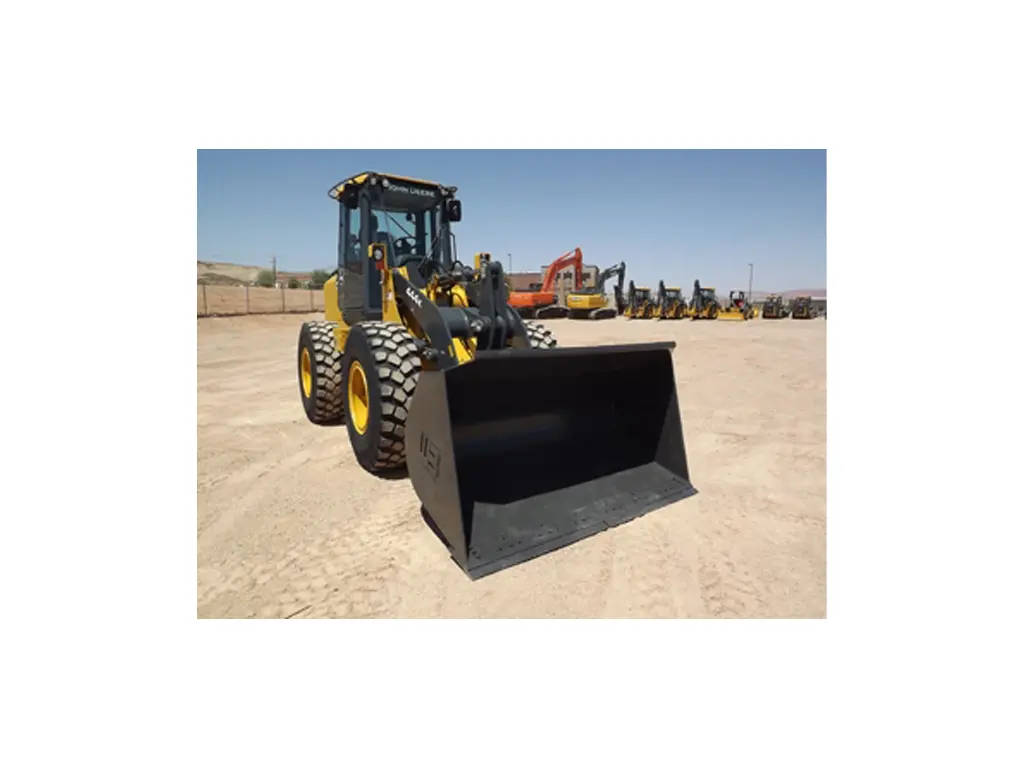

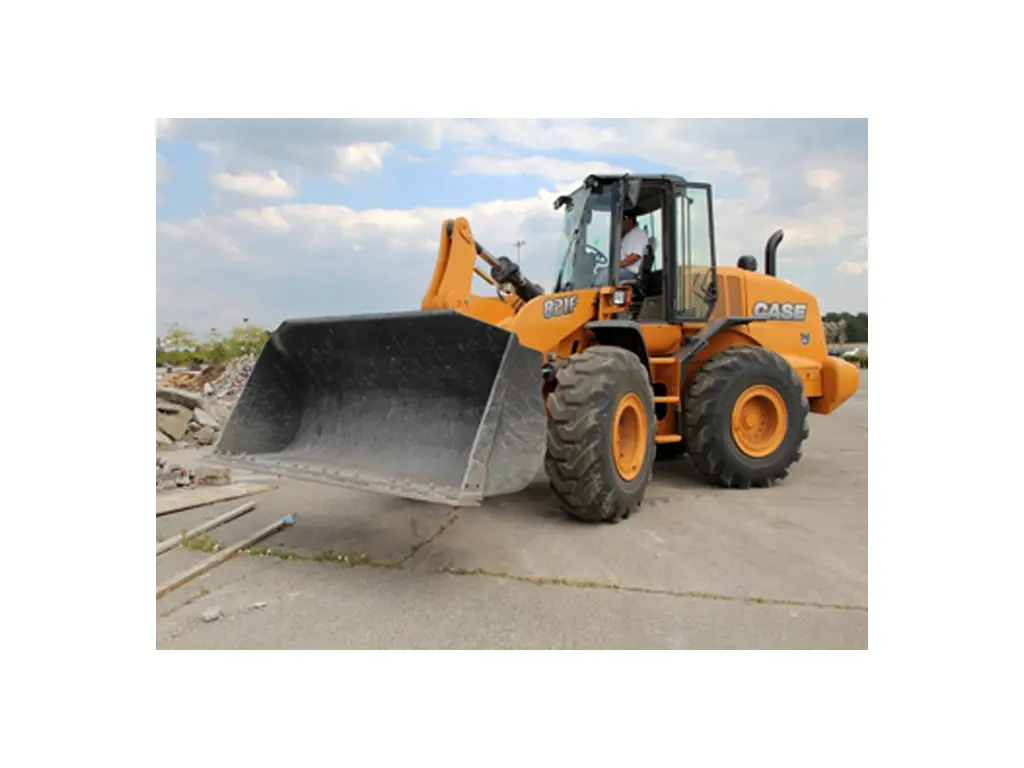

GENERAL PURPOSE BUCKETS

Recommended Applications

Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.

Features

• Enhanced High performance Profile
• Designed for general purpose applications with material densities up to 3,200 lb/cy
• Performance side plates & increased roll back angle allow for greater material retention
• 5%+ greater material retention
• Tapered side plates to reduce wear & easier dumping
• integrated spill guard

SPECIFICATIONS

PART #	WIDTH	CAPACITY	WEIGHT
LHG5124475	124″	4.75	4650
LHG5124500	124″	5.00	4750
LHG5124525	124″	5.25	4900
LHG5124550	124″	5.50	5020
LHG5124575	124″	5.75	5120
LHG5124600	124″	6.00	5250
LHG5124625	124″	6.25	5380

FITS

CLASS 5

CLASS 5 (43,000 – 51,000 LBS)	MODEL
CASE	1021G, 1121G
CAT	966, 970
DEVELON	DL420-5, DL420-7, DL450-5, DL450-7
HITACHI	ZW310, ZX330
HYUNDAI	HL970, HL770
JCB
JOHN DEERE	744, 824
KOMATSU	WA470, WA480
KUBOTA
LIEBHERR	L566X
LINK-BELT
NEW HOLLAND	LW230
SANY
TAKEUCHI
VOLVO	L150
WACKER NEUSON
YANMAR
