DESCRIPTION

7/25

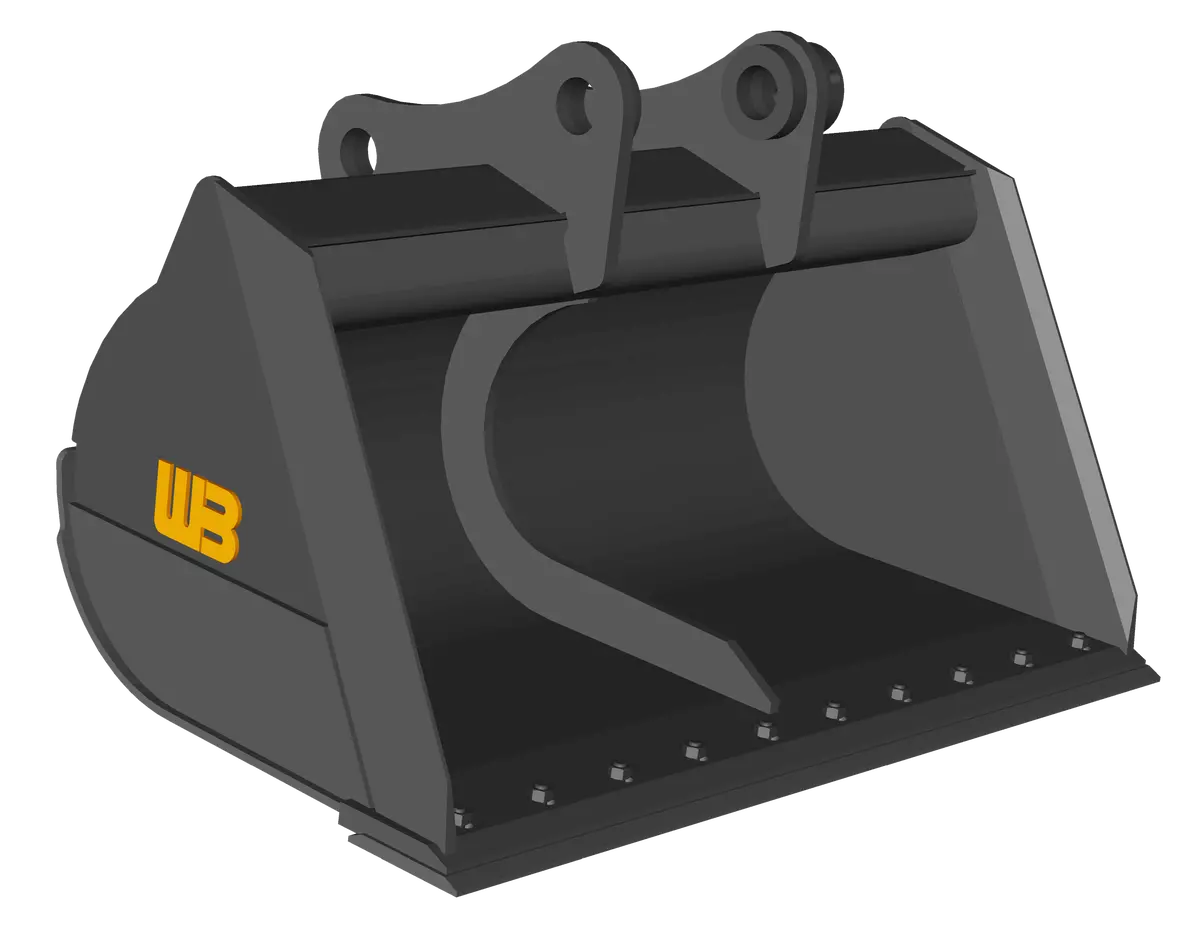

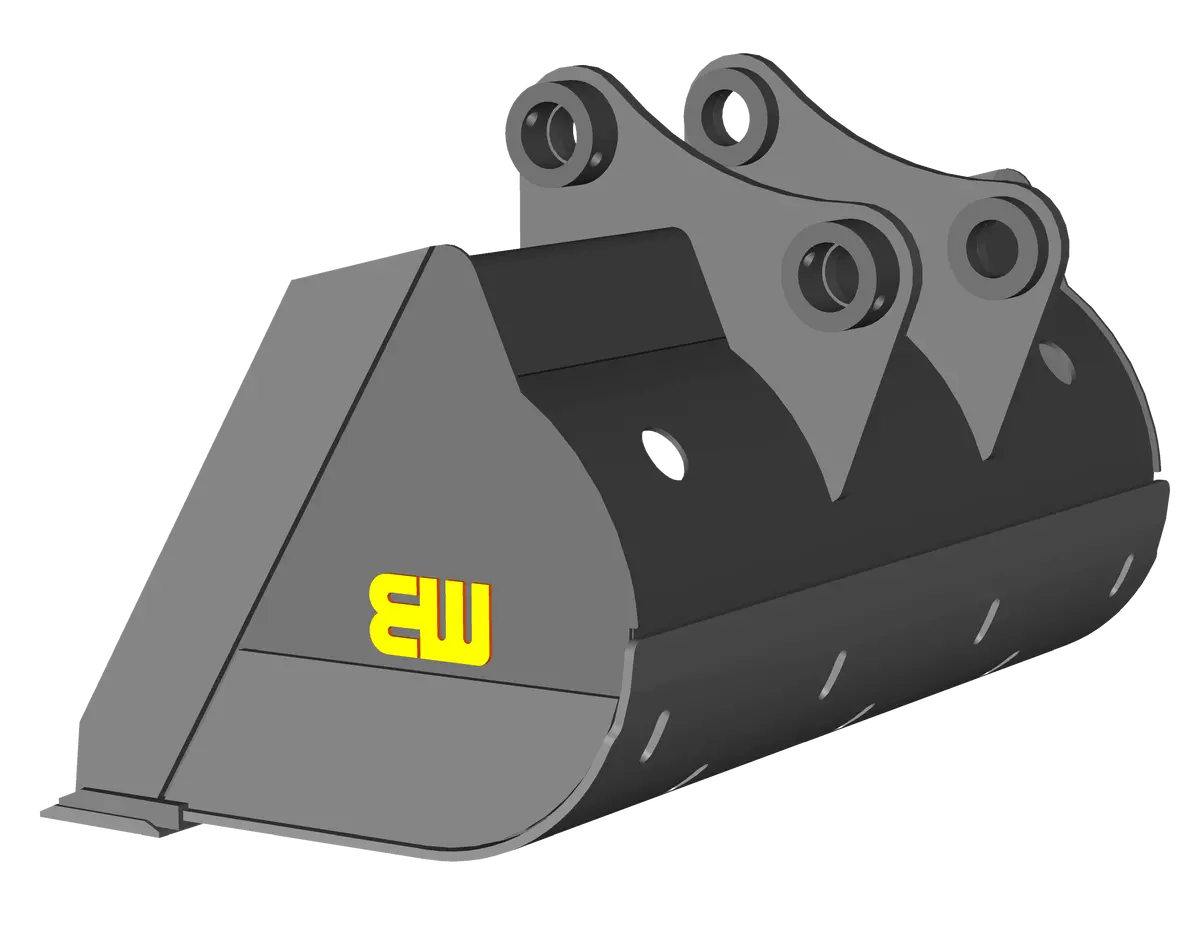

SEVERE DUTY DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work.

Construction

T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. This bucket features a double bottom, side wear guards, and a center rib. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48″ – 84″, and capacities of .64 cu. yd. – 4.0 cu. yd.

Additional Features

The Severe duty features all the same features as the standard duty, but is built to handle greater stress. This bucket features a double bottom, side wear guards, and a center rib.

SPECIFICATION

PART #	WIDTH	CAPACITY	WEIGHT
5SDDCG60	60″	1.48	3,475
5SDDCG66	66″	1.63	3,700
5SDDCG72	72″	1.78	3,975
5SDDCG78	78″	1.92	4,200
5SDDCG84	84″	2.07	4,225

FITS

MAKE / WEIGHT CLASS	40MT (82,500 – 105,000 LBS.)
CASE	CX470, CX490
CAT	349F
DOOSAN	DX480, DX490LC-5
HITACHI	ZX450, ZX470, ZX490
HYUNDAI	HX480
JOHN DEERE	470G, 470P
KOBELCO	SK480, SK485, SK500
KOMATSU	PC400, PC450, PC490
LIEBHERR	R 944
LINK BELT	460, 470, 490X4
SANY	SY500
TAKEUCHI
VOLVO	EC460, EC480
