DESCRIPTION

7/25

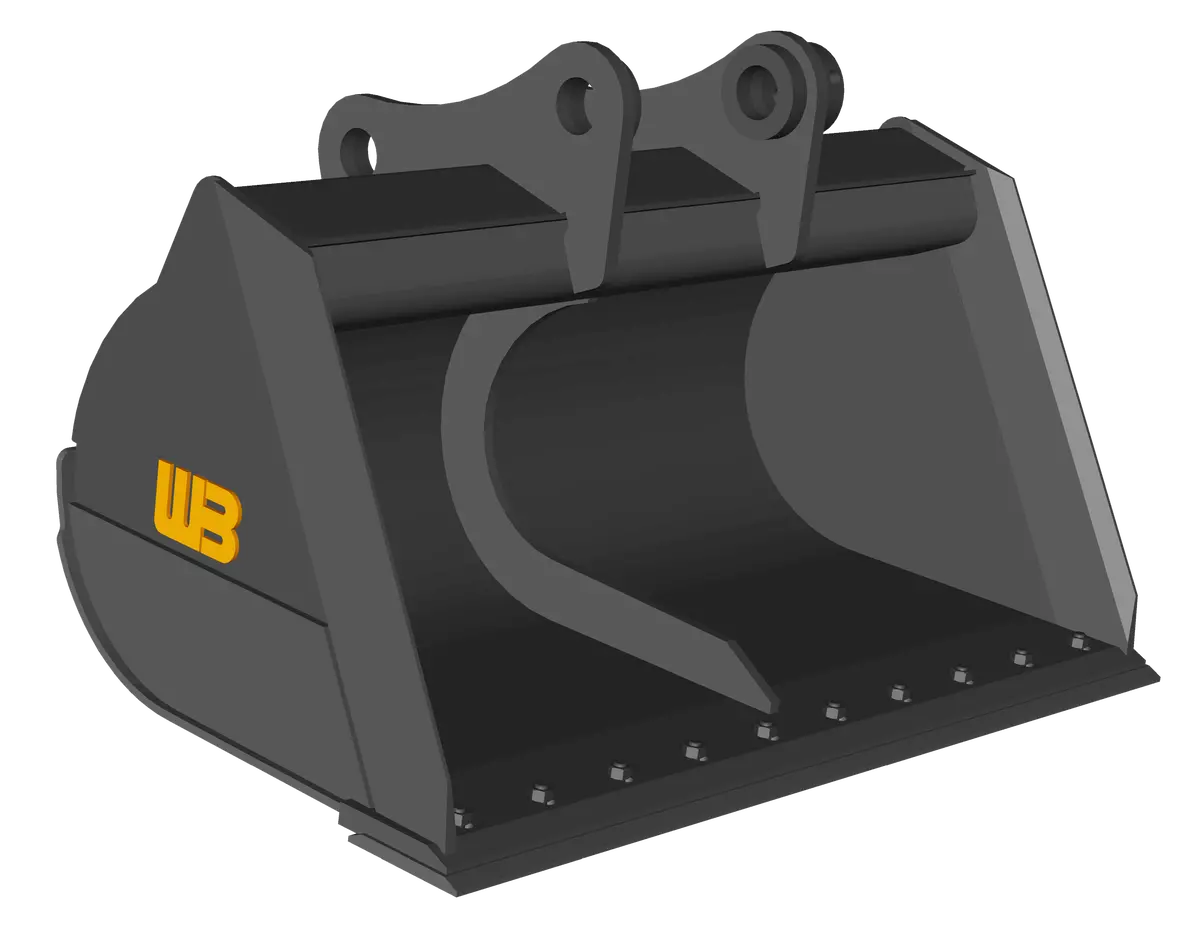

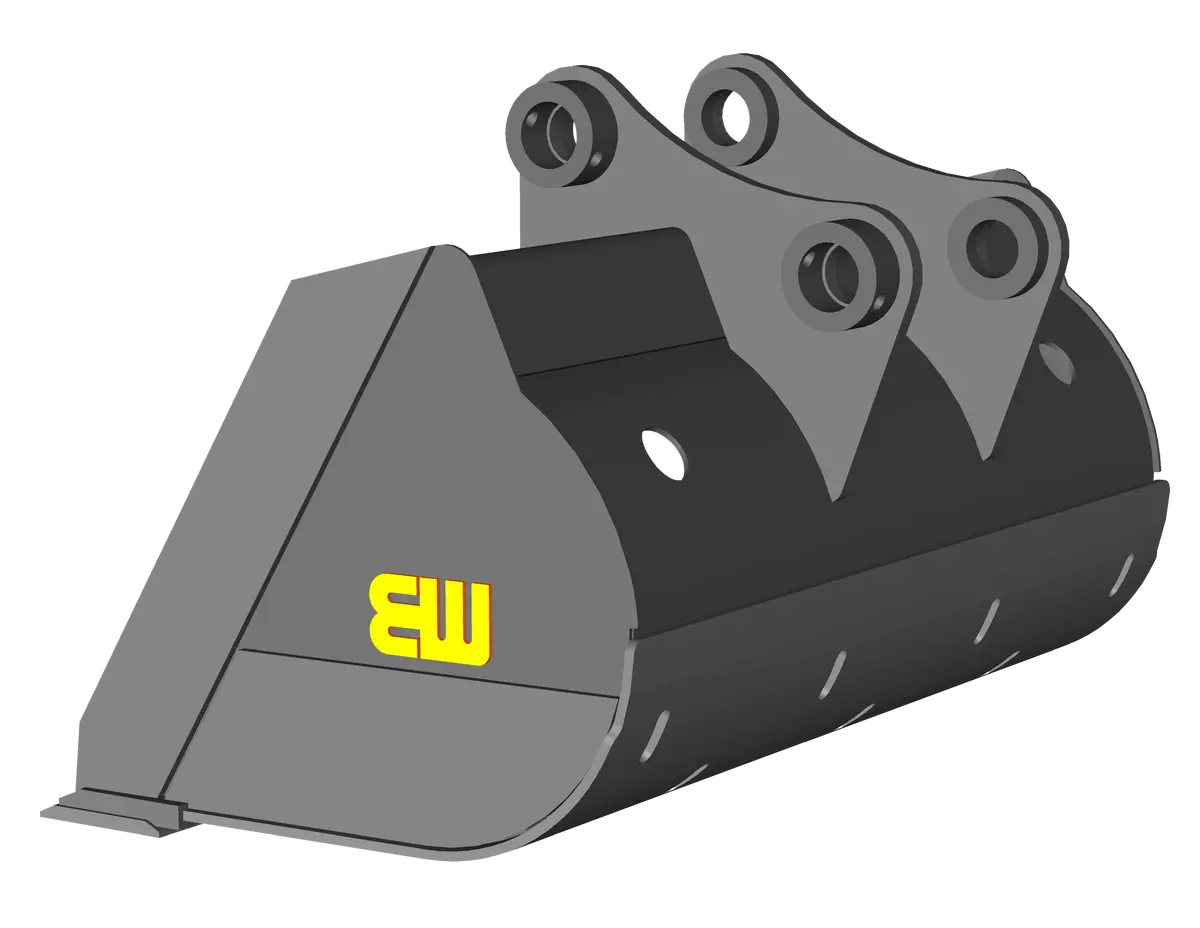

SEVERE DUTY DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work.

Construction

T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. This bucket features a double bottom, side wear guards, and a center rib. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48″ – 84″, and capacities of .64 cu. yd. – 4.0 cu. yd.

Additional Features

The Severe duty features all the same features as the standard duty, but is built to handle greater stress. This bucket features a double bottom, side wear guards, and a center rib.

SPECIFICATION

PART #	WIDTH	CAPACITY	WEIGHT
4SDDCG54	54″	1.24	2,800
4SDDCG60	60″	1.38	2,975
4SDDCG66	66″	1.51	3,000
4SDDCG72	72″	1.61	3,175
4SDDCG78	78″	1.79	3,350

FITS

MAKE / WEIGHT CLASS	35MT (68,500 – 82,000 LBS.)
CASE	CX350
CAT	330, 335, 336F DB-LINKAGE
DOOSAN	DX350LC-5, DX420LC-5
HITACHI	ZX350, ZX380
HYUNDAI	HX330, HX350, HX380
JOHN DEERE	350G, 380G, 350P
KOBELCO	SK350
KOMATSU	PC300, PC350, PC360, PC390
LIEBHERR	R 934 CL, R 924 C, R936
LINK BELT	350X4
SANY	SY365
TAKEUCHI
VOLVO	EC330, EC340, EC350, EC360, EC380
