DESCRIPTION

7/25

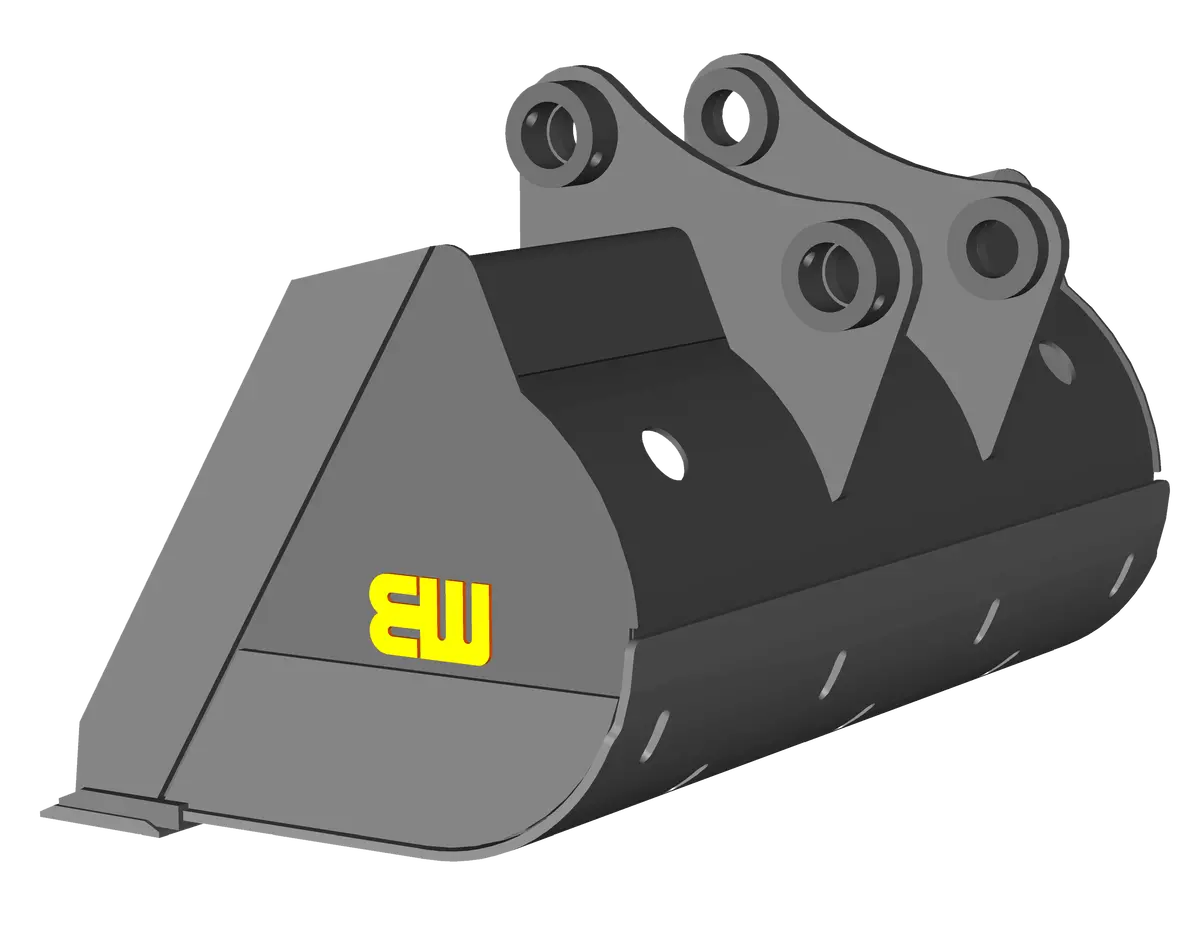

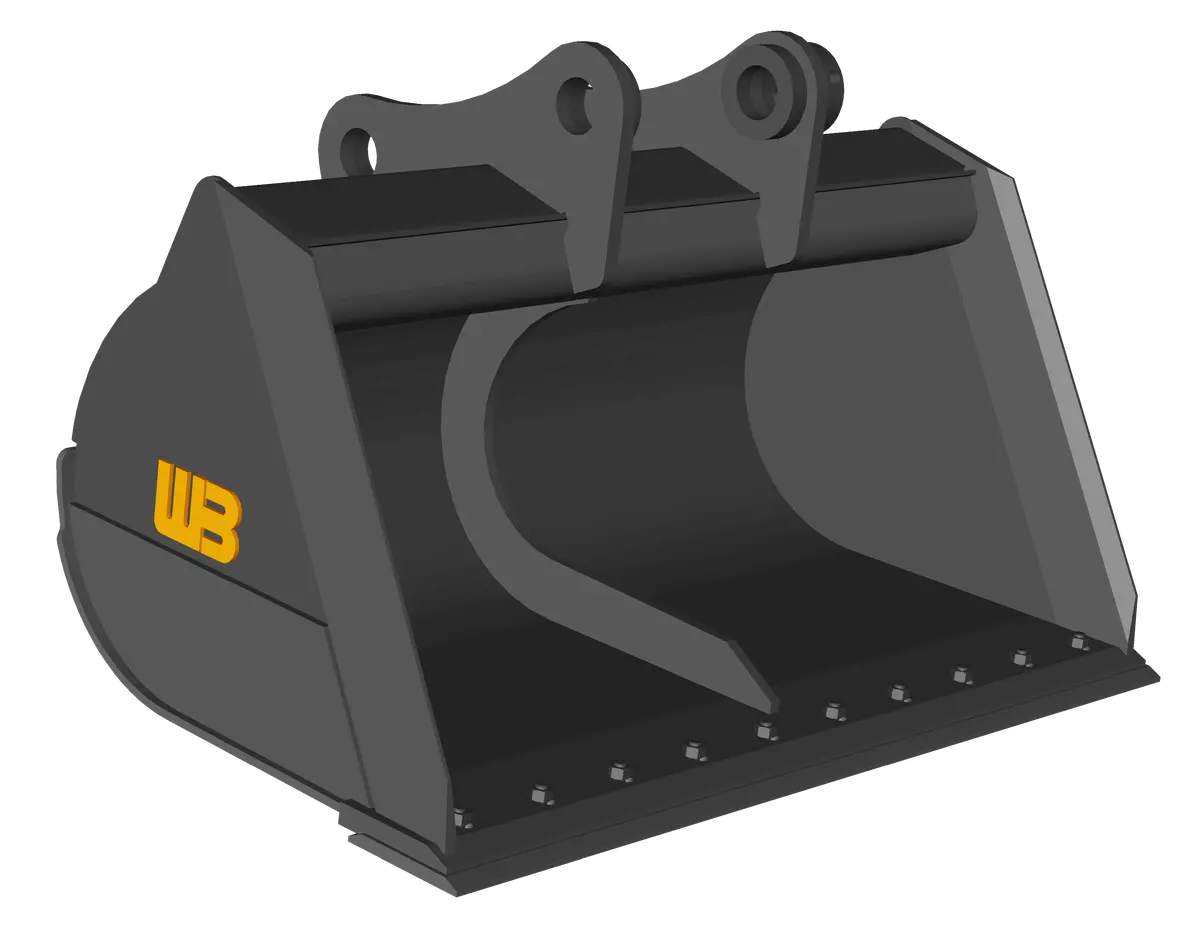

SEVERE DUTY DITCHING & GRADING BUCKETS

Recommended Applications

Specifically designed for ditch maintenance and construction. Also useful in grading and slope work.

Construction

T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes. This bucket features a double bottom, side wear guards, and a center rib. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Teeth are not used on these buckets due to the application.

Standard Sizes

Standard widths range from 48″ – 84″, and capacities of .64 cu. yd. – 4.0 cu. yd.

Additional Features

The Severe duty features all the same features as the standard duty, but is built to handle greater stress. This bucket features a double bottom, side wear guards, and a center rib.

SPECIFICATION

PART #	WIDTH	CAPACITY	WEIGHT
3SDDCG54	54″	1.13	2,250
3SDDCG60	60″	1.25	2,425
3SDDCG66	66″	1.38	2,625
3SDDCG72	72″	1.51	2,800

FITS

MAKE / WEIGHT CLASS	30MT (59,500 – 68,000 LBS.)
CASE	CX300, CX365E
CAT	326, 328, 329, 335F, CB-LINKAGE
DOOSAN	DX300LC-5, DX300LC-5SLR
HITACHI	ZX300, ZX345
HYUNDAI	HX300
JOHN DEERE	300G, 345G, 300P
KOBELCO	SK300
KOMATSU	PC270, PC290, PC308
LIEBHERR
LINK BELT	300X3, 300X4, 355X4
SANY	SY305, SY335
TAKEUCHI
VOLVO	EC290, EC300, EC305, ECR355
