DESCRIPTION

7/25

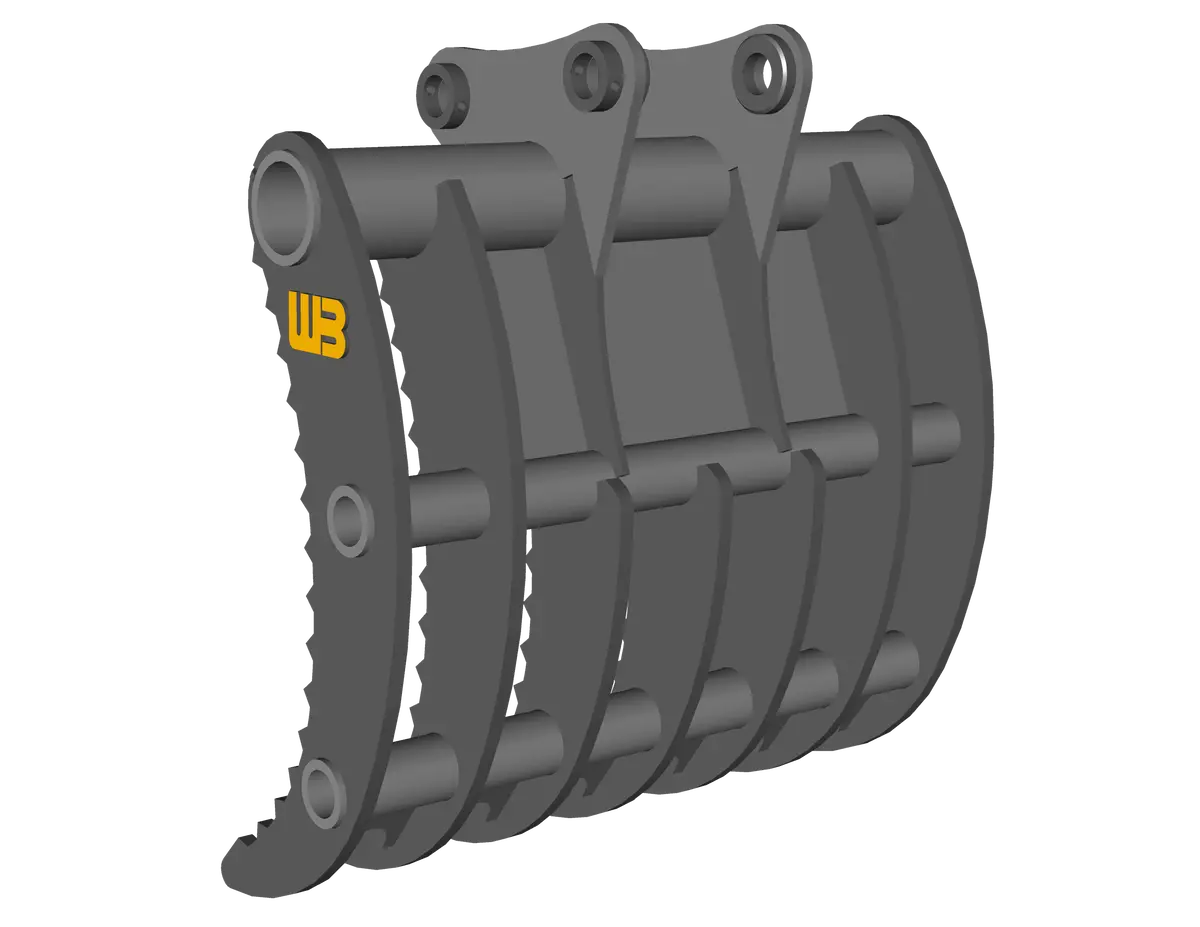

Grading Rake

Recommended Applications

Werk-Brau’s excavator grading rake is specifically designed for land clearing and gathering of demolition debris. An additional for this rake also includes sorting of material. This attachment replaces the bucket. This grading rake is not designed to dig or rip soil. This grading rake can also be integrated with a thumb for duel hydraulic grapple action.

Quality Construction

Werk-Brau’s grading rake is built using 2 skins for added strength. Wear resistant high strength steel is used extensively throughout the weldment and rakes construction. Each tooth is heavy duty and supported by reinforcing plates. Gussets are placed between tines for added strength.

Cutting Equipment Options

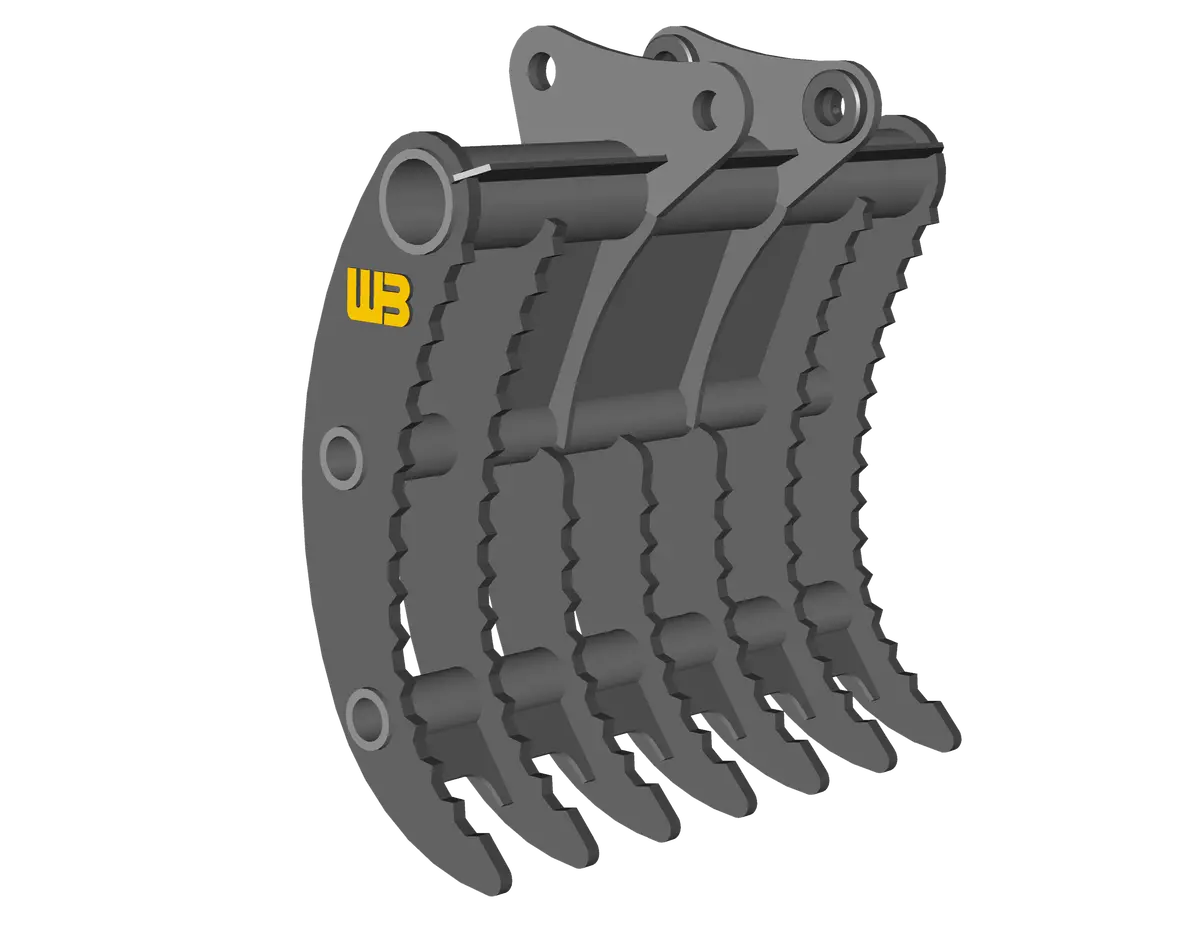

Serrated tines are available.

Standard Sizes

The grading rake can come in a variety of special widths.

SPECIFICATIONS

PART #	WIDTH	TINES	WEIGHT
EX2GR42	42″	5	1,324
EX2GR48	48″	6	1,728
EX2GR60	60″	7	2,038

 MACHINE FITS

20 METRIC TONS

MAKE / WEIGHT CLASS	20MT (42,000 – 50,000 LBS.)
CASE	CX210, CX220E, CX235, CX245
CAT	320, 321, M322F, 323 (B-Linkage)
DOOSAN	DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5
HITACHI	ZX180, ZX200, ZX210, ZX245
HYUNDAI	HX220, HX235
JOHN DEERE	210G, 245G, 180P, 210P, 190GW, 230GW
KOBELCO	SK210, SK230SR, SK260, SK270SR
KOMATSU	PC210-11, PC228, PC238
LIEBHERR	R 920 L, 922 L
LINK BELT	210X4, 234X4, 245X4
SANY	SY215
TAKEUCHI
VOLVO	EC200, EW210, EC210, EC220, ECR235

25 METRIC TONS

MAKE / WEIGHT CLASS	25MT (50,000 – 59,000 LBS.)
CASE	CX250, CX260E
CAT	325, 326F
DOOSAN	DX255LC-5
HITACHI	ZX240, ZX250
HYUNDAI	HX260
JOHN DEERE	250G, 250P
KOBELCO	SK260LC
KOMATSU	PC240
LIEBHERR	R 916 L, R 924 L, R 934 CD
LINK BELT	250X3, 250X4
SANY	SY235, SY265
TAKEUCHI
VOLVO	EC240, EC250
